Product Description

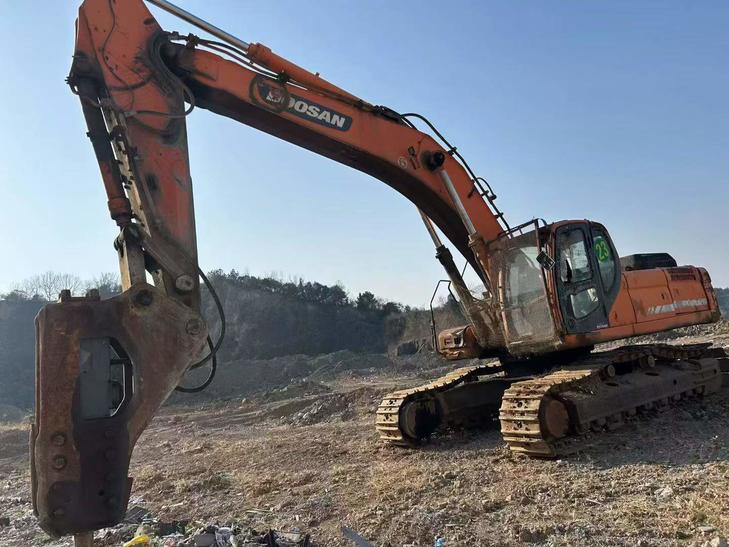

Available now in Jiangsu, China: a 2014 Doosan DX420LC hydraulic excavator in operational condition. This 42-ton class crawler excavator has been inspected and confirms good working performance across hydraulic, engine, and undercarriage systems.
The DX420LC is known for reliable productivity in earthmoving, site development, and heavy excavation applications. This unit represents a cost-effective entry point for contractors requiring proven mid-size excavation capacity.
- Year of manufacture: 2014
- Model: Doosan DX420LC
- Operating weight class: approximately 42 tonnes
- Current location: Jiangsu Province, China
- Condition: functional, performance verified
- Ready for immediate deployment
Pricing reflects current market position for a decade-old machine with confirmed operational status. Suitable for buyers seeking value in the used excavator segment without compromising on brand heritage.
| Specifications | Value |
|---|---|
| No. | 1143918 |
| Tonnage (tons) | 42 |
| Working weight (kg) | 41500 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6700 |
| Rod length (mm) | 3250 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DE12TIS |
| Rated power (kw/rpm) | Net 218(293) / 2000 |
| Cylinder diameter × stroke (mm) | 123 x 155 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Mechanical full speed regulation |
| Ground specific pressure (Kpa) | 73.6 |
| Rotation speed (rpm) | 9.1 |
| Bucket digging force (kN) | 270 |
| Rod digging force (kN) | 201 |
| Travel speed (km/h) | 5.5 / 3.3 |
| Turning torque (Nm) | 127 |
| Main overflow set pressure (Mpa) | 31.4 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 315 |
| Traveling Hydraulic Circuit (Mpa) | 31.4/ Supercharging 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.7 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 31.4/ Supercharging 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160 x 110 x 1320 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-180 x 120 x 1820 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-165 x 115 x 1460 |
| Fuel Tank (L) | 550 |
| Hydraulic Tank (L) | 390 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 29.5 |
| Hydraulic System (L) | 420 |
| Total transport length (mm) | 11660 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3,350(to top of arm) |
| Full cab height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1,265 |
| Minimum ground clearance (mm) | 540 |
| Minimum turning radius of front working device (mm) | 4,380 |
| Back end turning radius (mm) | 3,660 |
| Onboard width (mm) | 2,990 |
| Total track length (mm) | 5,200 |
| Track gauge (mm) | 4,250 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 11495 |
| Maximum digging depth (mm) | 7730 |
| Maximum excavation height (mm) | 10920 |
| Maximum unloading height (mm) | 7795 |
| Maximum vertical digging depth (mm) | 4350 |
| Maximum excavation radius of stop surface (mm) | 11,290 |
