2021 Doosan DX420LC-9C

1/14
Buy Doosan DX420LC-9C Used Excavator / 1
Buy Doosan DX420LC-9C Used Excavator / 2

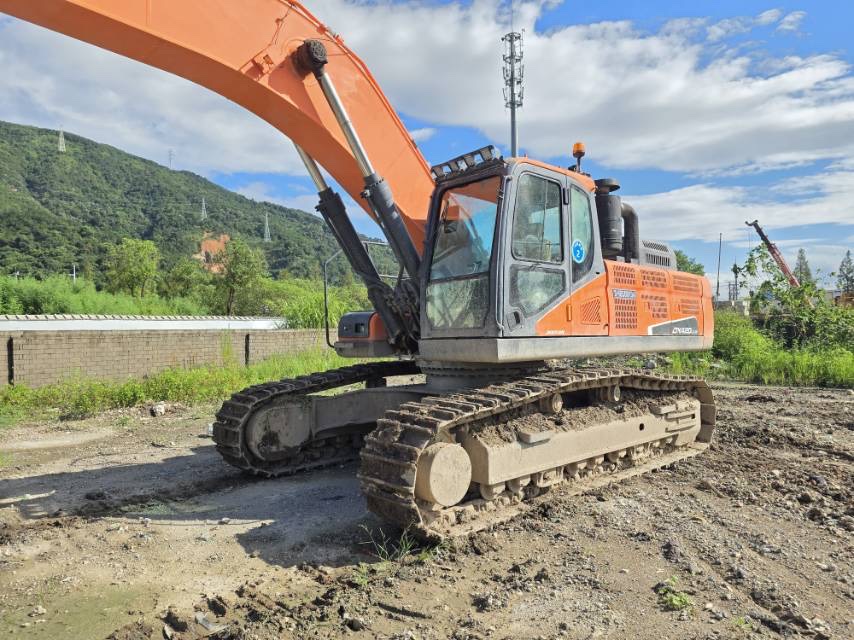

Buy Doosan DX420LC-9C Used Excavator / 3
Buy Doosan DX420LC-9C Used Excavator / 4
Buy Doosan DX420LC-9C Used Excavator / 5

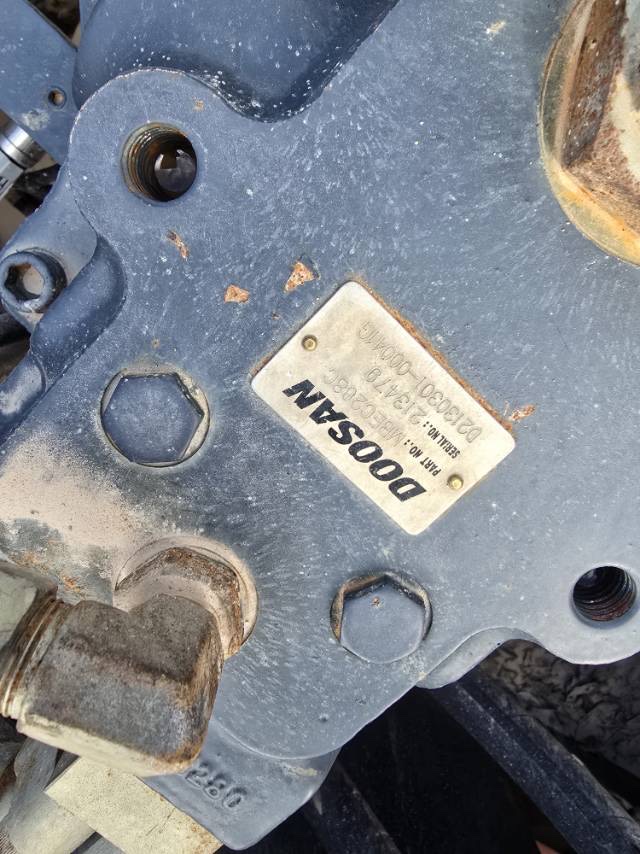

Buy Doosan DX420LC-9C Used Excavator / 6
Buy Doosan DX420LC-9C Used Excavator / 7
Buy Doosan DX420LC-9C Used Excavator / 8
Buy Doosan DX420LC-9C Used Excavator / 9
Buy Doosan DX420LC-9C Used Excavator / 10

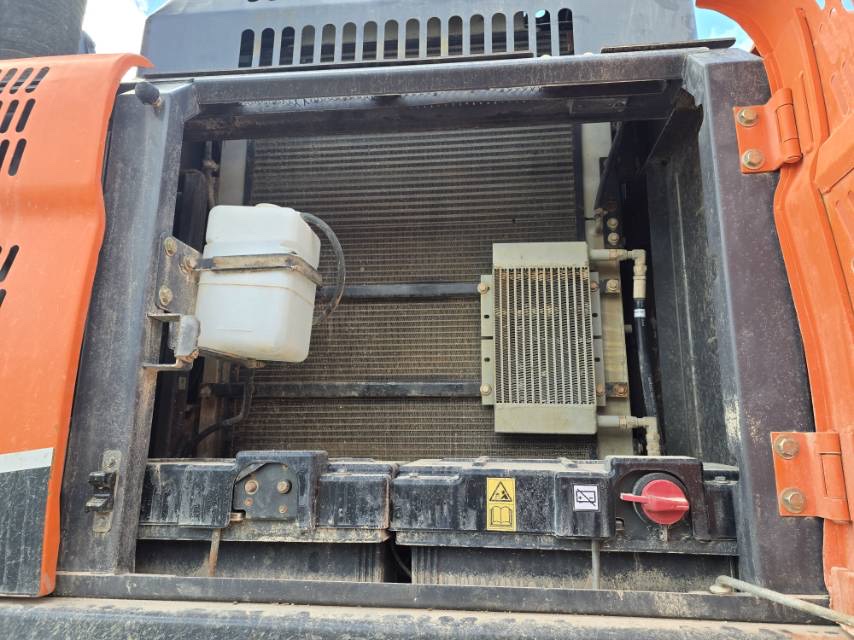

Buy Doosan DX420LC-9C Used Excavator / 11
Buy Doosan DX420LC-9C Used Excavator / 12
Buy Doosan DX420LC-9C Used Excavator / 13
Buy Doosan DX420LC-9C Used Excavator / 14

Product Description

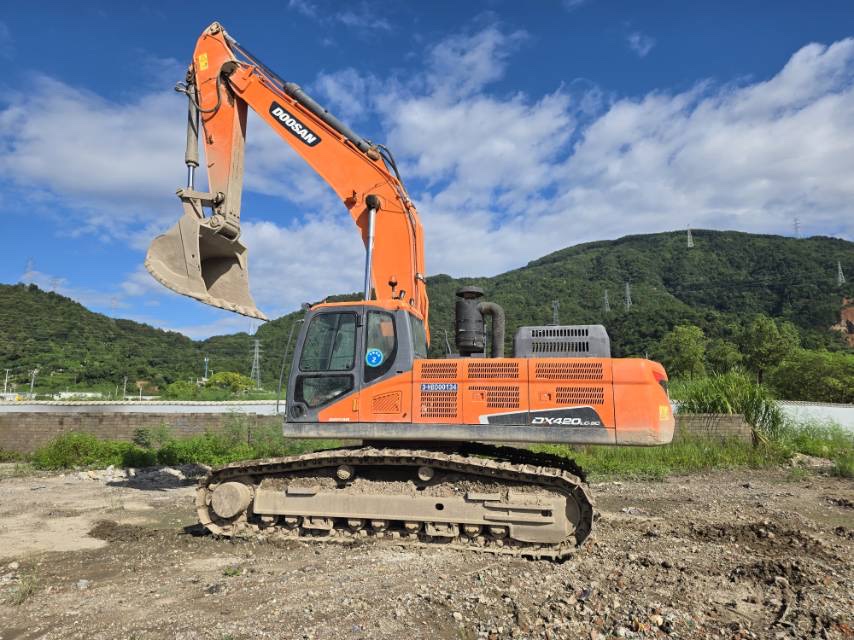

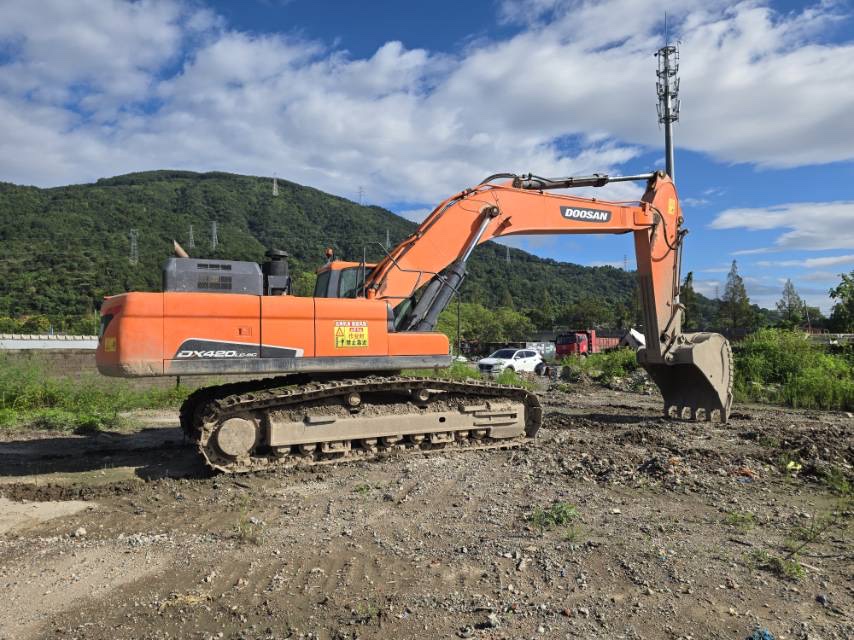

2021 Doosan DX420LC-9C excavator available from Zhejiang, China. This 42-ton class machine demonstrates excellent operational condition with comprehensive mechanical integrity. The undercarriage shows approximately 90% remaining life, indicating minimal wear and proper maintenance throughout its service period.

Key features include:

  • Factory-installed air conditioning system
  • Well-maintained hydraulic system with no leaks
  • Major components in optimal working condition
  • Clean service history with regular maintenance
  • Ready for immediate deployment

The DX420LC-9C offers reliable performance for heavy excavation, quarrying, and large-scale earthmoving operations. This unit represents a cost-effective alternative to new equipment while delivering the productivity and fuel efficiency expected from Doosan's Generation 9 series. Suitable for contractors and fleet operators seeking proven machinery with substantial remaining operational life.

SpecificationsValue
No.1156697
Tonnage (tons)42
Working weight (kg)42400
Bucket capacity (m³)2
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

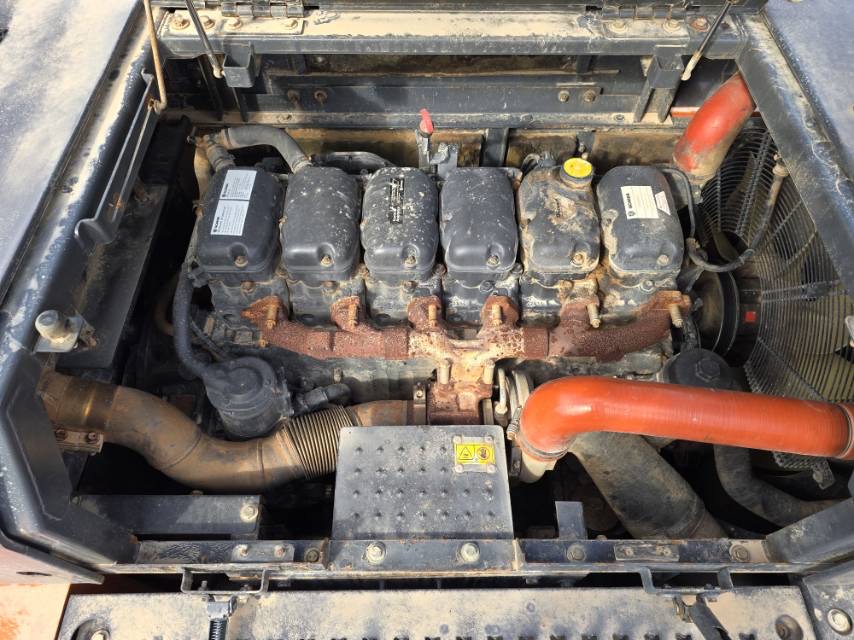

Engine typeScania DC13
Rated power (kw/rpm)245/1800
Cylinder diameter × stroke (mm)130 x 160
Number of cylinders (PCS)6
Displacement (L)12.7
Ground specific pressure (Kpa)78
Rotation speed (rpm)8.6
Bucket digging force (kN)263 / 280
Rod digging force (kN)209 / 221
Travel speed (km/h)5.1/3.2 (High/Low)
Turning torque (Nm)13250
Type of walking hydraulic motorAxial piston pump ×2
Maximum flow of main pump (l/min)2*335
Bucket cylinders - Number × diameter × stroke (mm)1-160 x 110 x 1320
Bucket rod cylinders - Number × diameter × stroke (mm)1-180 x 120 x 1820
Boom cylinders - Number × diameter × stroke (mm)2-165 x 115 x 1485
Fuel Tank (L)640
Hydraulic Tank (L)390
Total transport length (mm)11835
Total transport width (mm)3350
Total transport height (mm)3570
Full cab height (mm)845
Counterweight ground clearance (mm)1265
Minimum ground clearance (mm)540
Back end turning radius (mm)3760
Onboard width (mm)2990
Total track length (mm)5200
Maximum digging radius (mm)11200
Maximum digging depth (mm)7435
Maximum excavation height (mm)10625
Maximum unloading height (mm)7535
Maximum vertical digging depth (mm)3980
Maximum excavation radius of stop surface (mm)10980
see more

Overview

No.1156697

Brand Name:

Doosan

Model Number:

DX420LC-9C

Year:

2021

Hour:

4300h

Location:

Zhejiang China

Pub Date:
