HOME>>Doosan>>Doosan DX450LC-9C

2020 Doosan DX450LC-9C

1/9
Buy Doosan DX450LC-9C Used Excavator / 1

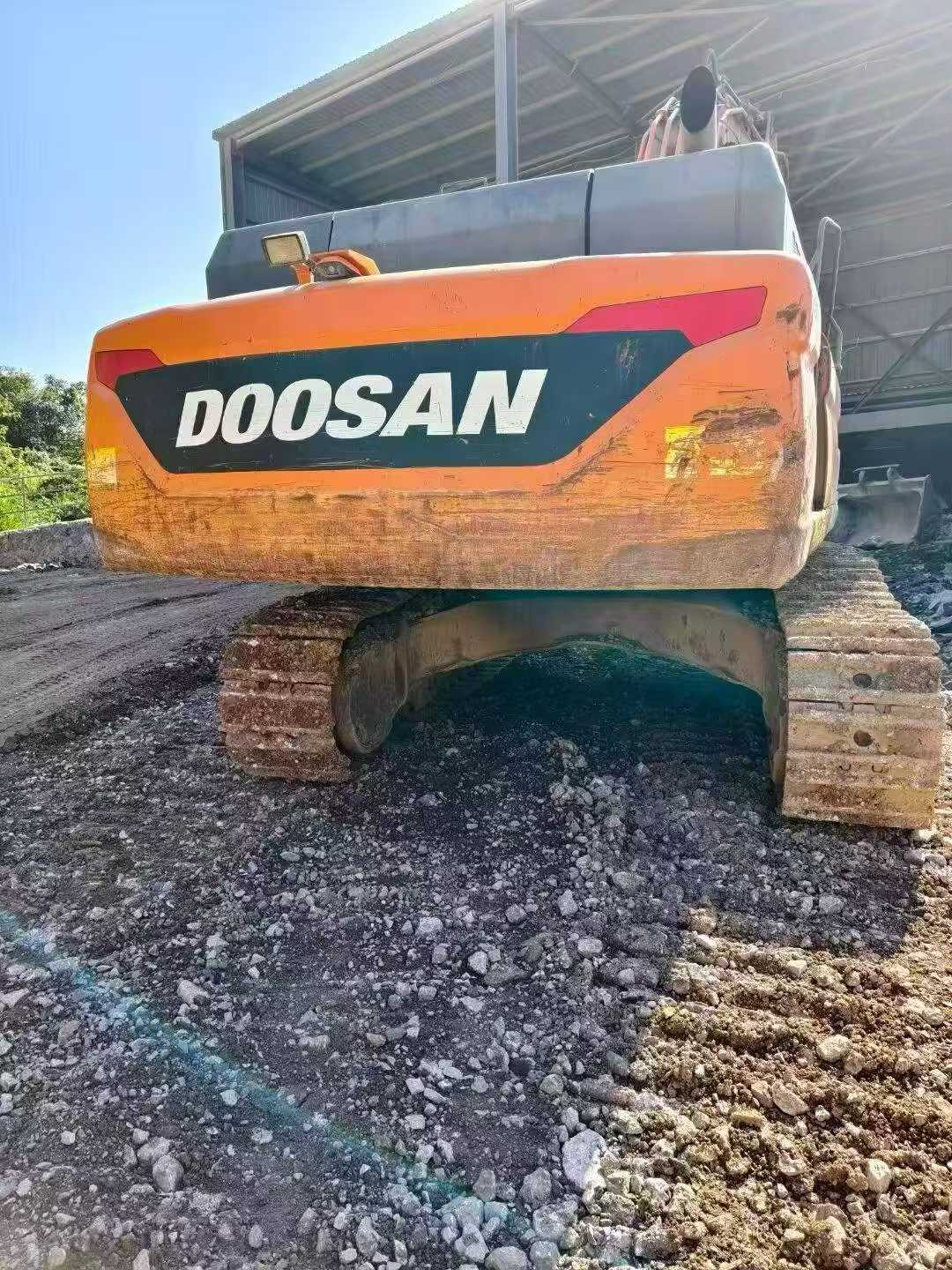

Buy Doosan DX450LC-9C Used Excavator / 2

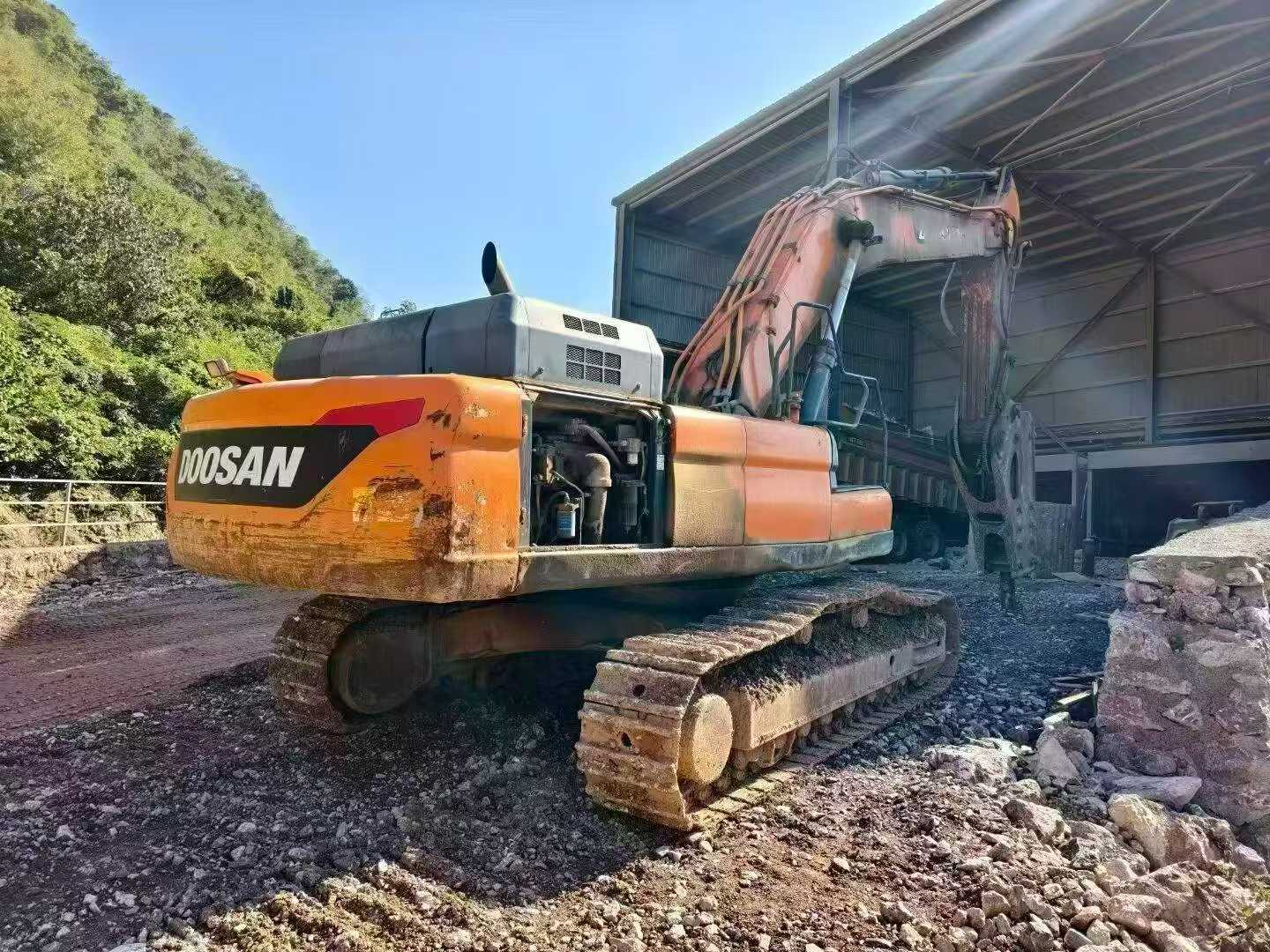

Buy Doosan DX450LC-9C Used Excavator / 3

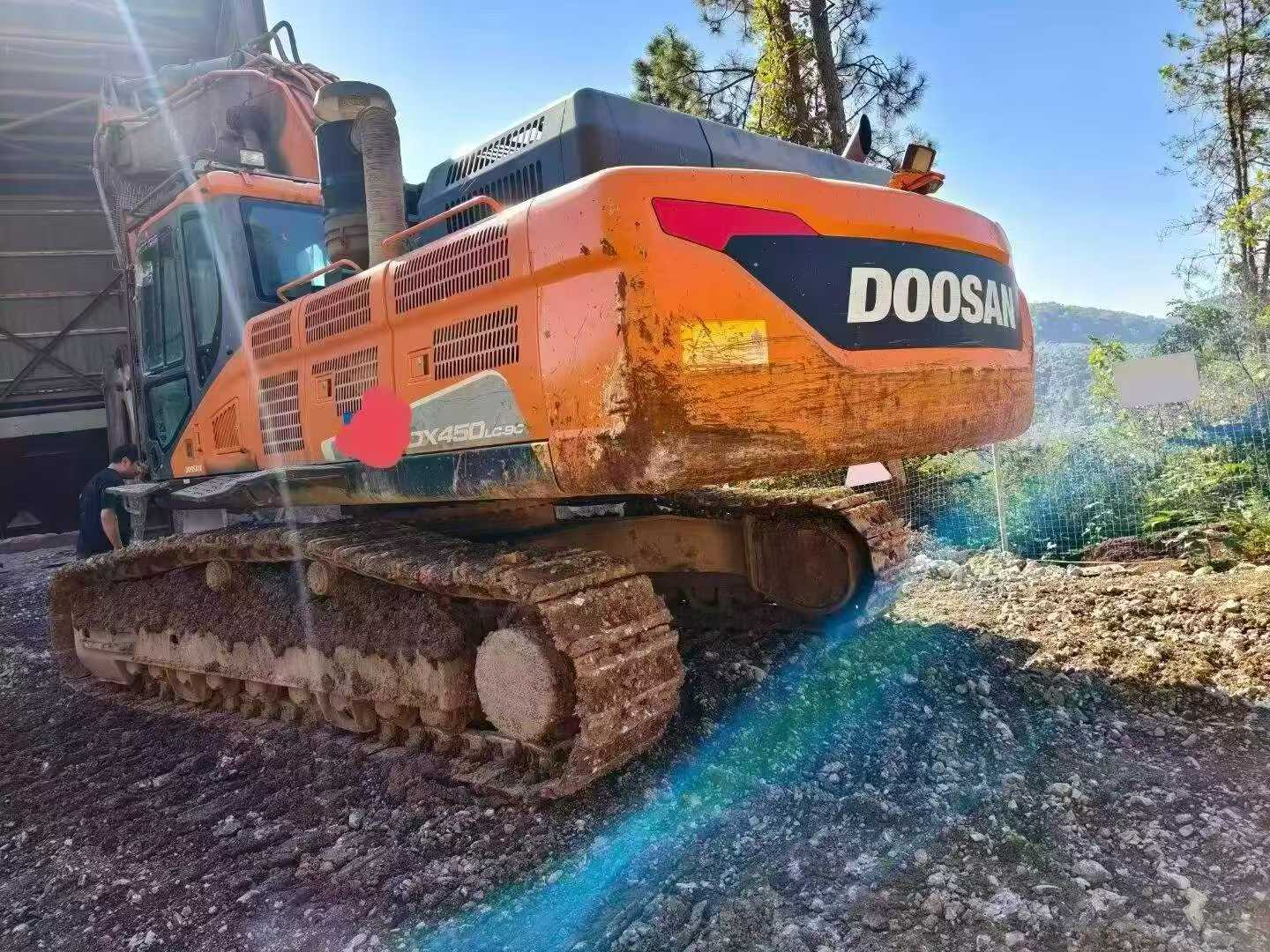

Buy Doosan DX450LC-9C Used Excavator / 4

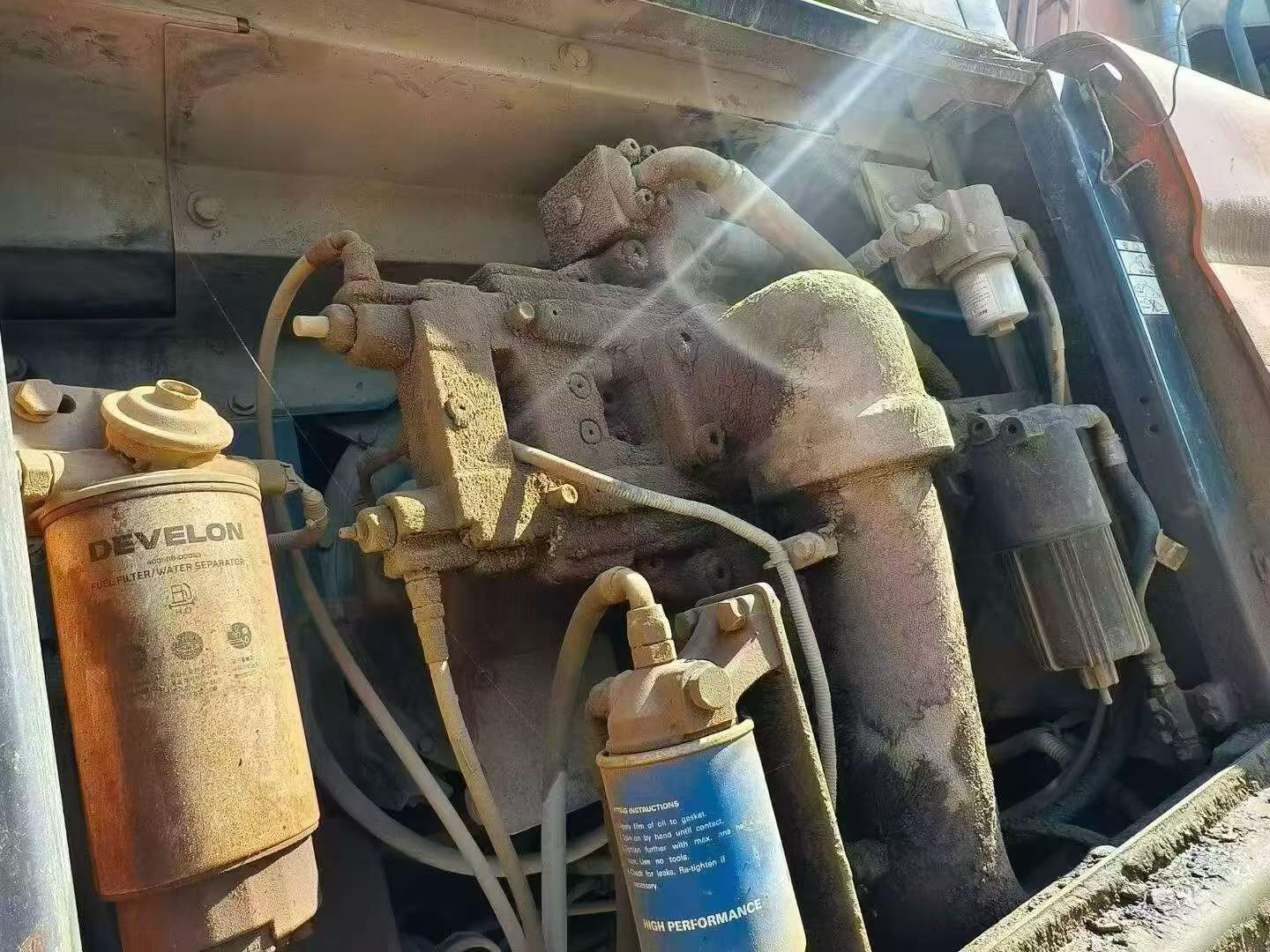

Buy Doosan DX450LC-9C Used Excavator / 5

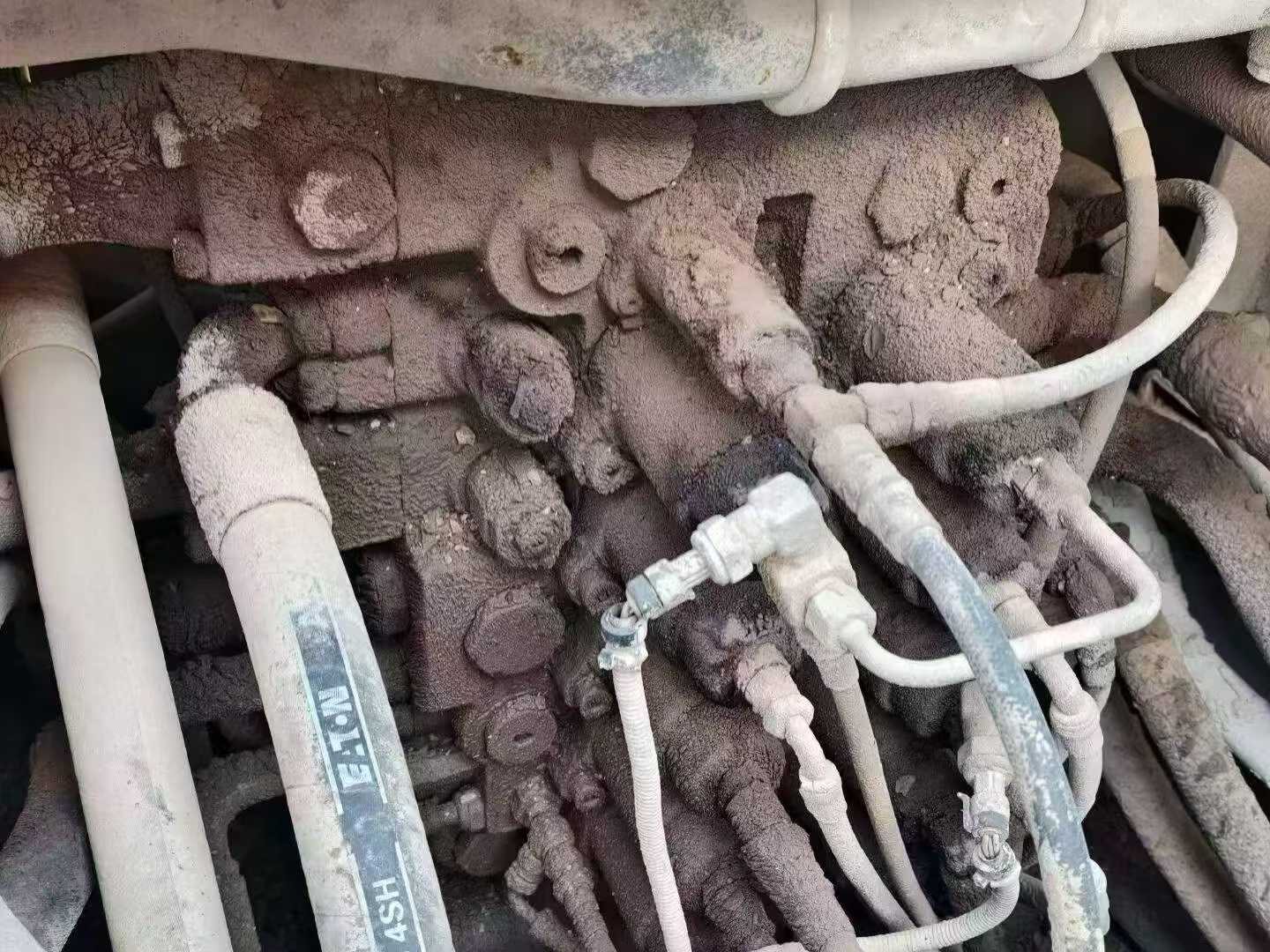

Buy Doosan DX450LC-9C Used Excavator / 6

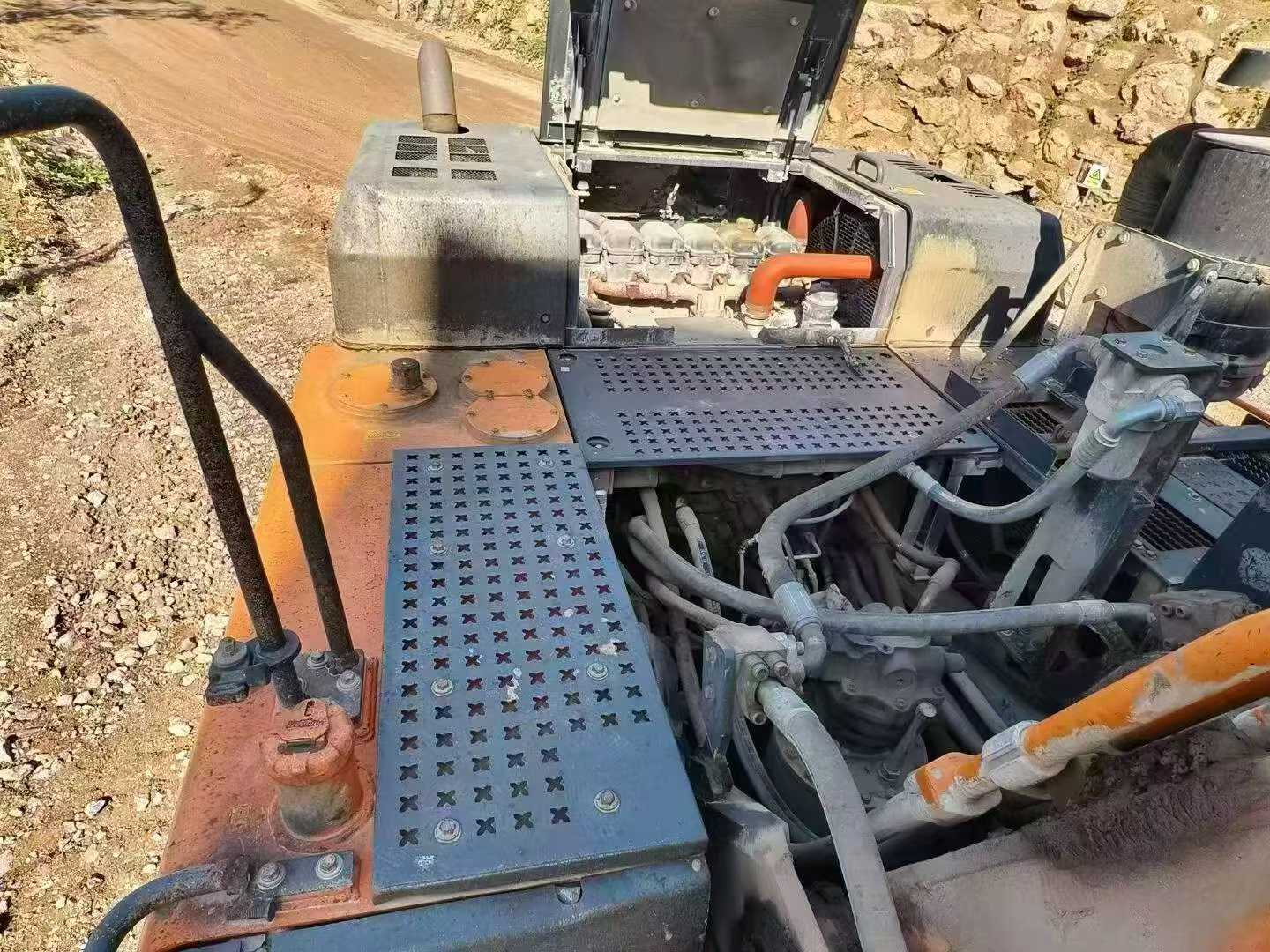

Buy Doosan DX450LC-9C Used Excavator / 7

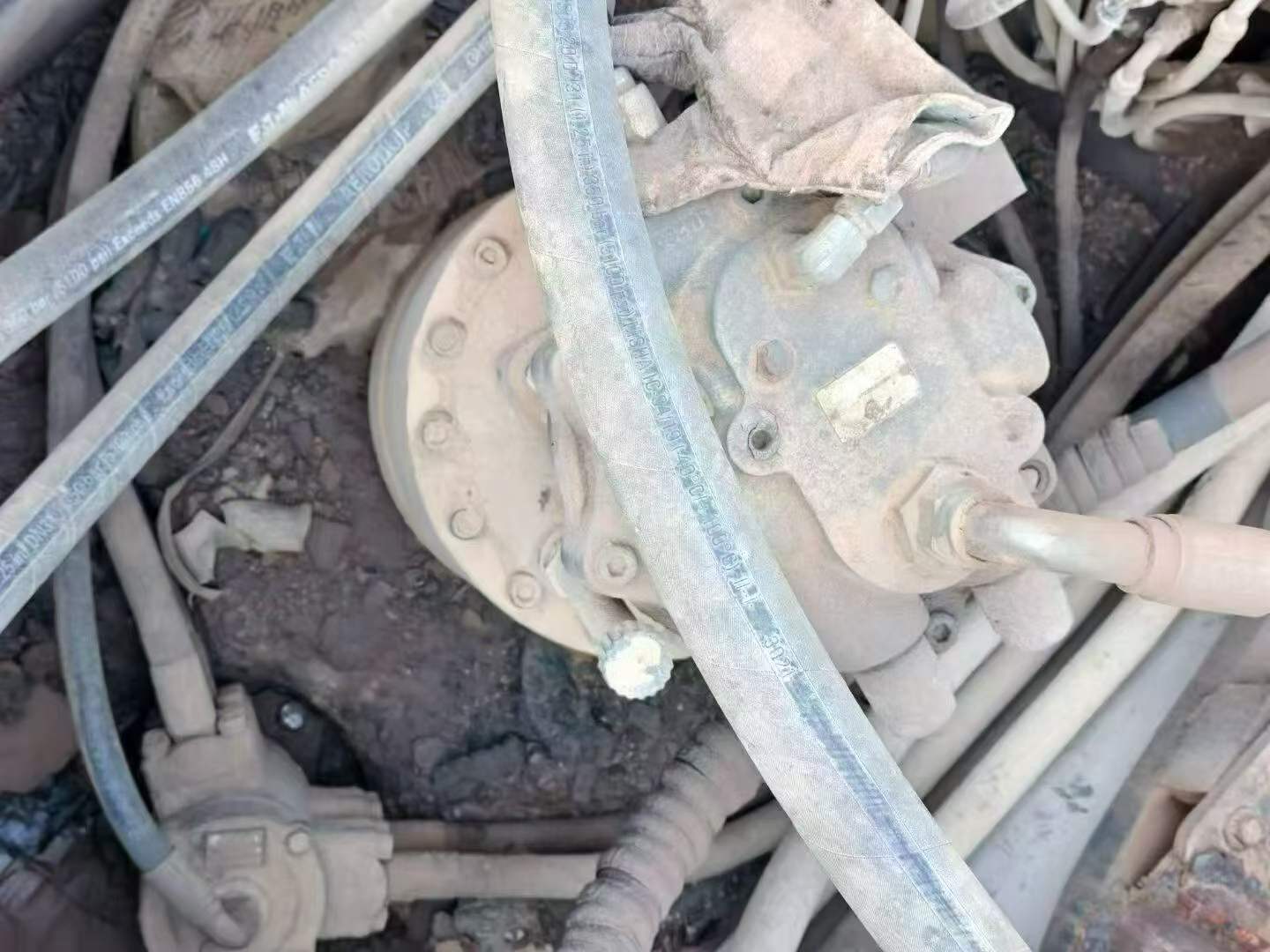

Buy Doosan DX450LC-9C Used Excavator / 8

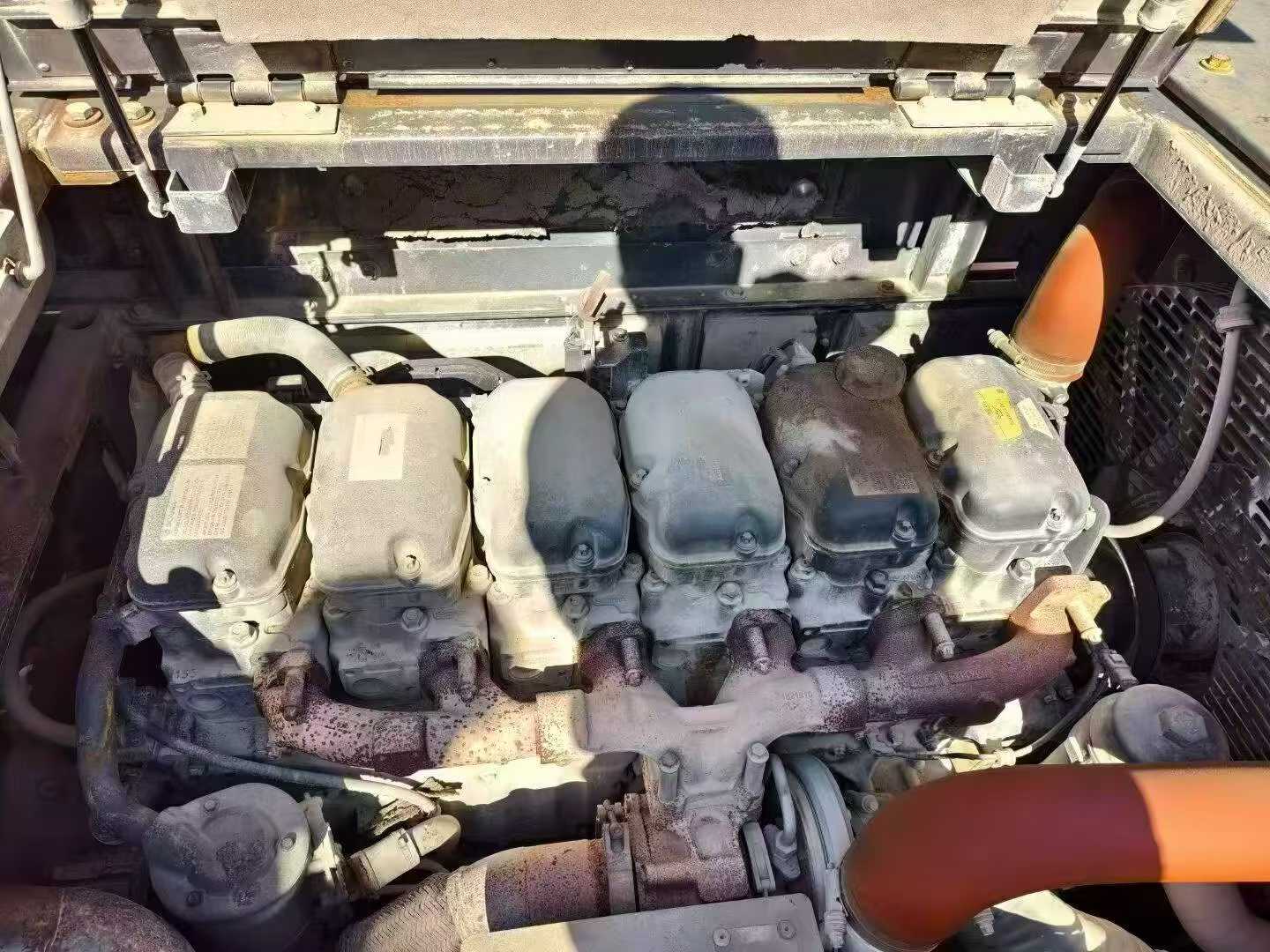

Buy Doosan DX450LC-9C Used Excavator / 9

Product Description

Available for immediate sale: 2020 Doosan DX450LC-9C hydraulic excavator currently located in Jiangsu, China. This 45-ton class machine represents Doosan's Generation 9 Series, engineered for demanding excavation and earthmoving operations. The unit is equipped with a standard bucket configuration and is being offered at competitive pricing for quick turnover.

Key specifications:

  • Model: DX450LC-9C (long-reach crawler excavator)
  • Manufacturing year: 2020
  • Operational configuration: Standard digging bucket
  • Current location: Jiangsu Province, China

The DX450LC-9C series features proven reliability in large-scale construction, mining, and infrastructure projects. This machine is available for viewing and inspection by qualified buyers. Suitable for contractors and fleet operators seeking dependable mid-life equipment. Contact for detailed operational history and pricing.

SpecificationsValue
No.1160256
Tonnage (tons)43
Working weight (kg)43000
Bucket capacity (m³)2.4
Boom length (mm)6500
Rod length (mm)2600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DC13
Rated power (kw/rpm)245/1800
Cylinder diameter × stroke (mm)130*160
Number of cylinders (PCS)6
Working formturbocharging
Rotation speed (rpm)8.6
Bucket digging force (kN)265
Rod digging force (kN)239
Travel speed (km/h)5.1/3.2
Rotary hydraulic motor typeWet multi-disc brake
Type of walking hydraulic motorAxial piston type *2
Maximum flow of main pump (l/min)2*335
Traveling Hydraulic Circuit (Mpa)32.3
Rotary Hydraulic Circuit (Mpa)27.4
Control Hydraulic Circuit (Mpa)34.3
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)32.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*110*1320
Bucket rod cylinders - Number × diameter × stroke (mm)1-180*120*1820
Boom cylinders - Number × diameter × stroke (mm)2-165*115*1485
Fuel Tank (L)612
Hydraulic Tank (L)390
Engine Oil changes (L)45
Coolant (L)49
Total transport length (mm)11870
Total transport width (mm)3350
Total transport height (mm)3680
Full cab height (mm)845
Counterweight ground clearance (mm)1230
Minimum ground clearance (mm)510
Back end turning radius (mm)3760
Total track length (mm)5200
Track plate width (mm)600
Total track width (mm)3350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)50
Maximum digging radius (mm)10915
Maximum digging depth (mm)7120
Maximum excavation height (mm)10475
Maximum excavation radius of stop surface (mm)10695
see more

Overview

No.1160256

Brand Name:

Doosan

Model Number:

DX450LC-9C

Year:

2020

Location:

Jiangsu China

Pub Date:
