Product Description

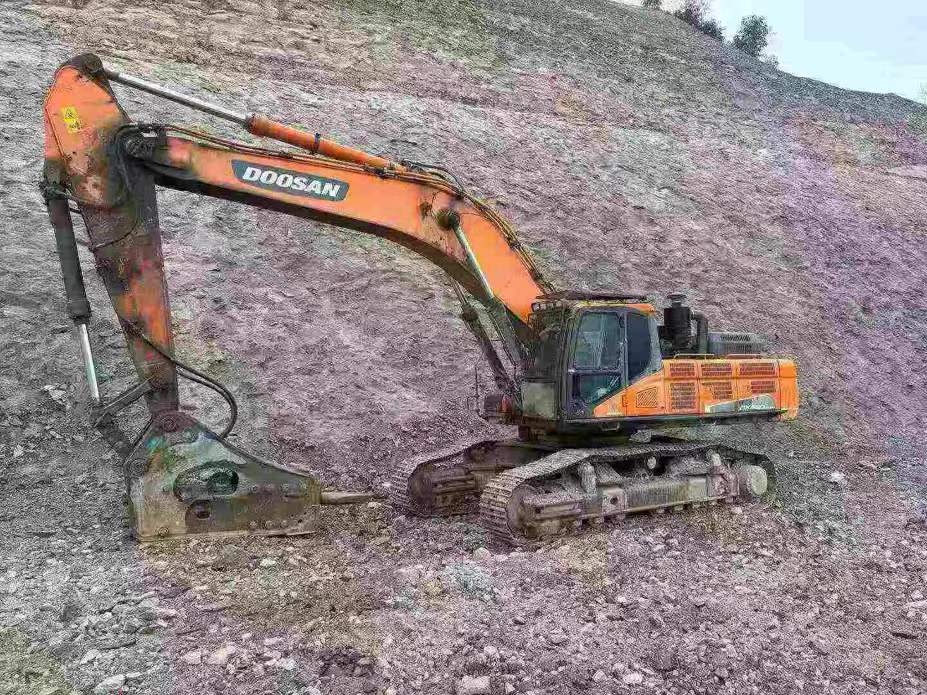

Acquiring this 2020 Doosan DX500LC-9C delivers exceptional value for operations demanding 50-ton excavation capacity without new equipment pricing. Powered by a robust Scania DC13 engine generating 257 kW at 1800 rpm, this machine combines proven reliability with cost-effective performance. Operating weight of 49,500 kg and a 2.14 m³ bucket capacity position this excavator for high-productivity earthmoving, mining, and large-scale construction projects.
Performance specifications demonstrate serious capability:
- Maximum digging reach of 12,055 mm with 7,740 mm depth
- Bucket digging force up to 303.8 kN for tough materials
- Dual variable axial piston pumps delivering 710 l/min combined flow
- 626-liter fuel tank supporting extended operational shifts
Currently located in Hunan, this joint venture-manufactured unit offers smart buyers immediate access to premium excavation technology at a fraction of replacement cost. With dual-speed travel (5.3/3.1 km/h) and an 8.3 rpm rotation speed, productivity remains competitive while your capital investment stays controlled. Secure proven Doosan engineering while maximizing your equipment budget.
| Specifications | Value |
|---|---|
| No. | 1022969 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 49500 |
| Bucket capacity (m³) | 2.14 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

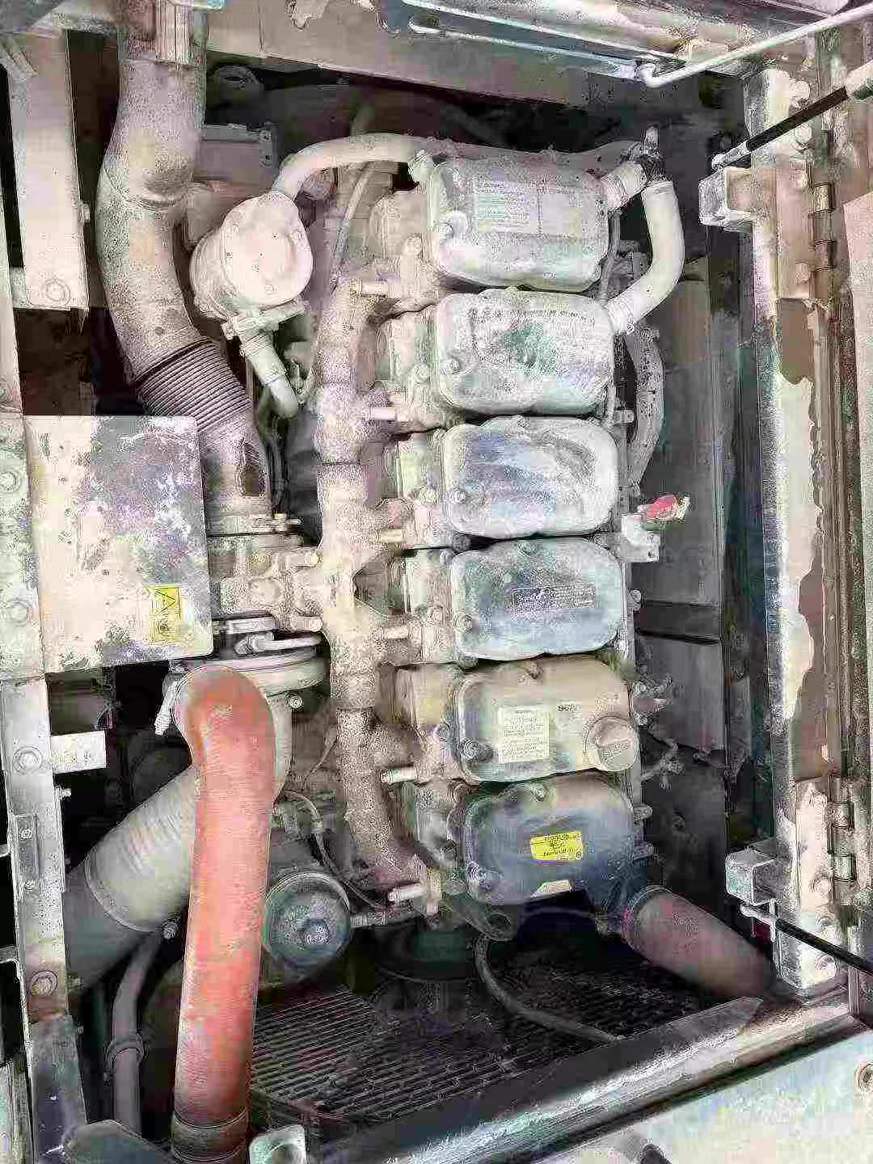

| Engine type | Scania DC13 |
| Rated power (kw/rpm) | 257/1800 |
| Cylinder diameter × stroke (mm) | 130 x 160 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.7 |
| Ground specific pressure (Kpa) | 86 |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 286.2/303.8 |
| Rod digging force (kN) | 212.7/225.4 |
| Travel speed (km/h) | 5.3/3.1 (High/Low) |
| Turning torque (Nm) | 16304 |
| Type of walking hydraulic motor | Axial piston pump ×2 |
| Maximum flow of main pump (l/min) | 2*355 |

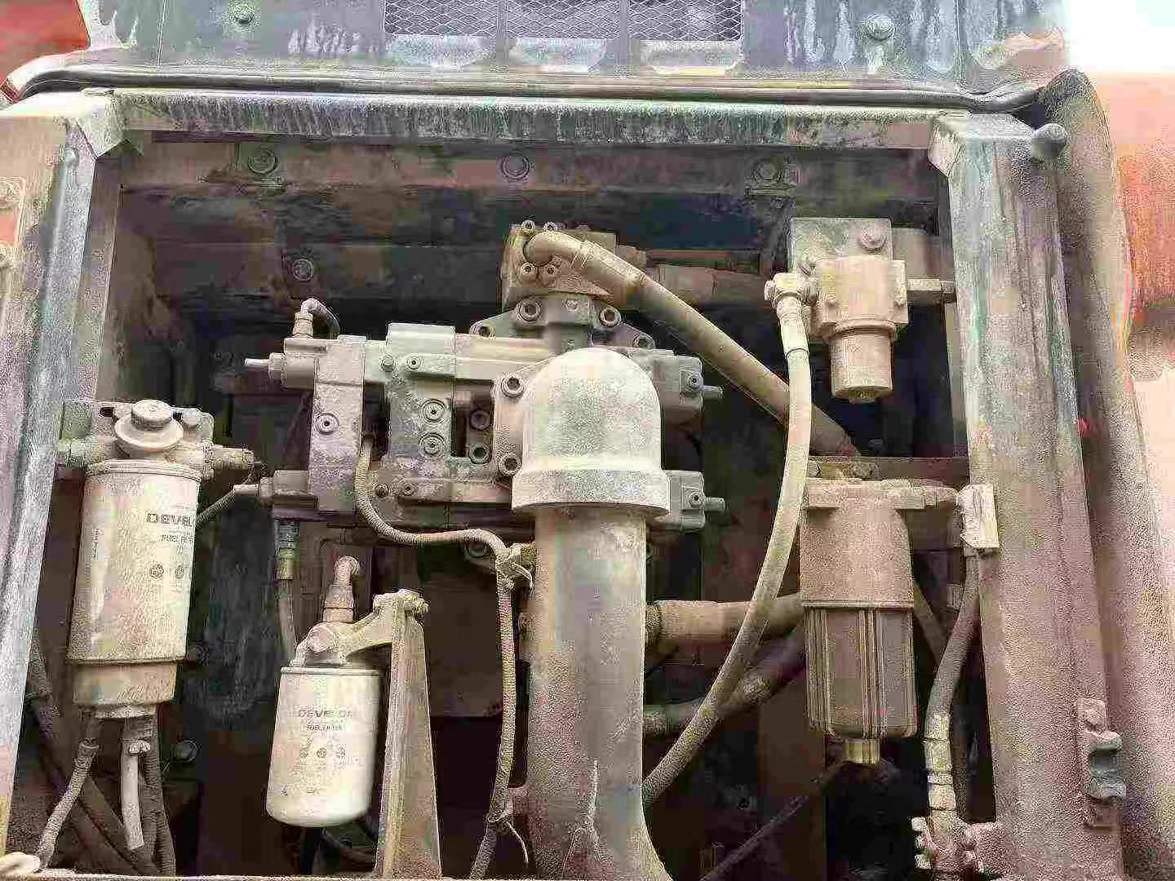

| Main pump type | Variable axial piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-170 x 115 x 1341 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-190 x 130 x 1980 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-170 x 115 x 1650 |
| Fuel Tank (L) | 626 |
| Hydraulic Tank (L) | 390 |
| Engine Oil changes (L) | 45 |
| Total transport length (mm) | 12230 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3705 |
| Full cab height (mm) | 3350 |
| Counterweight ground clearance (mm) | 1460 |
| Minimum ground clearance (mm) | 770 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 5200 |
| Number of sprockets (single side) (each) | 3 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 53 |
| Maximum digging radius (mm) | 12055 |
| Maximum digging depth (mm) | 7740 |
| Maximum excavation height (mm) | 10787 |
| Maximum unloading height (mm) | 7915 |
| Maximum vertical digging depth (mm) | 4370 |
| Maximum excavation radius of stop surface (mm) | 11865 |
| Maximum effective digging depth (mm) | 7740 |
Overview
No.1022969
Brand Name：
DoosanModel Number：
DX500LC-9CYear：
2020
Location：
Hunan China
Pub Date：
