Product Description
Available for immediate purchase, this 2018 Doosan DX55-9C excavator is located in Guangdong, China. This versatile machine comes equipped with both a hammer and bucket, making it suitable for a wide range of construction and excavation tasks. With over 5 years of operational history, the DX55-9C has proven its reliability and durability. Detailed images and video footage are available upon request, showcasing the current condition and functionality of the unit. The overall status of the machine is reported to be in good working order, ready to meet your project demands. For more information or to express interest, please contact us directly.
- Year: 2018
- Brand: Doosan
- Model: DX55-9C
- Location: Guangdong, China
- Attachments: Hammer and Bucket
| Specifications | Value |
|---|---|
| No. | 1132790 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Bucket capacity (m³) | 0.18-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

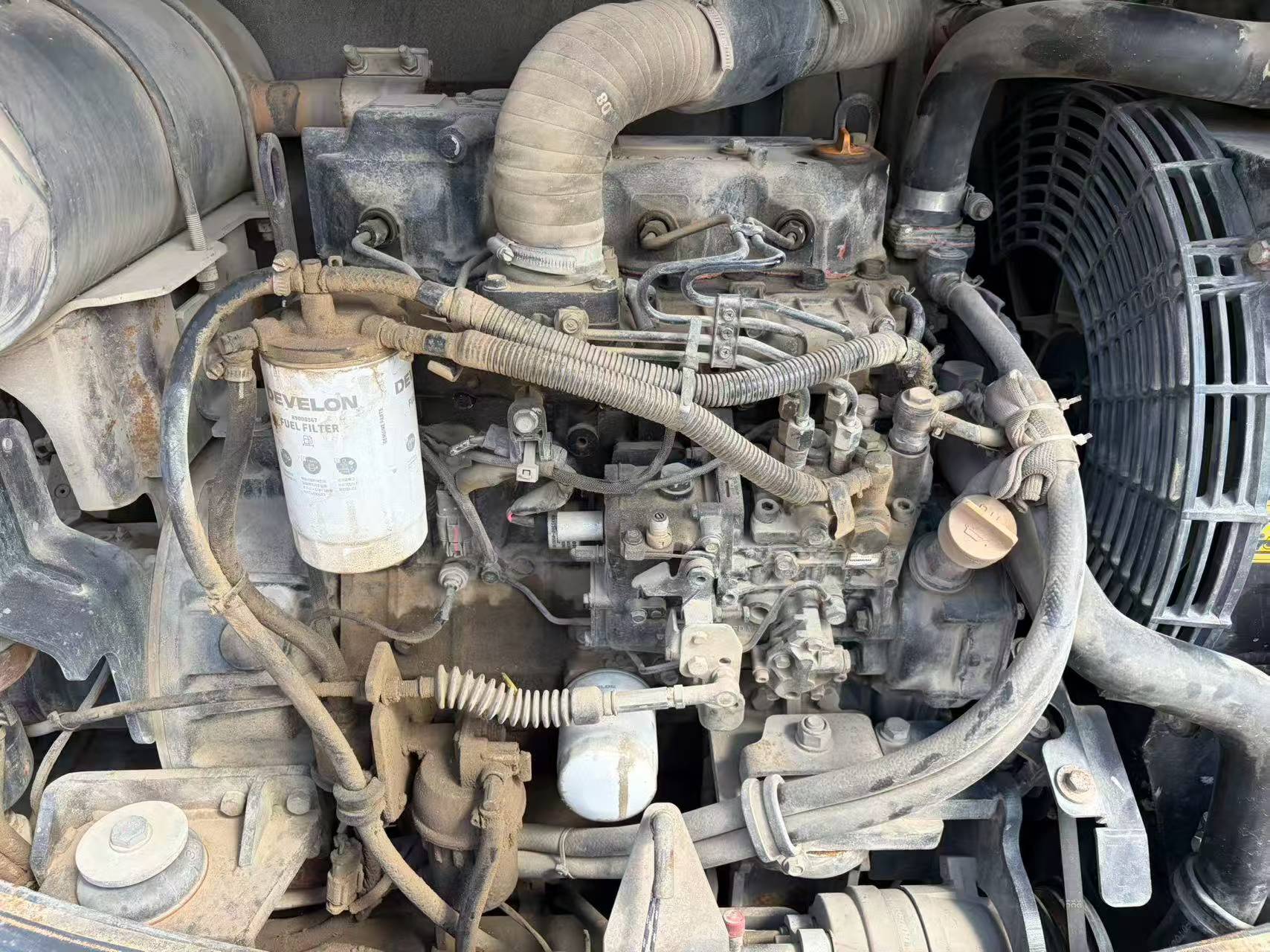

| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2 / 2100 |
| Cylinder diameter × stroke (mm) | 94 *110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 40.2 |
| Rod digging force (kN) | 24.5 |
| Travel speed (km/h) | 4.3/2.4 |
| Maximum flow of main pump (l/min) | 2*57.8 |

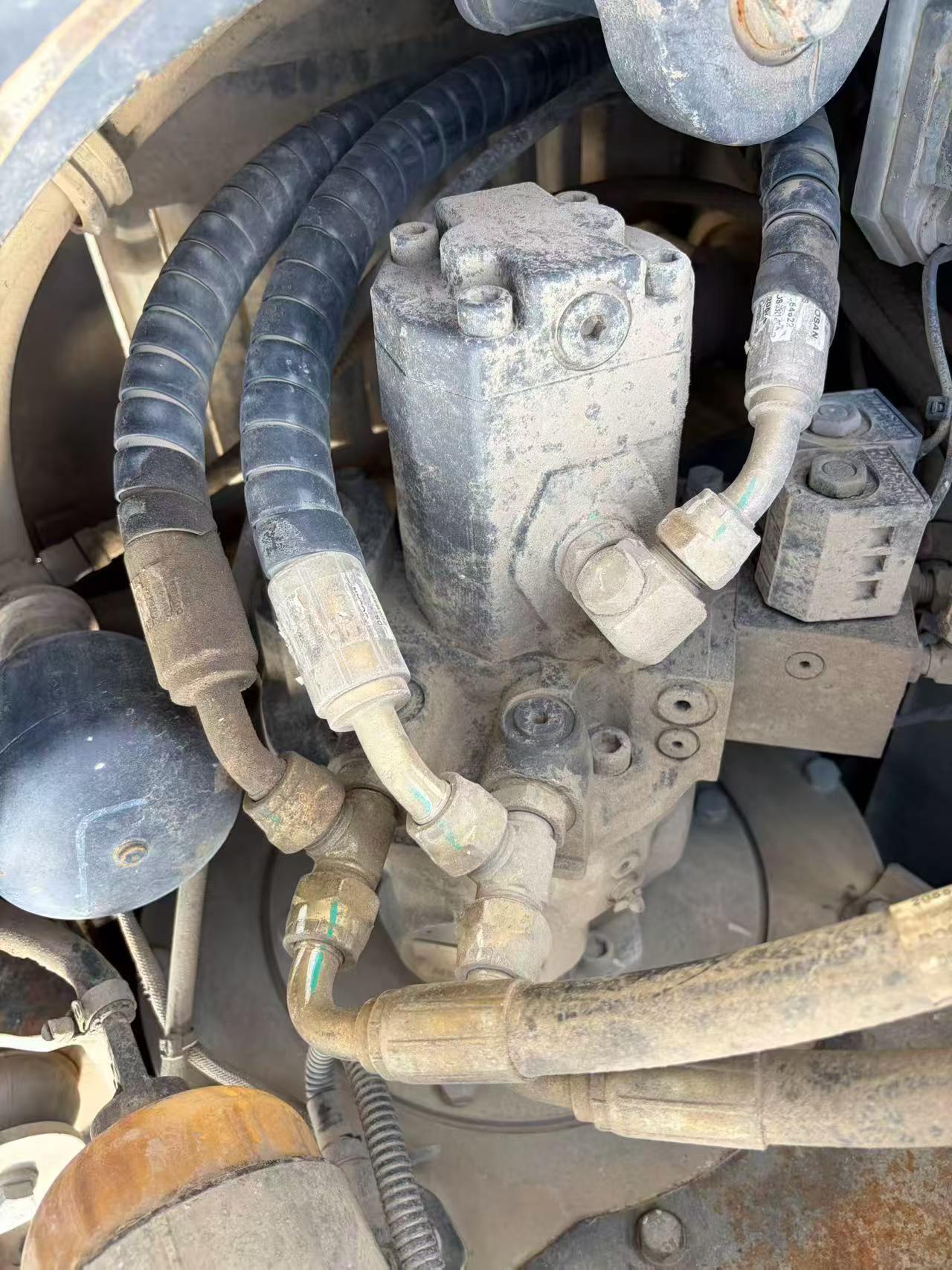

| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 85 X 55 X 600 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 X 55 X 883 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 X 60 X 719 |
| Fuel Tank (L) | 115 |
| Hydraulic Tank (L) | 62 |
| Total transport length (mm) | 5850 |
| Total transport height (mm) | 1930 |
| Counterweight ground clearance (mm) | 685 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 380 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6135 |
| Maximum digging depth (mm) | 3800 |
| Maximum excavation height (mm) | 5795 |
| Maximum unloading height (mm) | 4110 |
| Maximum vertical digging depth (mm) | 3125 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3800 |
