Product Description

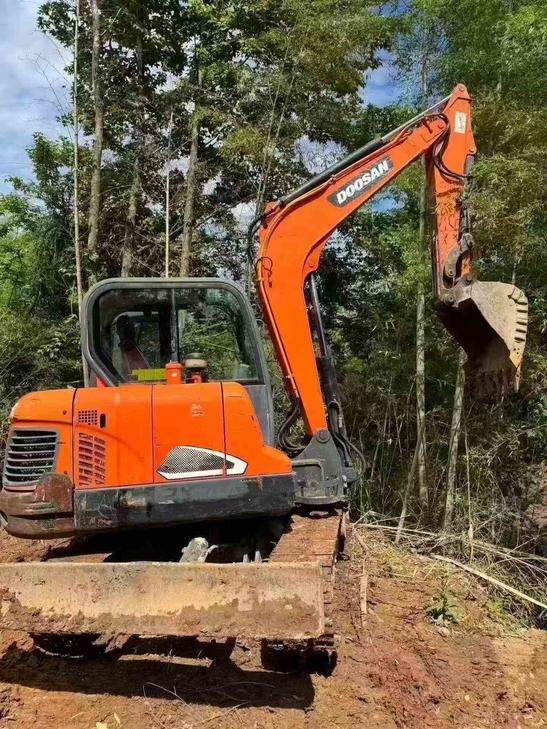

This 2019 Doosan DX55-9C mini excavator represents excellent value in the compact equipment market. Sourced from Zhejiang, China, this 5.5-ton class machine has been carefully maintained since its original purchase, retaining factory-original components and delivering reliable performance in the field.
The DX55-9C features coordinated hydraulic movements and responsive controls, ideal for precision work in confined spaces. Factory-installed air conditioning remains fully functional, ensuring operator comfort during extended shifts. This unit demonstrates strong operational capability across general construction, landscaping, and utility applications.
- Year: 2019
- Make/Model: Doosan DX55-9C
- Location: Zhejiang Province, China
- Condition: Well-maintained with original equipment
- Features: Working air conditioning, coordinated hydraulics
- Ready for immediate deployment
Contact FairTradeMachinery for detailed specifications, inspection reports, and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1086646 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5500 |
| Bucket capacity (m³) | 0.18-0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

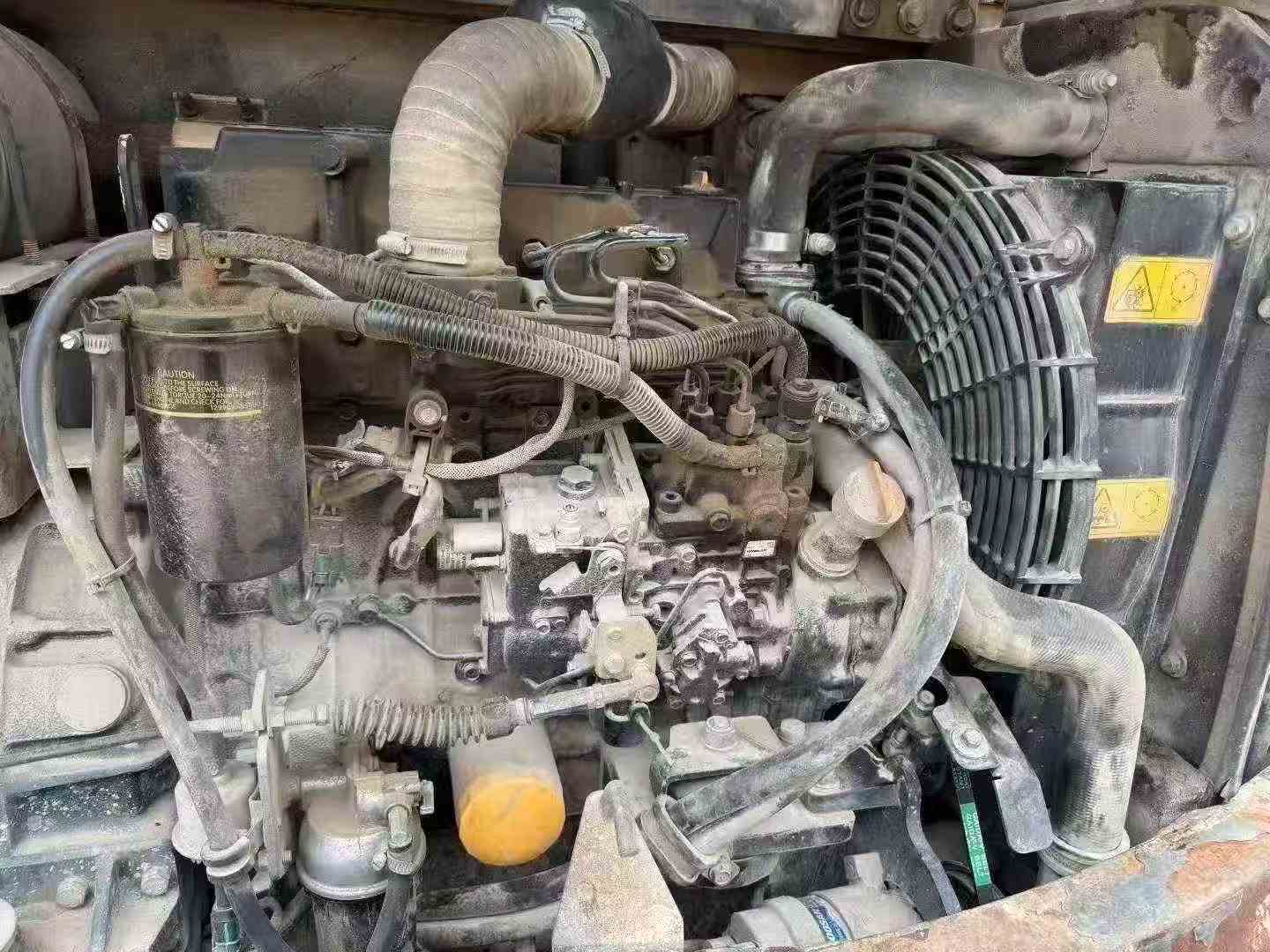

| Engine type | 4TNV94L |
| Rated power (kw/rpm) | 36.2 / 2100 |
| Cylinder diameter × stroke (mm) | 94 *110 |
| Number of cylinders (PCS) | 4 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 40.2 |
| Rod digging force (kN) | 24.5 |
| Travel speed (km/h) | 4.3/2.4 |
| Maximum flow of main pump (l/min) | 2*57.8 |
| Main pump type | Variable piston pump |
| Bucket cylinders - Number × diameter × stroke (mm) | 85 X 55 X 600 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 X 55 X 883 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 X 60 X 719 |
| Fuel Tank (L) | 115 |
| Hydraulic Tank (L) | 62 |
| Total transport length (mm) | 5850 |
| Total transport height (mm) | 1930 |
| Counterweight ground clearance (mm) | 685 |
| Minimum ground clearance (mm) | 360 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1860 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 380 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 40 |
| Maximum digging radius (mm) | 6135 |
| Maximum digging depth (mm) | 3800 |
| Maximum excavation height (mm) | 5795 |
| Maximum unloading height (mm) | 4110 |
| Maximum vertical digging depth (mm) | 3125 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3800 |
