2020 Doosan DX55-9C

1/9
Buy Doosan DX55-9C Used Excavator / 1
Buy Doosan DX55-9C Used Excavator / 2
Buy Doosan DX55-9C Used Excavator / 3
Buy Doosan DX55-9C Used Excavator / 4
Buy Doosan DX55-9C Used Excavator / 5
Buy Doosan DX55-9C Used Excavator / 6
Buy Doosan DX55-9C Used Excavator / 7
Buy Doosan DX55-9C Used Excavator / 8

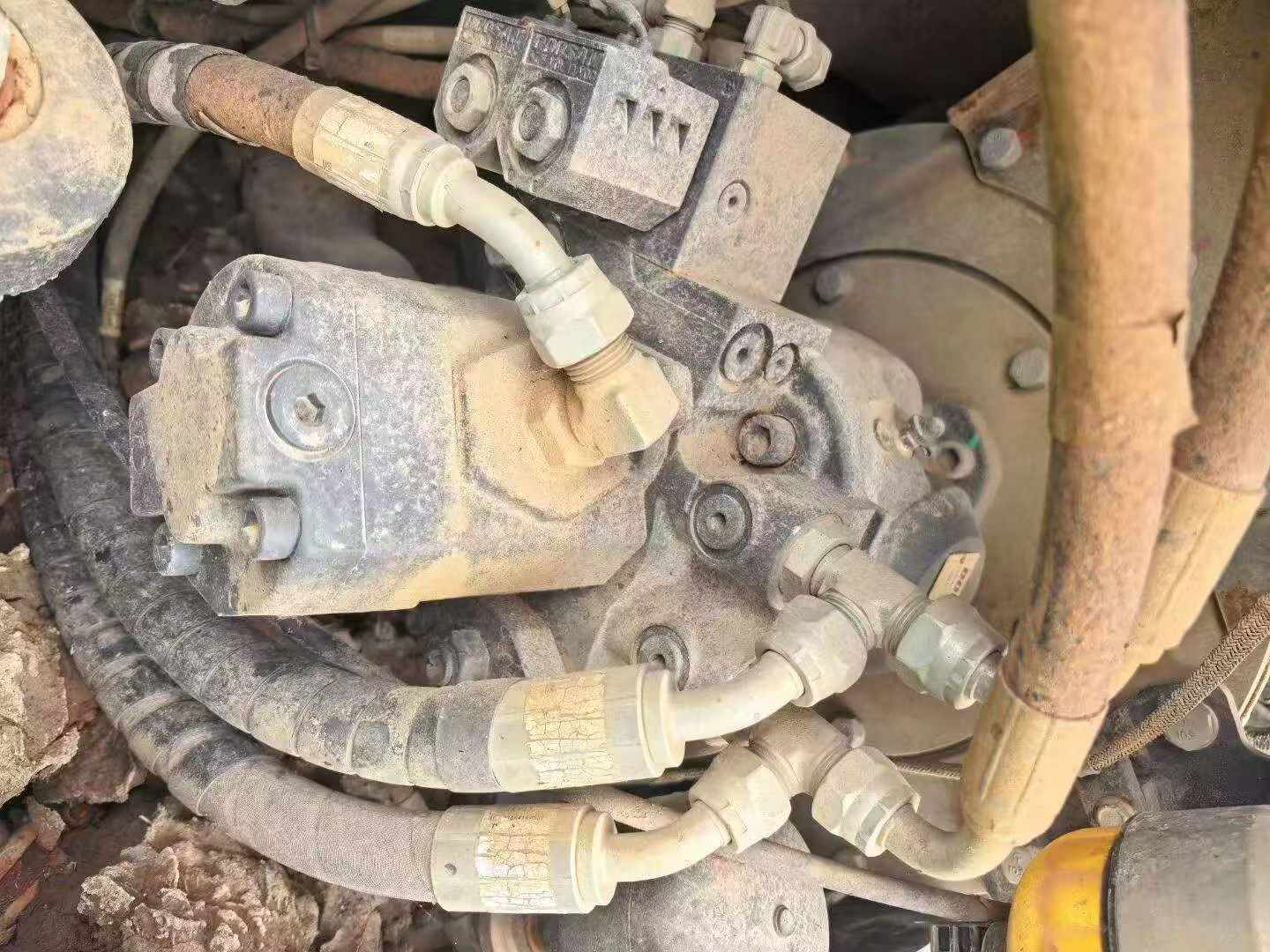

Buy Doosan DX55-9C Used Excavator / 9

Product Description

This 2020 Doosan DX55-9C mini excavator offers reliable performance for contractors seeking compact versatility. The DX55-9C combines Doosan's proven engineering with a practical operating weight in the 5.5-ton class, making it suitable for urban construction, utility work, and landscaping projects.

Key features of this unit include:

  • Zero tail swing design for confined job sites
  • Efficient fuel consumption and reduced emissions
  • Comfortable operator station with intuitive controls
  • Durable undercarriage and reliable hydraulic system
  • Versatile attachment compatibility

Currently located in Shandong, China. This well-maintained machine is available at a competitive price point. The seller is open to serious inquiries and negotiation. Ideal for buyers looking to expand their fleet with a dependable compact excavator from a trusted manufacturer.

SpecificationsValue
No.1137128
Tonnage (tons)5
Working weight (kg)5500
Bucket capacity (m³)0.18-0.21
Boom length (mm)3000
Rod length (mm)1600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine type4TNV94L
Rated power (kw/rpm)36.2 / 2100
Cylinder diameter × stroke (mm)94 *110
Number of cylinders (PCS)4
Rotation speed (rpm)9.2
Bucket digging force (kN)40.2
Rod digging force (kN)24.5
Travel speed (km/h)4.3/2.4
Maximum flow of main pump (l/min)2*57.8
Main pump typeVariable piston pump
Bucket cylinders - Number × diameter × stroke (mm)85 X 55 X 600
Bucket rod cylinders - Number × diameter × stroke (mm)85 X 55 X 883
Boom cylinders - Number × diameter × stroke (mm)110 X 60 X 719
Fuel Tank (L)115
Hydraulic Tank (L)62
Total transport length (mm)5850
Total transport height (mm)1930
Counterweight ground clearance (mm)685
Minimum ground clearance (mm)360
Back end turning radius (mm)1650
Onboard width (mm)1860
Total track length (mm)2540
Track plate width (mm)380
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)40
Maximum digging radius (mm)6135
Maximum digging depth (mm)3800
Maximum excavation height (mm)5795
Maximum unloading height (mm)4110
Maximum vertical digging depth (mm)3125
Maximum excavation radius of stop surface (mm)6000
Maximum effective digging depth (mm)3800
see more

Overview

No.1137128

Brand Name:

Doosan

Model Number:

DX55-9C

Year:

2020

Location:

Shandong China

Pub Date
