Product Description

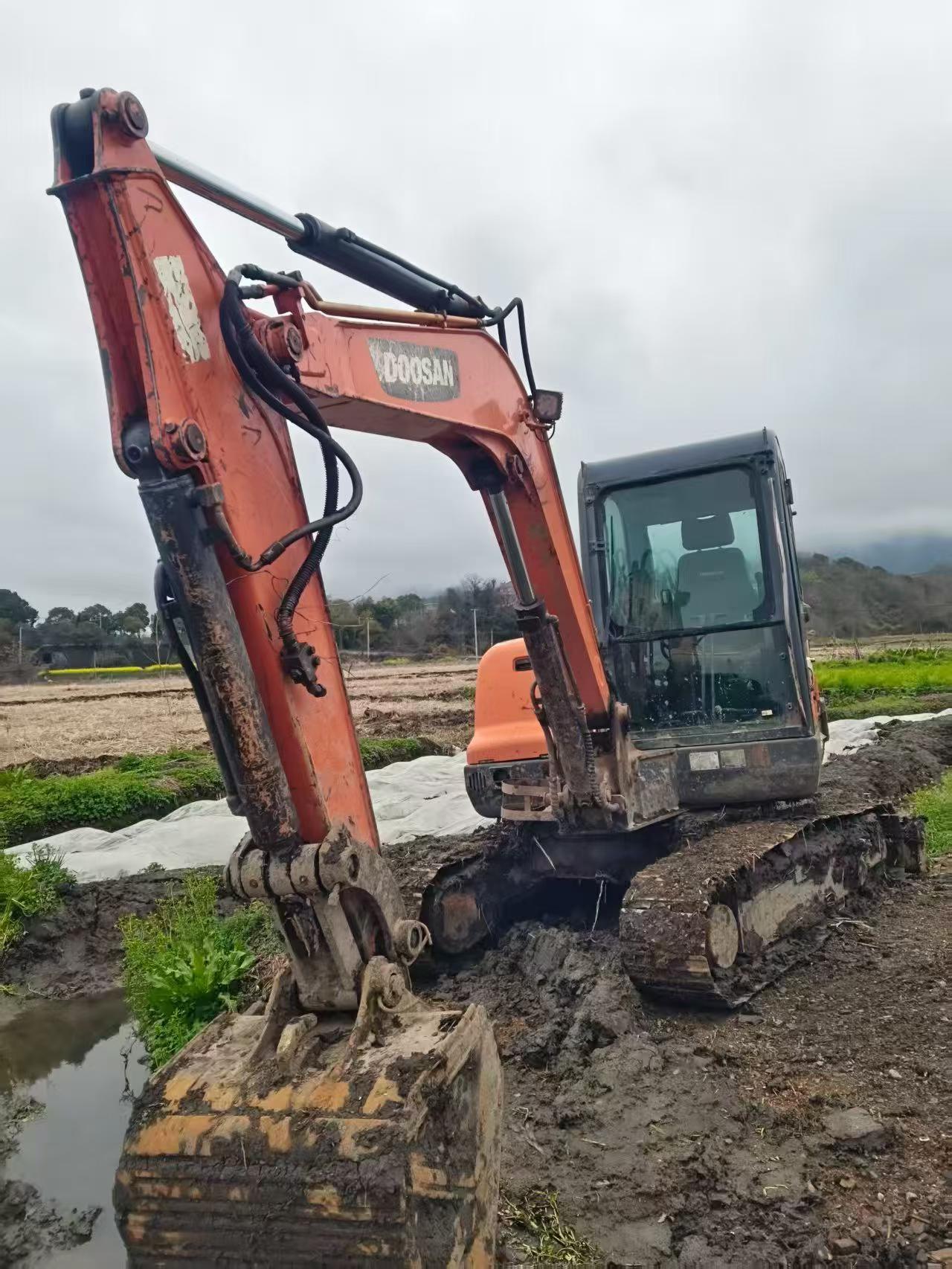

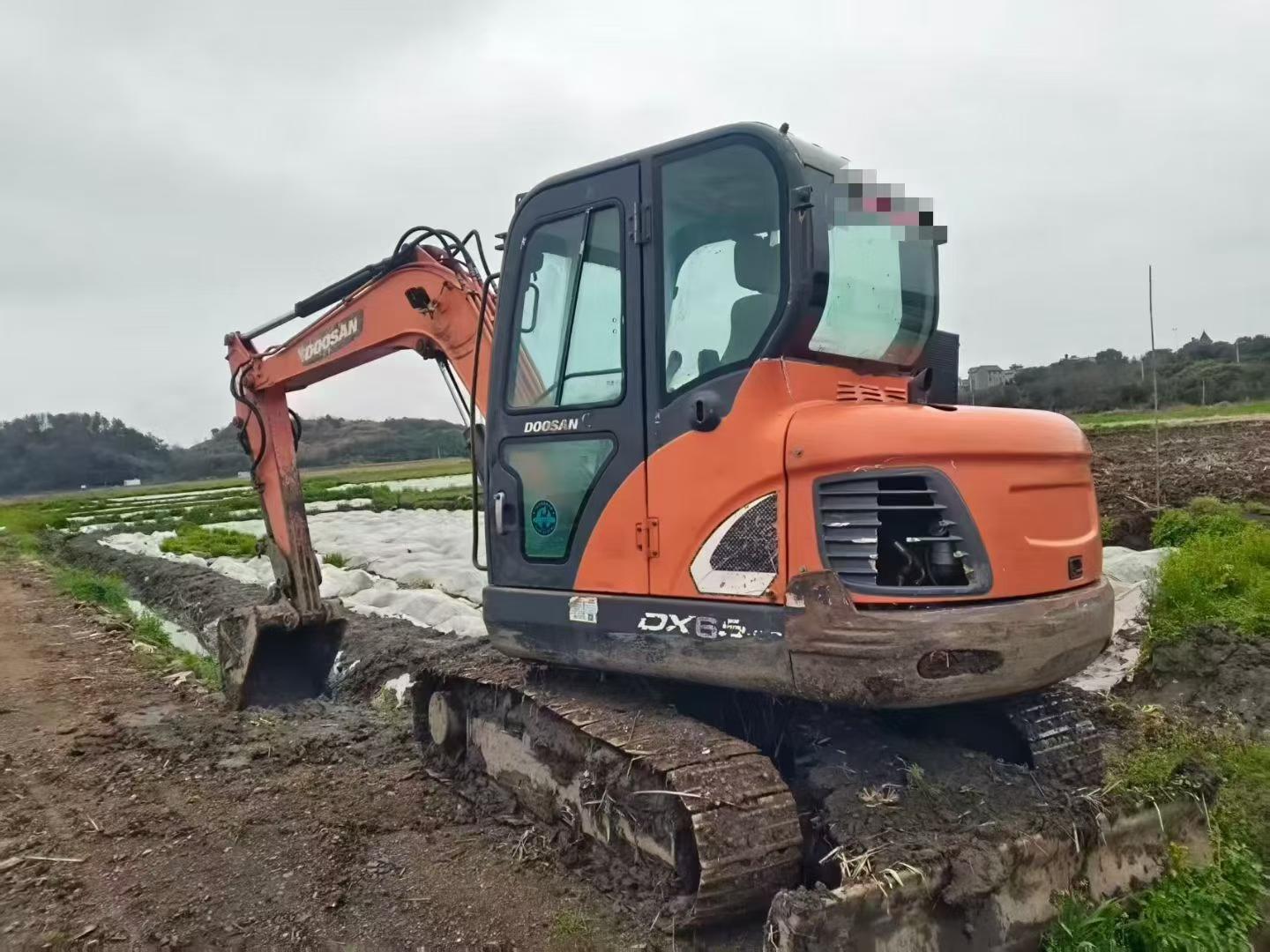

Expand your operational capacity with this 2018 Doosan DX60 mini excavator, currently located in Maoming, Guangdong. Built for contractors managing multiple jobsites simultaneously, this 6-ton machine delivers proven Yanmar 4TNV94L reliability with 39.7 kW output—ideal for rotating between projects without disrupting your primary fleet schedule.
Performance specifications include a 6,150 mm maximum digging reach and 3,805 mm excavation depth, powered by dual 60.5 L/min hydraulic pumps that maintain consistent cycle times under load. The 0.21 m³ bucket capacity balances productivity with transport efficiency, while 400 mm ground clearance ensures versatility across varied terrain conditions.
- Compact 2,000 mm transport width fits standard trailers
- 44 kN bucket digging force handles compacted materials
- 115 L fuel tank supports extended shifts without refueling delays
- 1,650 mm rear swing radius enables confined-space operation
- Joint venture construction ensures parts availability
Minimize downtime risks by deploying this unit as your fleet backup or dedicating it to secondary sites. Contact Fair Trade Machinery for shipping quotes and documentation.
| Specifications | Value |
|---|---|
| No. | 1023719 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

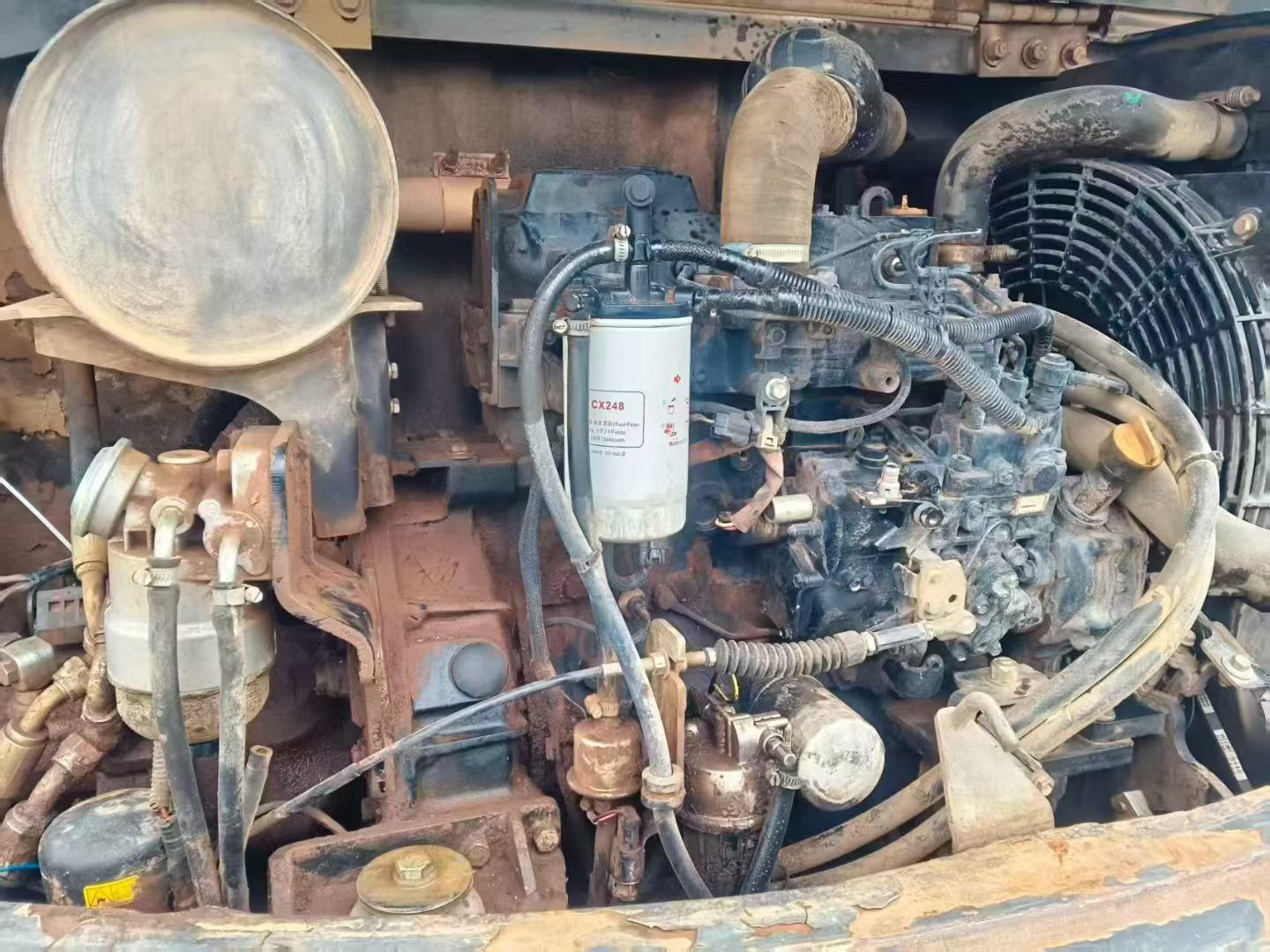

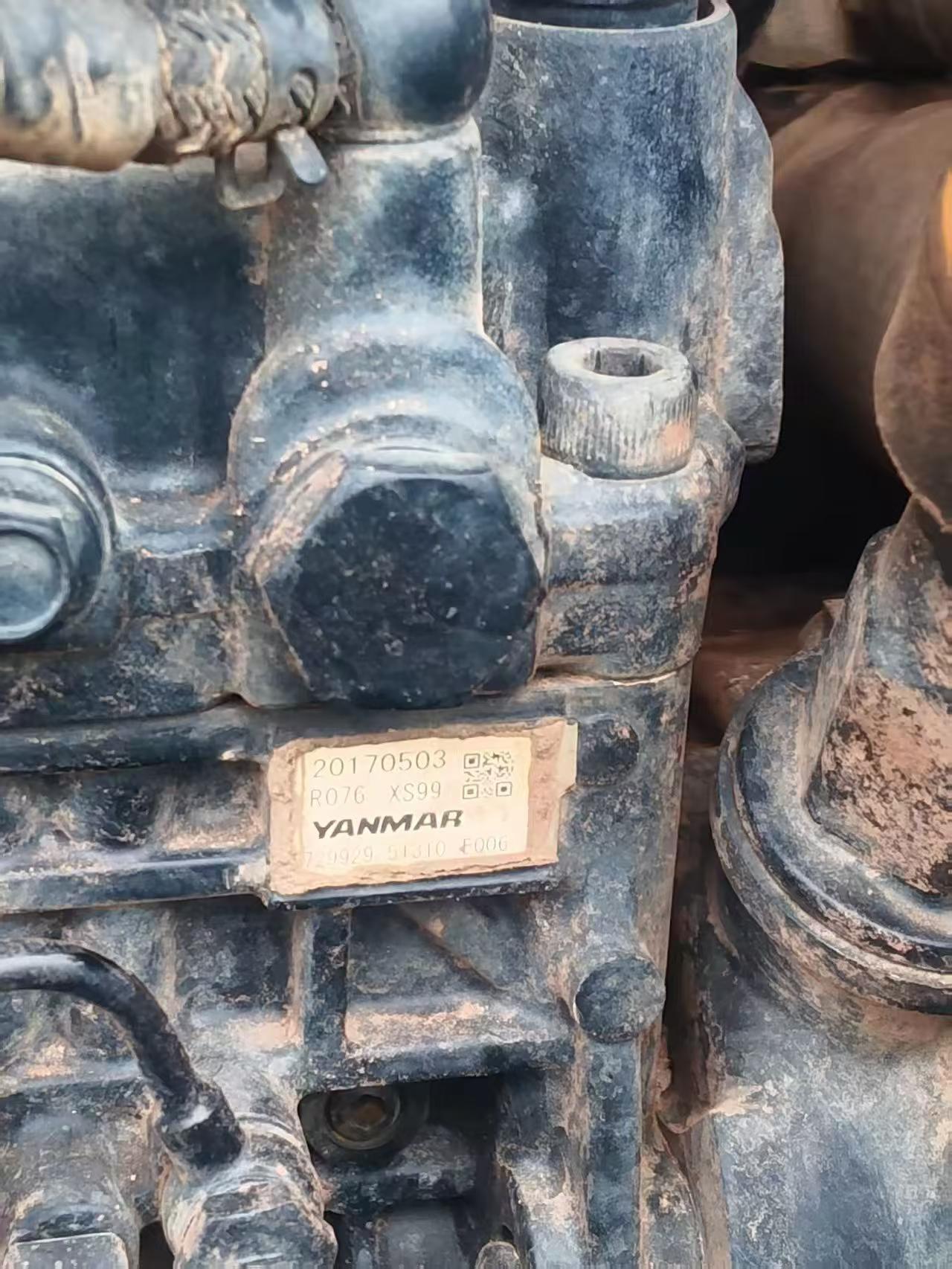

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
