Product Description

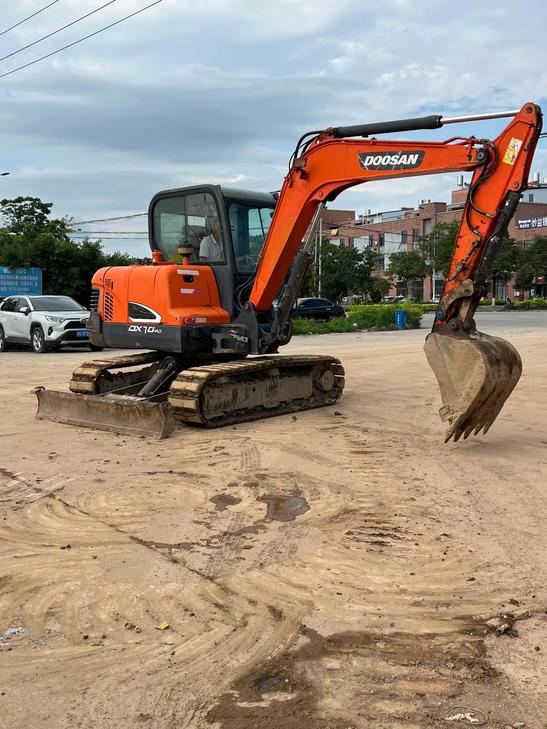

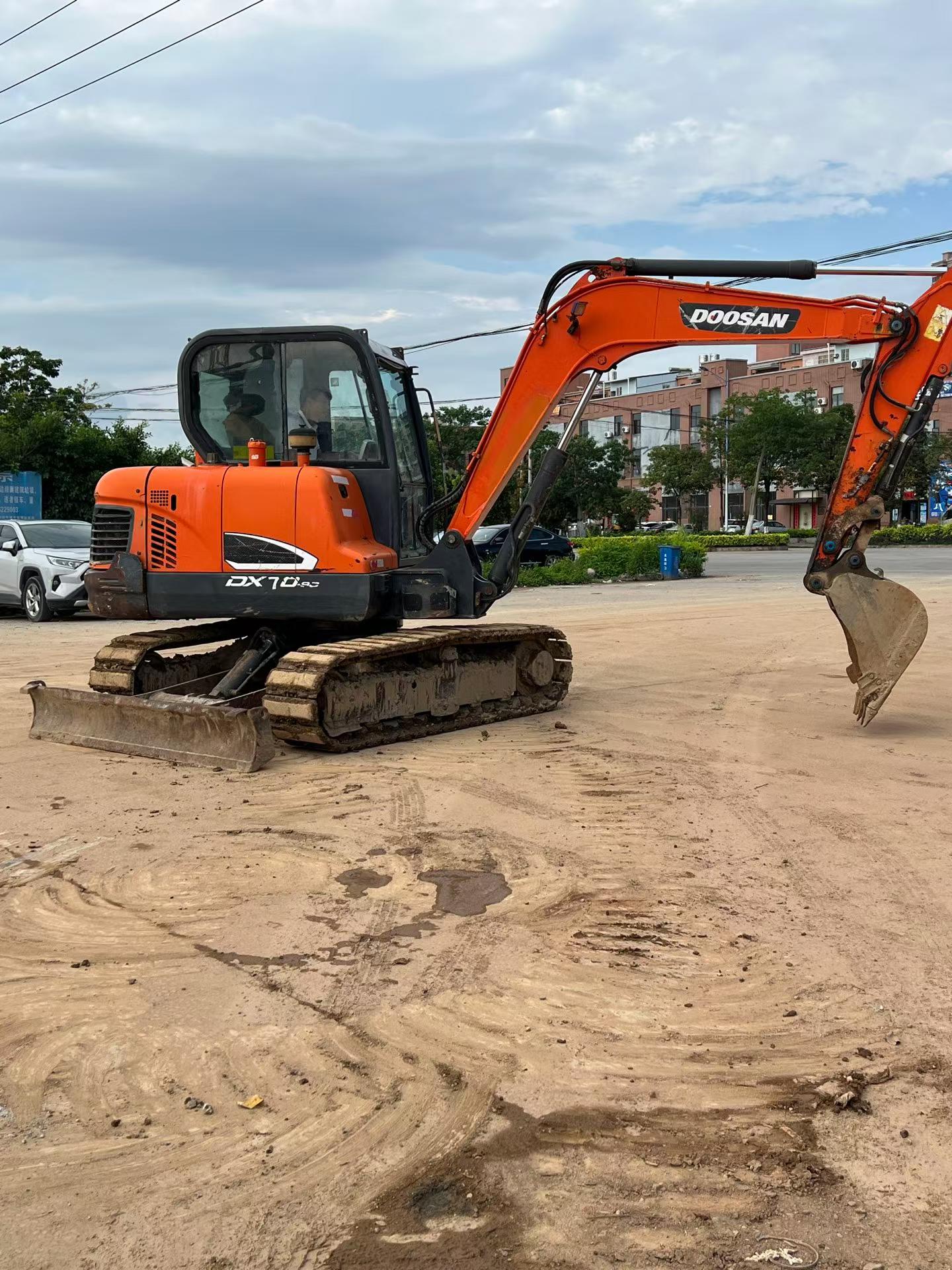

This 2019 Doosan DX60 mini excavator offers reliable performance for contractors seeking dependable earthmoving equipment. Originally purchased in 2019, this compact excavator has been maintained for operational readiness and is currently located in Guangxi, China. The DX60 is recognized in the construction industry for its balance of compact dimensions and productive digging capabilities, making it suitable for urban construction, utility work, and site development projects.
Key features of the Doosan DX60 include:
- Compact design for confined jobsite access
- Proven Doosan hydraulic system for efficient operation
- Operator-friendly cab configuration
- Versatile attachment compatibility for multiple applications
This used machine is available for USD $76,000 and represents a cost-effective solution for businesses requiring a quality mini excavator from a reputable manufacturer. Suitable for export or regional deployment throughout Asia-Pacific markets.
| Specifications | Value |
|---|---|
| No. | 1077444 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
