Product Description
Six years of proven field performance back this 2020 Doosan DX60 — a compact 6-ton excavator that has consistently demonstrated the build quality Doosan is known for worldwide. Powered by a Yanmar 4TNV94L engine producing 39.7 kW at 2,200 RPM, this machine delivers reliable digging force and hydraulic efficiency on every job cycle. Currently located in Guangxi, China, it is ready for domestic or international deployment.
- Operating Weight: 5,700 kg — agile yet structurally solid
- Bucket Digging Force: 44 kN / Rod Digging Force: 28 kN
- Maximum Digging Depth: 3,805 mm
- Maximum Digging Radius: 6,150 mm
- Bucket Capacity: 0.21 m³ backhoe configuration
- Maximum Tractive Force: 58 kN with 78% gradeability
- Fuel Tank: 115 L for extended operational range
- Transport Dimensions: 5,850 mm (L) × 2,000 mm (W) × 2,575 mm (H)
Built to last through demanding conditions, this proven workhorse suits utility trenching, landscaping, and confined-site excavation. Its compact rear swing radius of 1,650 mm keeps it productive where larger machines simply cannot operate.
| Specifications | Value |
|---|---|
| No. | 1080506 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

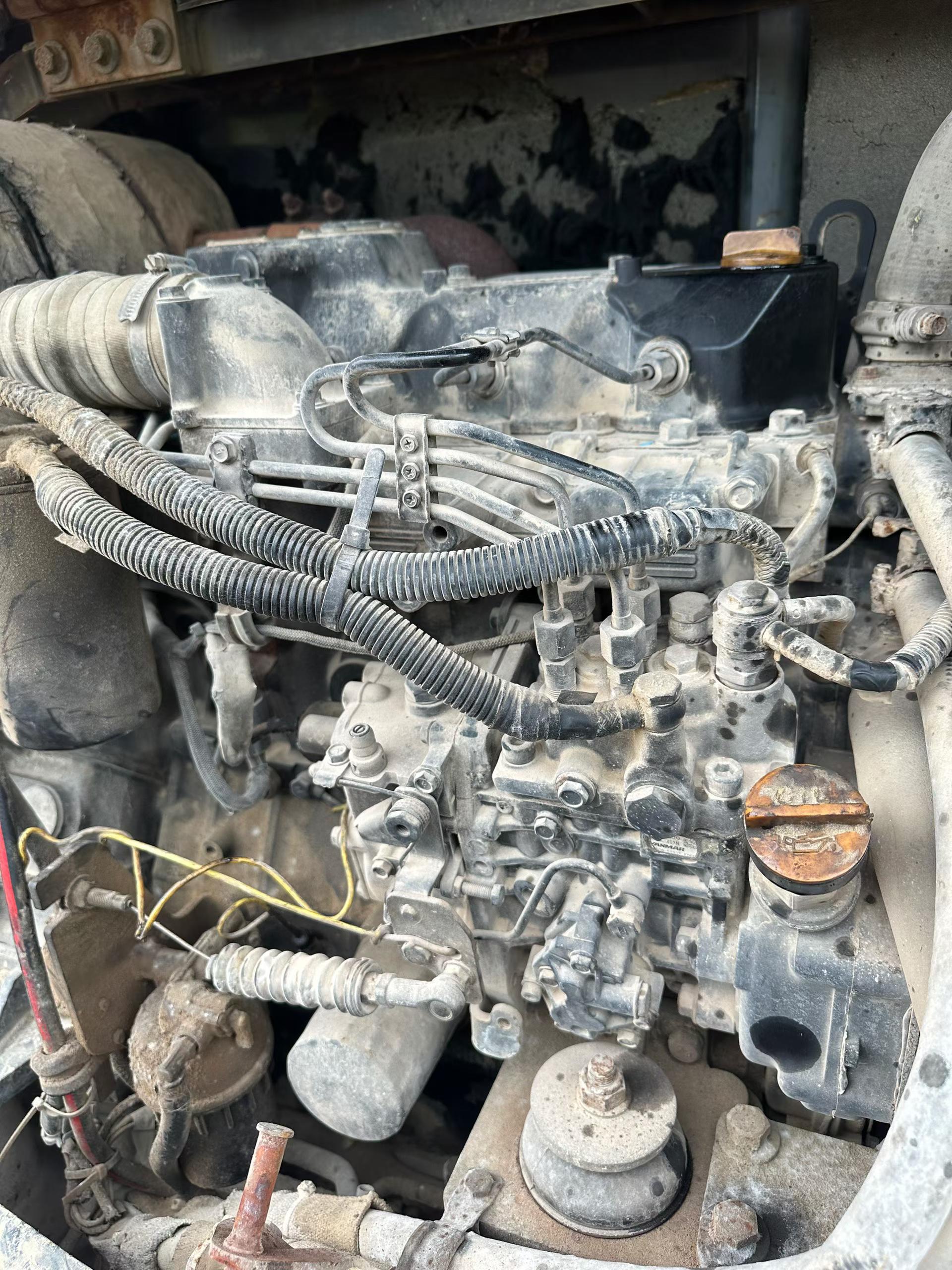

| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
