Product Description

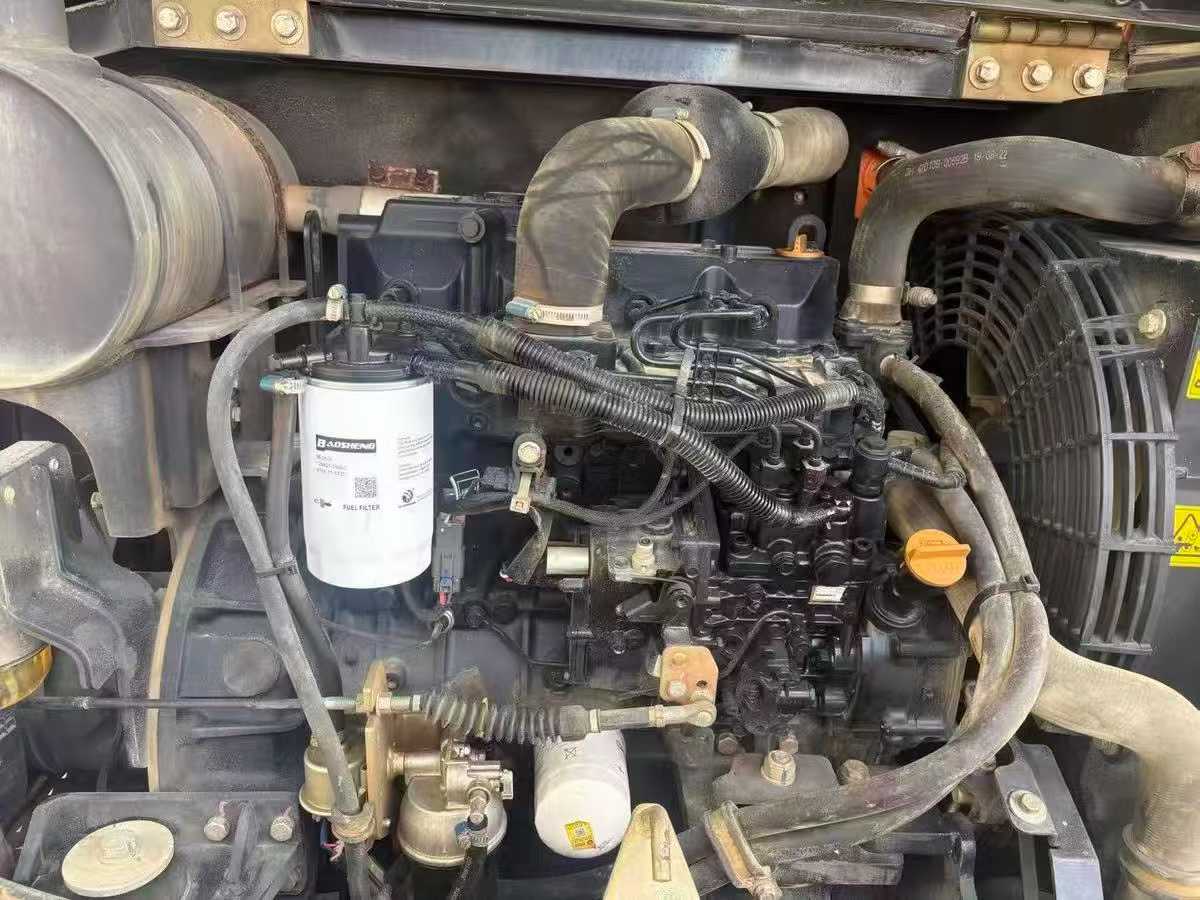

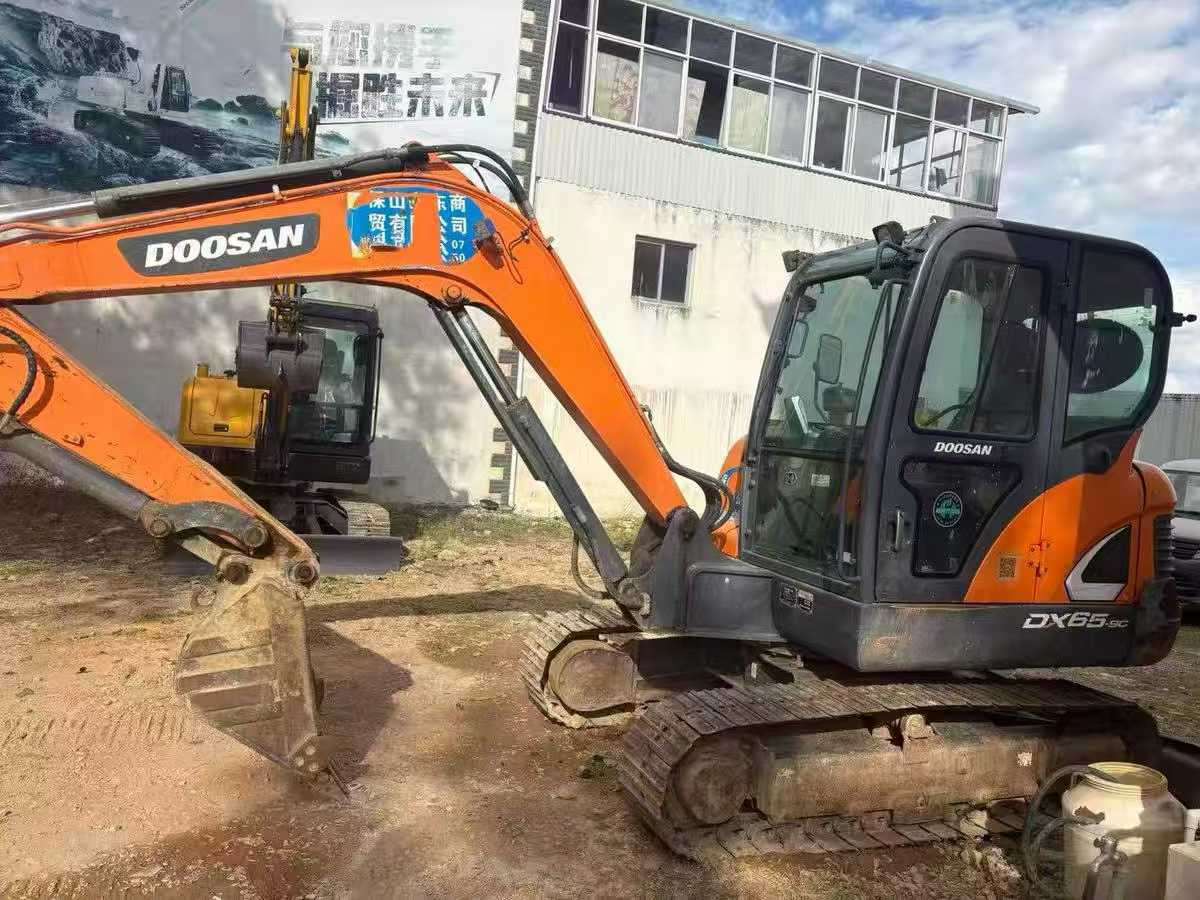

Equipped with the Yanmar 4TNV94L engine, this 2020 Doosan DX60 delivers a robust 39.7 kW at 2200 rpm, ensuring reliable and efficient performance. Featuring advanced hydraulics, including a maximum flow of 60.5 x 2 + 36 l/min from the main pump, it provides precise control and powerful digging capabilities. With a bucket capacity of 0.21 m³ and a digging force of 44 kN, this excavator is designed for demanding tasks. The DX60 series is known for its engineering quality, offering a travel speed of up to 4.1 km/h and a climbing ability of 78% or 30 degrees. Its total transport dimensions of 5850 mm in length, 2000 mm in width, and 2575 mm in height (to top of cab) ensure easy mobility. Located in 云南昆明, this machine is ready to tackle your next project with unmatched precision and durability.
| Specifications | Value |
|---|---|
| No. | 995418 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar YANMAR 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 20-22/1100 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 78/30 degrees |
| Bucket digging force (kN) | 44 |
| Rod digging force (kN) | 28 |
| Maximum tractive force (kN) | 58 |
| Travel speed (km/h) | 4.1 / 3.0 |
| Turning torque (Nm) | 20 ~ 22 |
| Maximum flow of main pump (l/min) | 60.5 x 2 + 36 |
| Traveling Hydraulic Circuit (Mpa) | 21.6 |
| Working Hydraulic Circuit (Mpa) | 21.6 |
| Fuel Tank (L) | 115 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 2575(to top of cab) |
| Minimum ground clearance (mm) | 400 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2540 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3805 |
| Maximum excavation height (mm) | 5790 |
| Maximum unloading height (mm) | 4065 |
| Maximum vertical digging depth (mm) | 3038 |
| Dodging plate width × height (mm) | 2000 x 350 |
