Product Description

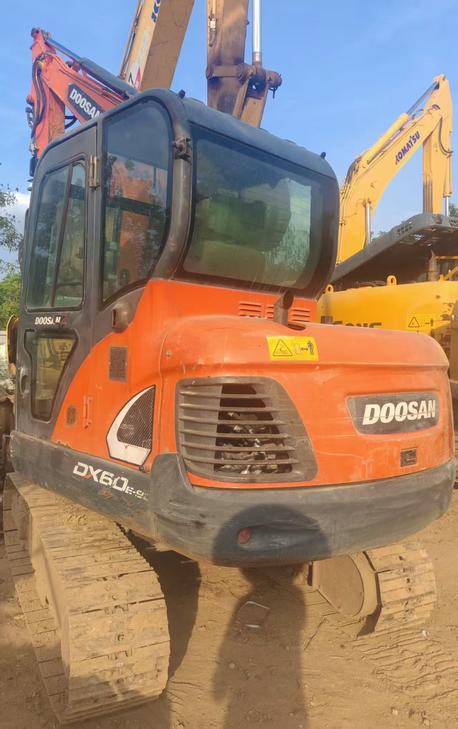

Discover the 2019 Doosan DX60-9C, a robust and reliable excavator now available in Guangxi, China. This machine is in impeccable condition, having passed all inspections with flying colors, ensuring it's ready to tackle your toughest projects. With its original paint and complete documentation, this DX60-9C is a testament to durability and quality, backed by the trusted Doosan brand. Ideal for construction, landscaping, and utility work, this excavator combines power, precision, and ease of use, making it an excellent addition to any fleet.
- Year: 2019
- Brand: Doosan
- Model: DX60-9C
- Location: Guangxi, China
- Condition: Excellent, with original paint
- Documentation: Fully compliant and complete
| Specifications | Value |
|---|---|
| No. | 1107894 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5700 |
| Bucket capacity (m³) | 0.21 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | D24C DIESEL |
| Rated power (kw/rpm) | 38.9/2100 |
| Cylinder diameter × stroke (mm) | 90 x 94 |
| Number of cylinders (PCS) | 4 |
| Working form | In-line, turbocharged |
| Ground specific pressure (Kpa) | 30 |
| Rotation speed (rpm) | 9 |
| Bucket digging force (kN) | 4.2ton |
| Rod digging force (kN) | 2.8ton |
| Travel speed (km/h) | 4.2/2.3 |
| Turning torque (Nm) | 971 |
| Type of walking hydraulic motor | Axial piston hydraulic motor |
| Maximum flow of main pump (l/min) | 2 x 57.8 |
| Traveling Hydraulic Circuit (Mpa) | 240 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 240 |
| Fuel Tank (L) | 115 |
| Hydraulic System (L) | 62 |
| Total transport length (mm) | 5870 |
| Total transport width (mm) | 2000 |
| Total transport height (mm) | 1983 |
| Full cab height (mm) | 2565 |
| Counterweight ground clearance (mm) | 350 |
| Minimum ground clearance (mm) | 700 |
| Minimum turning radius of front working device (mm) | 2365 |
| Back end turning radius (mm) | 1660 |
| Onboard width (mm) | 1850 |
| Total track length (mm) | 2540 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 2000 |
| Maximum digging radius (mm) | 6136 |
| Maximum digging depth (mm) | 3807 |
| Maximum excavation height (mm) | 5788 |
| Maximum unloading height (mm) | 4064 |
| Maximum vertical digging depth (mm) | 3037 |
| Dodging plate width × height (mm) | 2000 x 350 |
| Maximum excavation radius of stop surface (mm) | 6000 |
| Maximum effective digging depth (mm) | 3388 |
