Product Description
Maximize your equipment budget with this 2021 XCMG XE60 compact excavator from Yunnan. Delivering professional-grade performance at a fraction of new equipment costs, this 6-ton machine combines proven reliability with exceptional value. Powered by a robust Yanmar 4TNV94L engine producing 39.8kW, it tackles demanding jobsites with 42.5kN bucket digging force and 28.5kN rod digging force. The Rexroth main pump system ensures precise hydraulic control across all functions.
Key specifications include:
- Working weight: 5,960 kg with 0.09-0.23 m³ bucket capacity
- Maximum digging reach: 6,130 mm; depth: 3,830 mm
- Compact dimensions: 5,850 mm length × 1,880 mm width for tight access
- 35° climbing ability with 9.5 rpm rotation speed
- Standard hydraulic crushing pipeline for versatile attachments
- Water-cooled 4-cylinder engine with 110L fuel capacity
Manufactured in Xuzhou with quality engineering, this XE60 offers the performance contractors demand without the premium price tag. Smart operators recognize that strategic used equipment purchases extend capital while maintaining productivity standards. Invest wisely—secure reliable excavation capability today.
| Specifications | Value |
|---|---|
| No. | 994623 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

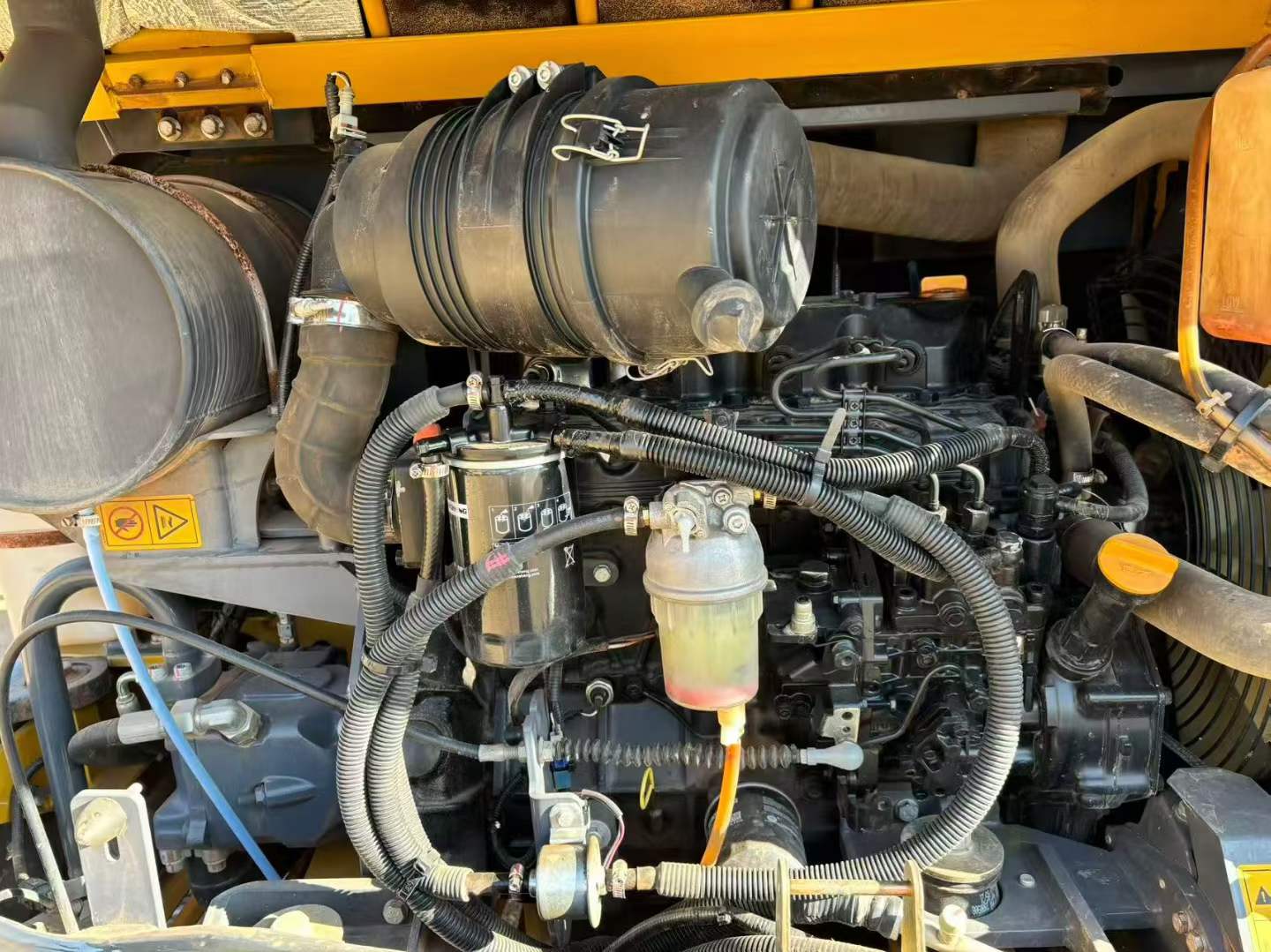

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
