Product Description

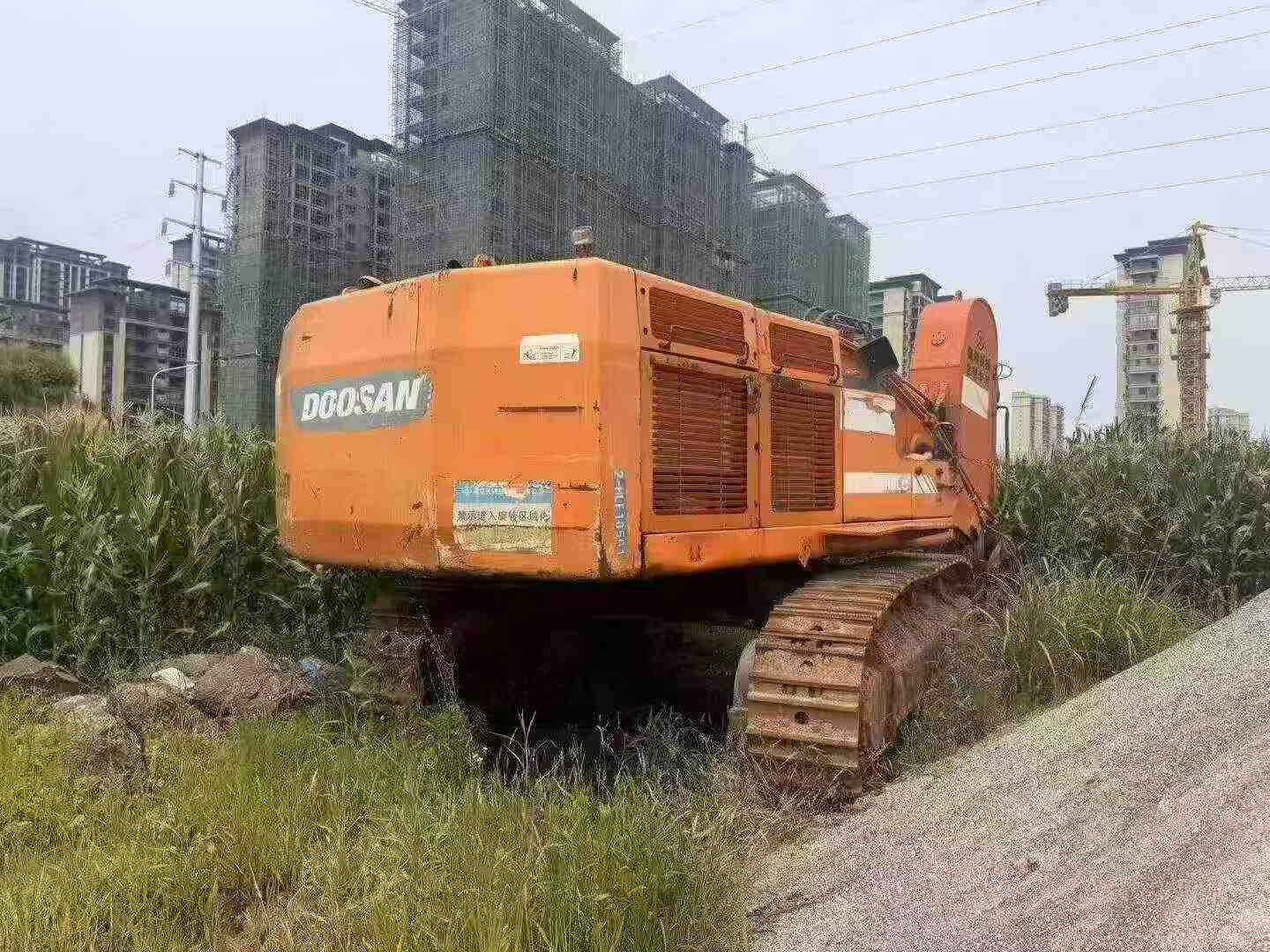

Discover the robust and reliable Doosan DX700LC excavator, a 2020 model currently available in Sichuan, China. This machine is designed to meet the demanding needs of construction and mining projects with its powerful performance and durability. Priced at over 280,000 RMB, the DX700LC offers an excellent value for businesses looking to enhance their operational efficiency and productivity. Built with advanced technology and user-friendly features, this excavator ensures optimal performance and minimal downtime, making it a smart investment for any industrial fleet.
- Year: 2020
- Brand: Doosan
- Model: DX700LC
- Location: Sichuan, China
- Price: Over 280,000 RMB
| Specifications | Value |
|---|---|
| No. | 1087893 |
| Tonnage (tons) | 70 |
| Working weight (kg) | 70300 |
| Bucket capacity (m³) | 3.30 ~ 4.50 |
| Boom length (mm) | 6650/7700 |
| Rod length (mm) | 2600/2900/3550/4200 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

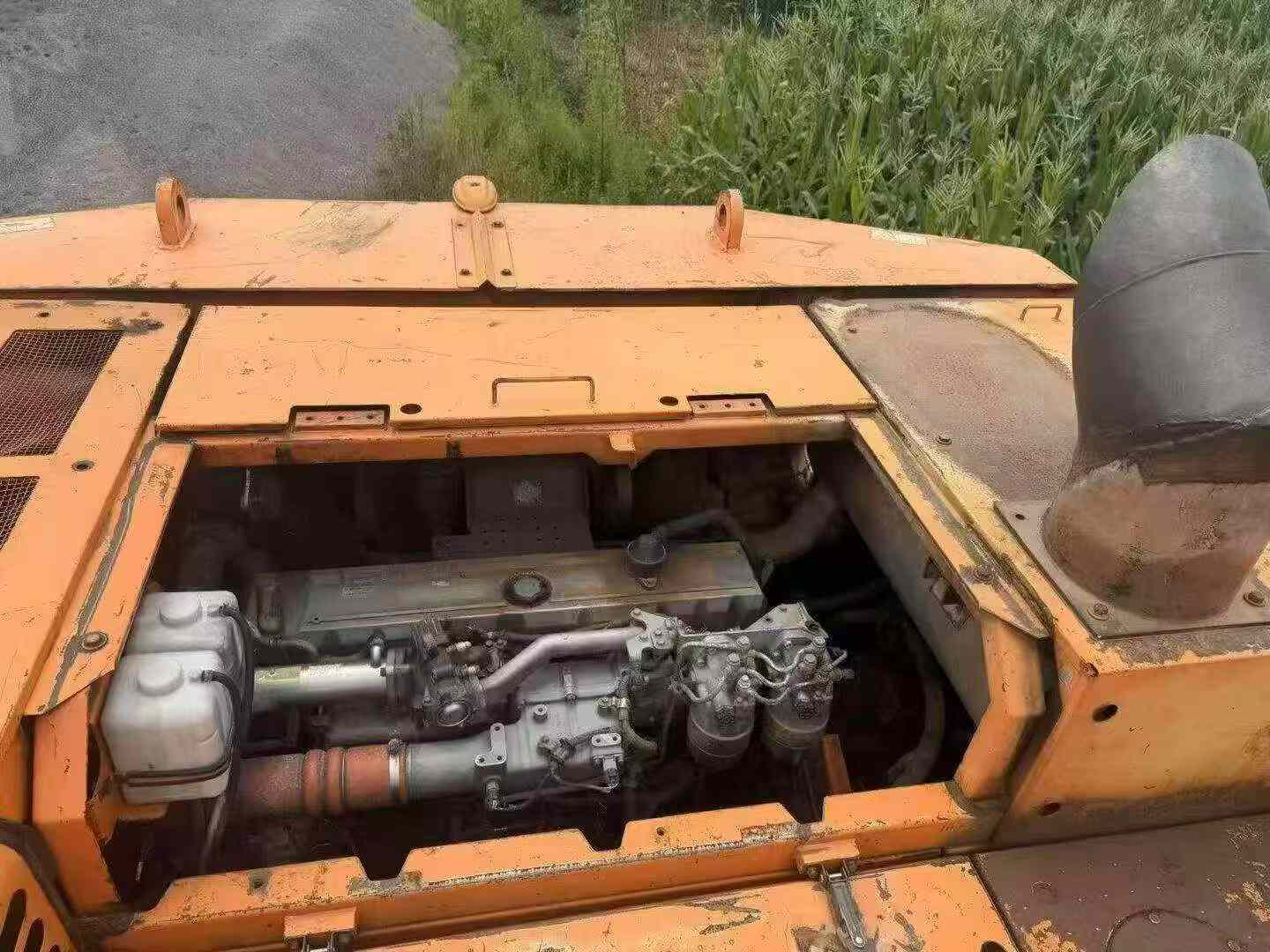

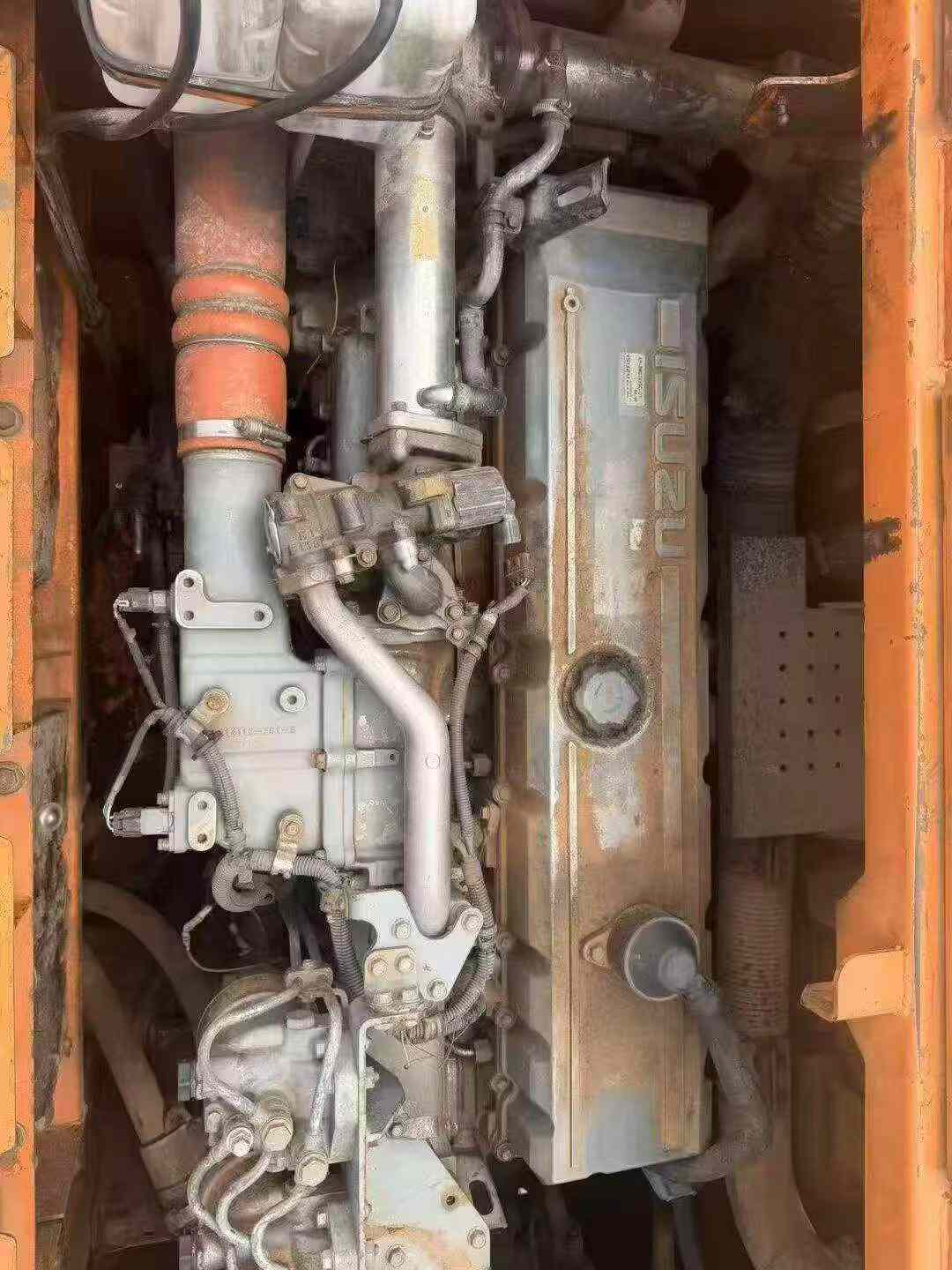

| Engine type | ISUZU AH-6WG1XYSC-01 |
| Rated power (kw/rpm) | 345(463) / 1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 147 x 154 |
| Maximum torque (N.m) | 1981/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 15.681 |
| Working form | High pressure common rail EFI engine, each cylinder has 4 valves, direct injection in the cylinder, with intercooled turbocharging |
| Ground specific pressure (Kpa) | 489 |
| Rotation speed (rpm) | 7.1 |
| Climbing ability (%) | 35 ° / 70% |
| Bucket digging force (kN) | 318 |
| Rod digging force (kN) | 307 |
| Maximum tractive force (kN) | 480 |
| Travel speed (km/h) | 4.6 / 2.8 |
| Turning torque (Nm) | 202 |
| Maximum flow of main pump (l/min) | 2 x 436 |
| Traveling Hydraulic Circuit (Mpa) | Standard 34.3/ Supercharged 35.3 |
| Main pump type | Series axial piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 31.4/ Supercharged 32.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 27 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-190 x 1465 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-215 x 2030 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-190 x 1795 |
| Fuel Tank (L) | 850 |
| Hydraulic Tank (L) | 390 |
| Engine Oil changes (L) | 52 |
| Coolant (L) | 69 |
| Hydraulic System (L) | 790 |
| Total transport length (mm) | 13400 |
| Total transport width (mm) | 3560 |
| Total transport height (mm) | 4418(to top of arm) |
| Full cab height (mm) | 3515 |
| Counterweight ground clearance (mm) | 1525 |
| Minimum ground clearance (mm) | 870 |
| Minimum turning radius of front working device (mm) | 5780 |
| Back end turning radius (mm) | 4090 |
| Onboard width (mm) | 3410 |
| Total track length (mm) | 5975 |
| Track plate width (mm) | 650/750/900 as standard |
| Total track width (mm) | 3560(contraction)/4000(extension) |
| Track ground length (mm) | 4730 |
| Maximum digging radius (mm) | 12715 |
| Maximum digging depth (mm) | 7730 |
| Maximum excavation height (mm) | 12040 |
| Maximum unloading height (mm) | 8220 |
| Maximum vertical digging depth (mm) | 4060 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 12720 |
