2018 Doosan DX75-10

1/7
Buy Doosan DX75-10 Used Excavator / 1
Buy Doosan DX75-10 Used Excavator / 2
Buy Doosan DX75-10 Used Excavator / 3
Buy Doosan DX75-10 Used Excavator / 4
Buy Doosan DX75-10 Used Excavator / 5
Buy Doosan DX75-10 Used Excavator / 6
Buy Doosan DX75-10 Used Excavator / 7

Product Description

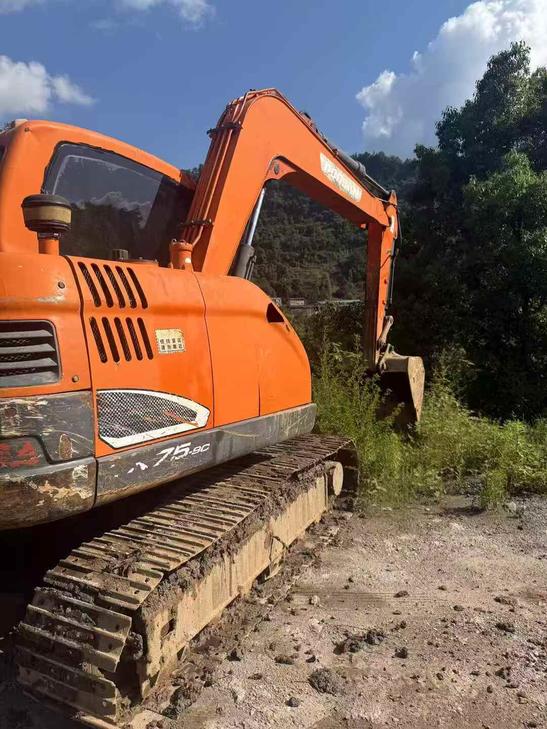

This 2018 Doosan DX75-10 midi excavator is available from Guizhou, China. With approximately six years of field service, this 7.5-ton class machine offers a practical balance of reach, digging force, and maneuverability for contractors working in confined sites or utility applications.

The DX75-10 features Doosan's zero-tail-swing design, allowing operation in tight spaces without rear overhang concerns. Standard equipment includes a hydraulic quick coupler, auxiliary hydraulic circuits for attachments, and a climate-controlled cab with ergonomic controls.

  • Operating weight: approximately 7,500 kg
  • Engine: Doosan diesel, Tier 2 compliant
  • Bucket capacity: 0.28 m³ standard
  • Maximum digging depth: ~4.2 meters
  • Rubber tracks for reduced ground pressure

Suitable for landscaping, trenching, and light demolition work. Machine is sold as-is from current location in Guizhou Province.

SpecificationsValue
No.1075450
Tonnage (tons)7
Working weight (kg)7500
Bucket capacity (m³)0.3
Boom length (mm)3620
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYANMAR 4TNV94L
Rated power (kw/rpm)36.2/2200
Cylinder diameter × stroke (mm)94*110
Number of cylinders (PCS)4
Emission standardCountry IV
Rotation speed (rpm)10.4
Bucket digging force (kN)52.3
Rod digging force (kN)36.2
Travel speed (km/h)4.5/2.9
Fuel Tank (L)130
Hydraulic Tank (L)90
Total transport length (mm)6030
Total transport width (mm)2180
Total transport height (mm)2680
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1750
Total track length (mm)2750
Track gauge (mm)1650
Track plate width (mm)450
Maximum digging radius (mm)6270
Maximum digging depth (mm)4080
Maximum excavation height (mm)7100
Maximum unloading height (mm)5170
Maximum vertical digging depth (mm)2670
Dodging plate width × height (mm)2100*418
Maximum excavation radius of stop surface (mm)6115
see more

Overview

No.1075450

Brand Name:

Doosan

Model Number:

DX75-10

Year:

2018

Location:

Guizhou China

Pub Date
