2015 Sumitomo SH380-5

1/9
Buy Sumitomo SH380-5 Used Excavator / 1

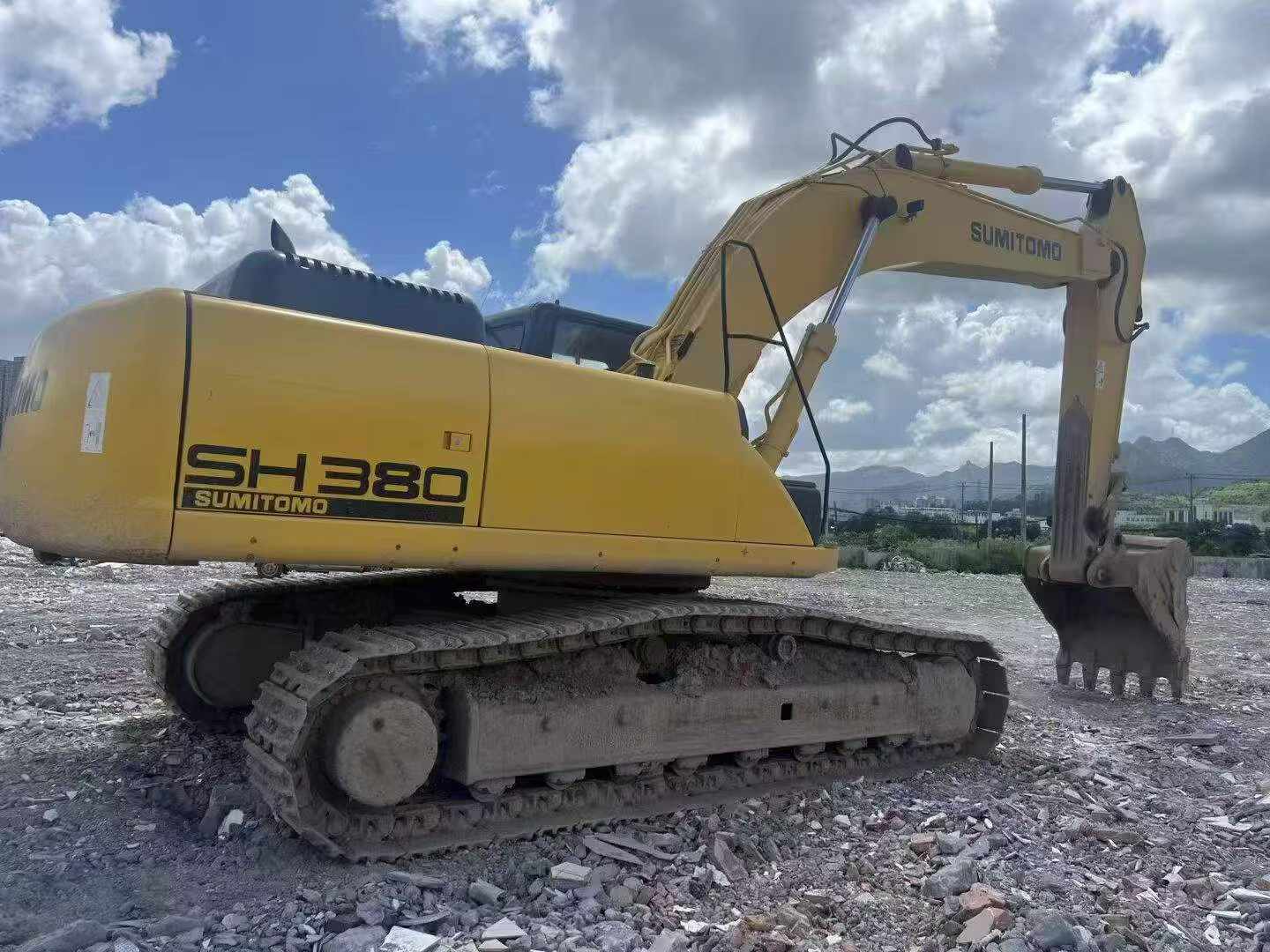

Buy Sumitomo SH380-5 Used Excavator / 2

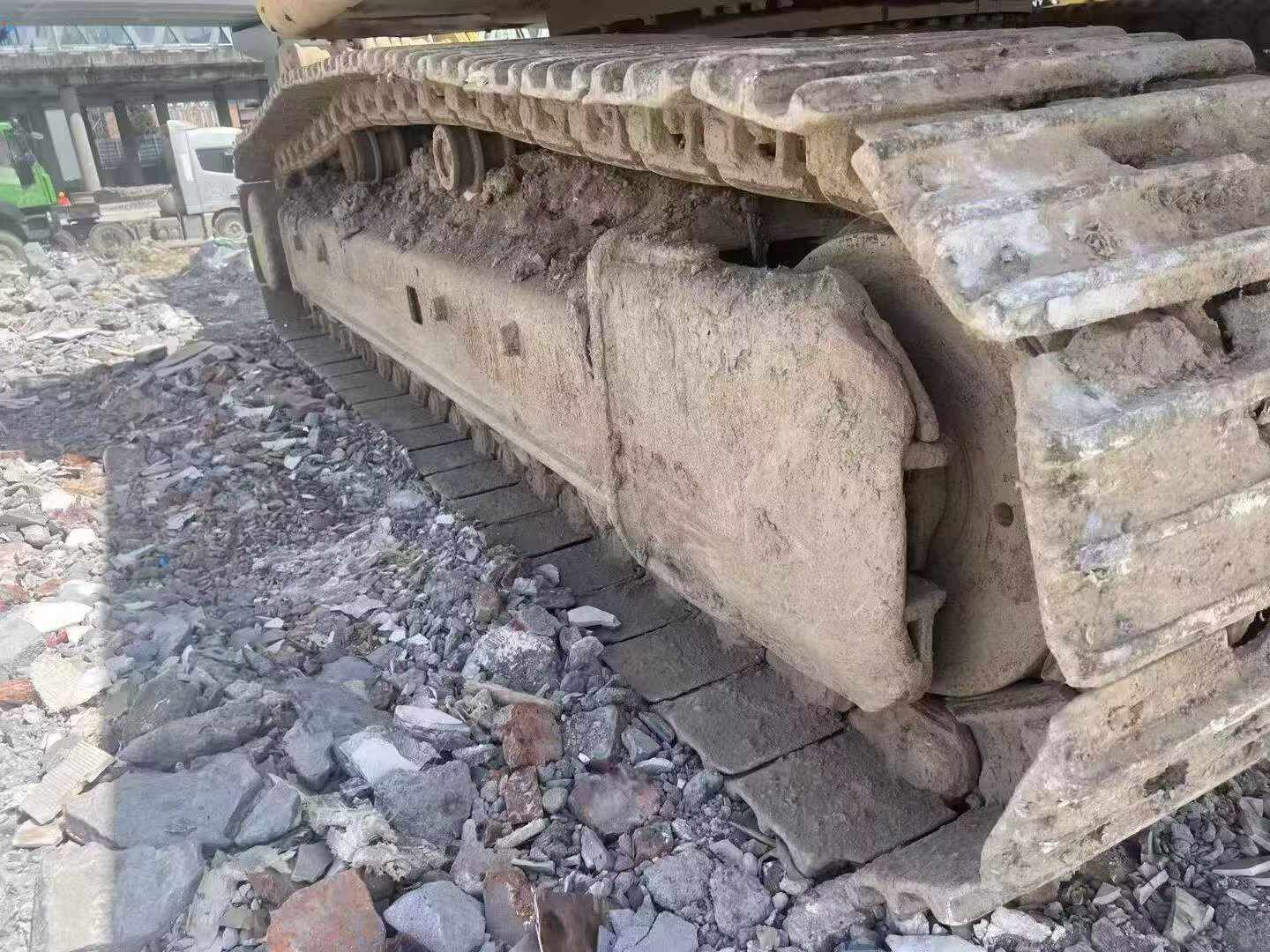

Buy Sumitomo SH380-5 Used Excavator / 3

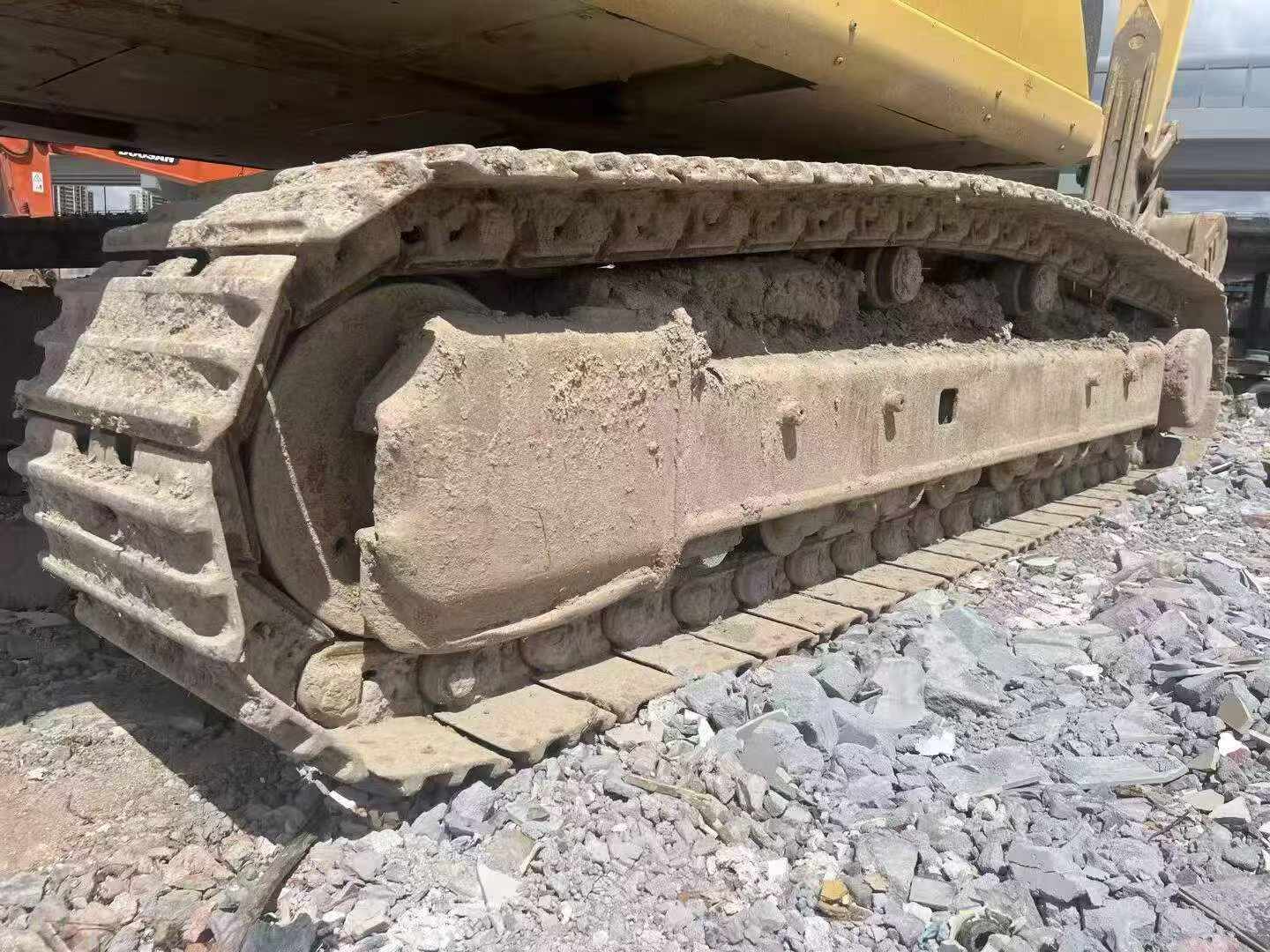

Buy Sumitomo SH380-5 Used Excavator / 4

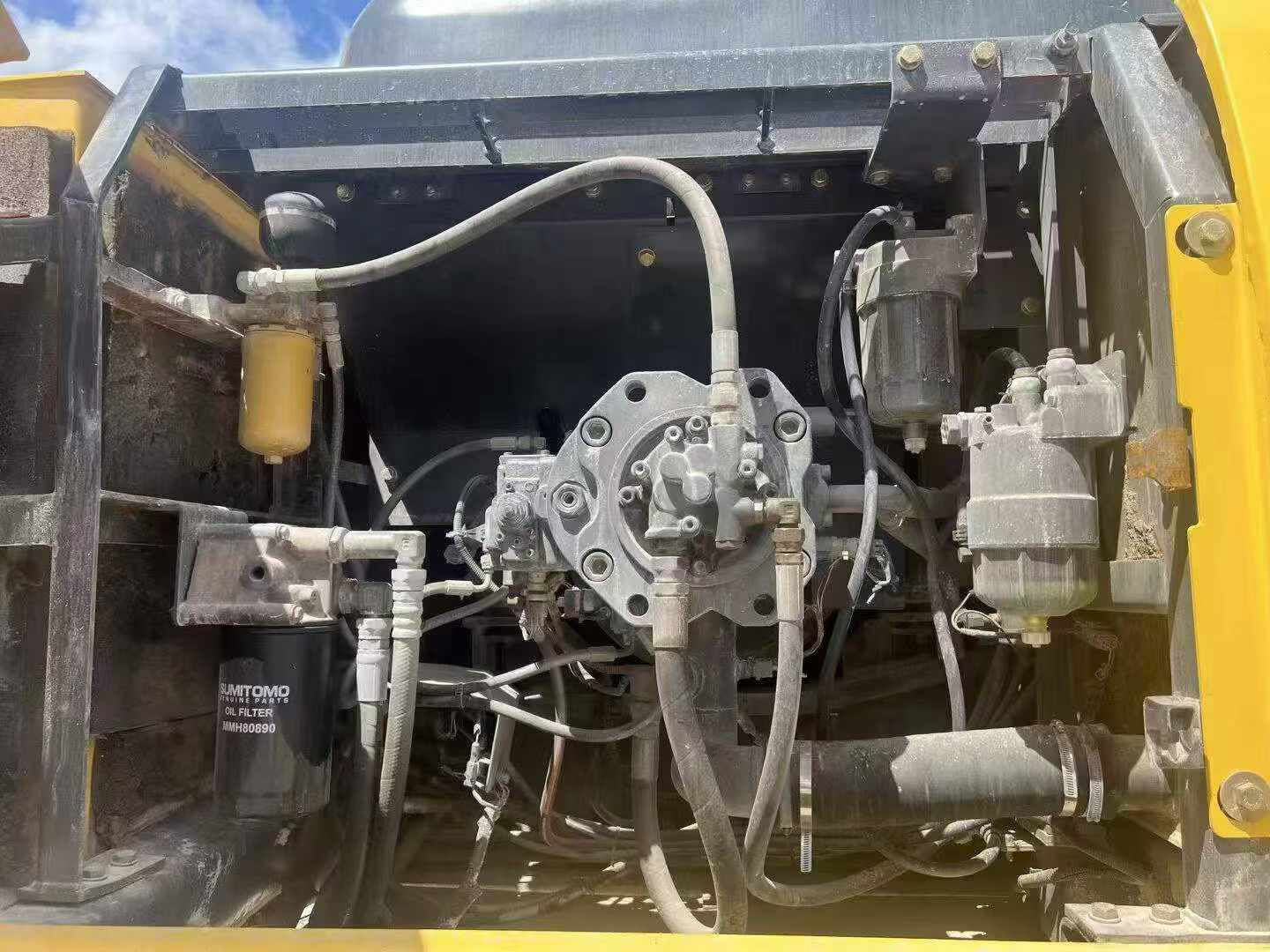

Buy Sumitomo SH380-5 Used Excavator / 5

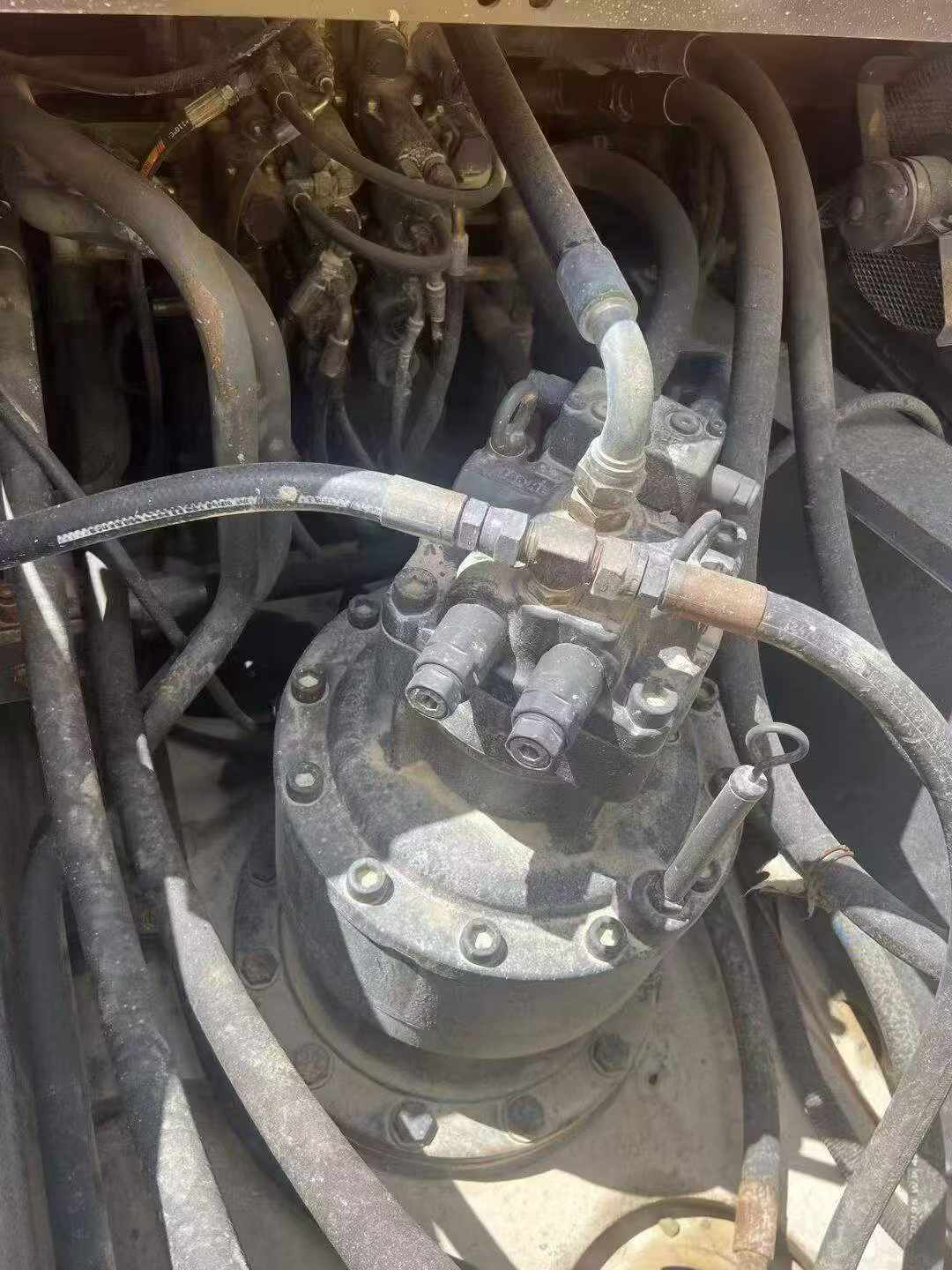

Buy Sumitomo SH380-5 Used Excavator / 6

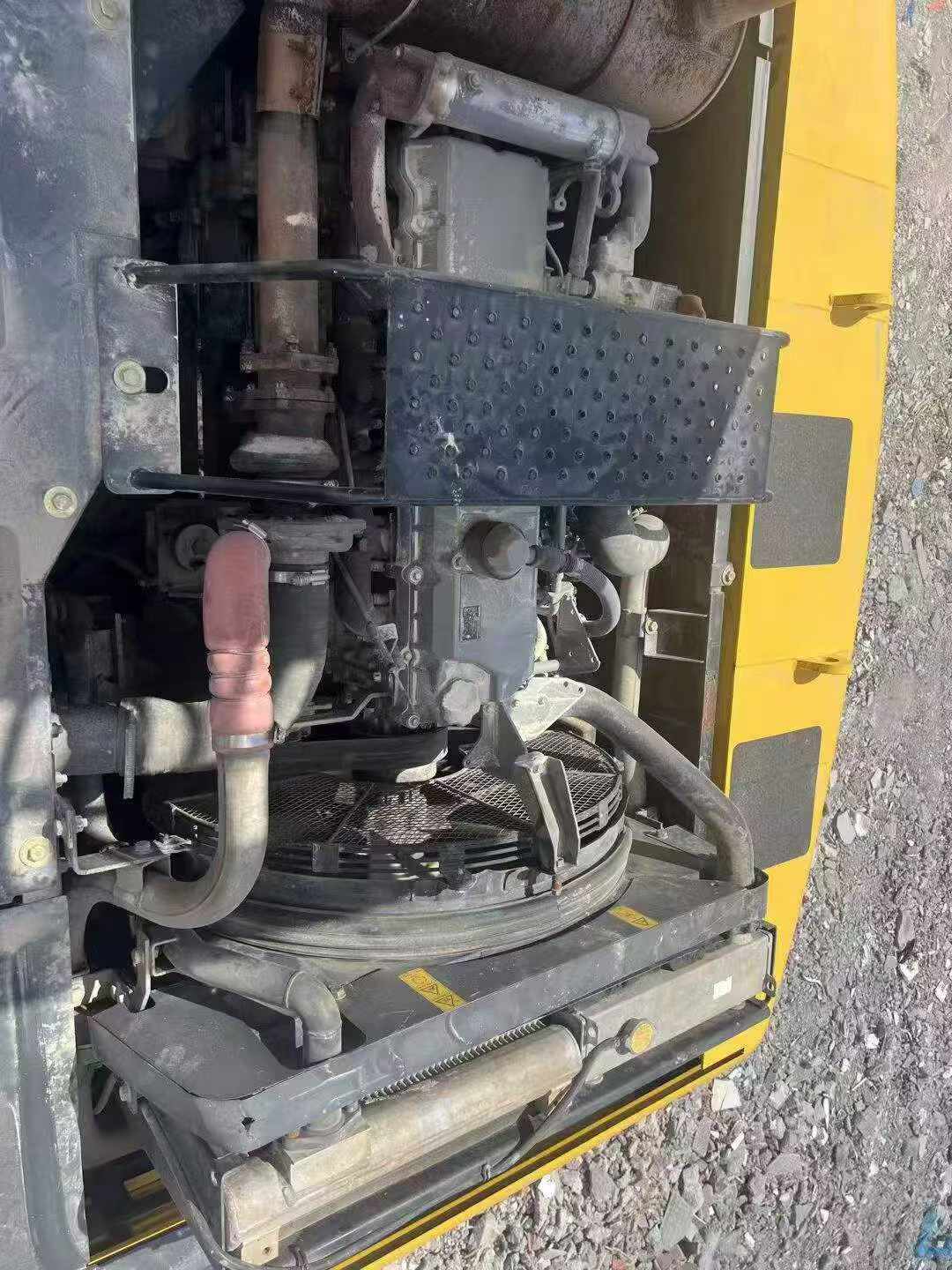

Buy Sumitomo SH380-5 Used Excavator / 7

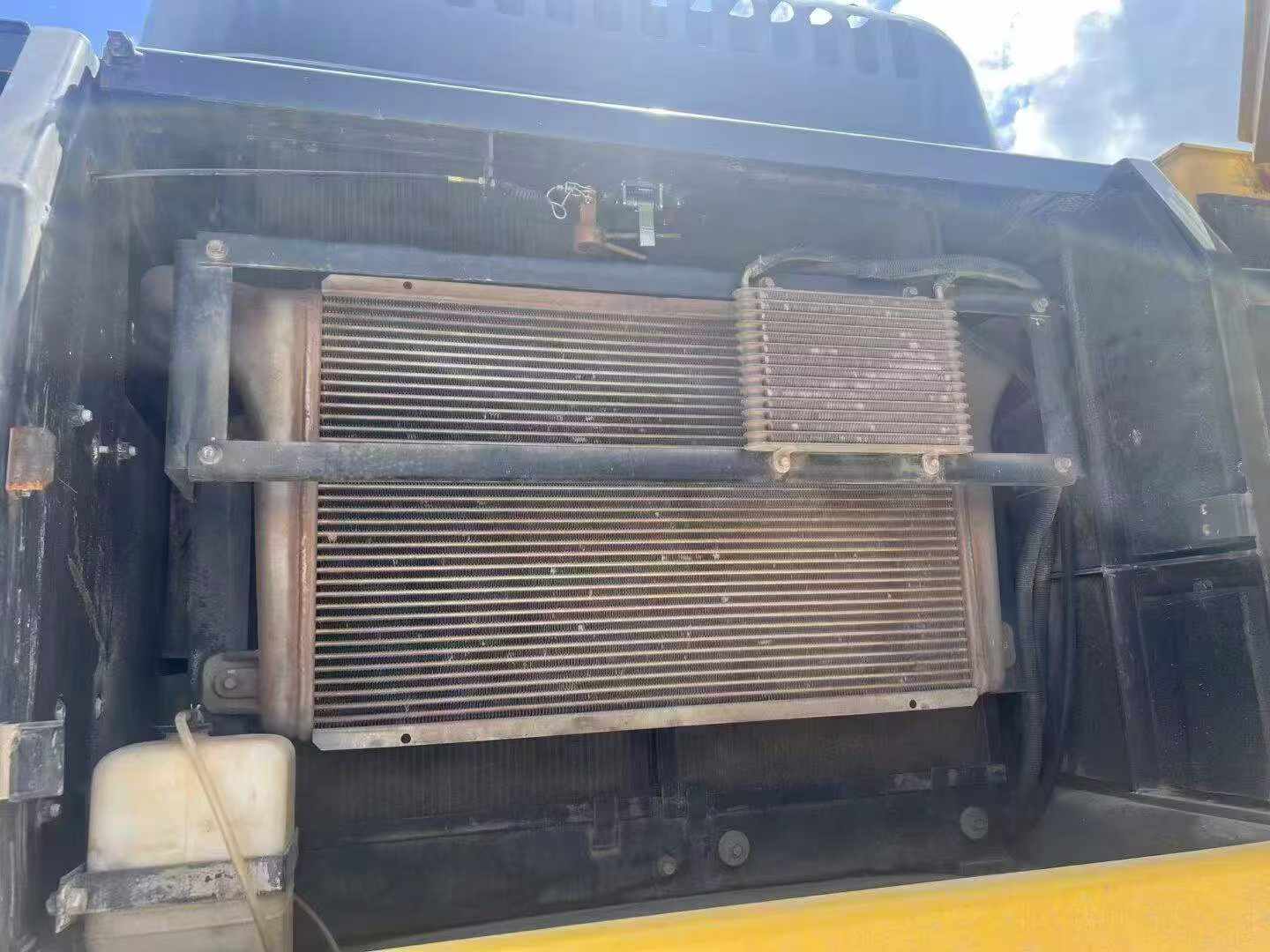

Buy Sumitomo SH380-5 Used Excavator / 8

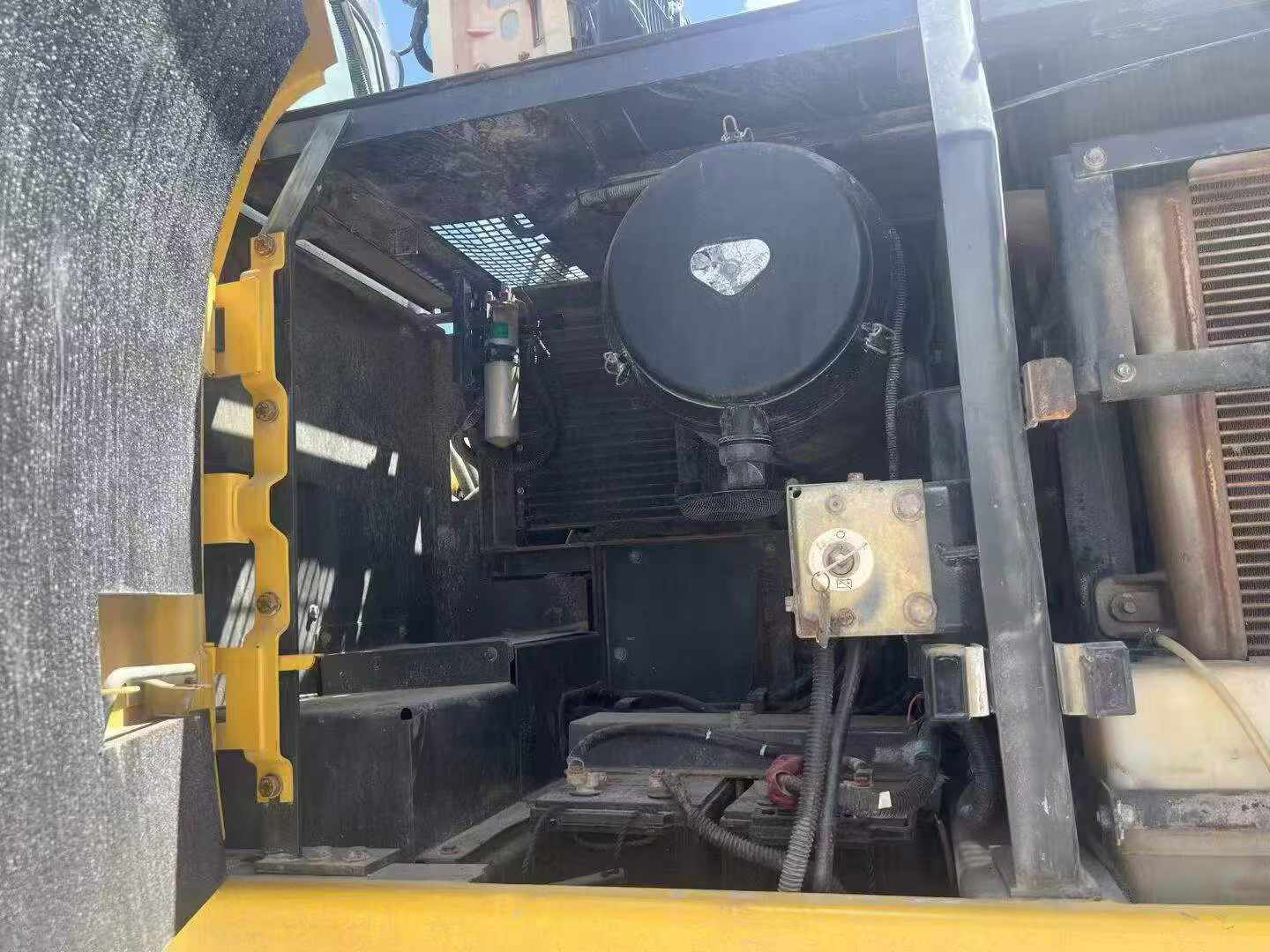

Buy Sumitomo SH380-5 Used Excavator / 9

Product Description

This 2015 Sumitomo SH380-5 hydraulic excavator represents a reliable solution for heavy-duty construction and earthmoving operations. Currently located in Zhejiang, China, this machine comes from Sumitomo's proven SH-5 series, known for robust engineering and operational efficiency in demanding applications.

The SH380-5 features Sumitomo's advanced hydraulic system designed for optimal fuel efficiency and precise control during excavation, loading, and material handling tasks. With its substantial operating weight class, this excavator delivers the power and stability required for large-scale projects including infrastructure development, mining support, and heavy civil works.

Key attributes include:

  • Durable undercarriage built for extended service life
  • Spacious operator cabin with ergonomic controls
  • Reliable engine performance with strong digging force
  • Well-maintained unit ready for immediate deployment

This excavator is available for inspection and suitable for buyers seeking quality used equipment from a respected Japanese manufacturer.

SpecificationsValue
No.1080831
Tonnage (tons)38
Working weight (kg)36600
Bucket capacity (m³)1.8
Boom length (mm)6400
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeIsuzu AH-6HK1X
Rated power (kw/rpm)202/2000
Displacement (L)7.790
Ground specific pressure (Kpa)68
Rotation speed (rpm)9.8
Climbing ability (%)70% (35°)
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Type of walking hydraulic motorVariable capacity piston pump
Main pump typeVariable capacity piston pump
Working Hydraulic Circuit (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)175
Hydraulic System (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4980
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1080831

Brand Name:

Sumitomo

Model Number:

SH380-5

Year:

2015

Location:

Zhejiang China

Pub Date
