Product Description

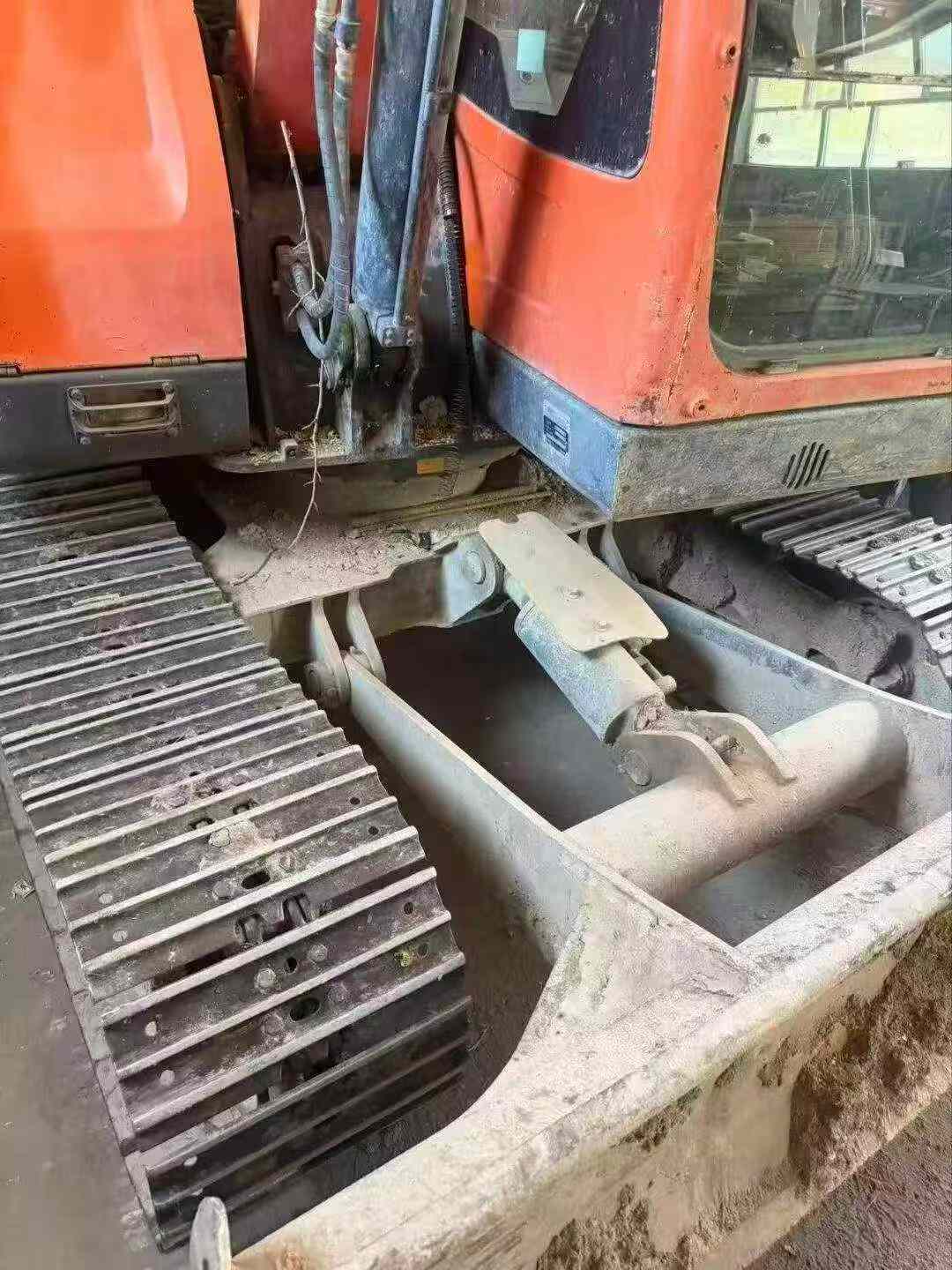

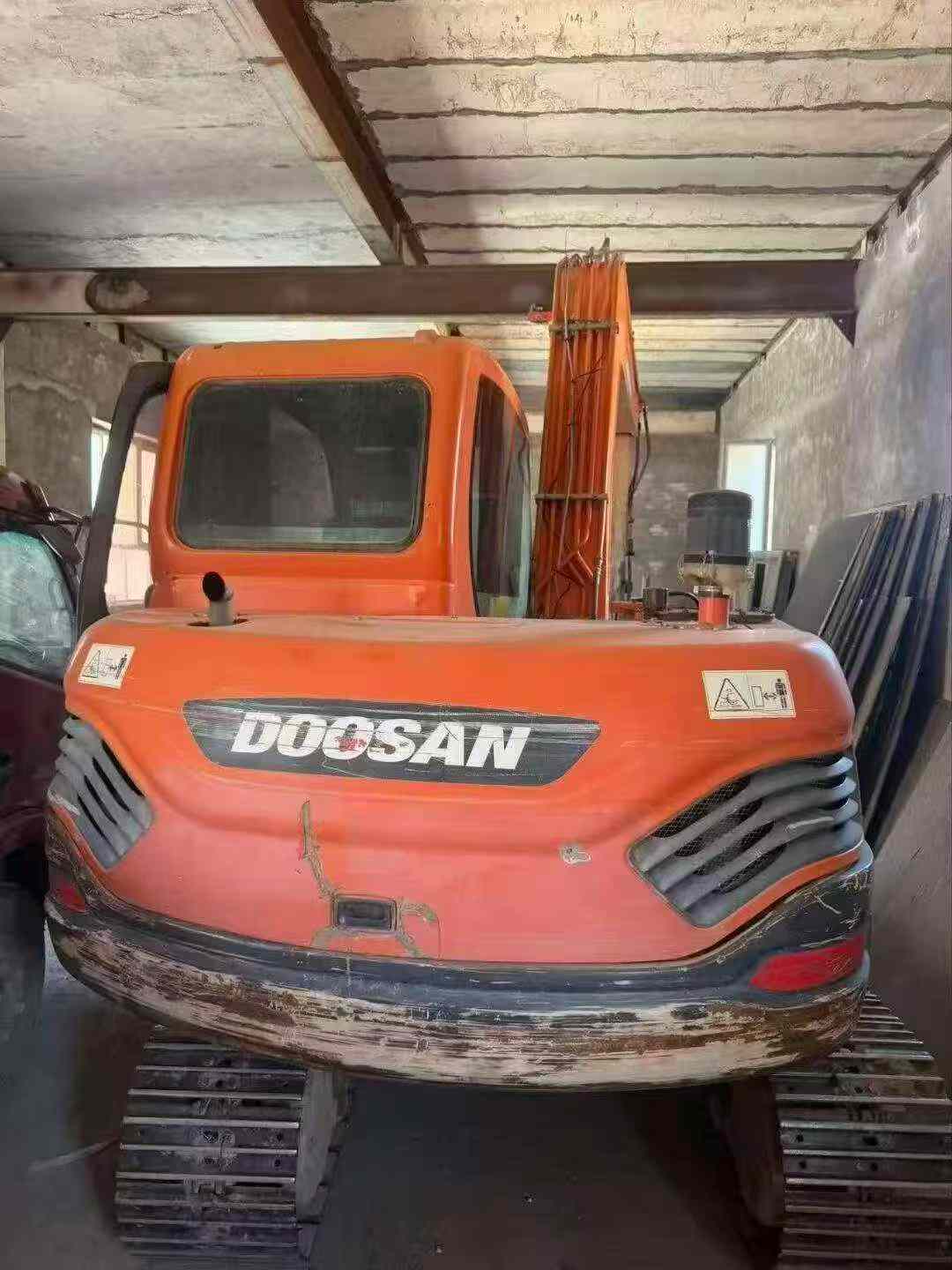

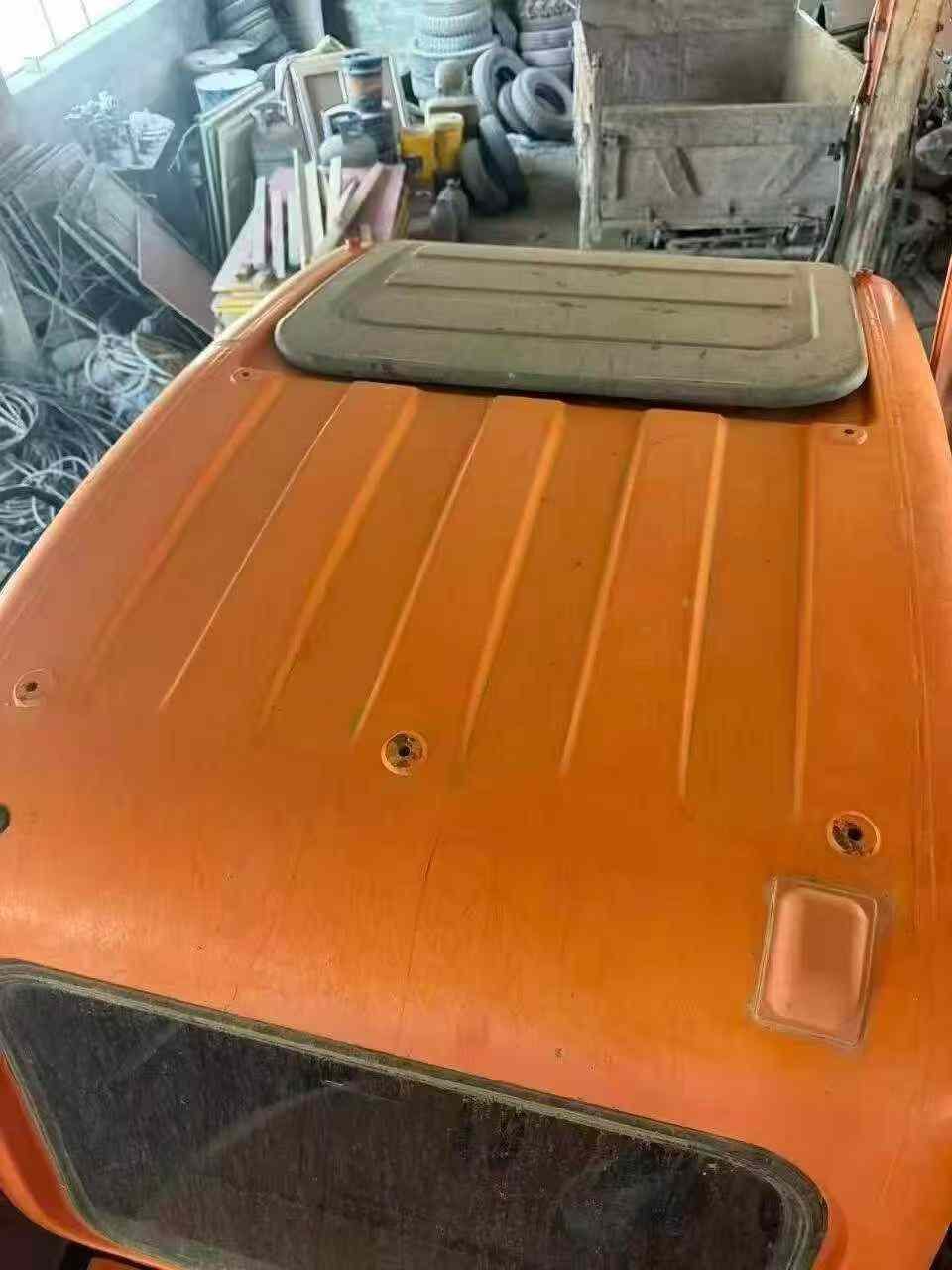

This 2020 Doosan DX75-10 excavator is currently available in Sichuan, China. As a mid-size crawler excavator from Doosan's proven DX series, this machine offers reliable performance for construction, earthmoving, and general contracting applications. The DX75-10 represents an evolution of the DX75-9C platform with enhanced operator comfort and fuel efficiency.
Key features of this unit include:
- Operating weight class suitable for urban construction and infrastructure projects
- Doosan diesel engine delivering dependable power and torque
- Hydraulic system designed for smooth operation and precise control
- Spacious cab with improved visibility for safe operation
- Standard excavator configuration with boom, arm, and bucket
With approximately four years of service, this Doosan excavator presents an opportunity for buyers seeking proven Japanese-Korean engineering at competitive used equipment pricing. Inspection recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1168748 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7500 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 36.2/2200 |
| Cylinder diameter × stroke (mm) | 94*110 |
| Number of cylinders (PCS) | 4 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 52.3 |
| Rod digging force (kN) | 36.2 |
| Travel speed (km/h) | 4.5/2.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100*418 |
| Maximum excavation radius of stop surface (mm) | 6115 |
