Product Description

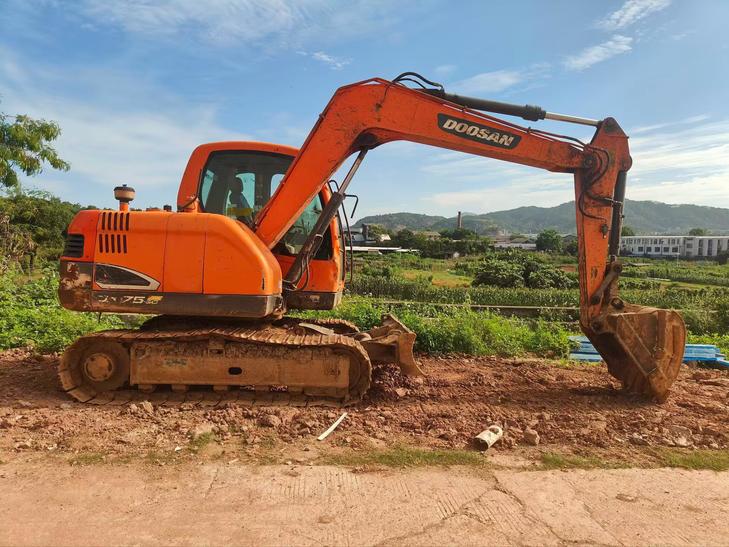

This 2021 Doosan DX75-10 excavator is available from Zhejiang, China. With just over 110,000 RMB in operating hours, this mid-size crawler excavator comes equipped with a hydraulic breaker attachment, making it well-suited for demolition and rock-breaking applications. The DX75-10 represents Doosan's reliable 7.5-ton class, known for fuel efficiency and operator comfort in confined job sites.
- Year: 2021
- Model: Doosan DX75-10
- Includes hydraulic hammer attachment
- Operating weight class: ~7.5 tons
- Location: Zhejiang Province, China
- Suitable for urban construction, demolition, and utility work
This machine offers a cost-effective solution for contractors seeking a recent-model excavator with breaker capability. Inspection welcome. Contact us for detailed specifications and availability.
| Specifications | Value |
|---|---|
| No. | 1073715 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7500 |
| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | 3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | YANMAR 4TNV94L |
| Rated power (kw/rpm) | 36.2/2200 |
| Cylinder diameter × stroke (mm) | 94*110 |
| Number of cylinders (PCS) | 4 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 52.3 |
| Rod digging force (kN) | 36.2 |
| Travel speed (km/h) | 4.5/2.9 |
| Fuel Tank (L) | 130 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 5170 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100*418 |
| Maximum excavation radius of stop surface (mm) | 6115 |
