Product Description
Built for daily production work, this 2016 Doosan DX75 excavator delivers reliable 7-ton performance across grading, trenching, and utility installation projects. Powered by a Yanmar 4TNV94L engine producing 39.7kW at 2200 rpm, this machine combines proven Japanese engine technology with Doosan's hydraulic efficiency for consistent fuel economy and uptime.
Equipped with a 0.28m³ backhoe bucket and variable piston pump system, the DX75 generates 53.4kN bucket digging force and reaches 3930mm maximum dig depth—ideal for foundation work, drainage systems, and site preparation. The 6270mm working radius covers substantial ground without repositioning, while the compact 2100mm transport width navigates restricted job sites and urban environments.
- Working weight: 7350kg with 370mm ground clearance for stable operation
- 10.7 rpm swing speed and 30° climbing ability for varied terrain
- 111L fuel tank supports extended shifts with minimal refueling
- Dual travel speeds (3.0/4.7 km/h) optimize productivity and transit
- Currently located in Yulin, Guangxi—ready for immediate deployment
This machine arrives site-ready with complete hydraulics, operational cab systems, and docum
| Specifications | Value |
|---|---|
| No. | 1037529 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

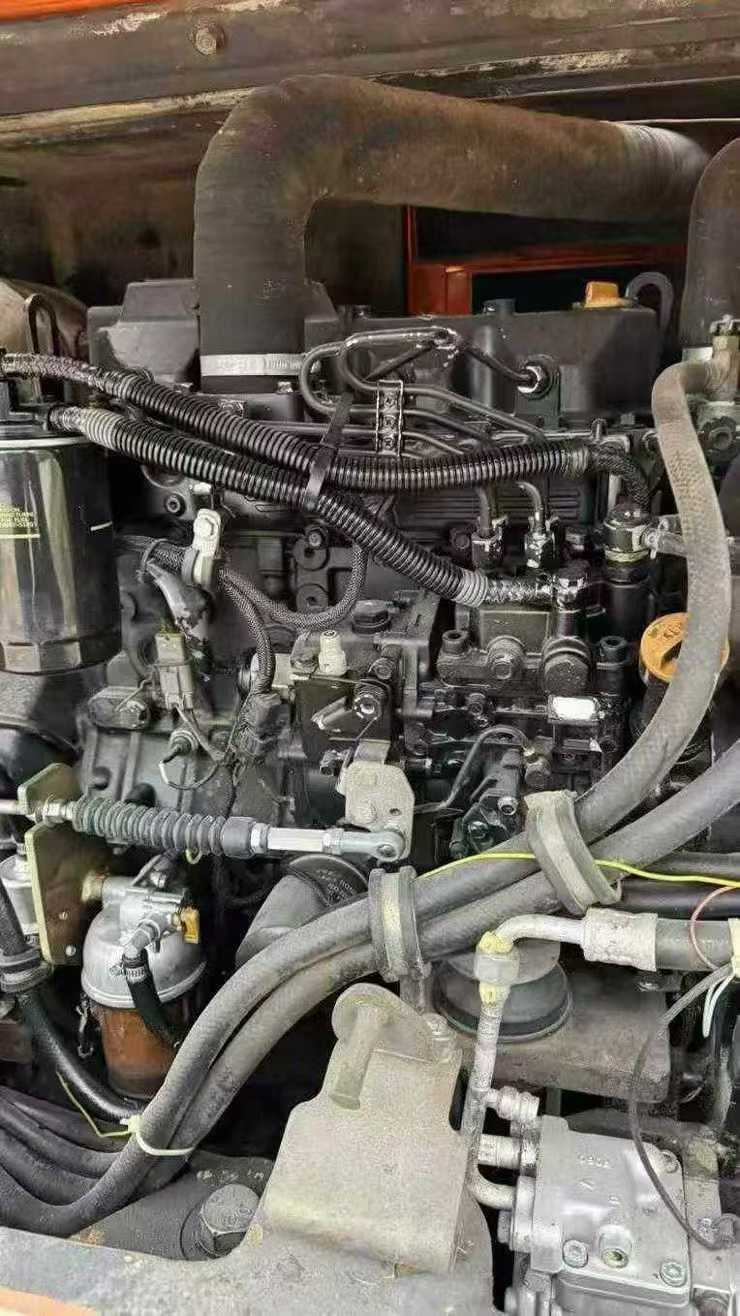

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

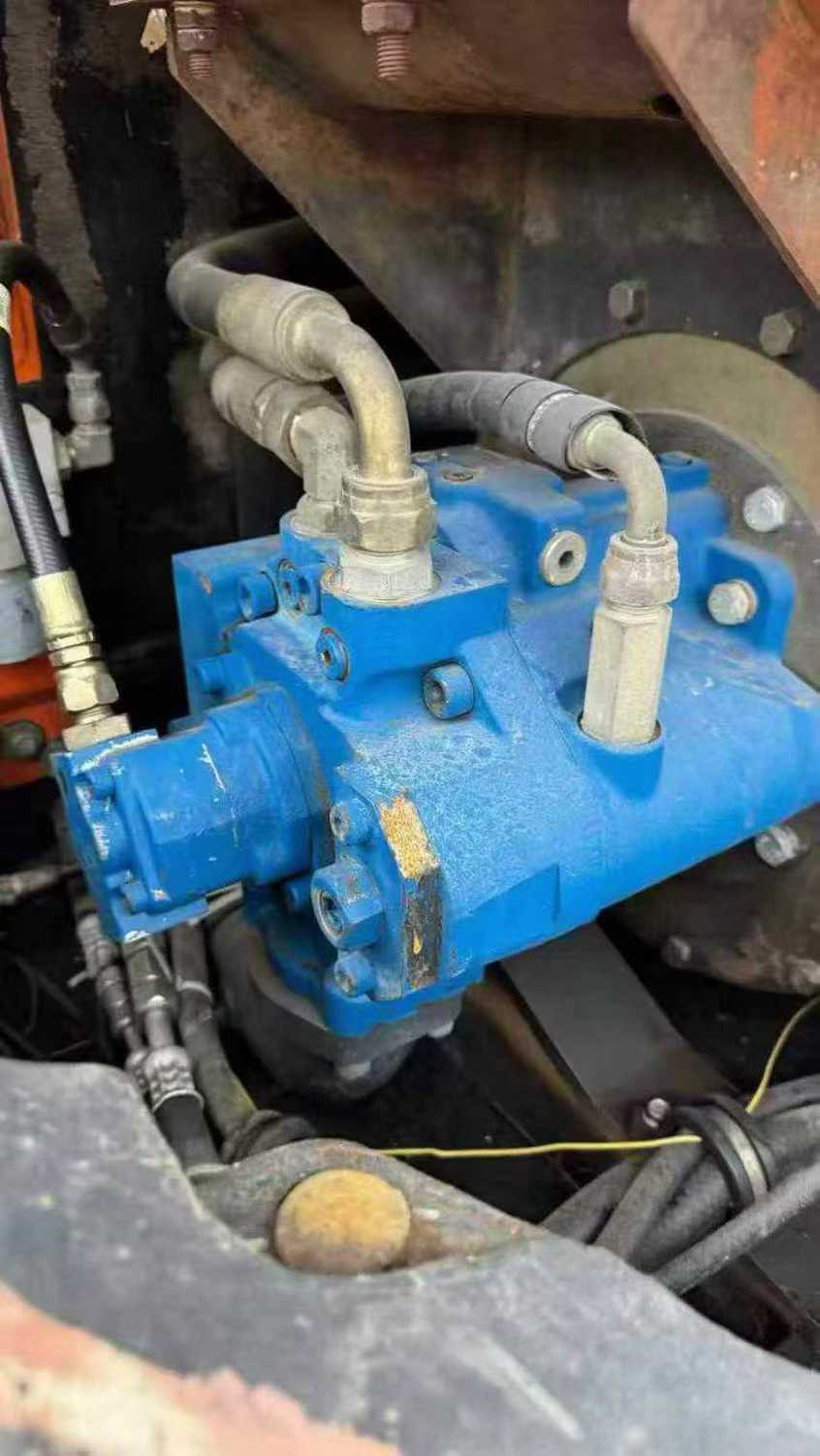

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
