2017 Doosan DX75

1/9
Buy Doosan DX75 Used Excavator / 1

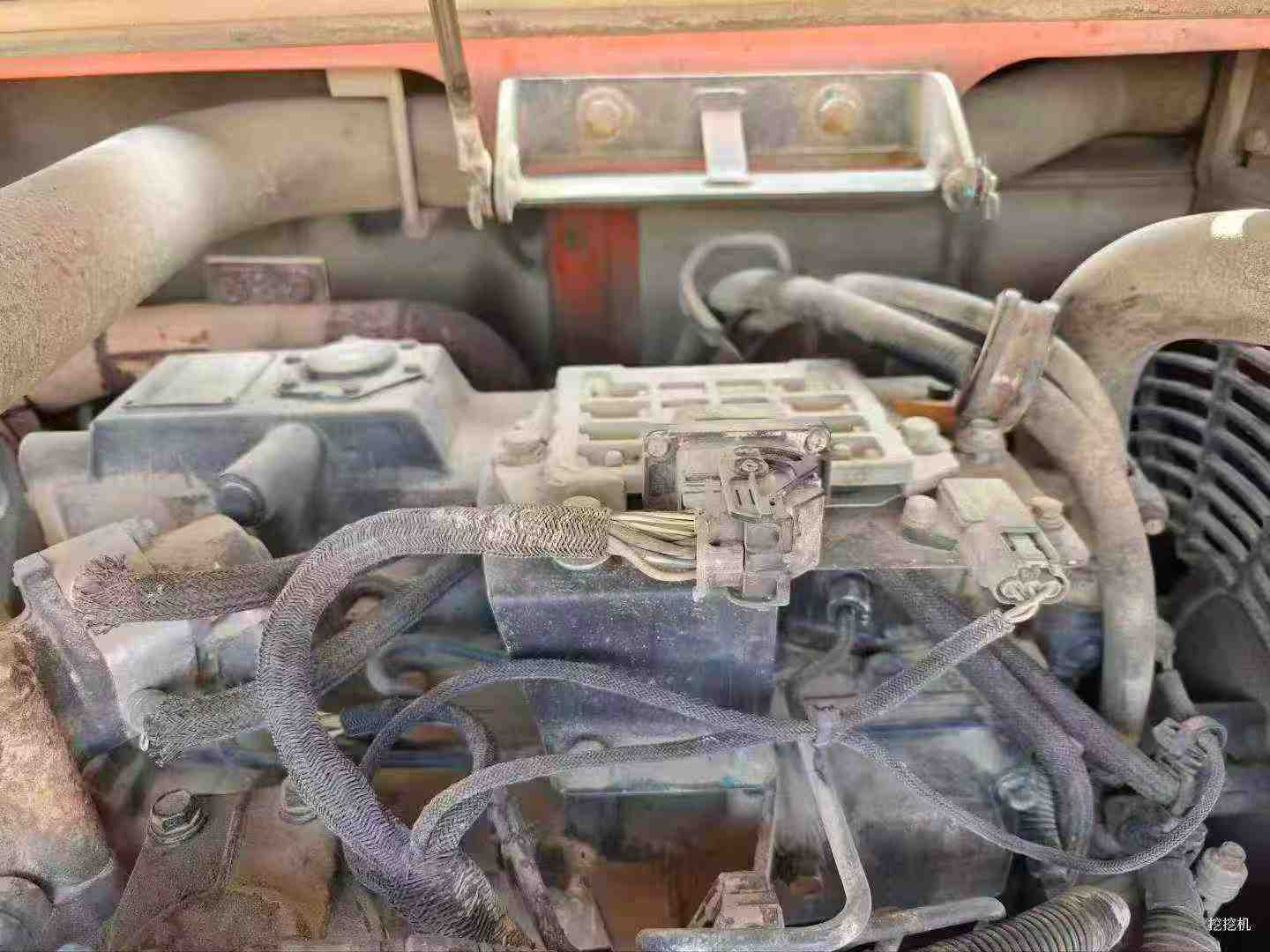

Buy Doosan DX75 Used Excavator / 2

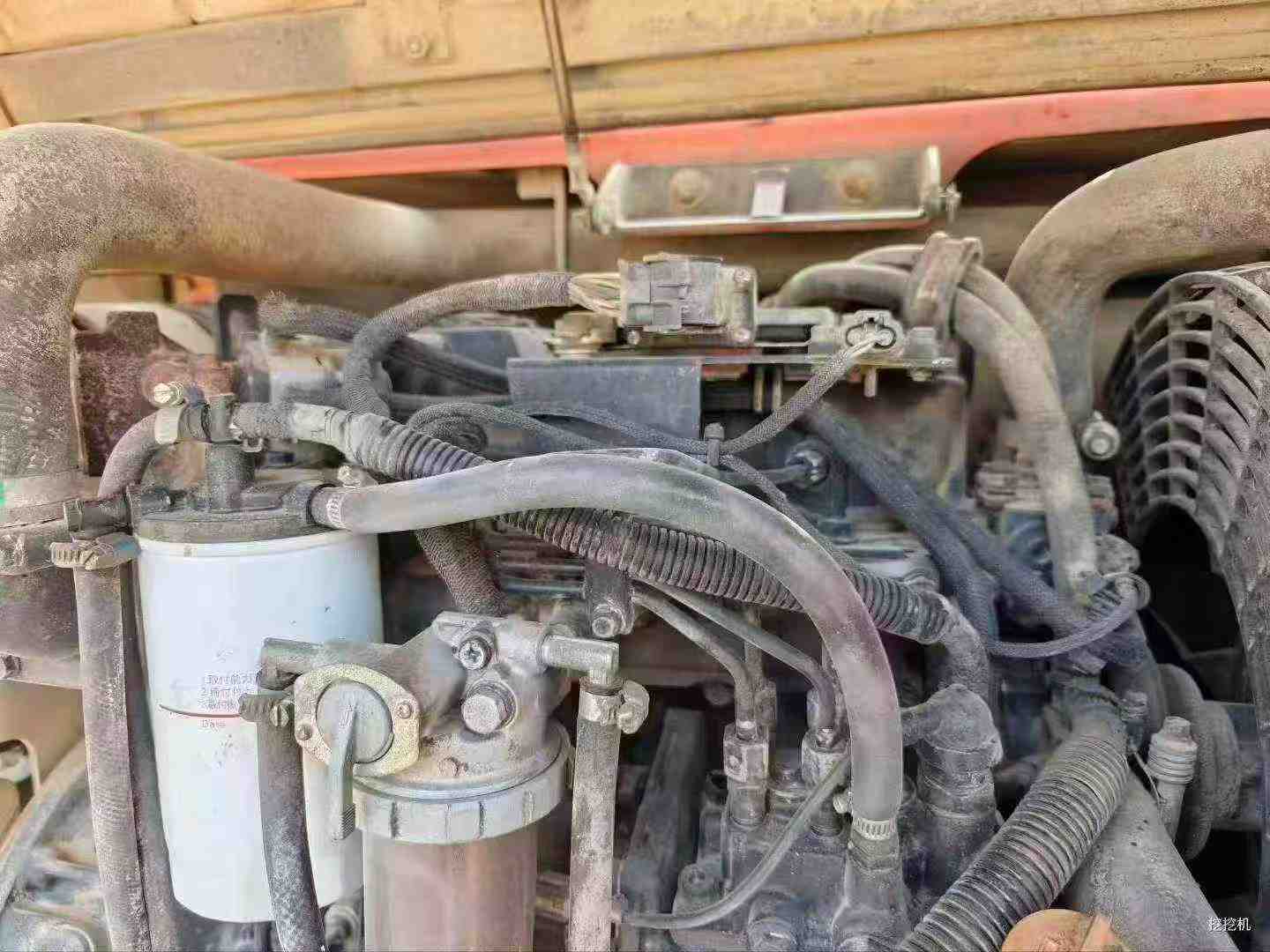

Buy Doosan DX75 Used Excavator / 3

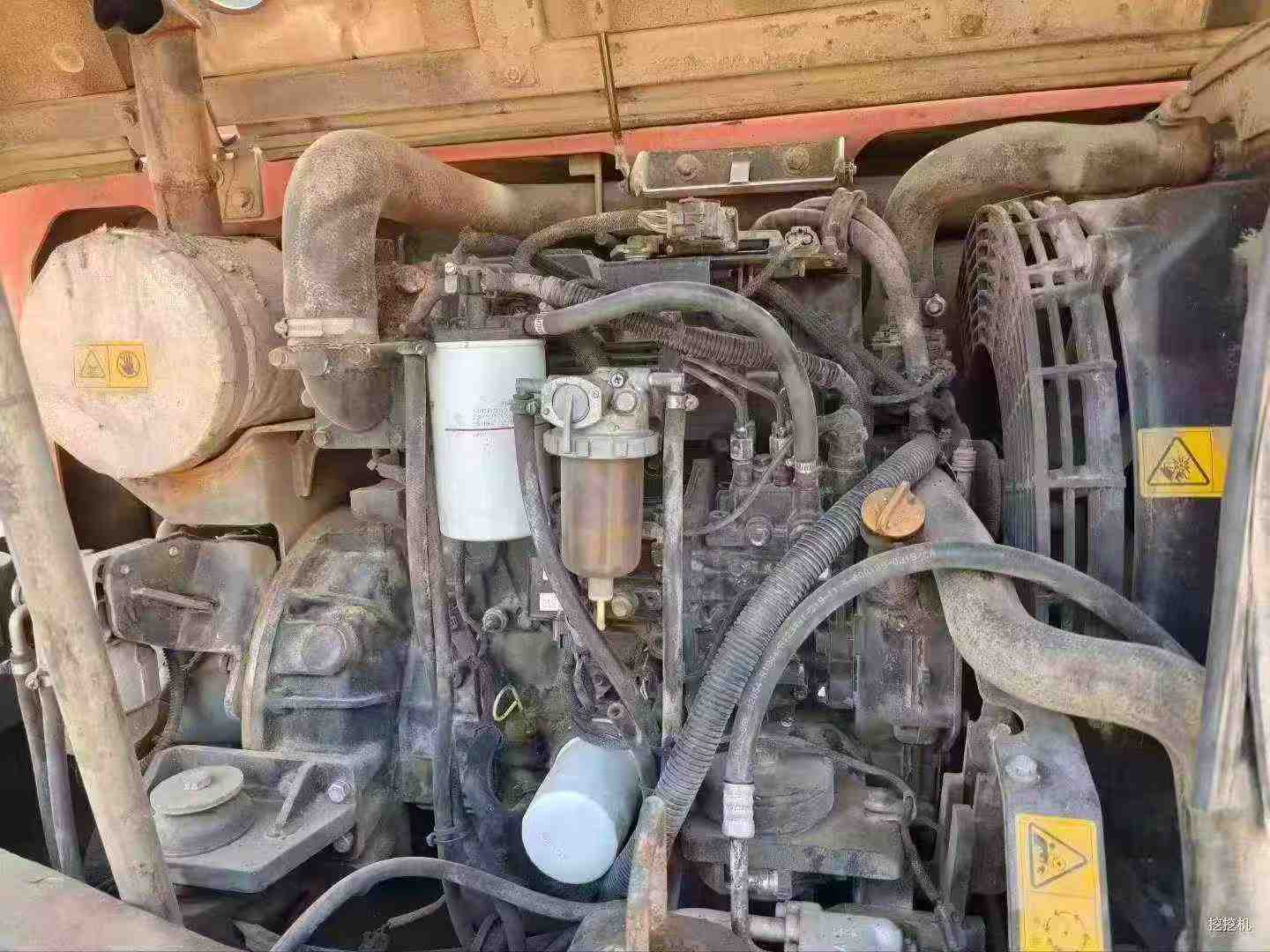

Buy Doosan DX75 Used Excavator / 4

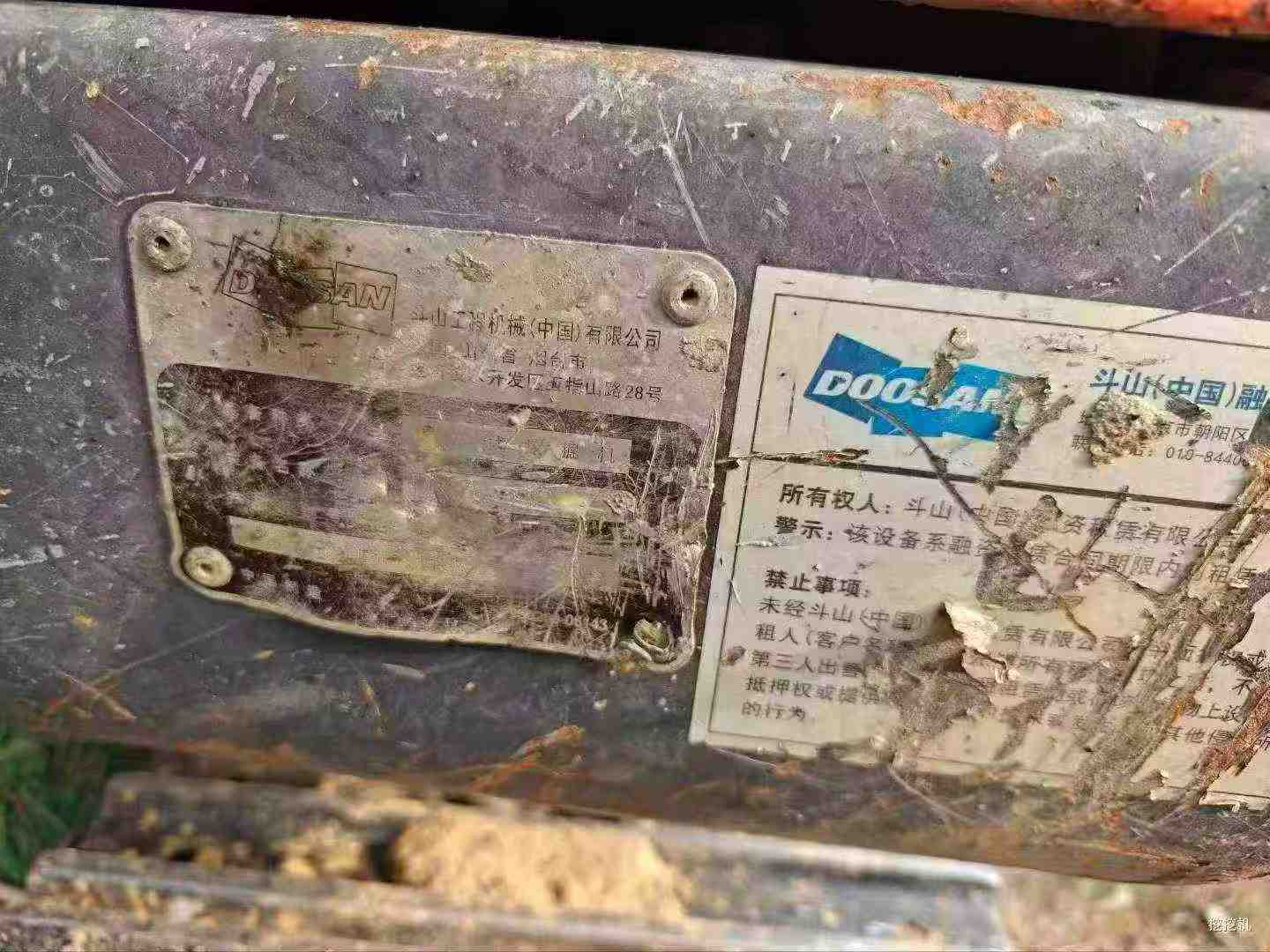

Buy Doosan DX75 Used Excavator / 5

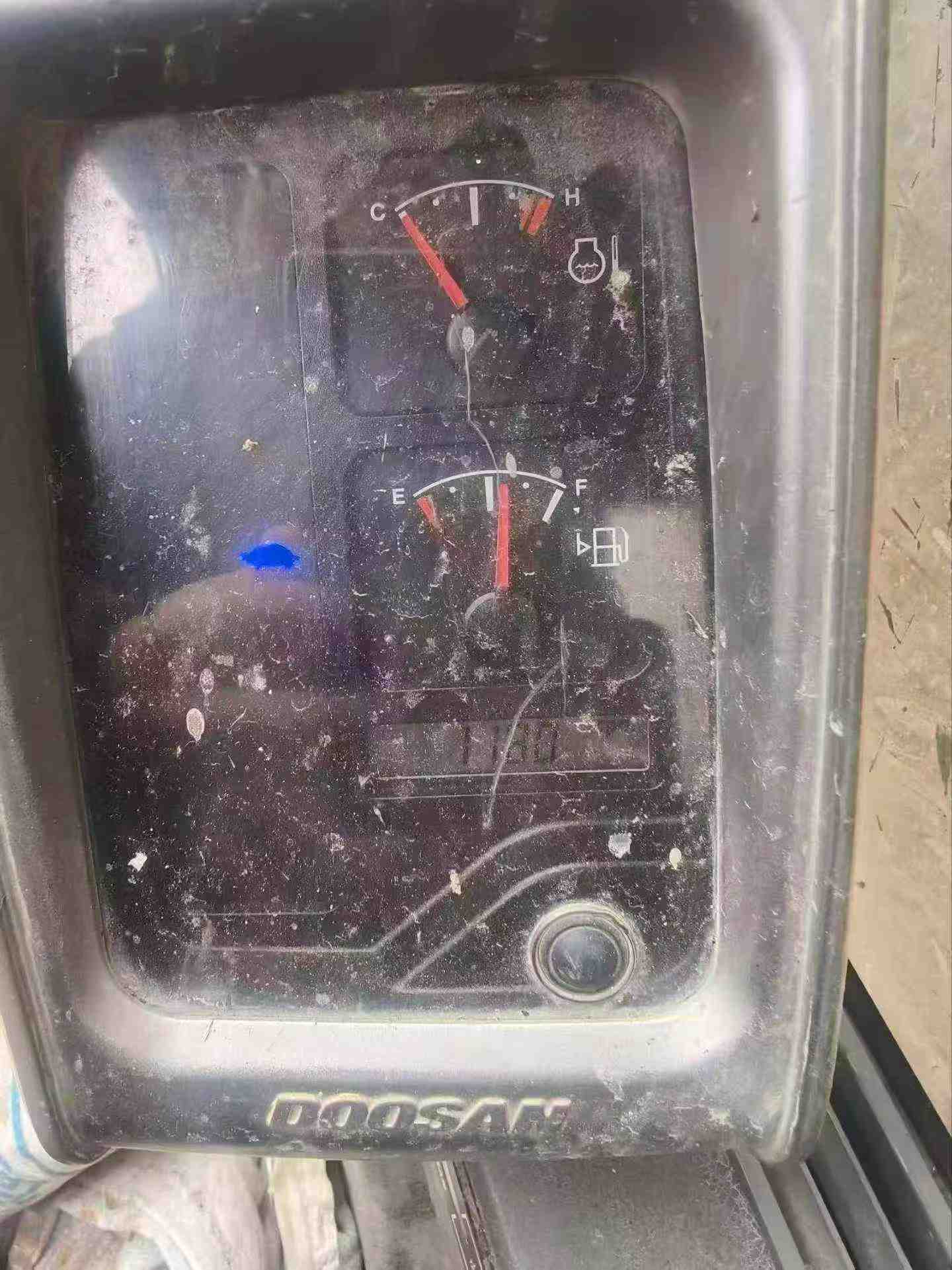

Buy Doosan DX75 Used Excavator / 6

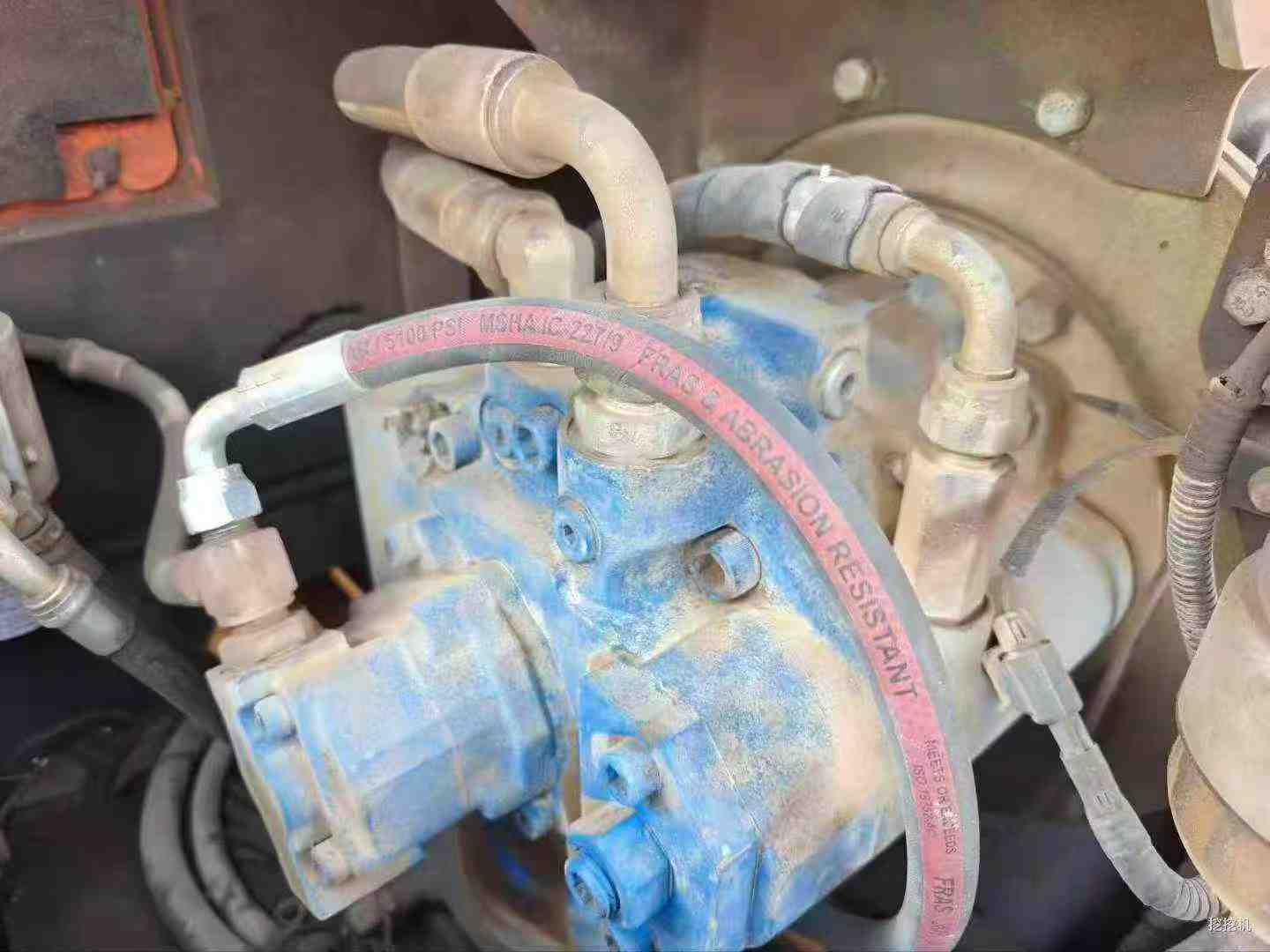

Buy Doosan DX75 Used Excavator / 7

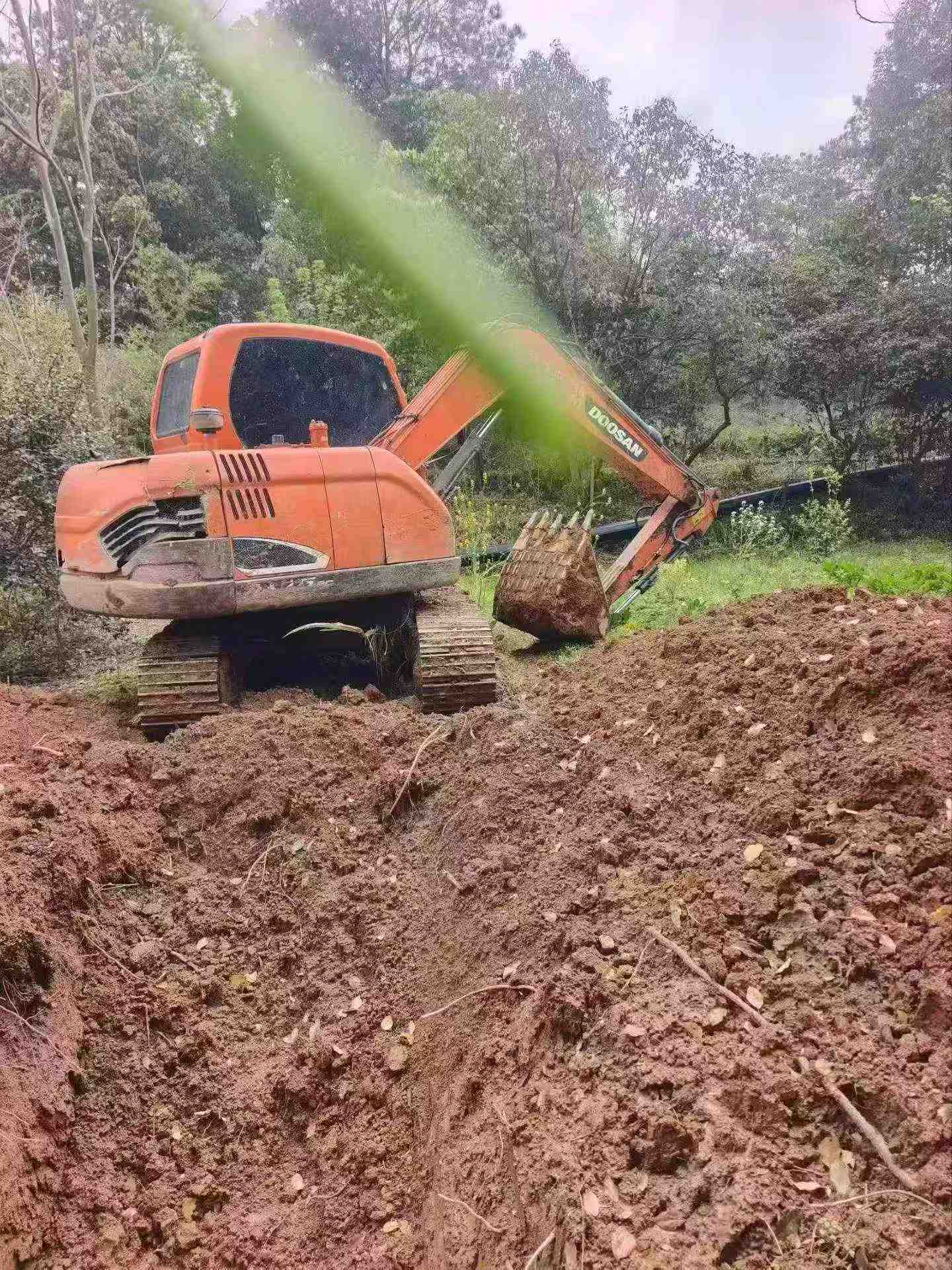

Buy Doosan DX75 Used Excavator / 8

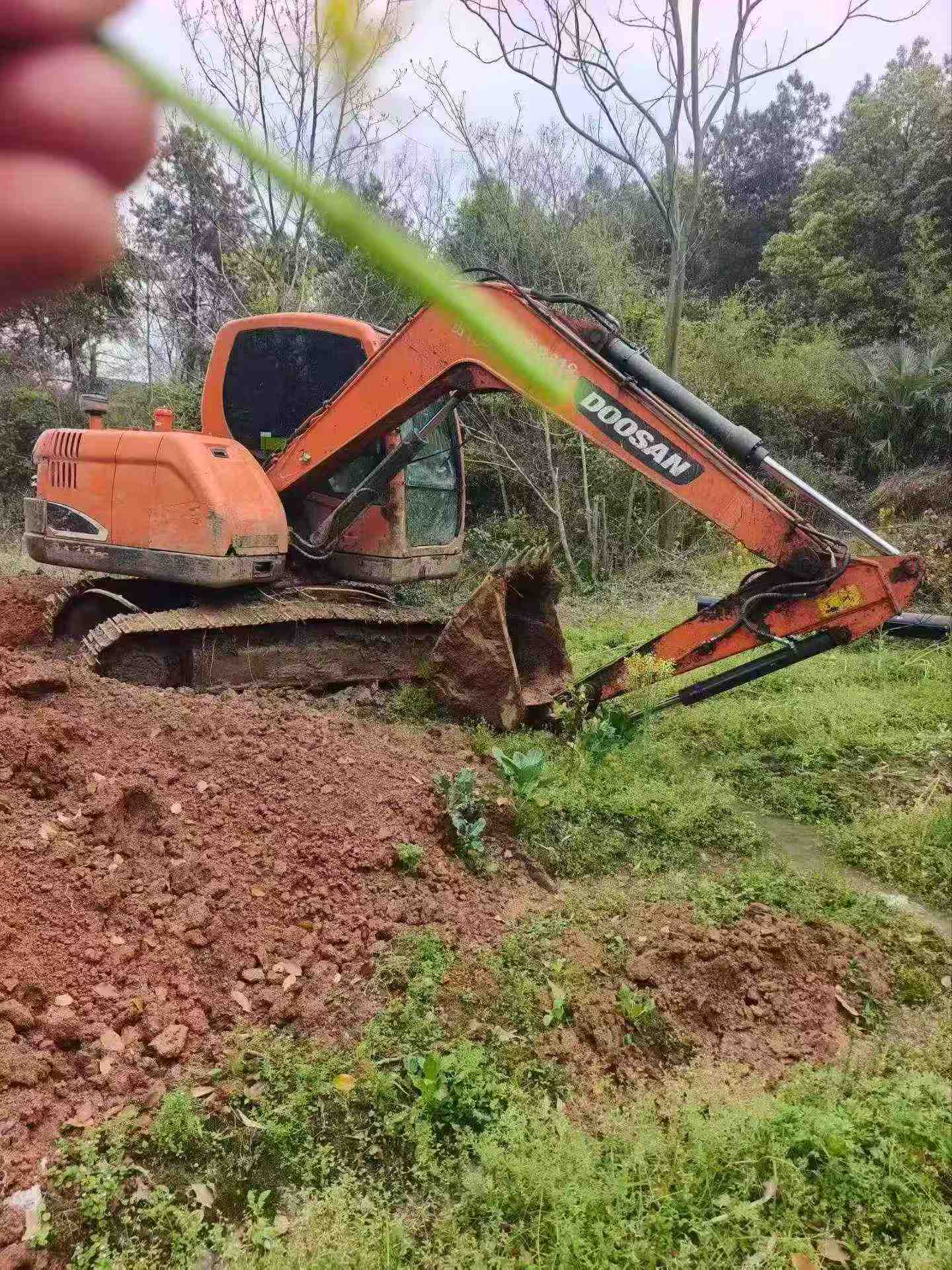

Buy Doosan DX75 Used Excavator / 9

Product Description

This 2017 Doosan DX75 excavator is available for immediate sale from a first-hand source in Sichuan, China. The DX75 is a versatile 7.5-ton class machine recognized for its balance of power and maneuverability on medium-scale construction and earthmoving projects.

Key details:

  • Model year: 2017
  • Operating weight class: 7.5 tons
  • Current location: Sichuan Province, China
  • Direct from original owner

The Doosan DX75 features a compact footprint suitable for urban job sites while maintaining sufficient digging depth and reach for foundation work, trenching, and utility installation. This unit is priced competitively for the regional market and available for inspection by qualified buyers.

SpecificationsValue
No.1137508
Tonnage (tons)7
Working weight (kg)7350
Bucket capacity (m³)0.28
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.7 / 2200
Maximum torque (N.m)24.6/1475
Number of cylinders (PCS)4
Working form4-stroke, water-cooled, direct spray
Rotation speed (rpm)10.7
Climbing ability (%)30 °
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)3.0 / 4.7
Turning torque (Nm)23.4 ~ 24.6
Main pump typeVariable piston pump
Fuel Tank (L)111
Total transport length (mm)6030
Total transport width (mm)2100
Total transport height (mm)2680(to top of cab)
Full cab height (mm)2680
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1755
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track ground length (mm)2110
Maximum digging radius (mm)6270
Maximum digging depth (mm)3930
Maximum excavation height (mm)7050
Maximum unloading height (mm)5165
Maximum vertical digging depth (mm)2570
Dodging plate width × height (mm)2100 x 420
Maximum excavation radius of stop surface (mm)6115
see more

Overview

No.1137508

Brand Name:

Doosan

Model Number:

DX75

Year:

2017

Location:

Sichuan China
