Product Description

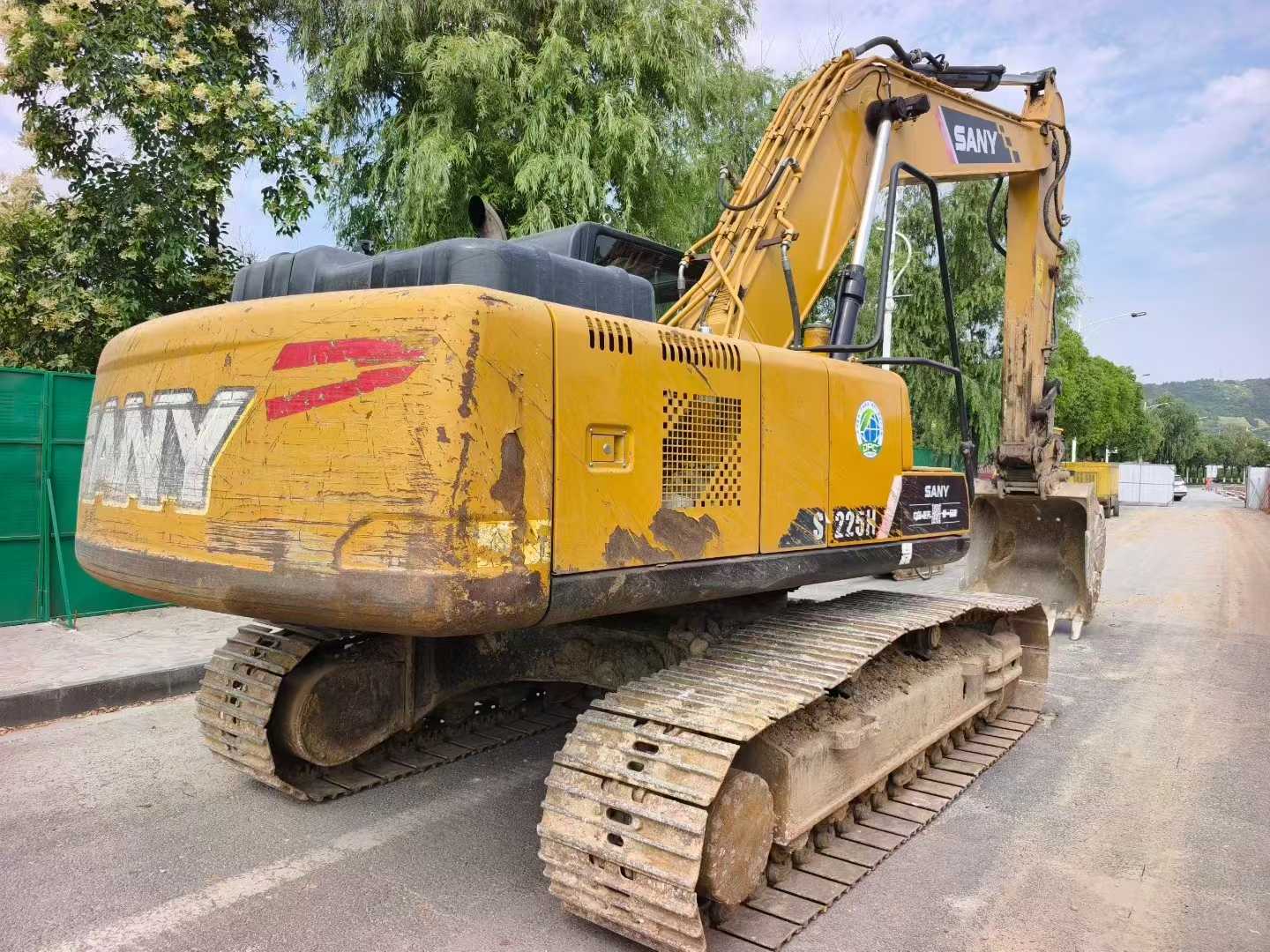

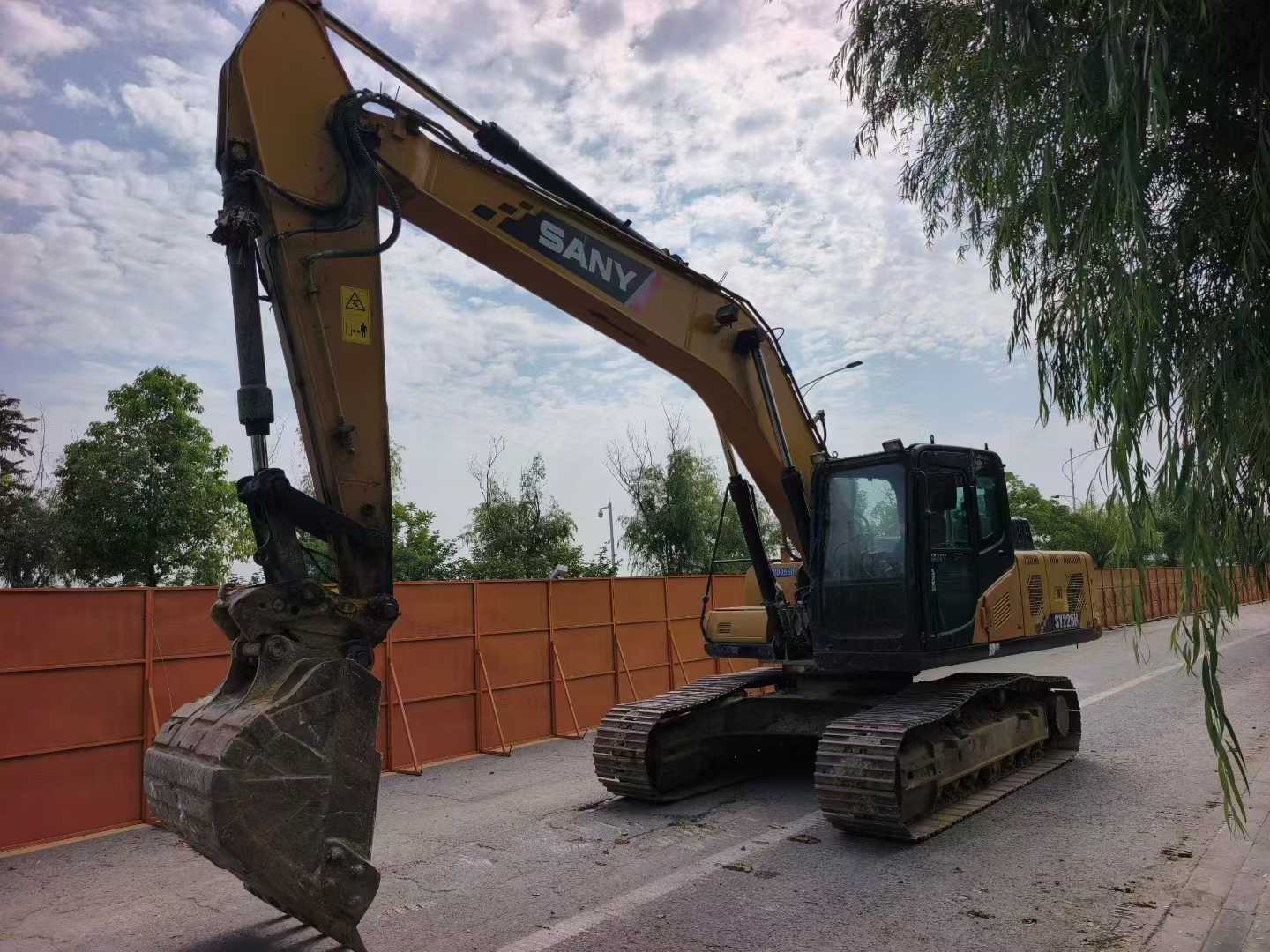

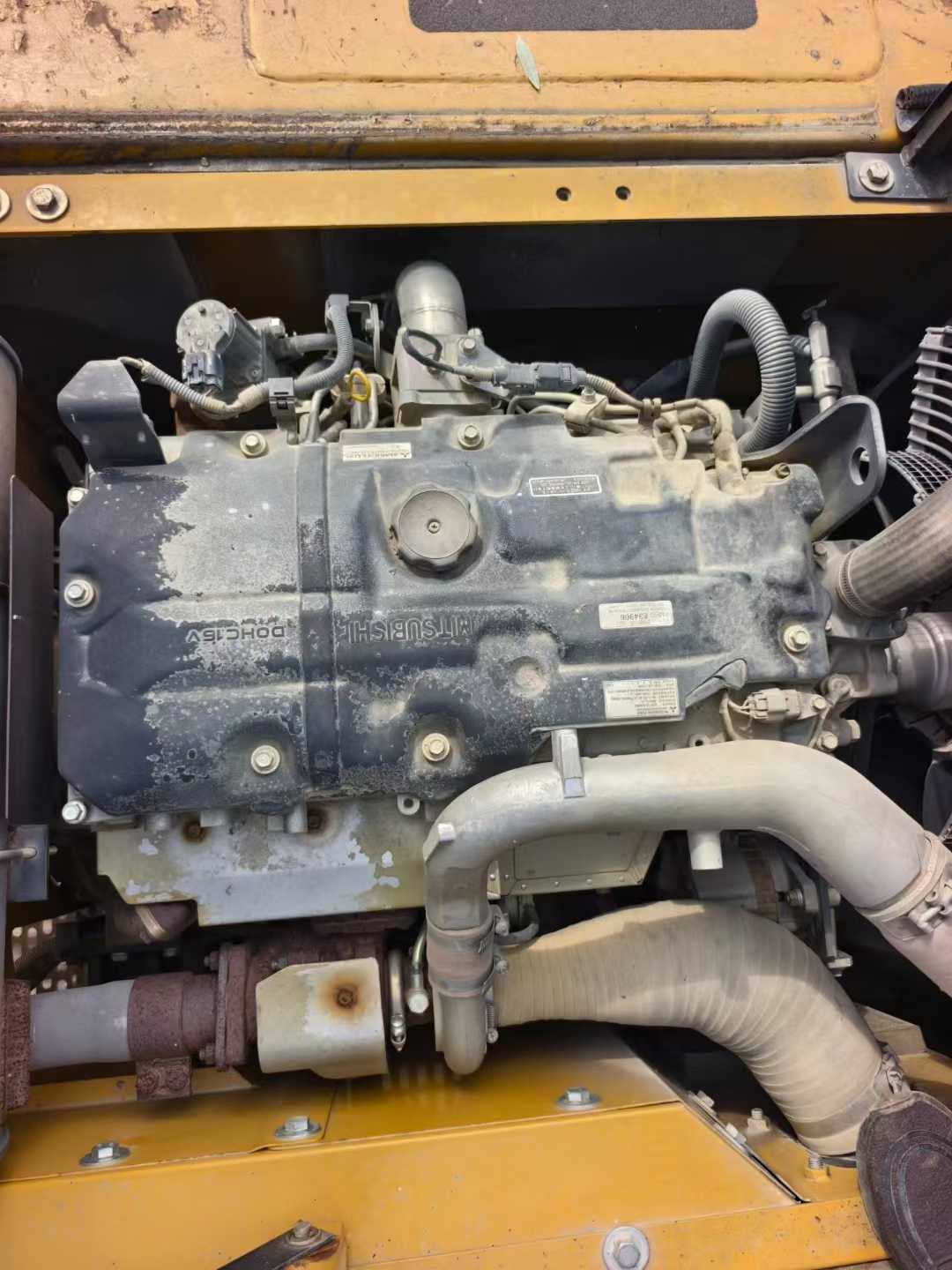

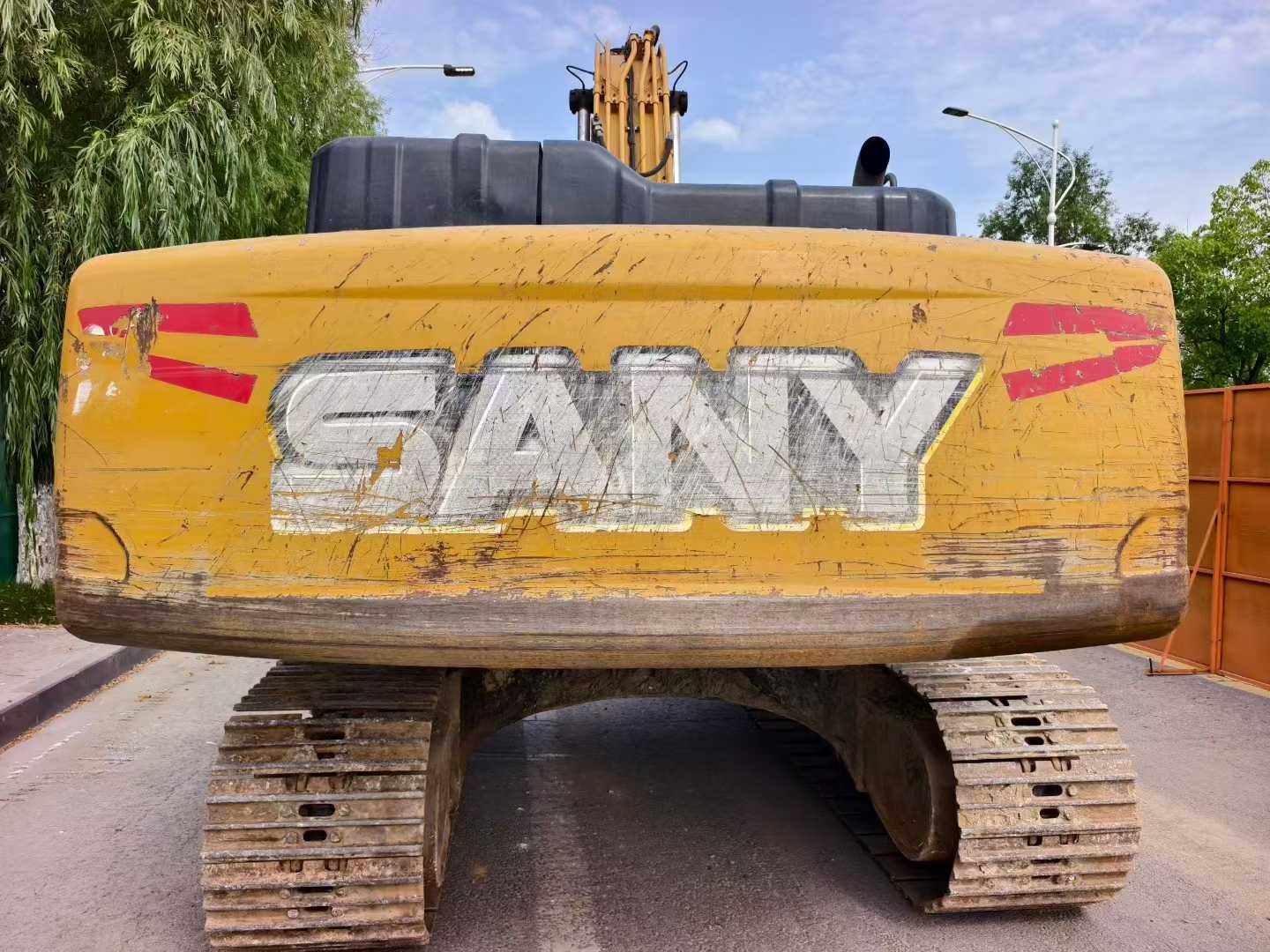

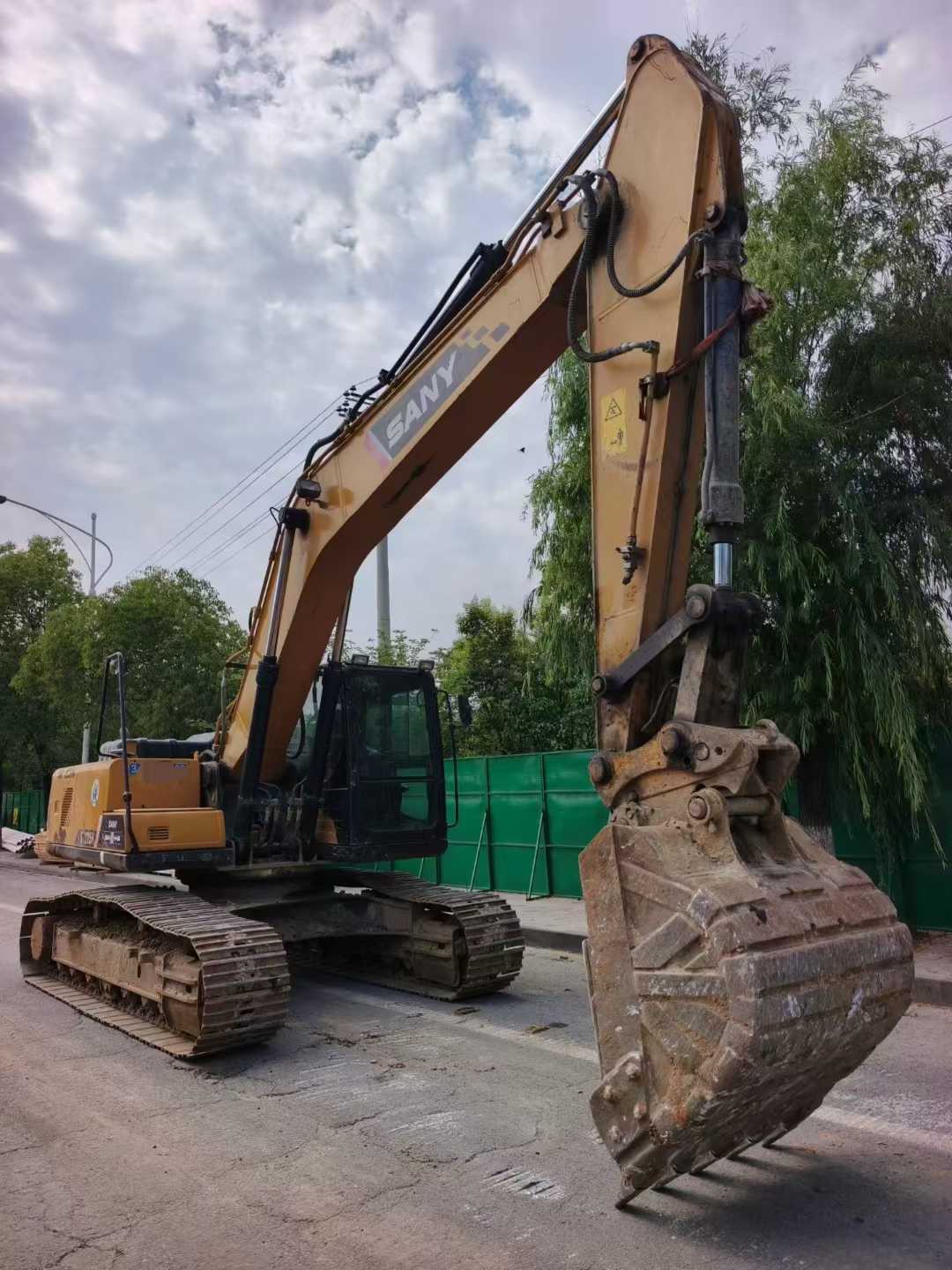

Built for operators who demand precision and control, the Sany SY205C is a 20-ton hydraulic excavator engineered for high-output performance across demanding job sites. Powered by a 118 kW engine at 2,000 RPM, this machine delivers a bucket digging force of 138 kN and a stick digging force of 109 kN — giving operators the muscle to handle tough ground conditions with confidence.

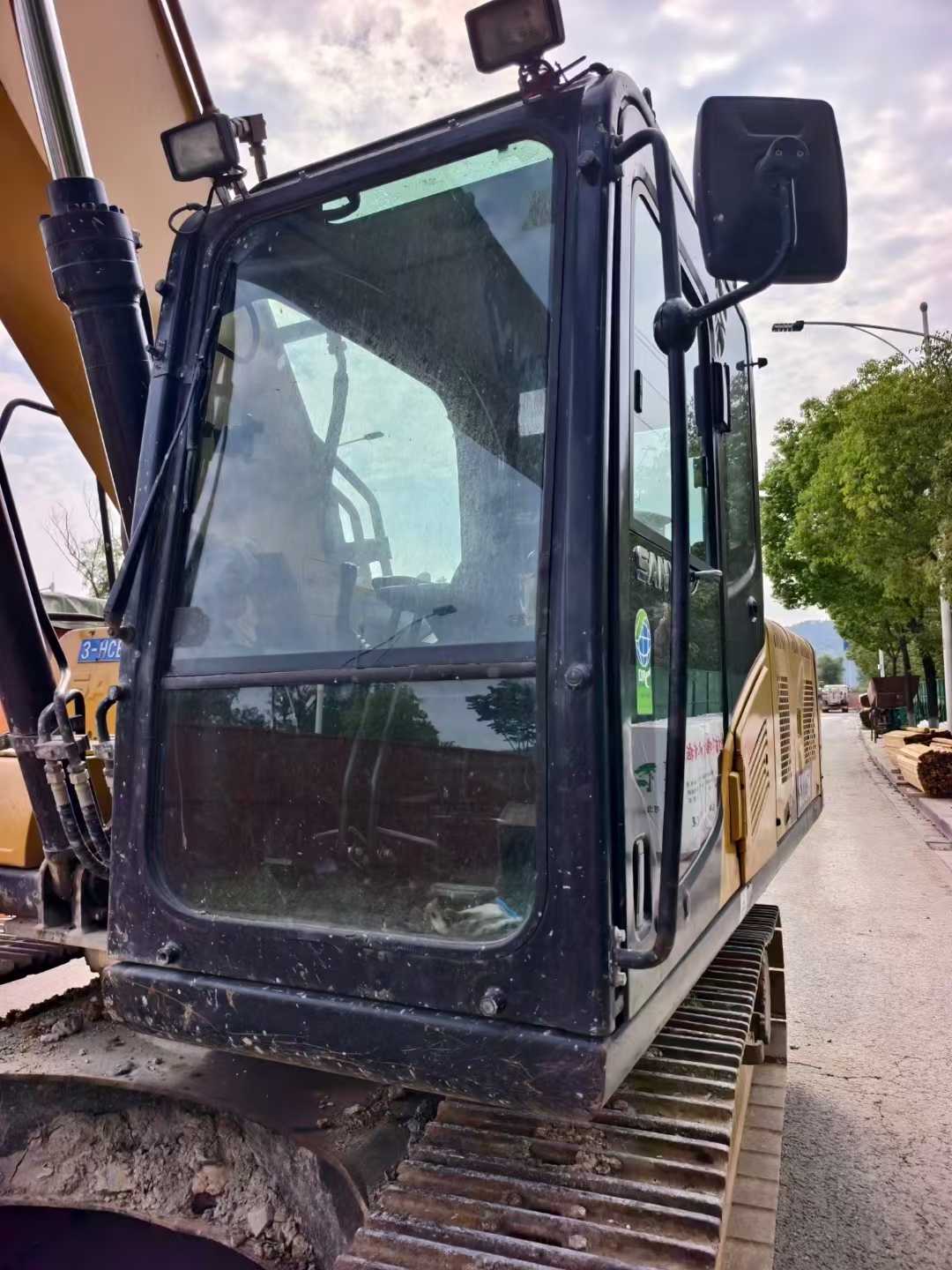

From the cab, visibility and ergonomics are prioritized to reduce fatigue during extended shifts. The full cab height of 3,075 mm and a compact back-end turning radius of 2,900 mm make this excavator well-suited for confined urban sites and open excavation work alike. Dual travel speeds of 5.4 / 3.3 km/h and a 70% gradeability rating ensure reliable maneuverability across varied terrain.
- Working Weight: 21,500 kg
- Bucket Capacity: 0.9–1.1 m³ (standard 1.0 m³)
- Maximum Digging Depth: 6,600 mm
- Maximum Digging Radius: 10,280 mm
- Maximum Excavation Height: 9,600 mm
- Ground Pressure: 47.3 kPa
- Track Plate Width: 600 mm
- Origin: Hubei, China (2020)
| Specifications | Value |
|---|---|
| No. | 1087022 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500 |
| Bucket capacity (m³) | 0.9~1.1(1.0) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Ground specific pressure (Kpa) | 47.3 |
| Rotation speed (rpm) | 11 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 138 |
| Rod digging force (kN) | 109 |
| Travel speed (km/h) | 5.4/3.3 |
| Total transport length (mm) | 9680 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3440 |
| Full cab height (mm) | 3075 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3730 |
| Back end turning radius (mm) | 2900 |
| Onboard width (mm) | 2875 |
| Total track length (mm) | 4160 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3360 |
| Maximum height at minimum turning radius (mm) | 7680 |
| Maximum digging radius (mm) | 10280 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 9600 |
| Maximum unloading height (mm) | 6730 |
