Product Description

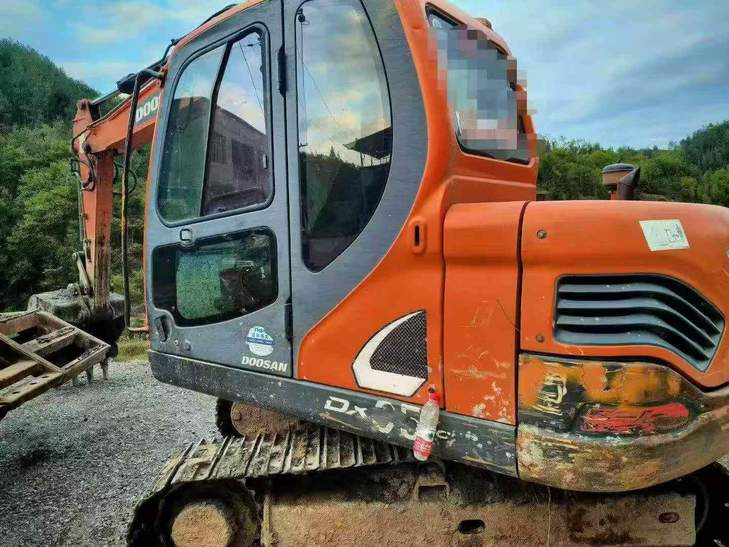

This 2018 Doosan DX75 midi excavator offers reliable performance for contractors seeking dependable equipment at competitive value. Operating from Sichuan, China, this machine represents Doosan's proven engineering in the 7.5-ton class, suitable for utility work, site preparation, and general excavation projects.
The DX75 features:
- Compact dimensions for urban jobsites and confined spaces
- Fuel-efficient operation reducing operational costs
- Robust hydraulic system for consistent digging performance
- Comfortable operator station with intuitive controls
- Established parts availability through Doosan's service network
With six years of field use, this excavator has demonstrated its durability in real-world applications. Ideal for rental fleets, construction firms, or landscaping operations requiring a versatile midi-sized machine. Currently located in Sichuan Province, available for inspection by qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1170515 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
