2019 Doosan DX75

1/9
Buy Doosan DX75 Used Excavator / 1
Buy Doosan DX75 Used Excavator / 2
Buy Doosan DX75 Used Excavator / 3
Buy Doosan DX75 Used Excavator / 4
Buy Doosan DX75 Used Excavator / 5
Buy Doosan DX75 Used Excavator / 6
Buy Doosan DX75 Used Excavator / 7
Buy Doosan DX75 Used Excavator / 8
Buy Doosan DX75 Used Excavator / 9

Product Description

This 2019 Doosan DX75 mini excavator is available from Zhejiang, China. The machine comes equipped with a versatile attachment package including a hydraulic breaker, grapple (3-jaw 2-cylinder configuration), quick coupler, and fork attachment for material handling applications. With approximately 90,000 RMB invested in tooling and attachments, this unit offers immediate operational flexibility across demolition, sorting, and light construction tasks.

The DX75 is a compact 7.5-ton class excavator suitable for urban construction, utility work, and confined jobsites. This used machine represents a cost-effective solution for contractors requiring multi-functional capability without the premium of new equipment.

  • Year: 2019
  • Model: Doosan DX75
  • Location: Zhejiang Province, China

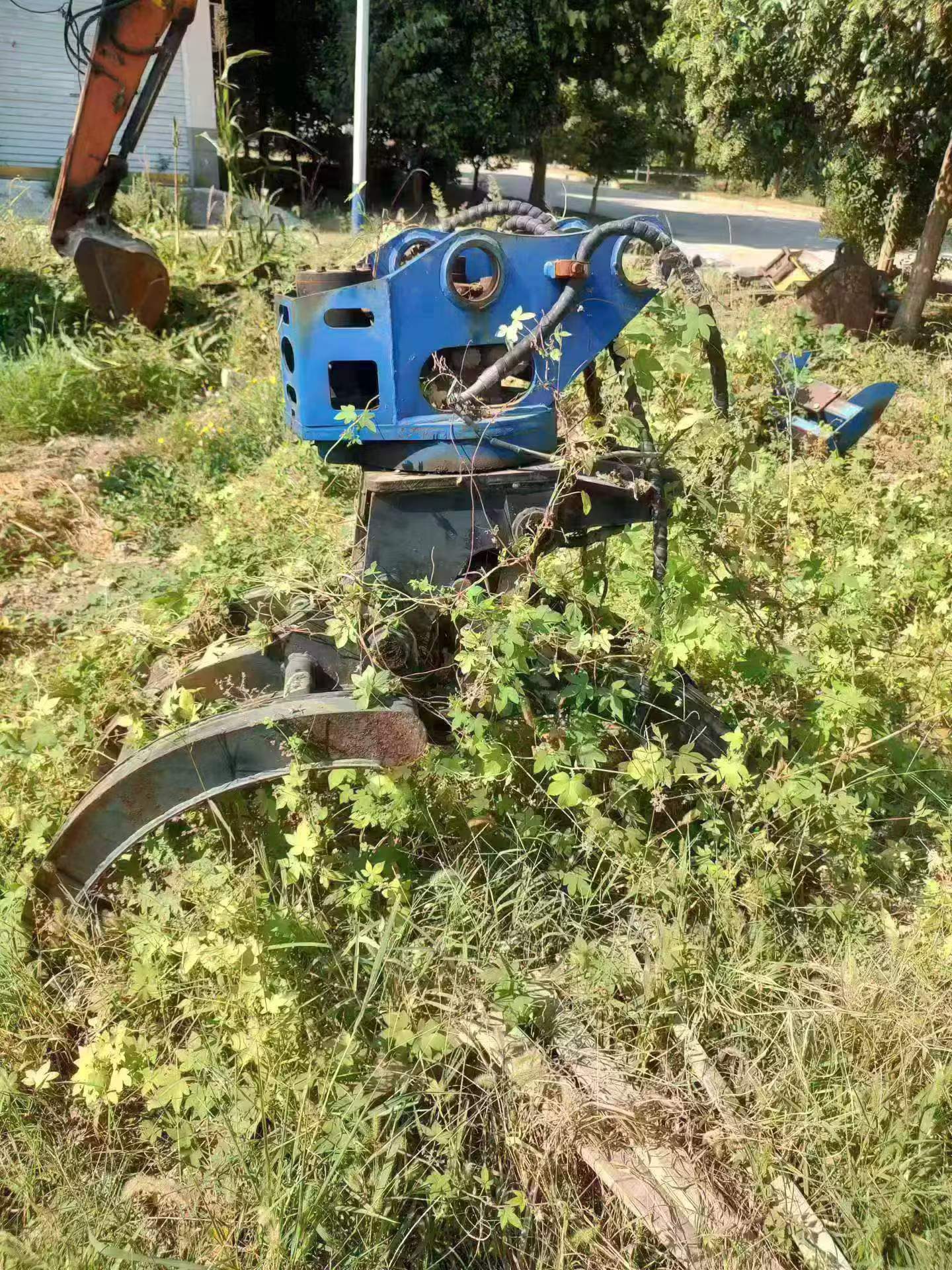

  • Included: Hydraulic breaker, grapple, quick coupler, fork attachment
  • Condition: Used
SpecificationsValue
No.1157115
Tonnage (tons)7
Working weight (kg)7350
Bucket capacity (m³)0.28
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe

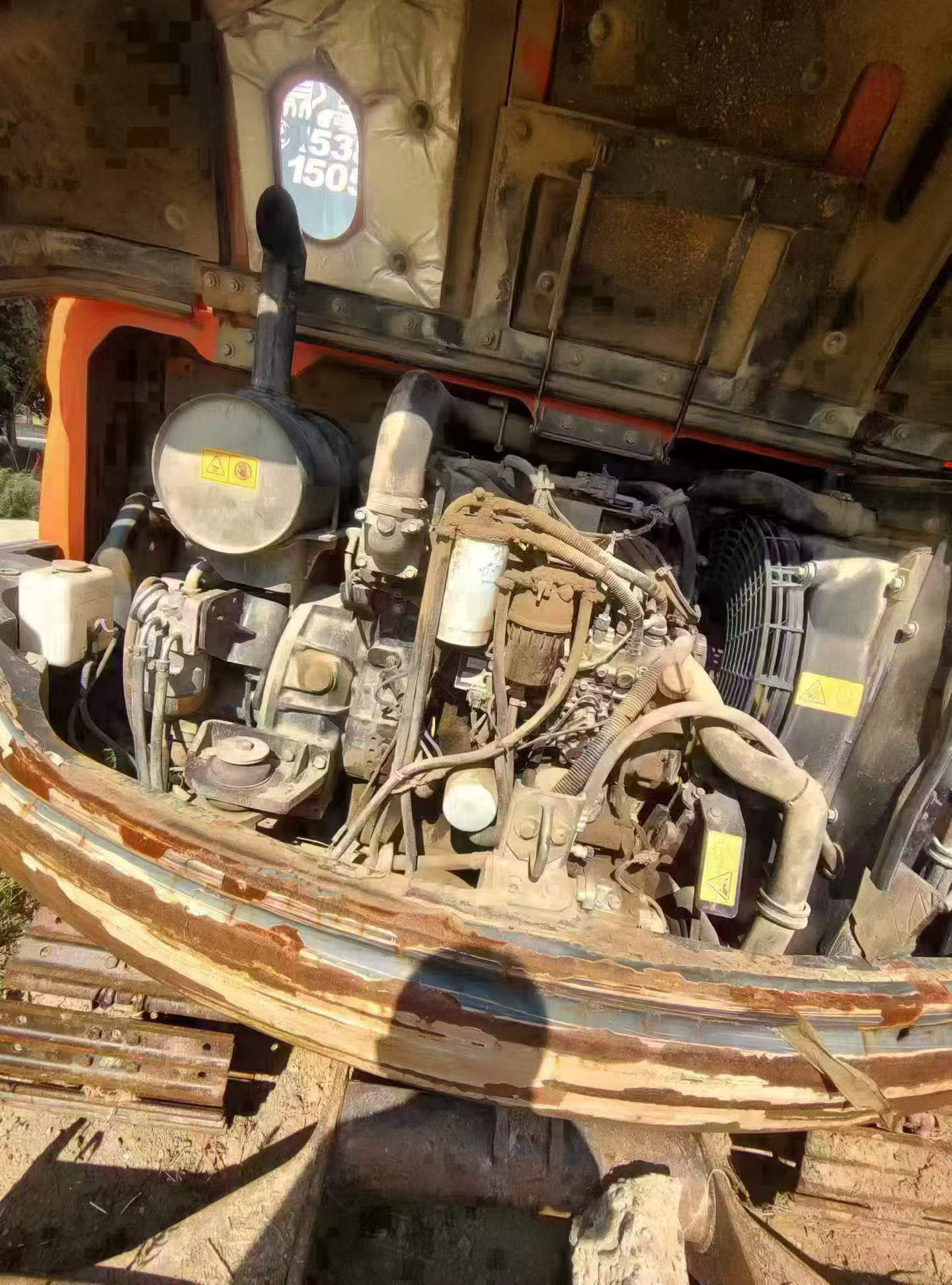

Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.7 / 2200
Maximum torque (N.m)24.6/1475
Number of cylinders (PCS)4
Working form4-stroke, water-cooled, direct spray
Rotation speed (rpm)10.7
Climbing ability (%)30 °
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)3.0 / 4.7
Turning torque (Nm)23.4 ~ 24.6
Main pump typeVariable piston pump
Fuel Tank (L)111
Total transport length (mm)6030
Total transport width (mm)2100
Total transport height (mm)2680(to top of cab)
Full cab height (mm)2680
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1755
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track ground length (mm)2110
Maximum digging radius (mm)6270
Maximum digging depth (mm)3930
Maximum excavation height (mm)7050
Maximum unloading height (mm)5165
Maximum vertical digging depth (mm)2570
Dodging plate width × height (mm)2100 x 420
Maximum excavation radius of stop surface (mm)6115
see more

Overview

No.1157115

Brand Name:

Doosan

Model Number:

DX75

Year:

2019

Location:

Zhejiang China
