Product Description

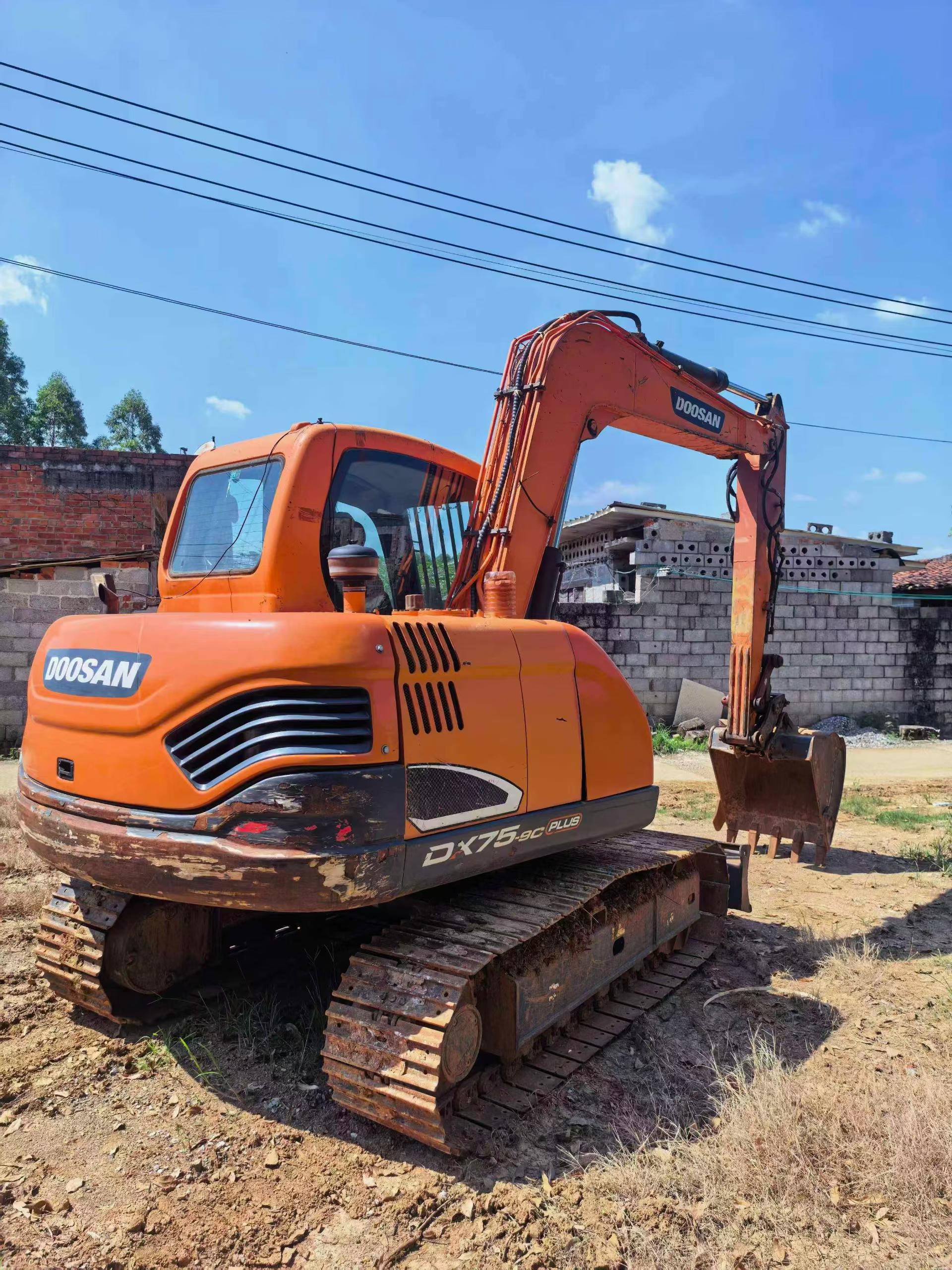

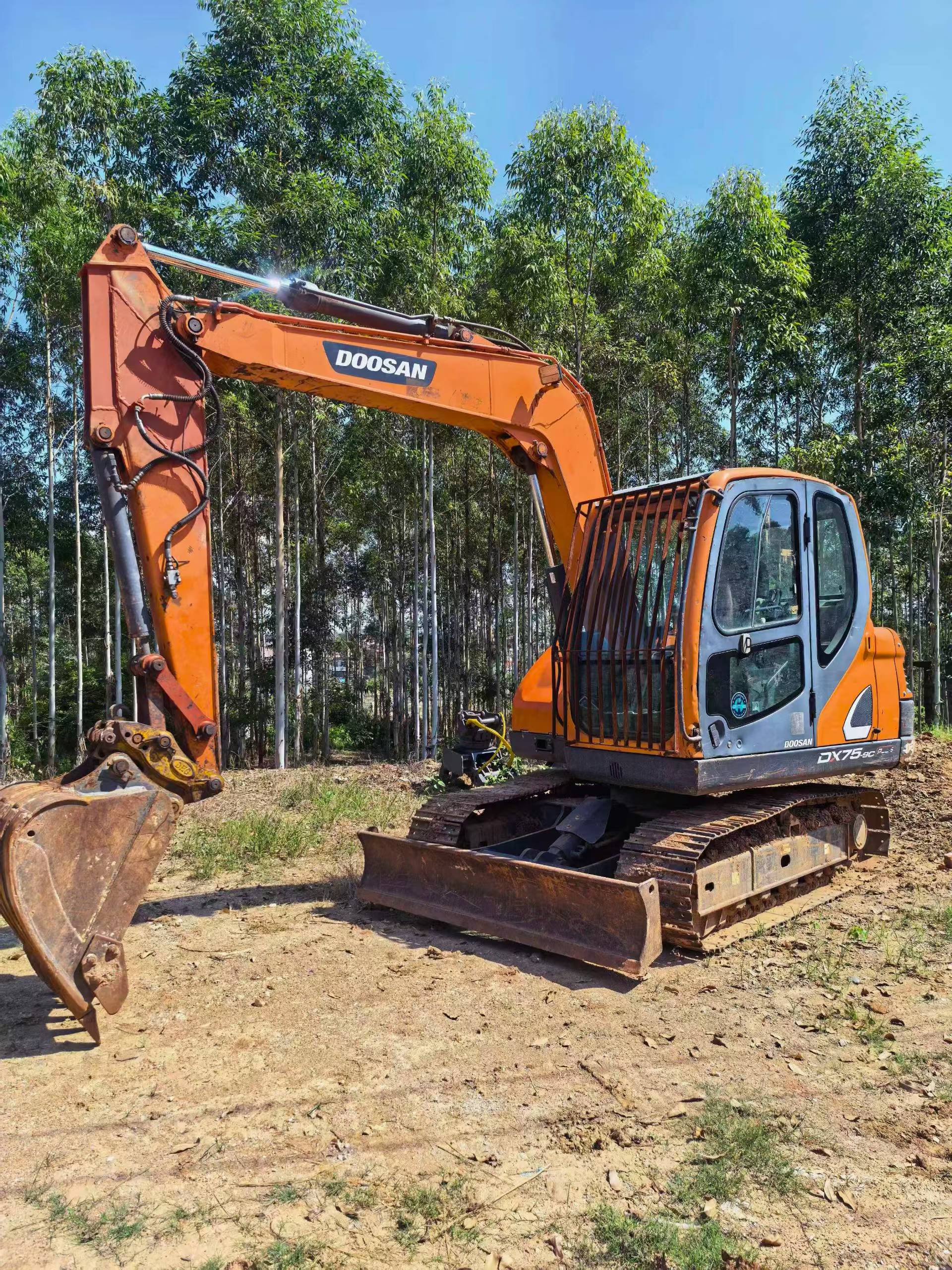

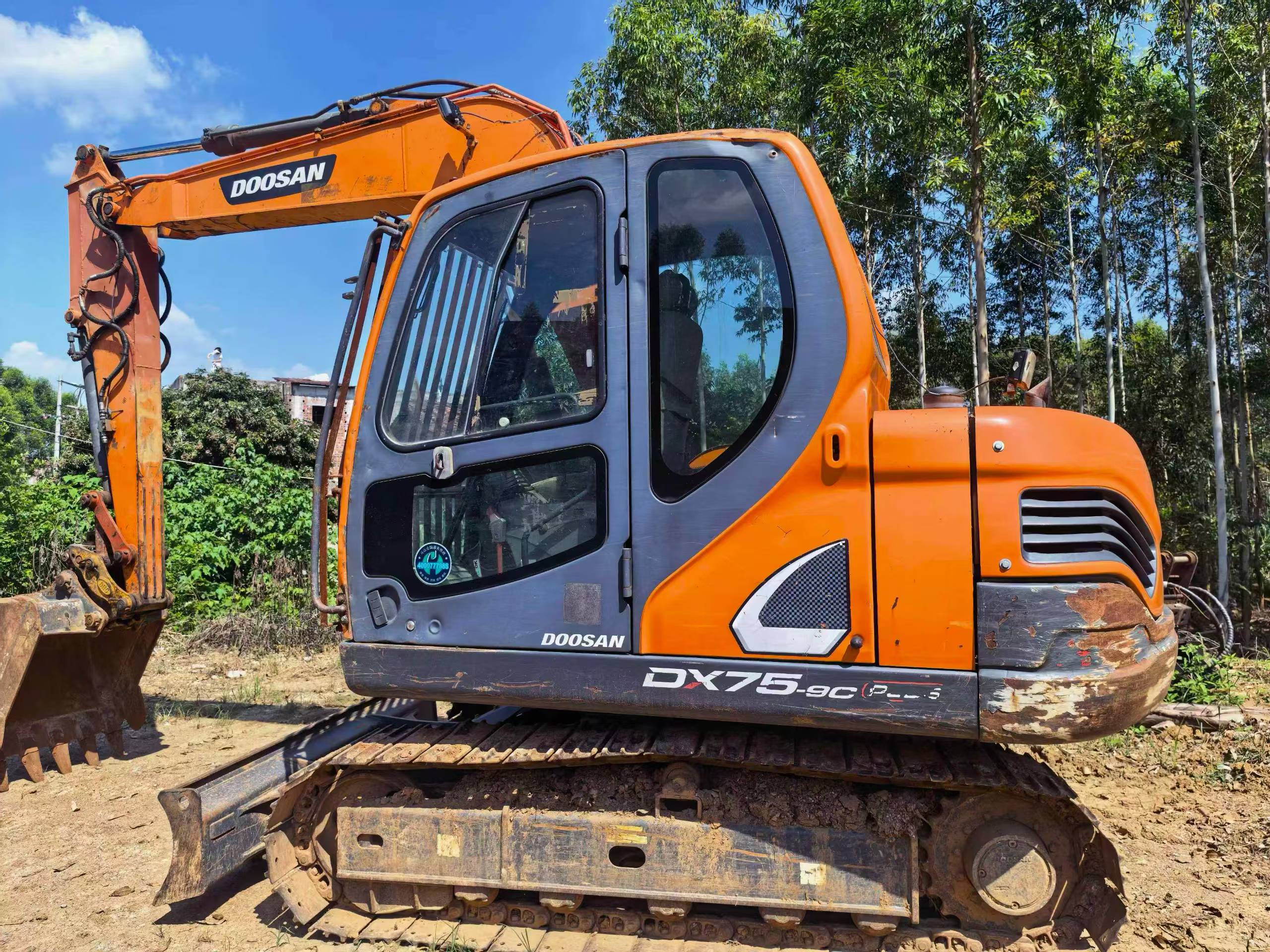

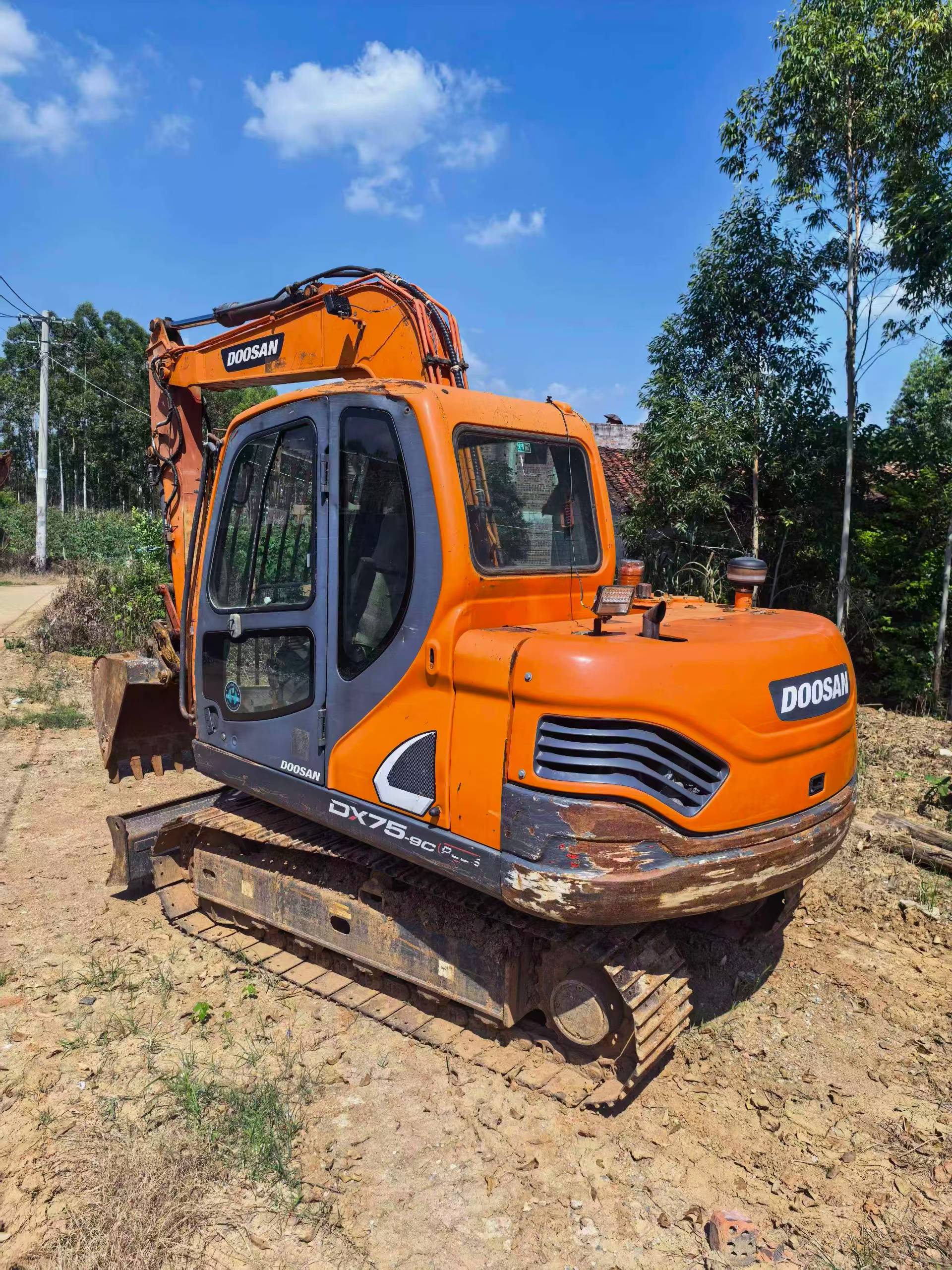

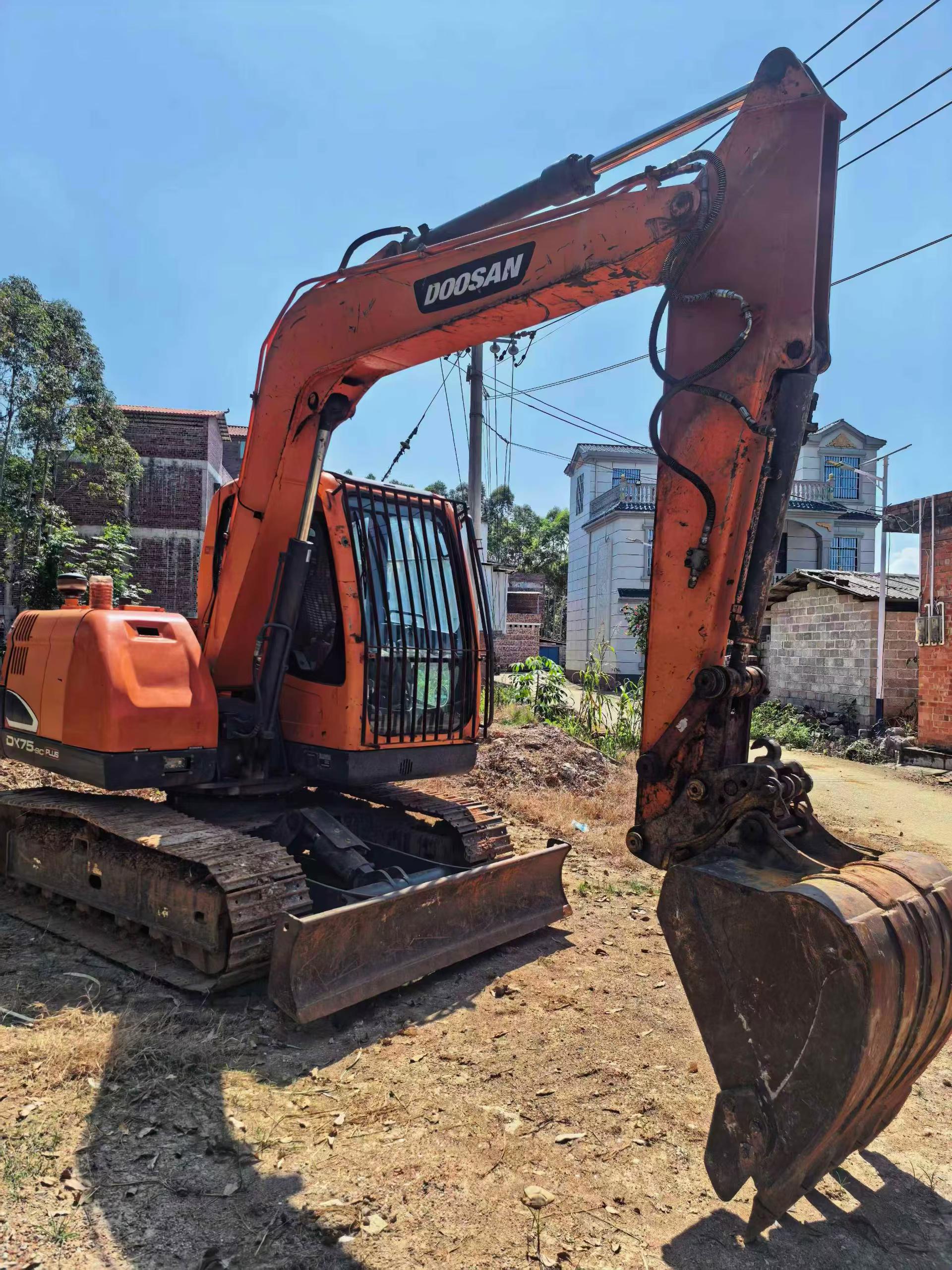

Discover the reliability and efficiency of this 2020 Doosan DX75 excavator, available for inspection in Nanning, Guangxi, China. This robust machine has accumulated a genuine 3,900 hours of operation, showcasing its durability and consistent performance. Equipped with a log grapple and an extended boom, it is tailored for versatility and productivity in various applications. The undercarriage is well-maintained, with full paint, indicating careful upkeep. Renowned for its sturdy build and reliable operation, this Doosan model requires no second-guessing on its performance capabilities. Ideal for forestry, construction, and general excavation tasks, this DX75 is ready to meet your project demands.
- Year: 2020
- Brand: Doosan
- Model: DX75
- Hours: 3,900
- Location: Nanning, Guangxi, China
- Features: Log Grapple, Extended Boom
| Specifications | Value |
|---|---|
| No. | 1120582 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

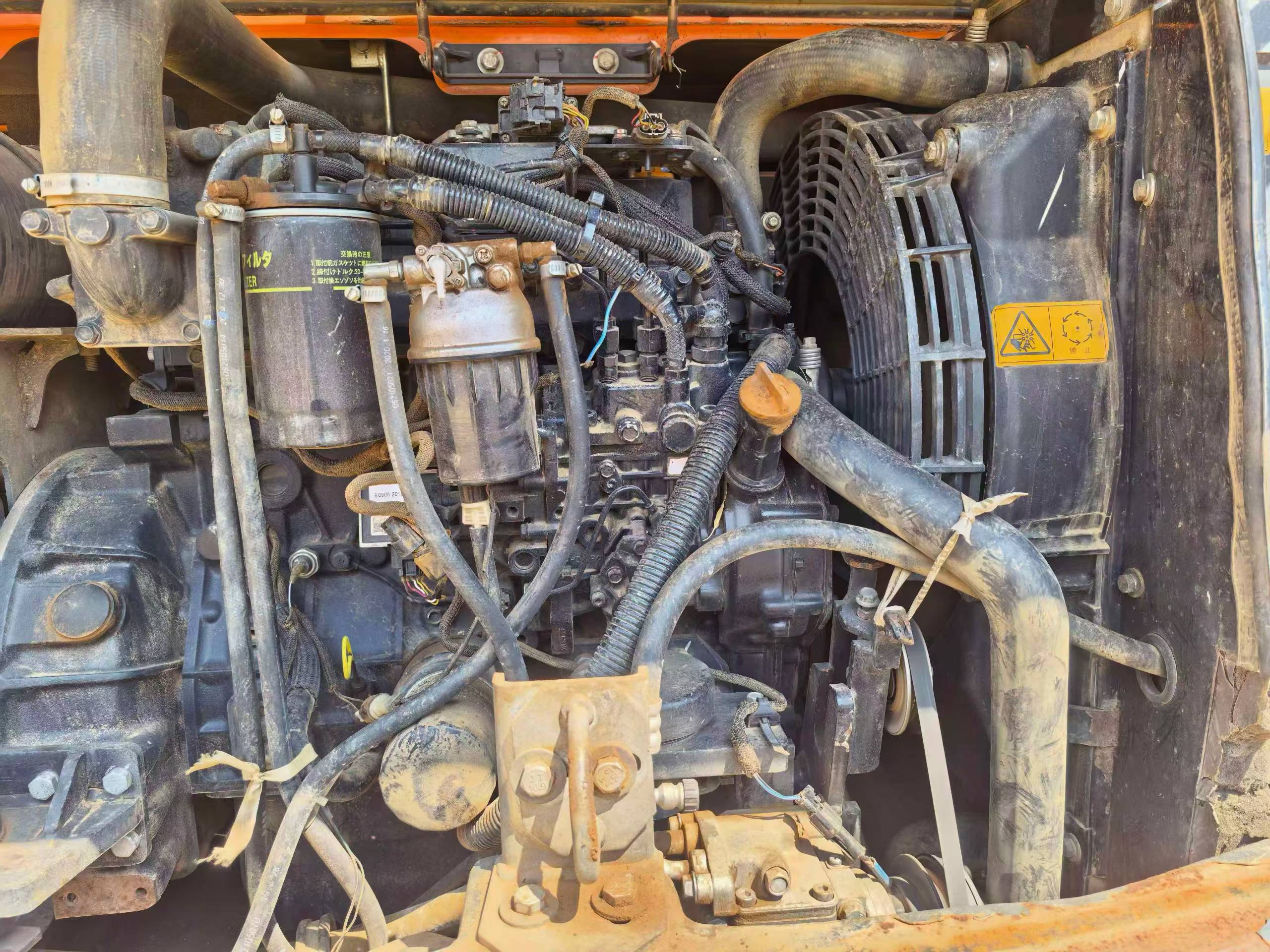

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |

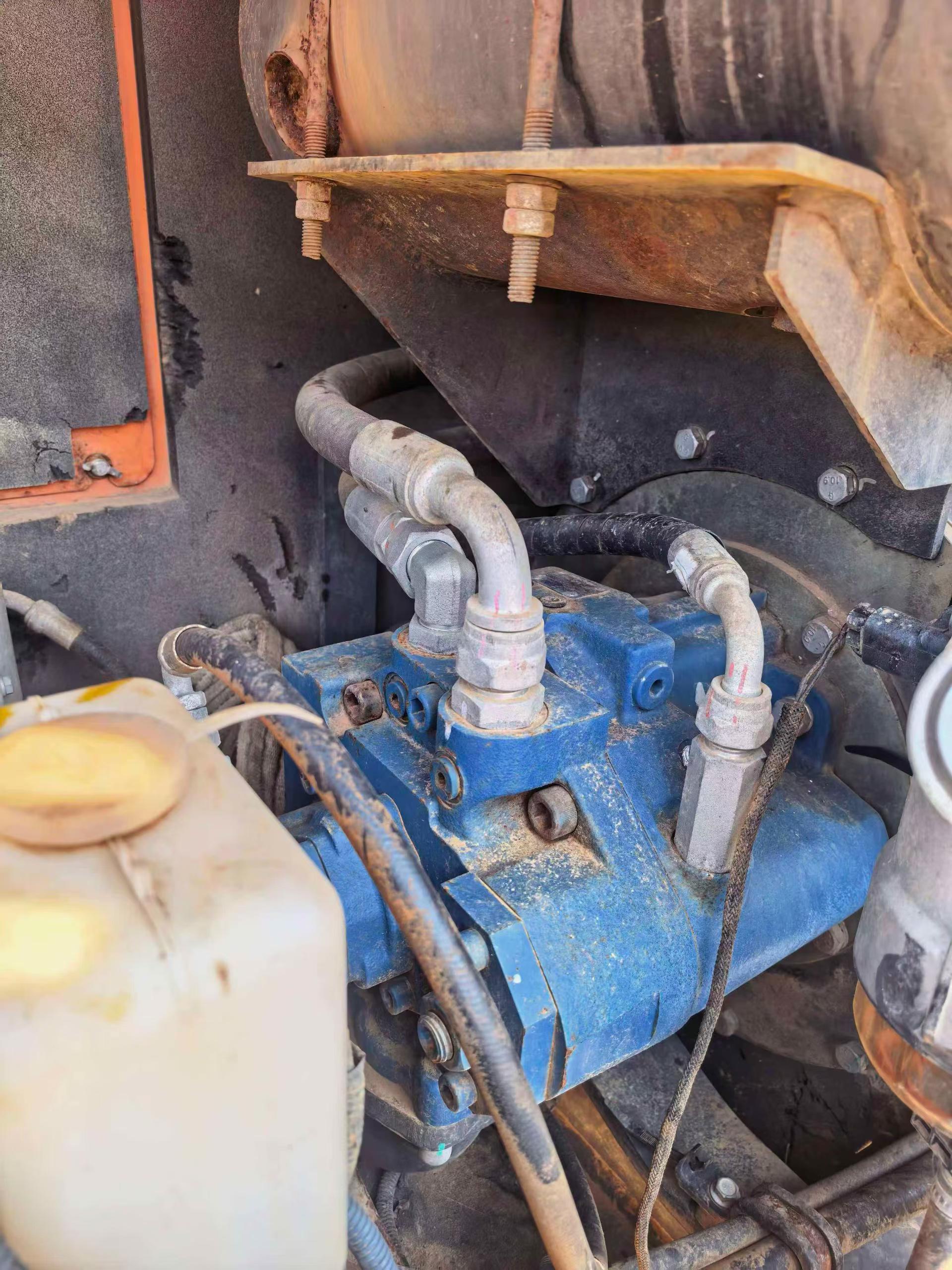

| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
