Product Description

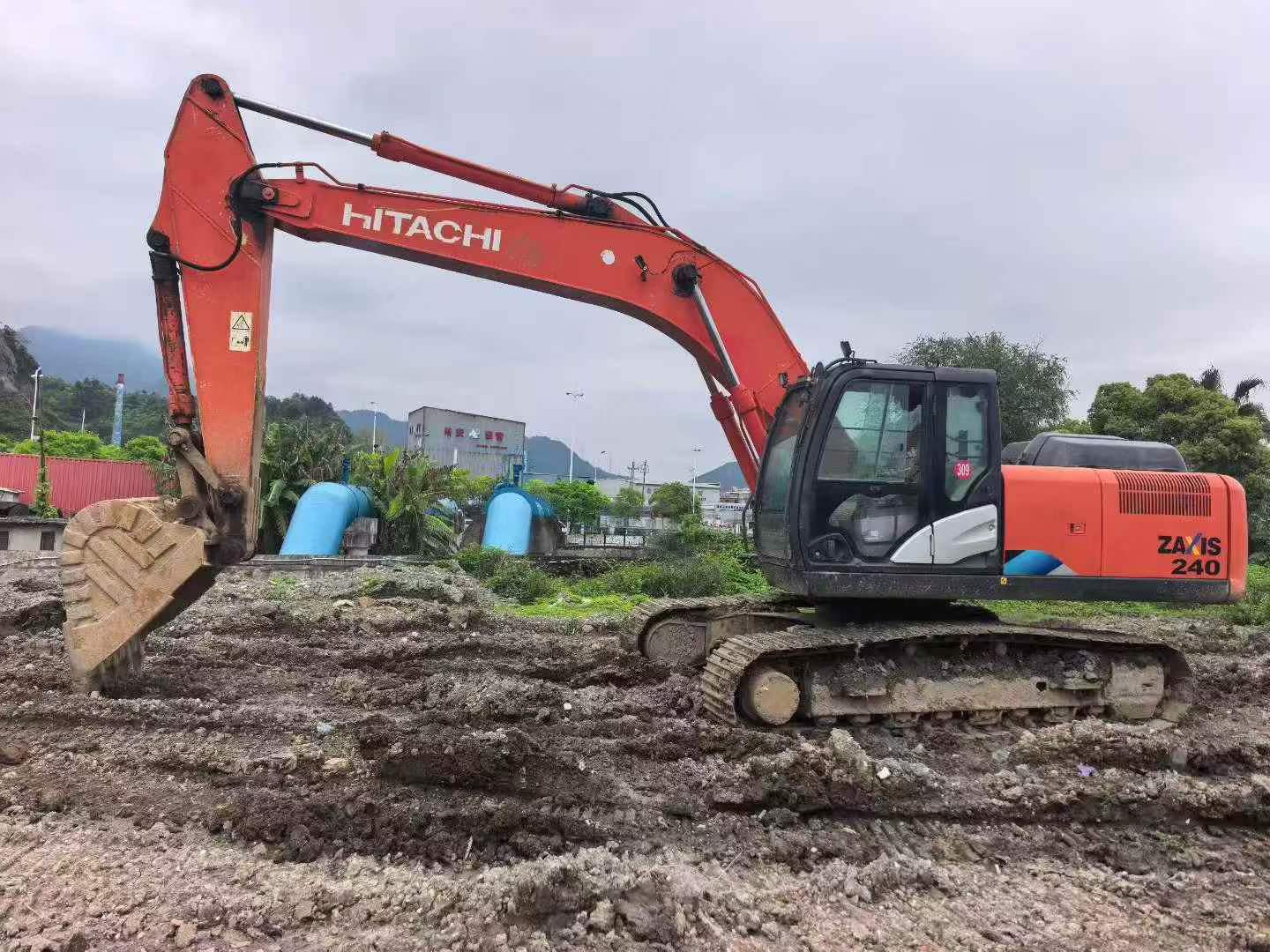

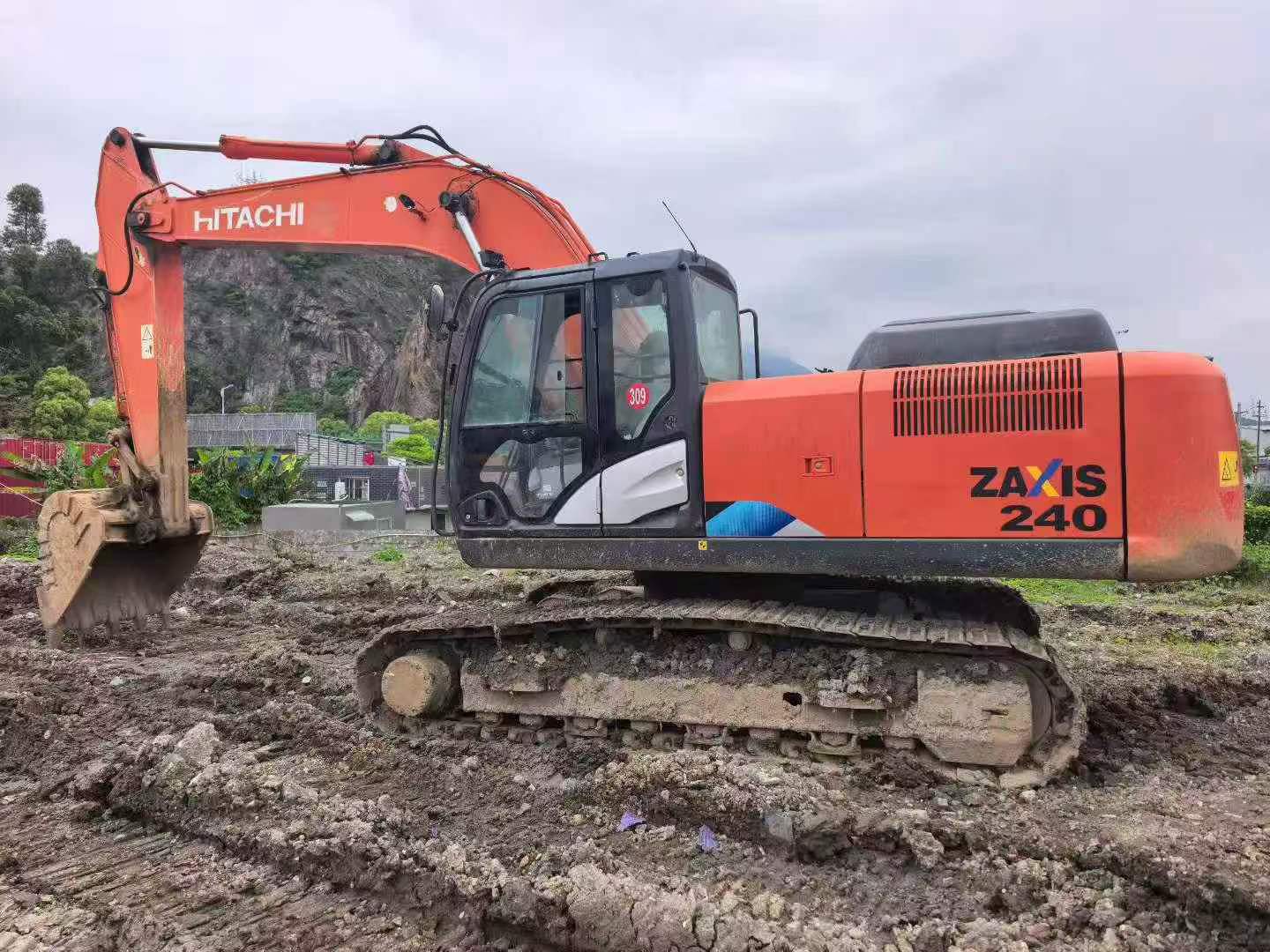

Discover the reliability and efficiency of the 2021 Hitachi ZX240-5A, a robust excavator designed for demanding construction and excavation tasks. Located in Zhejiang, China, this used machine is ready to join your fleet and enhance your project capabilities. Known for its durability and performance, the ZX240-5A model is equipped with advanced features that ensure optimal productivity and reduced operational costs.
- Year: 2021
- Brand: Hitachi
- Model: ZX240-5A
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1057972 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24300-24400 |
| Bucket capacity (m³) | 1.2-1.4 |
| Boom length (mm) | 6000 |
| Rod length (mm) | 2960 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GH-4HK1XKSA-01 |
| Rated power (kw/rpm) | 127/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Maximum torque (N.m) | 640/1500 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled |
| Ground specific pressure (Kpa) | 53 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 188 |
| Rod digging force (kN) | 131 |
| Maximum tractive force (kN) | 222 |
| Travel speed (km/h) | 5.5/3.4 |
| Turning torque (Nm) | 77.5 |
| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 224 + 32 |
| Traveling Hydraulic Circuit (Mpa) | 34.8 |
| Rotary Hydraulic Circuit (Mpa) | 32.4 |
| Main pump type | 2 variable axial piston pumps +1 gear pump |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 130 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 125 x 90 |
| Fuel Tank (L) | 510 |
| Hydraulic Tank (L) | 156 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 280 |
| Total transport length (mm) | 10360 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3080 |
| Full cab height (mm) | 3010 |
| Counterweight ground clearance (mm) | 1080 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3440 |
| Back end turning radius (mm) | 3140 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10290 |
| Maximum digging depth (mm) | 6960 |
| Maximum excavation height (mm) | 10160 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 6030 |
| Maximum excavation radius of stop surface (mm) | 10110 |
