Product Description
With a rated power of 39.7 kW and a maximum torque of 24.6 N.m, the Doosan DX75 excavator offers robust performance for demanding tasks. In 湖南, this 7-ton machine, manufactured through a joint venture, ensures reliable operation with its Yanmar 4TNV94L engine. The 4-stroke, water-cooled, direct spray engine provides consistent power, making it ideal for various construction and excavation projects.
- Enhanced visibility from the full cab height of 2680 mm, ensuring operators have a clear view of their surroundings.
- Stability and maneuverability are maximized with a track gauge of 1650 mm and a minimum turning radius of 1745 mm for the front working device.
- Efficient digging capabilities with a bucket capacity of 0.28 m³ and a maximum digging depth of 3930 mm, supported by a bucket digging force of 53.4 kN.
- Smooth and precise control is facilitated by a variable piston pump, contributing to efficient and accurate operations.
| Specifications | Value |
|---|---|
| No. | 1001080 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7350 |
| Bucket capacity (m³) | 0.28 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

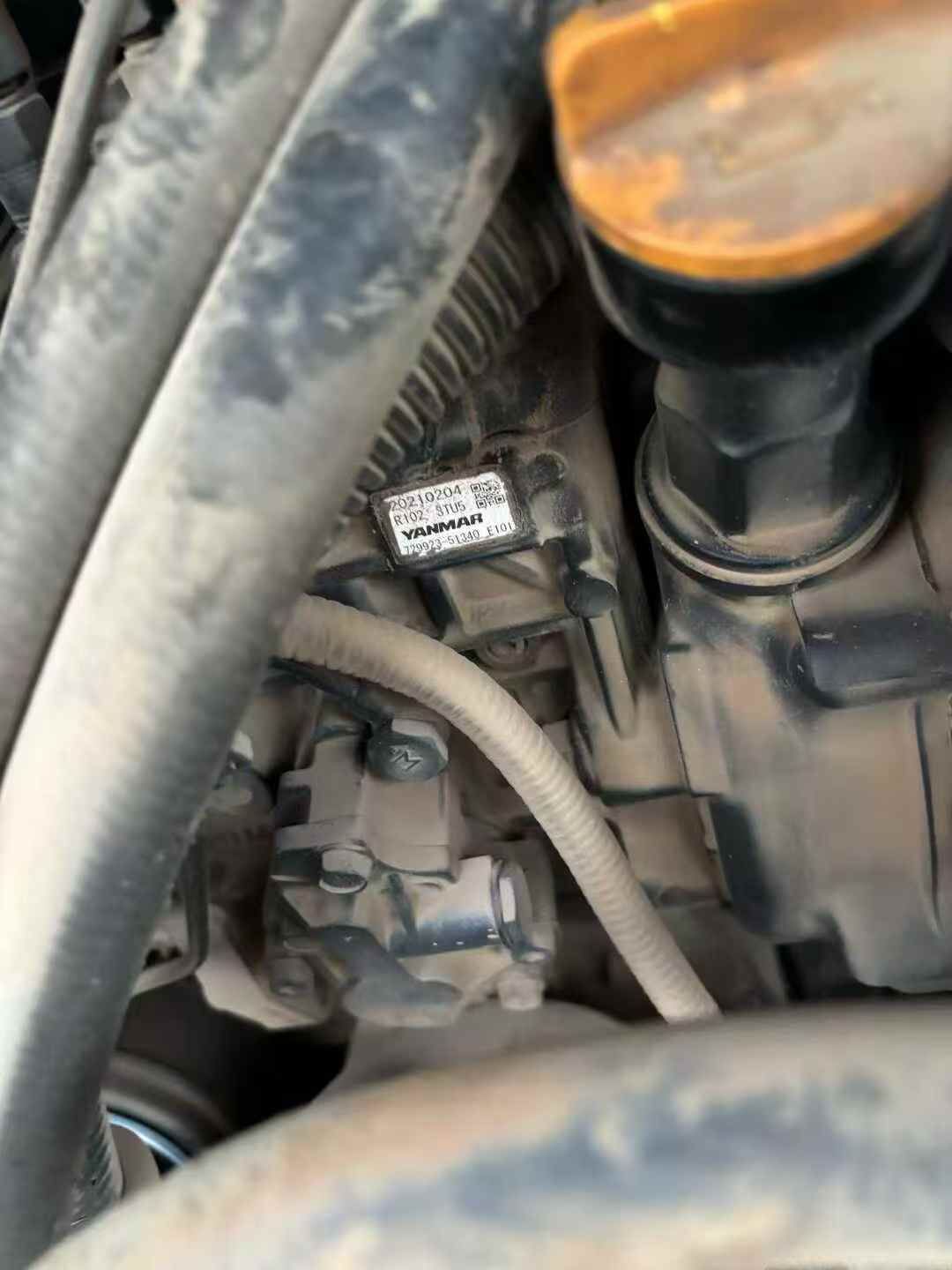

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.7 / 2200 |
| Maximum torque (N.m) | 24.6/1475 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct spray |
| Rotation speed (rpm) | 10.7 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | 3.0 / 4.7 |
| Turning torque (Nm) | 23.4 ~ 24.6 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2100 |
| Total transport height (mm) | 2680(to top of cab) |
| Full cab height (mm) | 2680 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1755 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track ground length (mm) | 2110 |
| Maximum digging radius (mm) | 6270 |
| Maximum digging depth (mm) | 3930 |
| Maximum excavation height (mm) | 7050 |
| Maximum unloading height (mm) | 5165 |
| Maximum vertical digging depth (mm) | 2570 |
| Dodging plate width × height (mm) | 2100 x 420 |
| Maximum excavation radius of stop surface (mm) | 6115 |
