Product Description

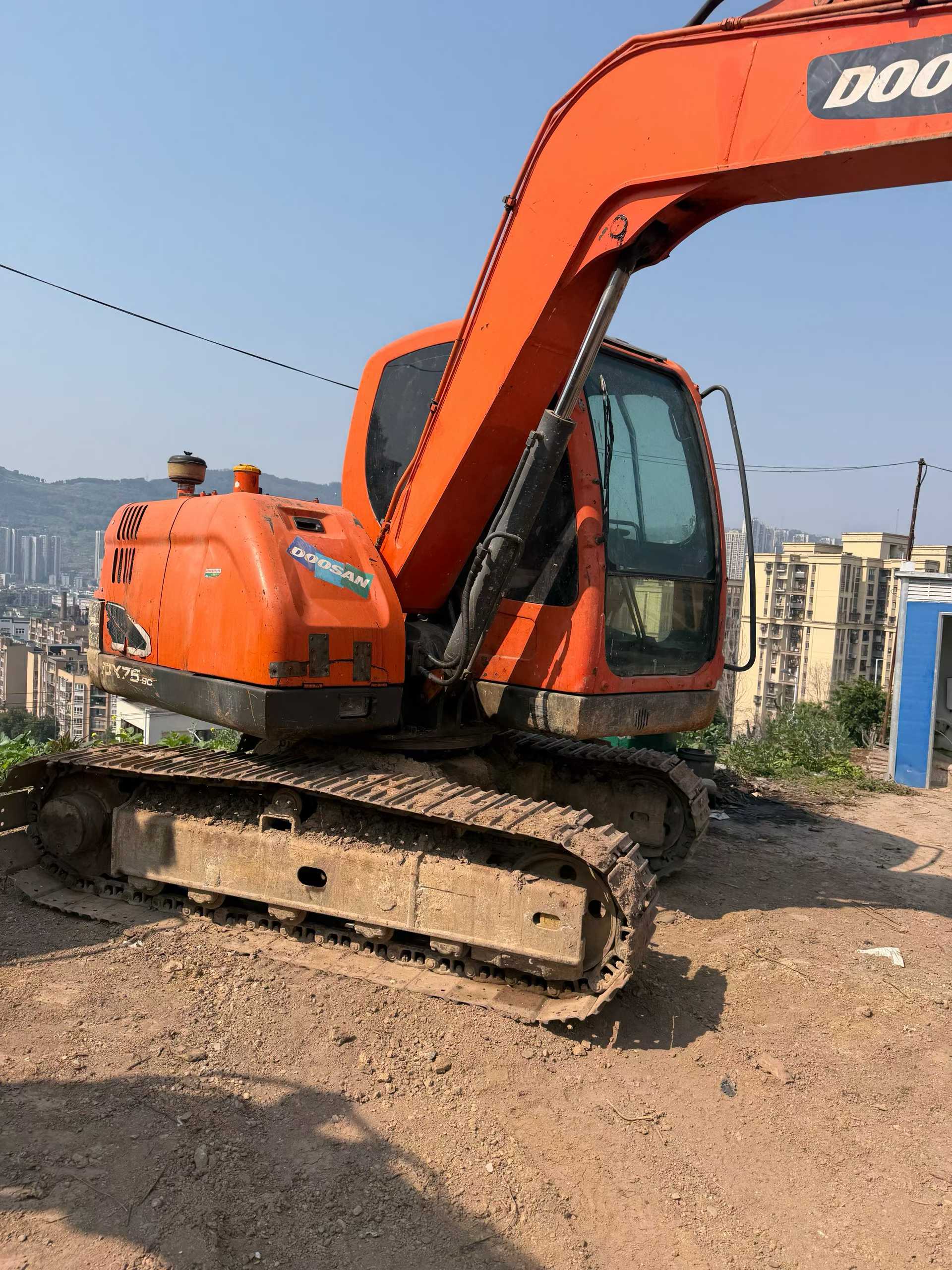

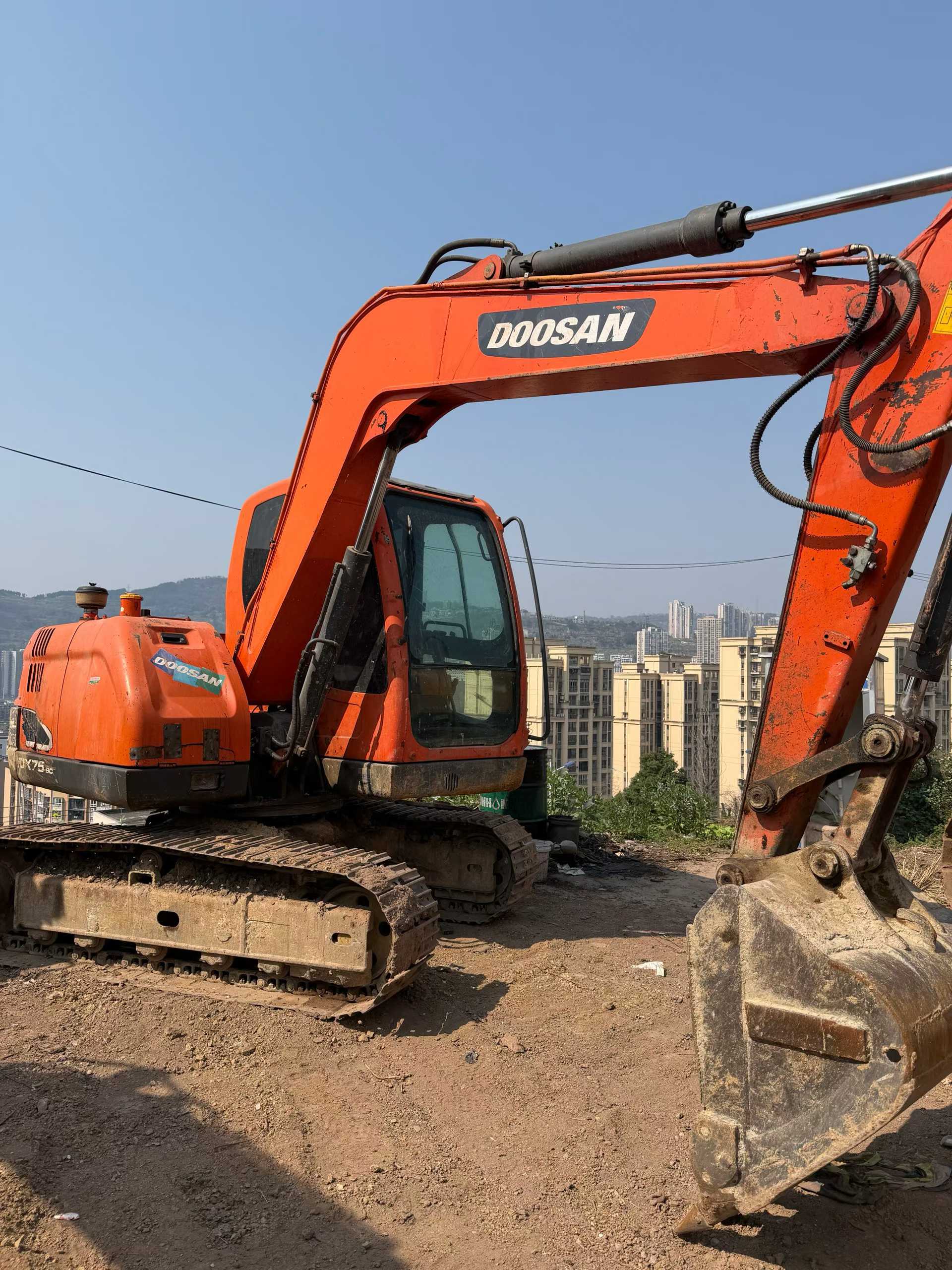

Engineered with precision, this 2017 Doosan DX75-9C mini excavator delivers 39kW of reliable power through its Yanmar 4TNV98-EXS engine, operating at 2200 rpm with straight, naturally aspirated combustion. Built for demanding applications, the machine features a variable piston pump feeding robust hydraulic circuits at 3.9 Mpa, generating impressive bucket digging force of 53.4 kN and rod digging force of 36.9 kN. Operating at 7,420 kg working weight with a 0.3 m³ bucket capacity, this compact powerhouse combines maneuverability with serious performance.
- Maximum digging depth: 4,080 mm with 6,115 mm reach radius
- Axial piston rotary motor achieving 10.4 rpm swing speed
- Variable axial piston travel motors with dual-speed capability (4.5/2.8 km/h)
- 3,620 mm boom and 1,670 mm arm configuration for optimal geometry
- 111L fuel tank and 90L hydraulic reservoir for extended operation
- Compact transport dimensions: 6,030 mm × 2,180 mm × 2,680 mm
- Currently located in Chongqing, ready for global shipment
| Specifications | Value |
|---|---|
| No. | 1014003 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7420 |

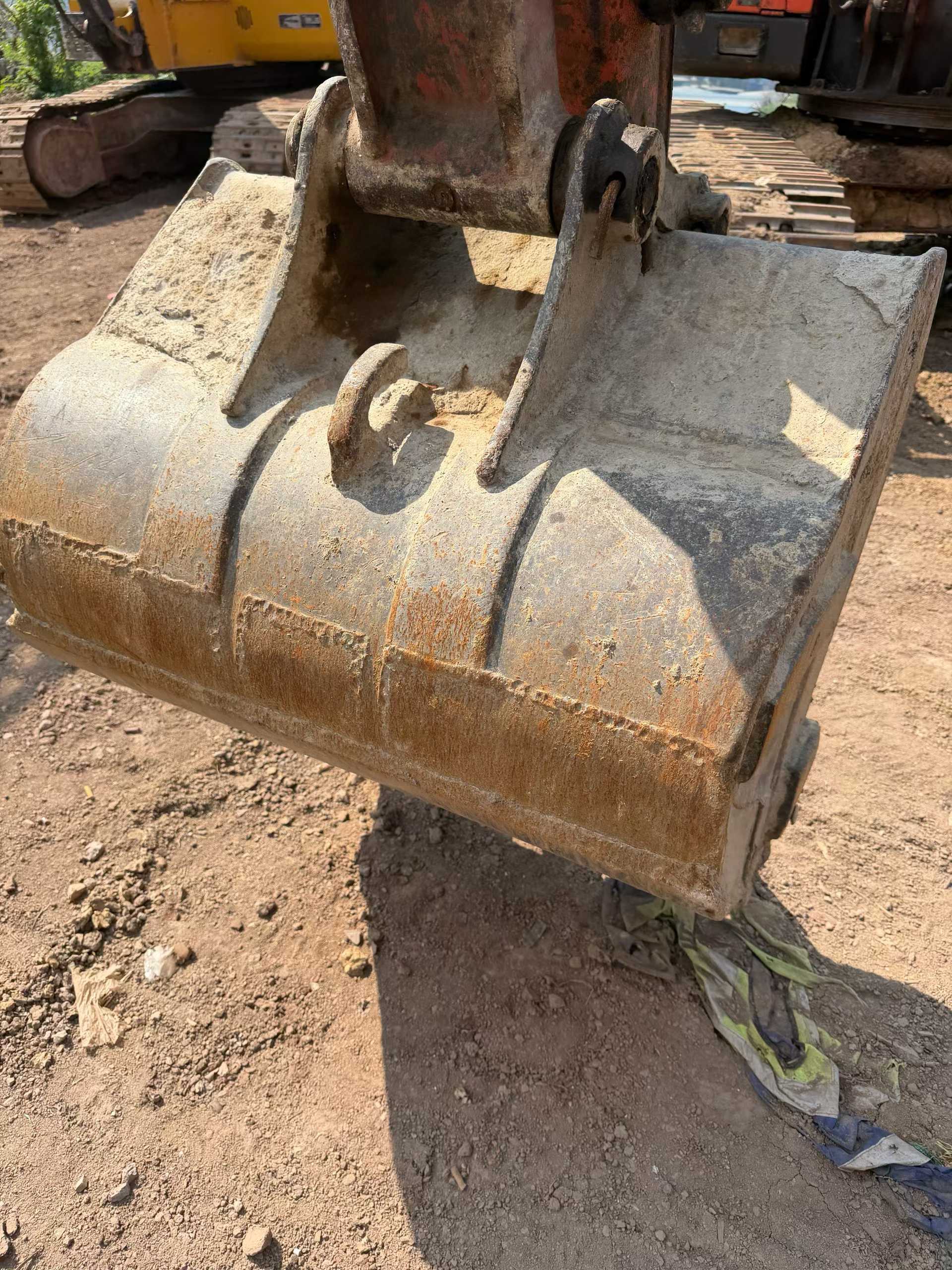

| Bucket capacity (m³) | 0.3 |
| Boom length (mm) | |3620 |
| Rod length (mm) | 1670 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

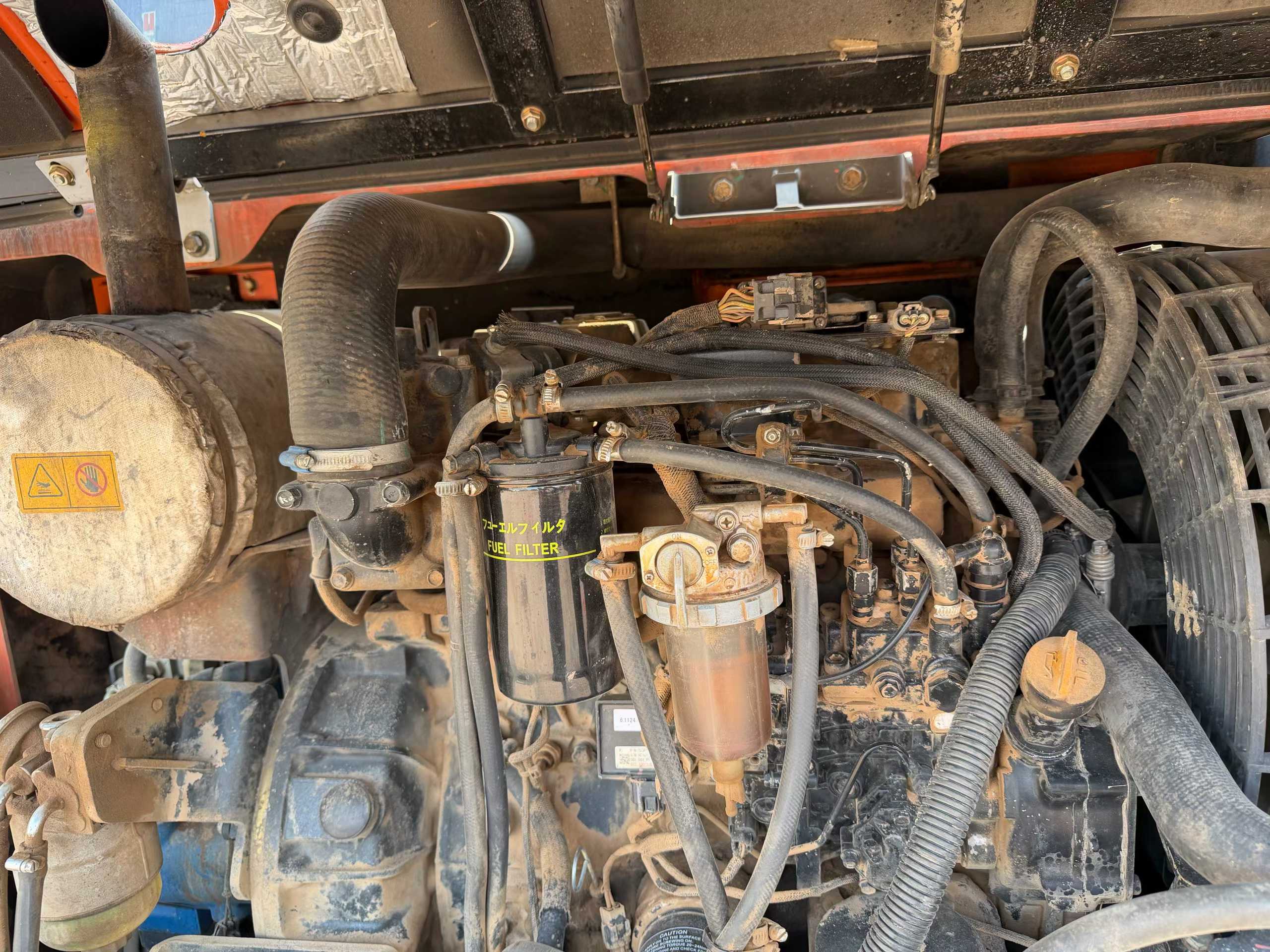

| Engine type | Yanmar 4TNV98-EXS |
| Rated power (kw/rpm) | 39/2200 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 6.494 |
| Working form | Straight, naturally aspirated. |
| Ground specific pressure (Kpa) | 34 |
| Rotation speed (rpm) | 10.4 |
| Bucket digging force (kN) | 53.4 |
| Rod digging force (kN) | 36.9 |
| Travel speed (km/h) | High: 4.5 / Low: 2.8 |
| Turning torque (Nm) | 1760 |
| Rotary hydraulic motor type | | Axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |

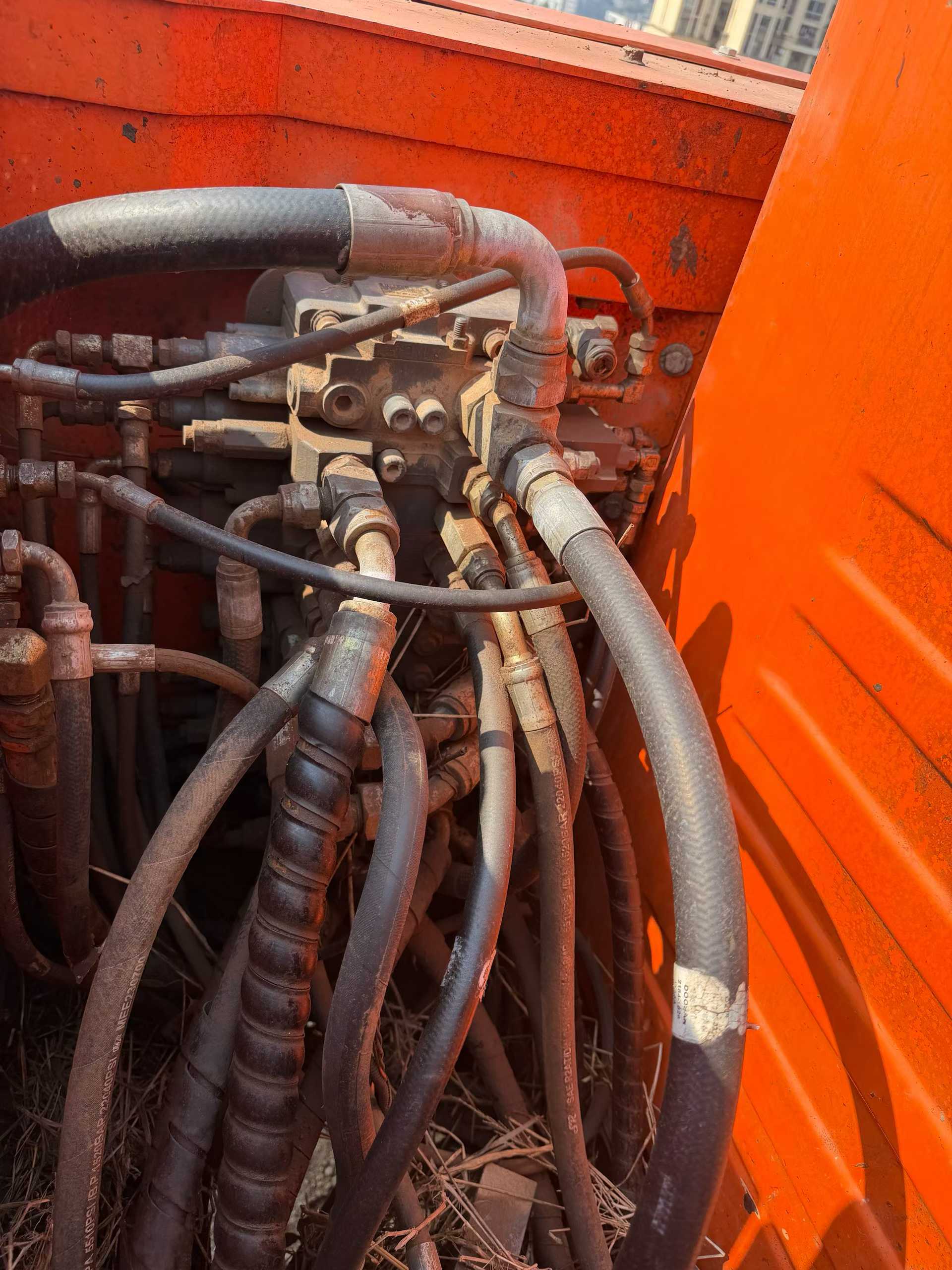

| Control Hydraulic Circuit (Mpa) | 3.9 |
| Main pump type | Variable piston pump |
| Fuel Tank (L) | 111 |
| Hydraulic Tank (L) | 90 |
| Total transport length (mm) | 6030 |
| Total transport width (mm) | 2180 |
| Total transport height (mm) | 2680 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 1745 |
| Back end turning radius (mm) | 1750 |
| Onboard width (mm) | 2130 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1650 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2100 |
| Track ground length (mm) | 3670 |
| Maximum height at minimum turning radius (mm) | 7180 |
| Maximum digging radius (mm) | 6115 |
| Maximum digging depth (mm) | 4080 |
| Maximum excavation height (mm) | 7100 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 2670 |
| Dodging plate width × height (mm) | 2100 x 418 |
| Maximum excavation radius of stop surface (mm) | 6270 |
| Maximum effective digging depth (mm) | 3725 |
