2018 Doosan DX75-9C

1/7

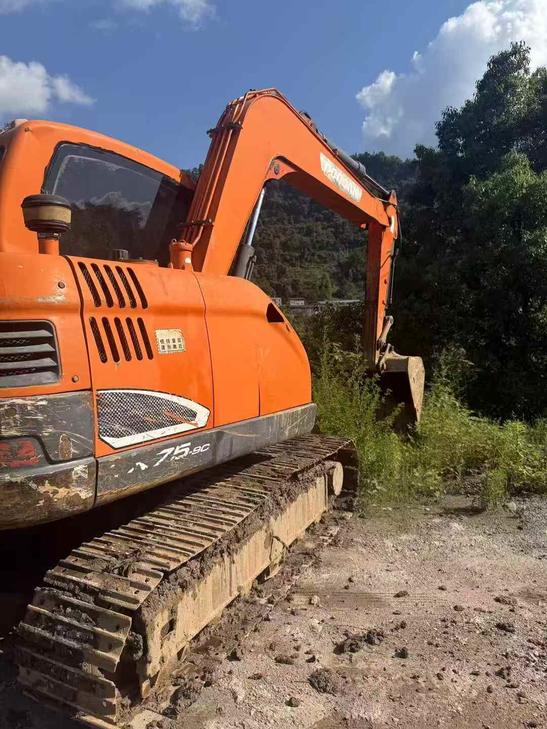

Buy Doosan DX75-9C Used Excavator / 1
Buy Doosan DX75-9C Used Excavator / 2
Buy Doosan DX75-9C Used Excavator / 3
Buy Doosan DX75-9C Used Excavator / 4
Buy Doosan DX75-9C Used Excavator / 5
Buy Doosan DX75-9C Used Excavator / 6
Buy Doosan DX75-9C Used Excavator / 7

Product Description

This 2018 Doosan DX75-9C midi excavator offers reliable performance for contractors seeking proven hydraulic technology. Manufactured at the end of 2018, this 7.5-ton class machine combines Doosan's fuel-efficient engine with responsive hydraulics suitable for utility work, landscaping, and light construction applications.

Currently located in Guizhou, China, this unit represents an opportunity to acquire Japanese-Korean engineering at a competitive price point. The DX75-9C series is known for its compact footprint and versatility in confined jobsites.

  • Year: 2018 (late production)
  • Operating weight: Approximately 7,500 kg
  • Bucket capacity: Standard 0.28 m³
  • Engine: Doosan D24 diesel
  • Location: Guizhou Province, China

Ideal for buyers seeking a mid-size excavator with established parts availability across Asia. Inspection recommended prior to purchase.

SpecificationsValue
No.1075446
Tonnage (tons)7
Working weight (kg)7420
Bucket capacity (m³)0.3
Boom length (mm)|3620
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-EXS
Rated power (kw/rpm)39/2200
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Displacement (L)6.494
Working formStraight, naturally aspirated.
Ground specific pressure (Kpa)34
Rotation speed (rpm)10.4
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)High: 4.5 / Low: 2.8
Turning torque (Nm)1760
Rotary hydraulic motor type| Axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable piston pump
Fuel Tank (L)111
Hydraulic Tank (L)90
Total transport length (mm)6030
Total transport width (mm)2180
Total transport height (mm)2680
Full cab height (mm)2950
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1750
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track plate width (mm)450
Total track width (mm)2100
Track ground length (mm)3670
Maximum height at minimum turning radius (mm)7180
Maximum digging radius (mm)6115
Maximum digging depth (mm)4080
Maximum excavation height (mm)7100
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)2670
Dodging plate width × height (mm)2100 x 418
Maximum excavation radius of stop surface (mm)6270
Maximum effective digging depth (mm)3725
see more

Overview

No.1075446

Brand Name:

Doosan

Model Number:

DX75-9C

Year:

2018

Location:

Guizhou China

Pub Date
