2019 Doosan DX75-9C

1/9

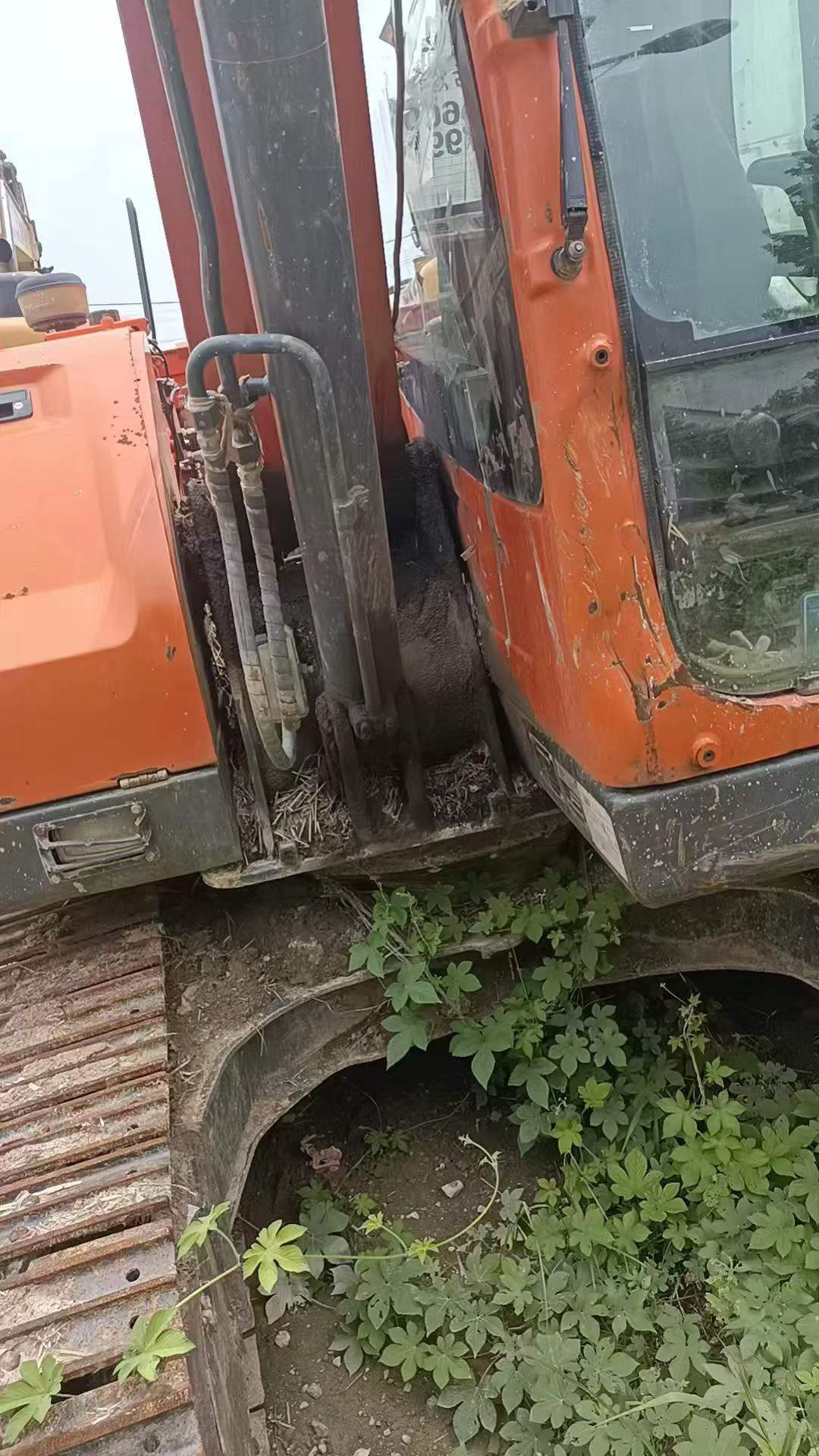

Buy Doosan DX75-9C Used Excavator / 1

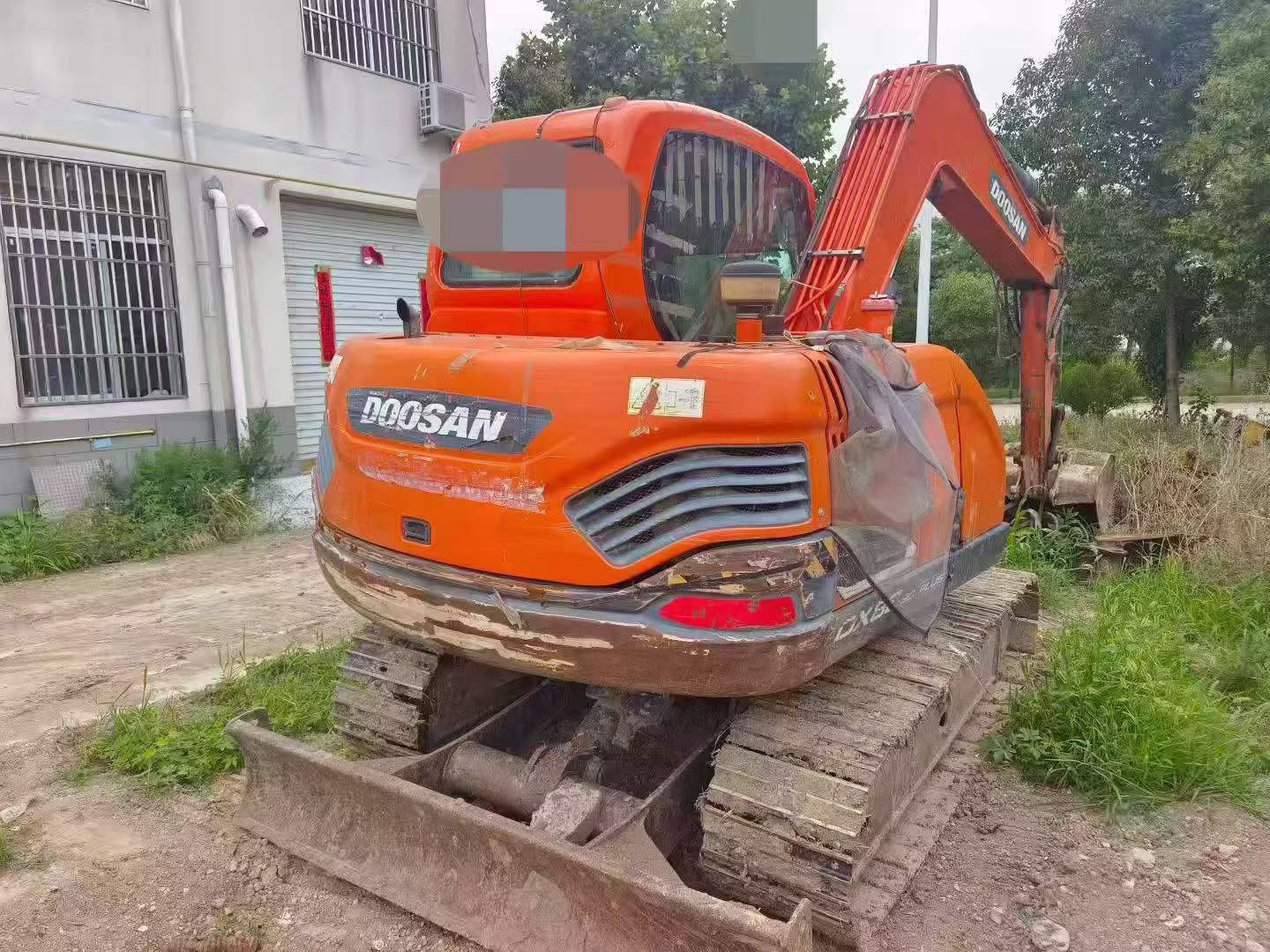

Buy Doosan DX75-9C Used Excavator / 2

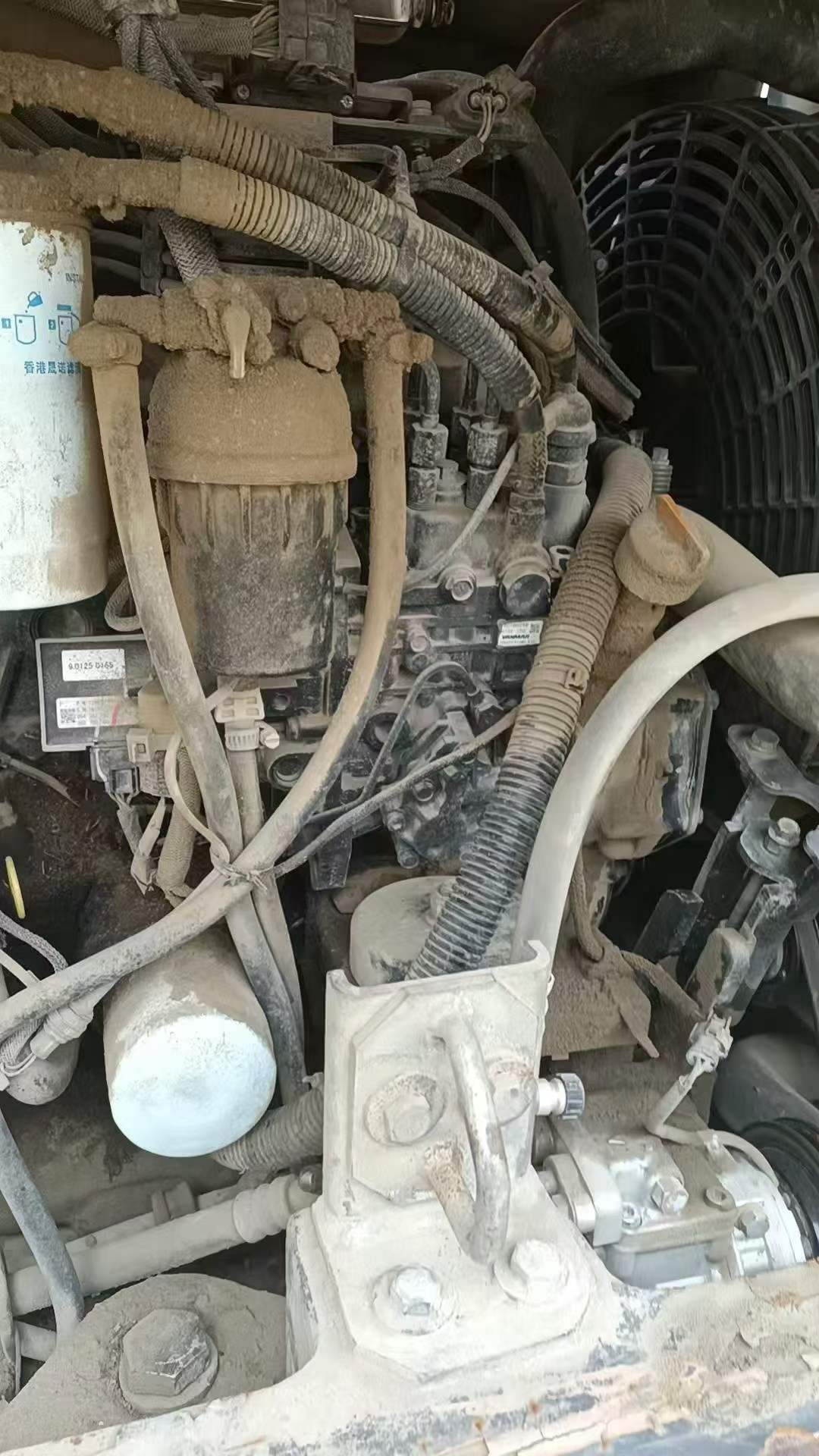

Buy Doosan DX75-9C Used Excavator / 3

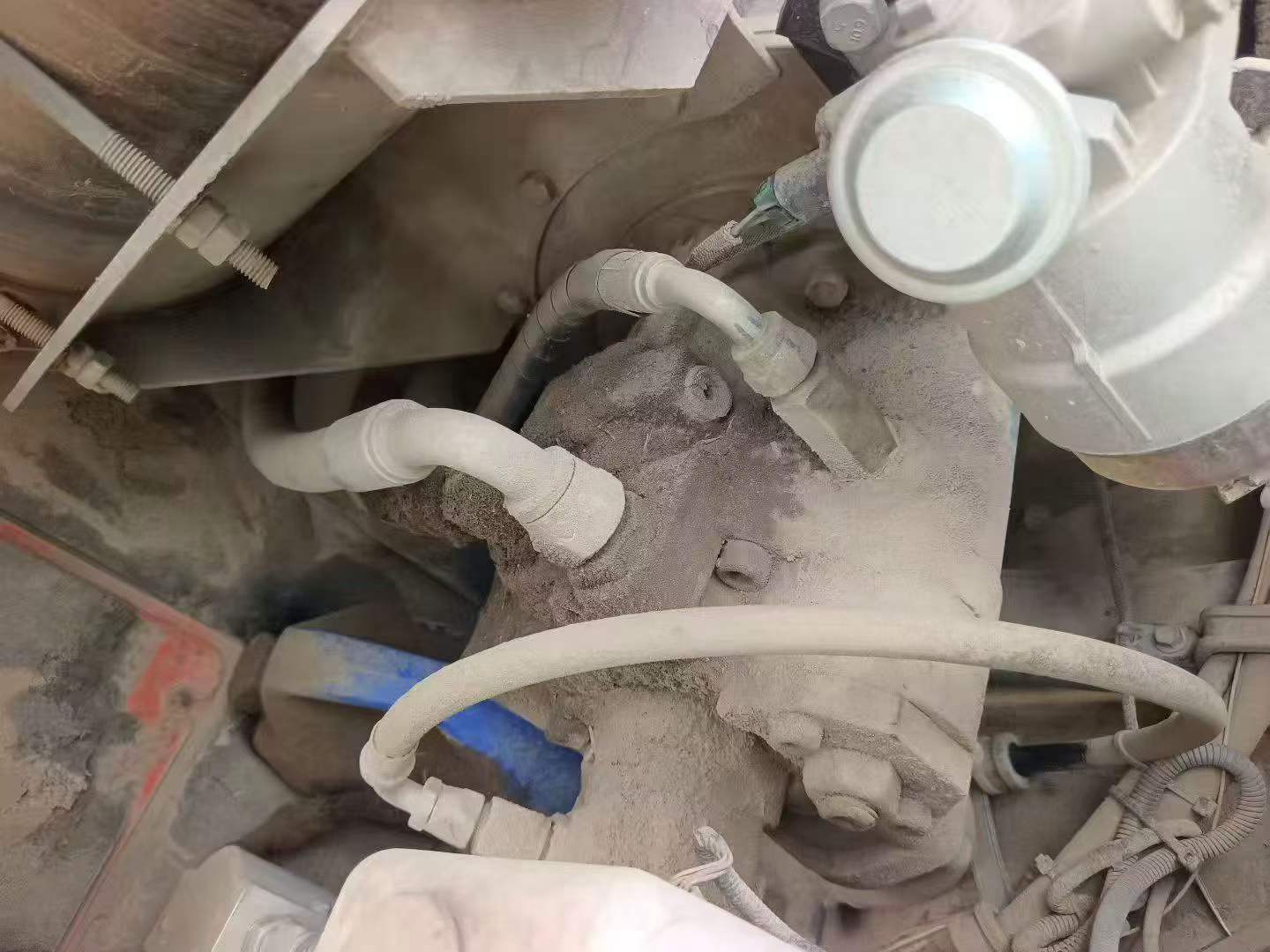

Buy Doosan DX75-9C Used Excavator / 4

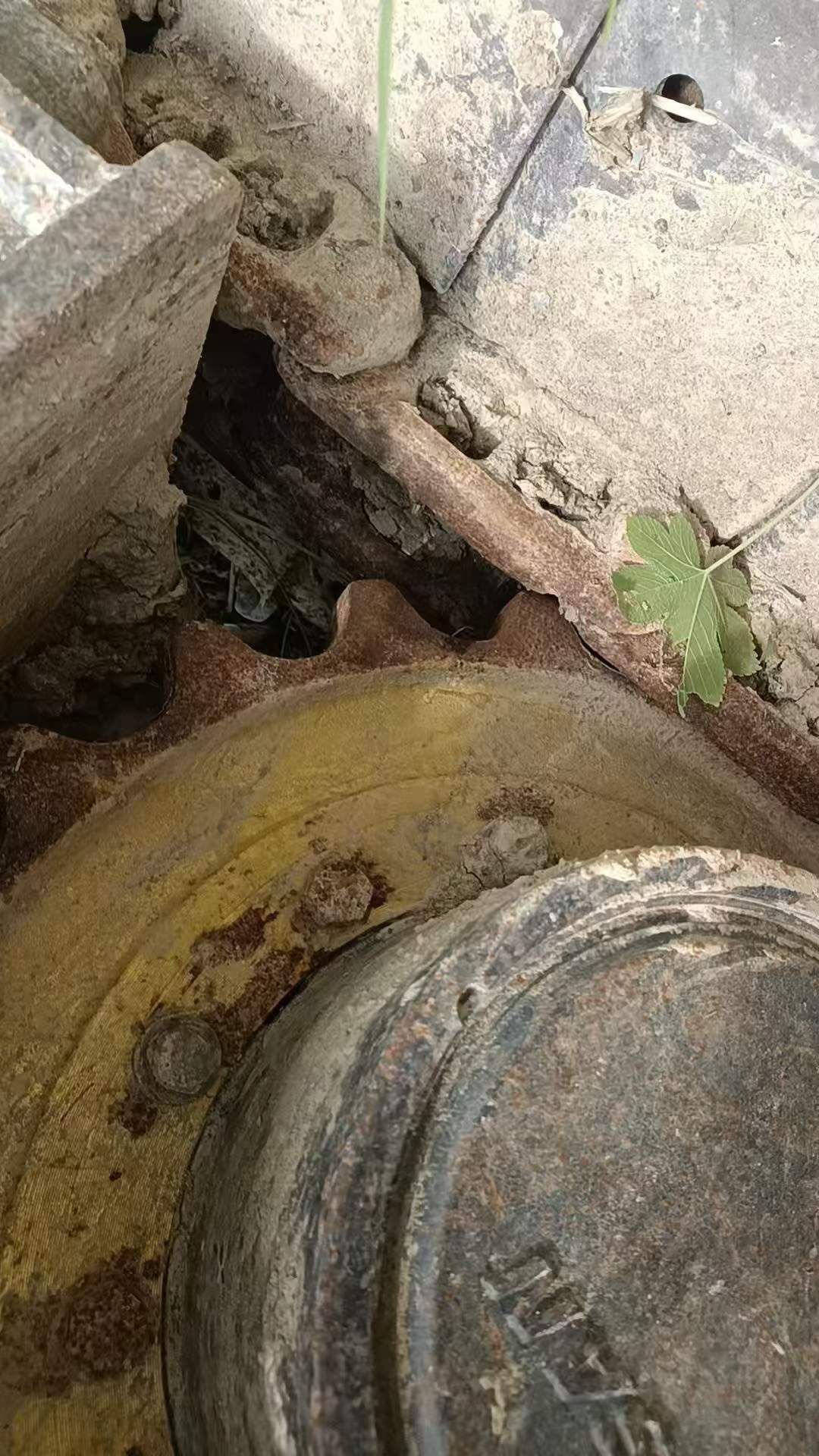

Buy Doosan DX75-9C Used Excavator / 5

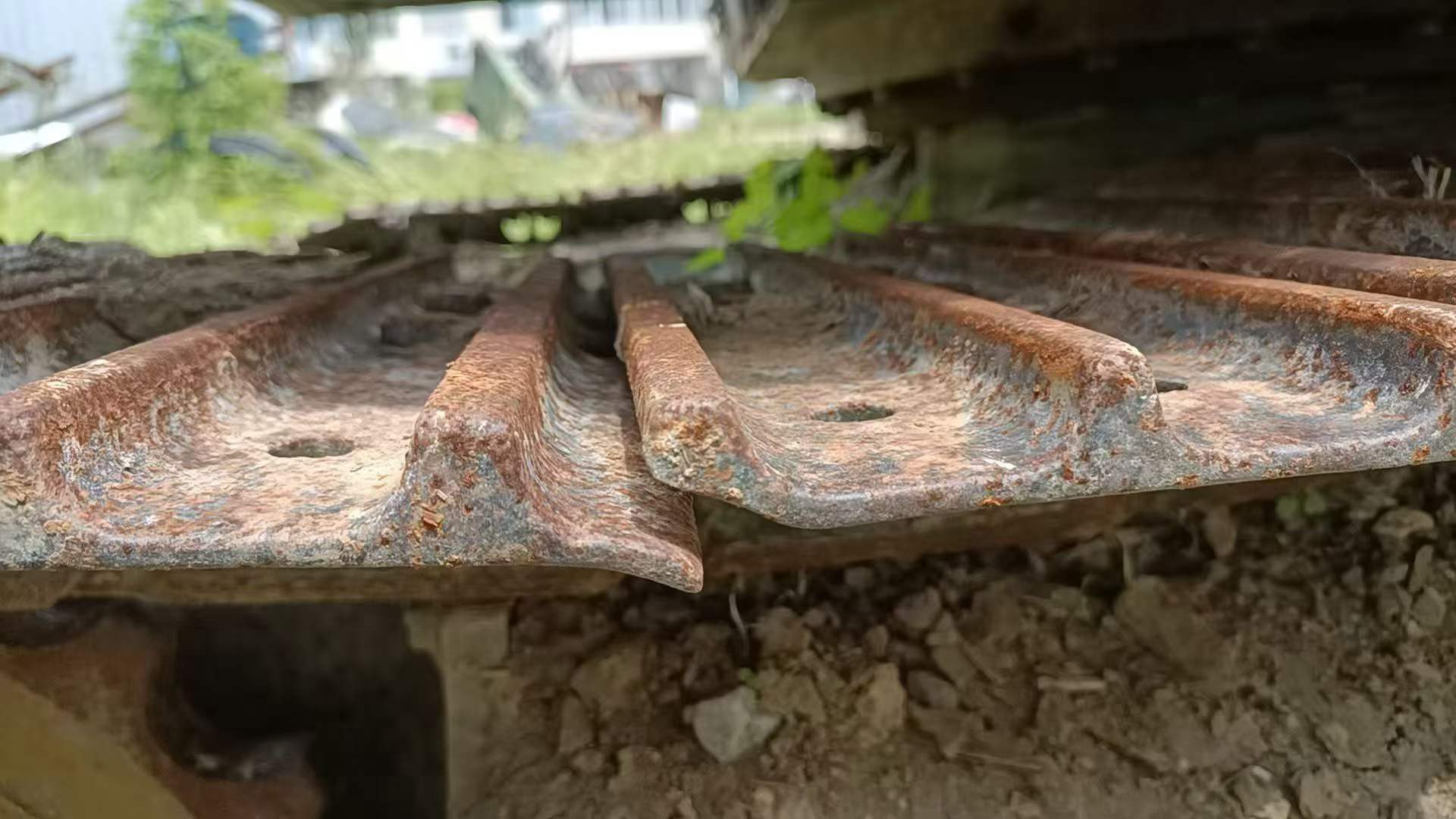

Buy Doosan DX75-9C Used Excavator / 6

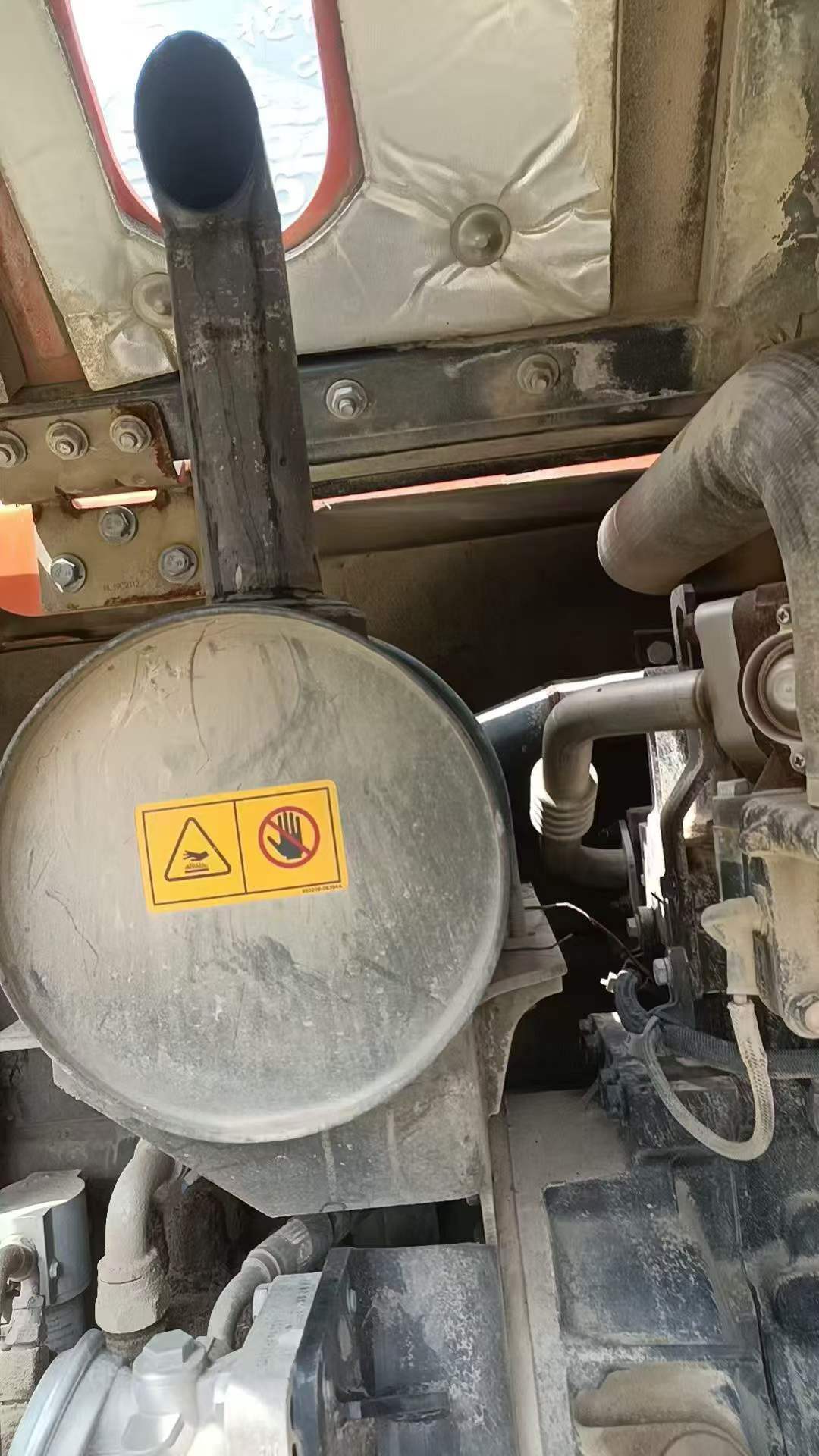

Buy Doosan DX75-9C Used Excavator / 7

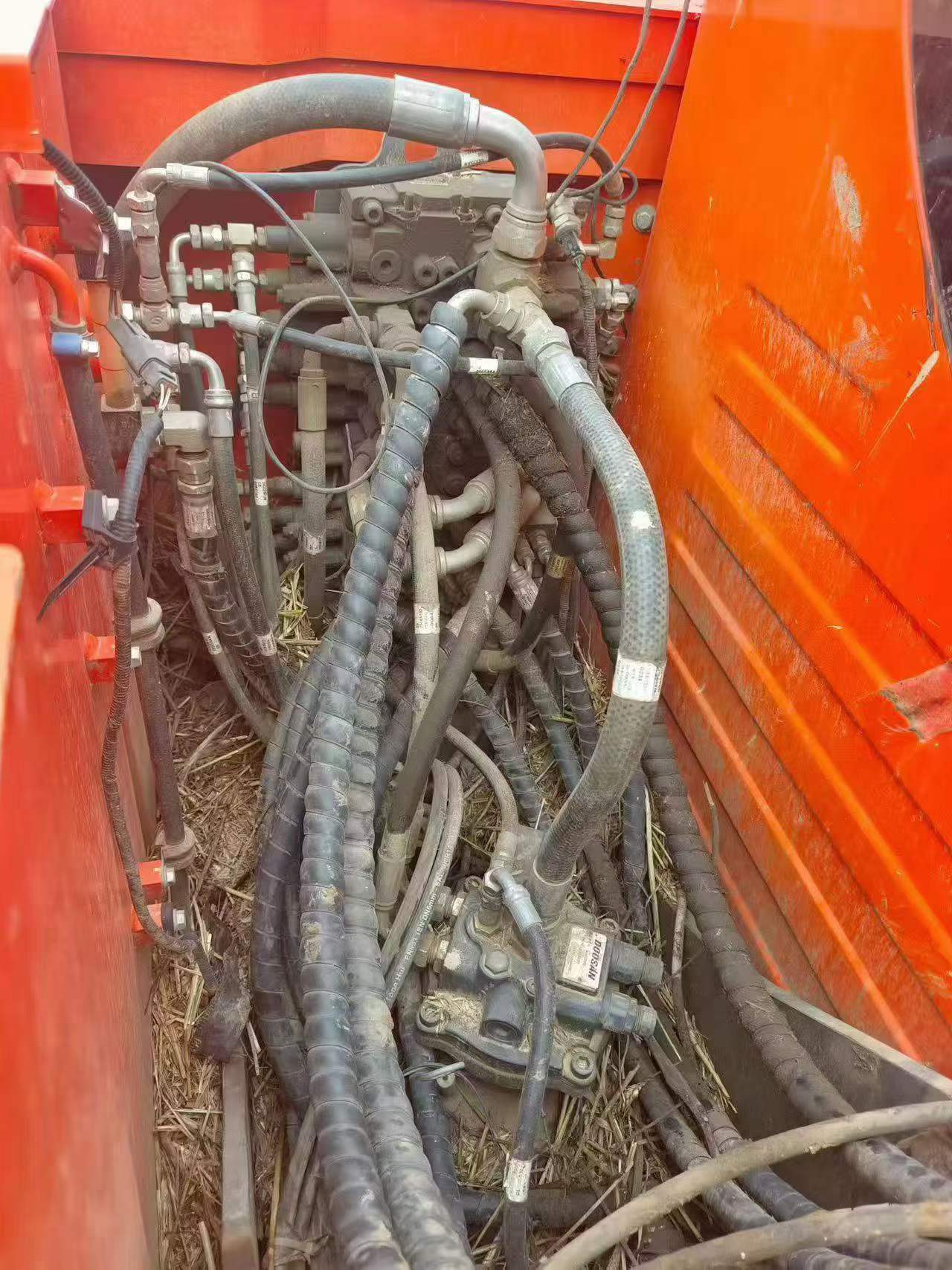

Buy Doosan DX75-9C Used Excavator / 8
Buy Doosan DX75-9C Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2019 Doosan DX75-9C, a versatile compact excavator available in Zhejiang, China. This machine is equipped with a small bucket, hammer, and a 3rd function valve, making it ideal for a variety of tasks including demolition and material handling. The DX75-9C also features a quick coupler, enhancing its flexibility and operational speed. Additionally, this unit comes with a grass fork, expanding its utility to landscaping and agricultural applications. Built to meet the demands of modern construction and maintenance, the Doosan DX75-9C offers a robust solution for your project needs.

  • Year: 2019
  • Brand: Doosan
  • Model: DX75-9C
  • Location: Zhejiang, China
  • Attachments: Small bucket, hammer, 3rd function valve, quick coupler, grass fork
SpecificationsValue
No.1143509
Tonnage (tons)7
Working weight (kg)7420
Bucket capacity (m³)0.3
Boom length (mm)|3620
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-EXS
Rated power (kw/rpm)39/2200
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Displacement (L)6.494
Working formStraight, naturally aspirated.
Ground specific pressure (Kpa)34
Rotation speed (rpm)10.4
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)High: 4.5 / Low: 2.8
Turning torque (Nm)1760
Rotary hydraulic motor type| Axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable piston pump
Fuel Tank (L)111
Hydraulic Tank (L)90
Total transport length (mm)6030
Total transport width (mm)2180
Total transport height (mm)2680
Full cab height (mm)2950
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1750
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track plate width (mm)450
Total track width (mm)2100
Track ground length (mm)3670
Maximum height at minimum turning radius (mm)7180
Maximum digging radius (mm)6115
Maximum digging depth (mm)4080
Maximum excavation height (mm)7100
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)2670
Dodging plate width × height (mm)2100 x 418
Maximum excavation radius of stop surface (mm)6270
Maximum effective digging depth (mm)3725
see more

Overview

No.1143509

Brand Name:

Doosan

Model Number:

DX75-9C

Year:

2019

Location:

Zhejiang China

Pub Date
