2020 Doosan DX75-9C

1/9

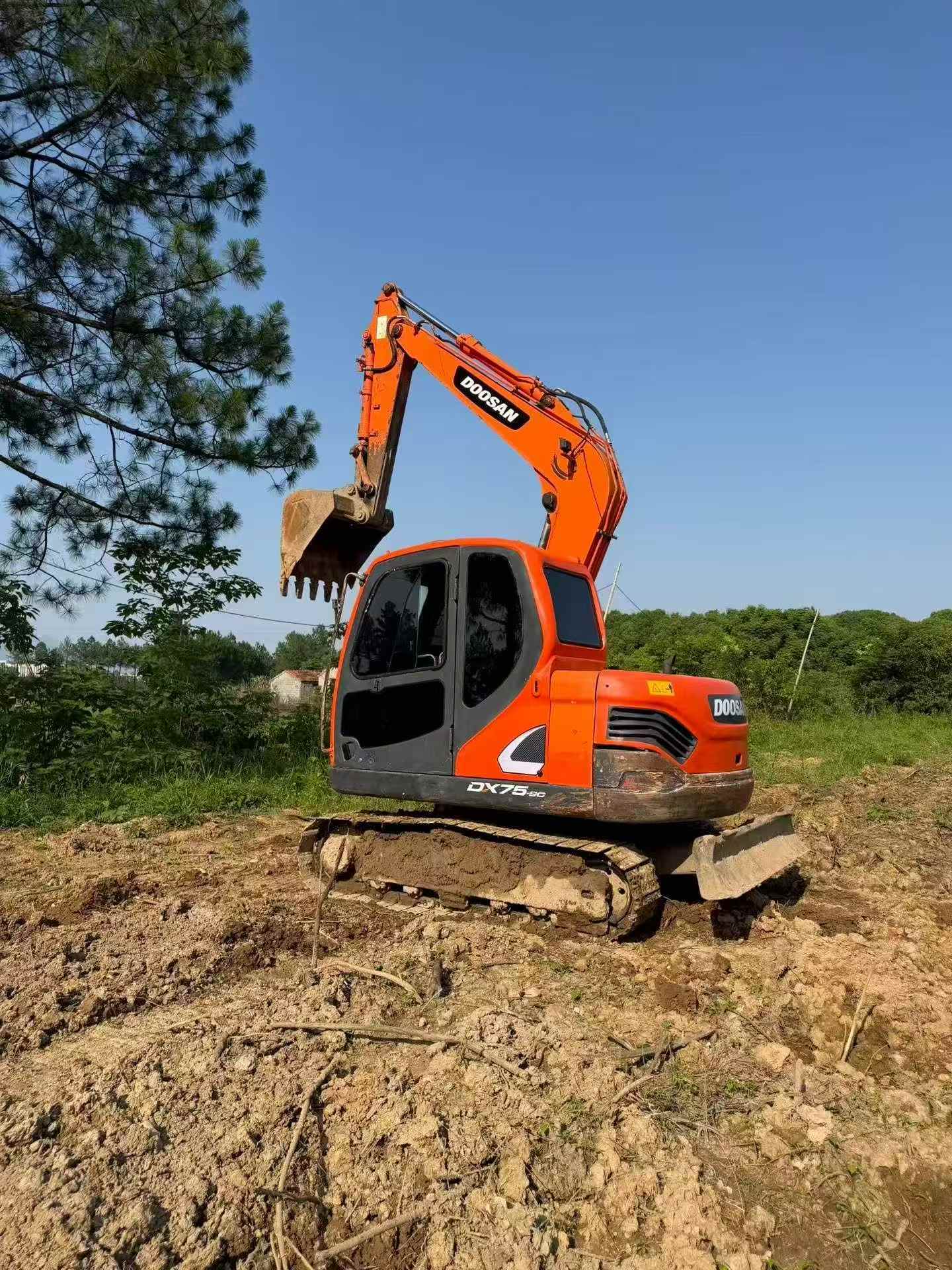

Buy Doosan DX75-9C Used Excavator / 1

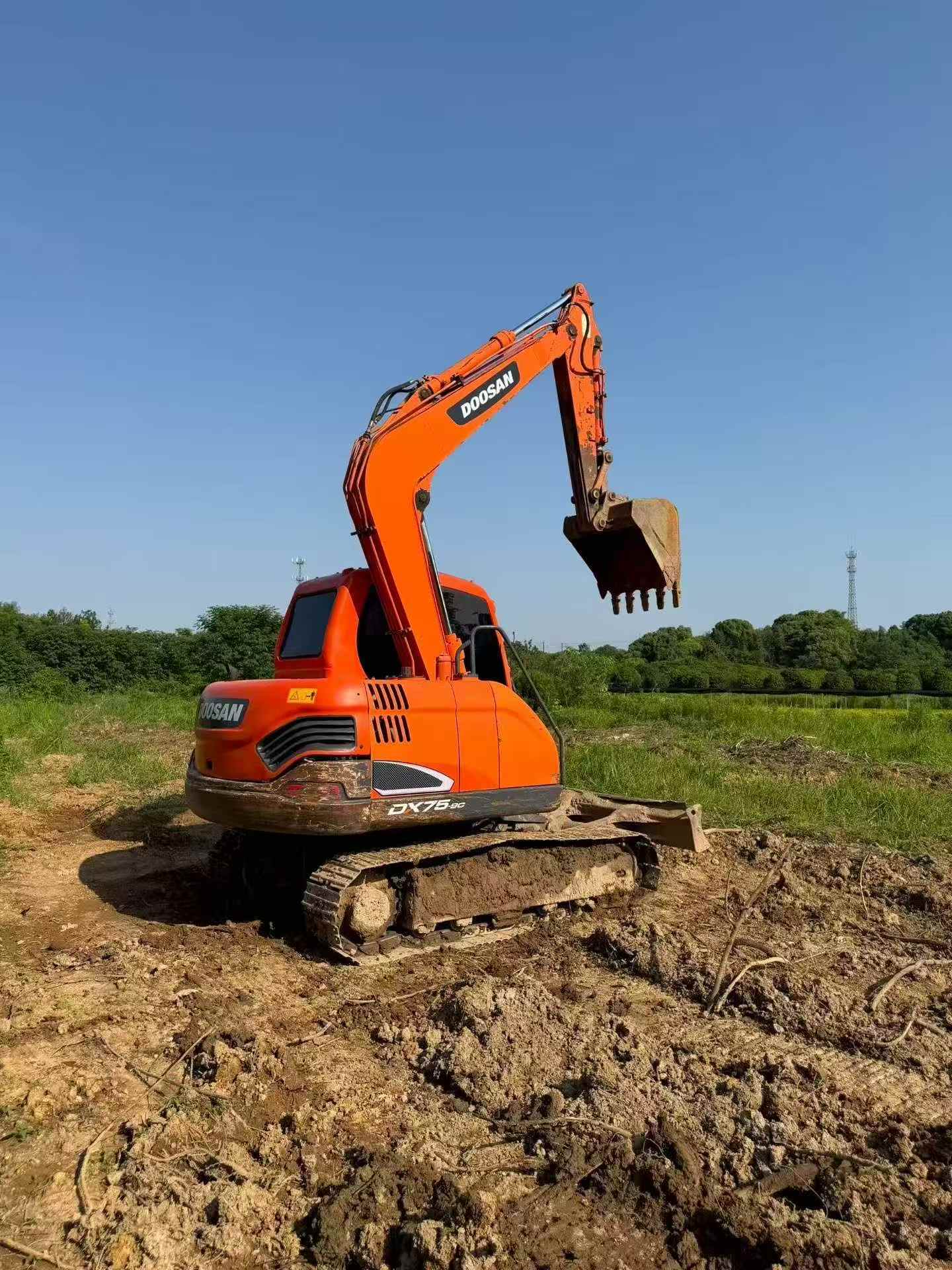

Buy Doosan DX75-9C Used Excavator / 2

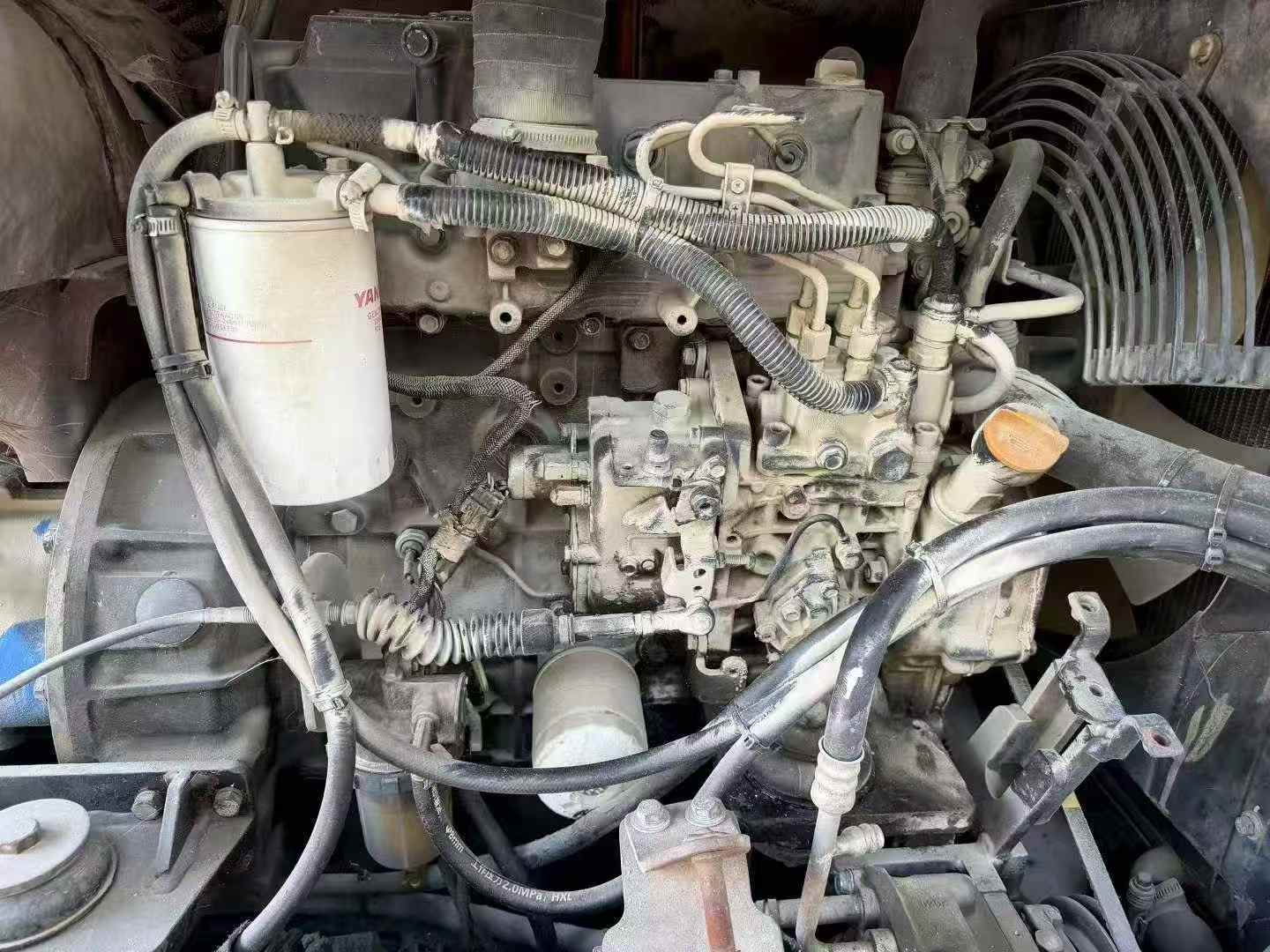

Buy Doosan DX75-9C Used Excavator / 3

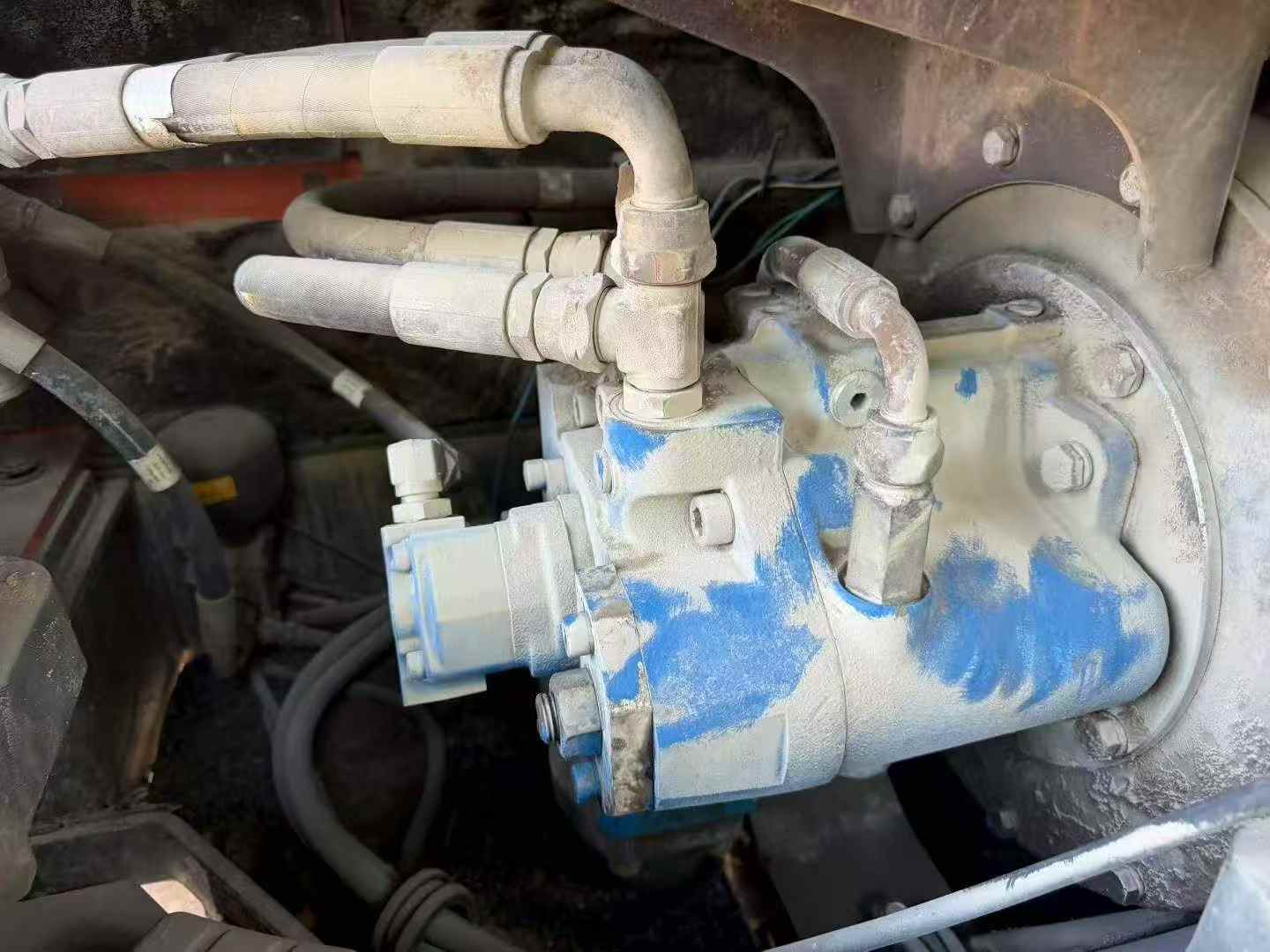

Buy Doosan DX75-9C Used Excavator / 4

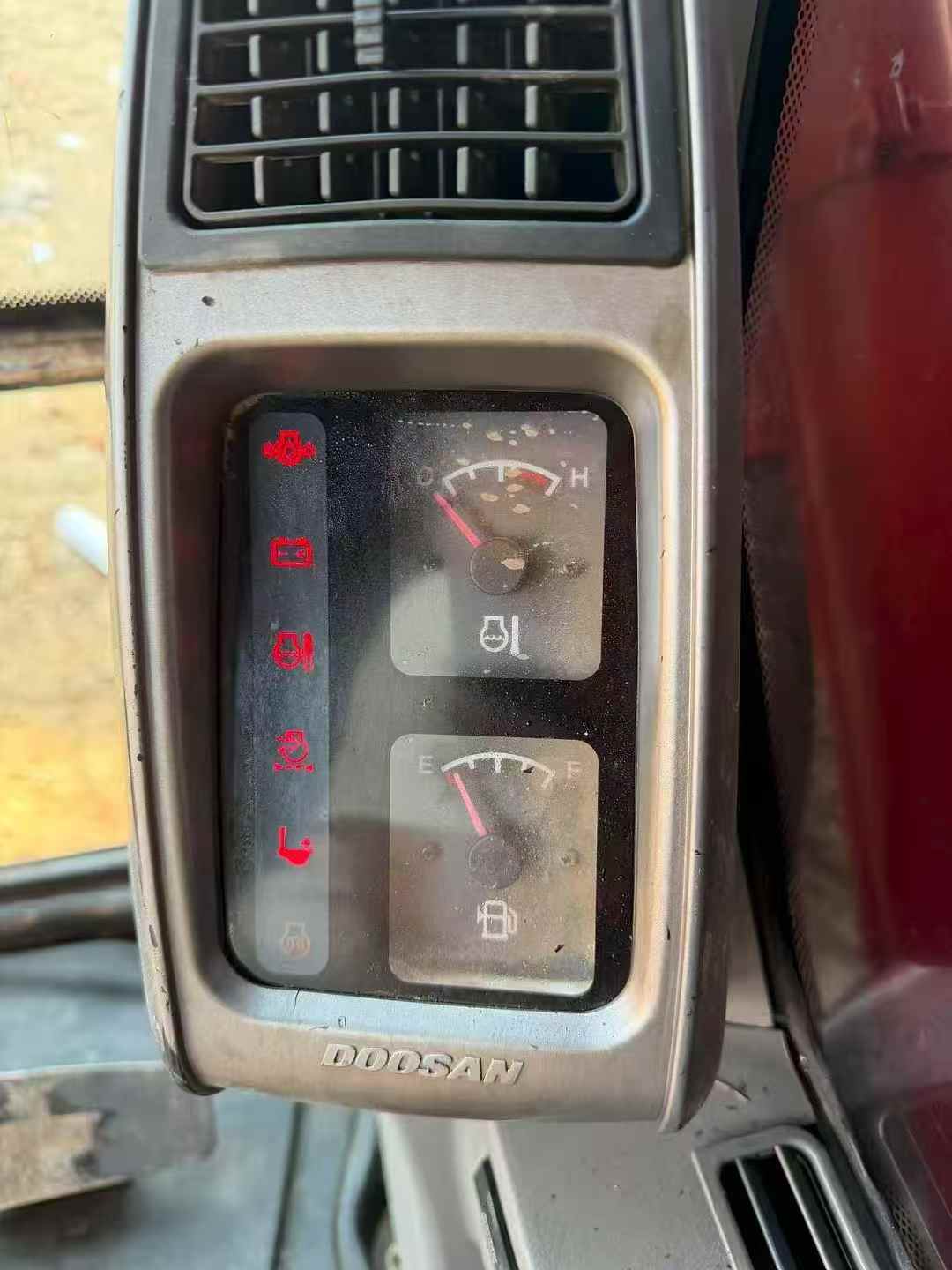

Buy Doosan DX75-9C Used Excavator / 5

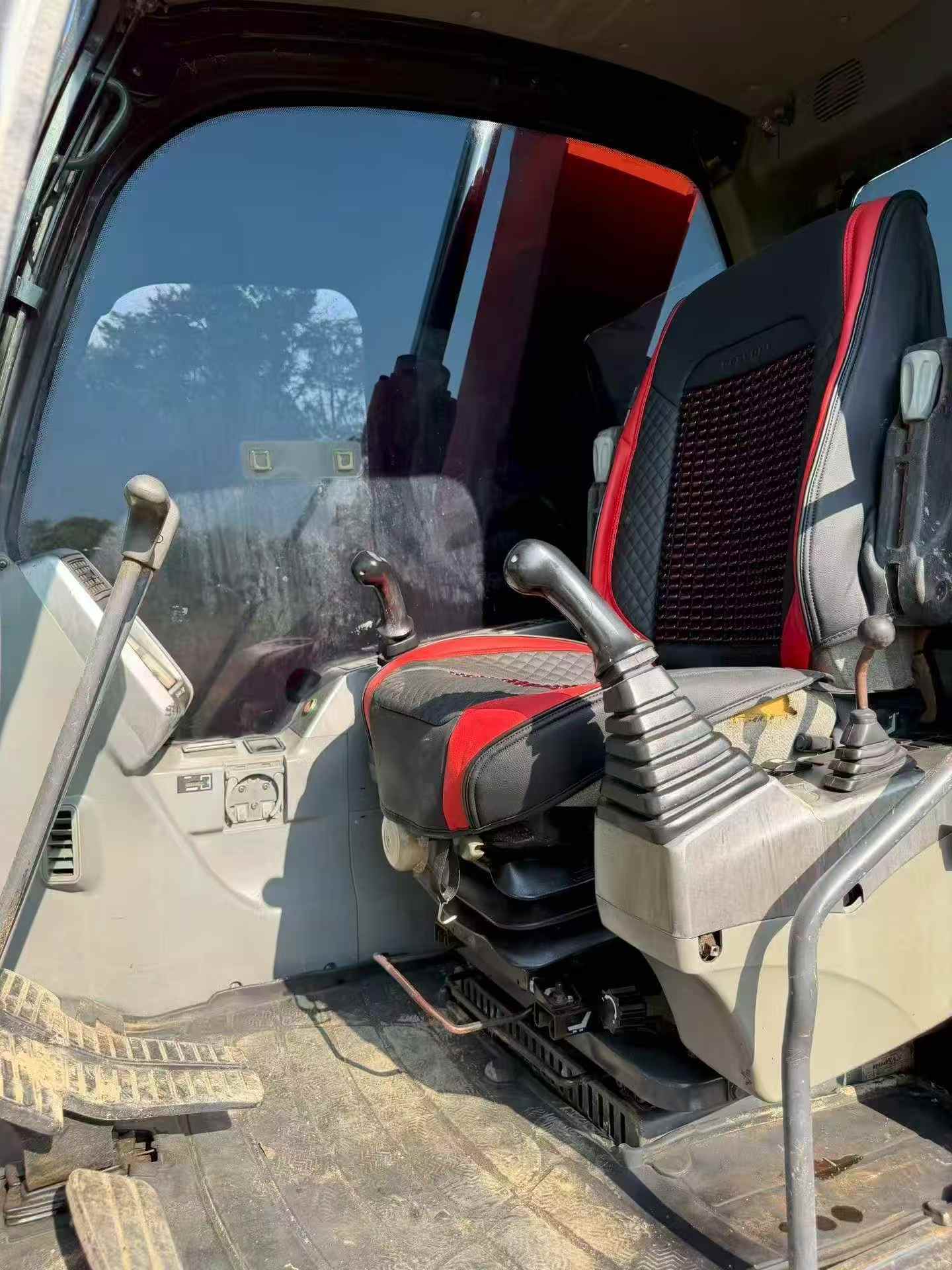

Buy Doosan DX75-9C Used Excavator / 6

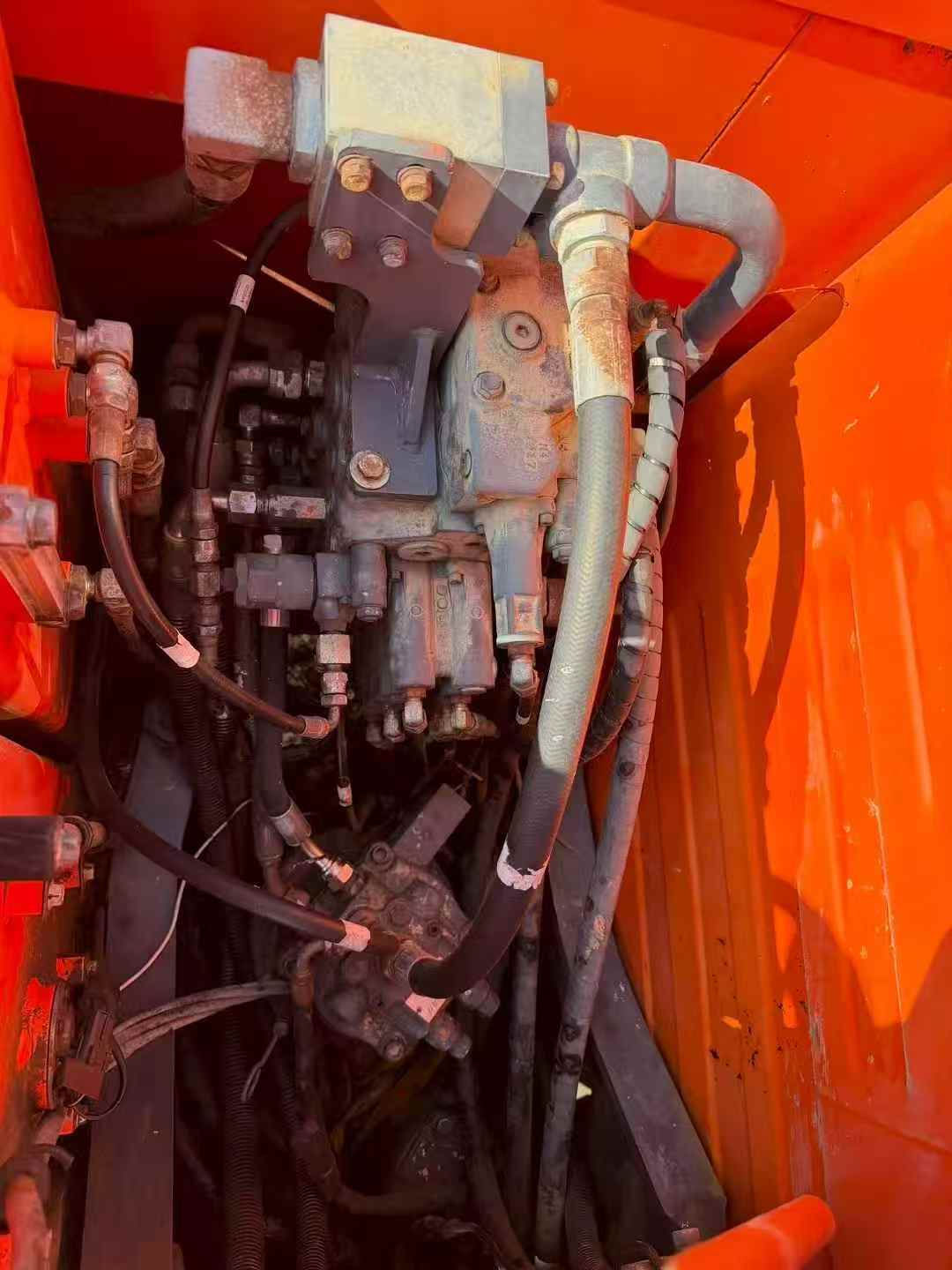

Buy Doosan DX75-9C Used Excavator / 7

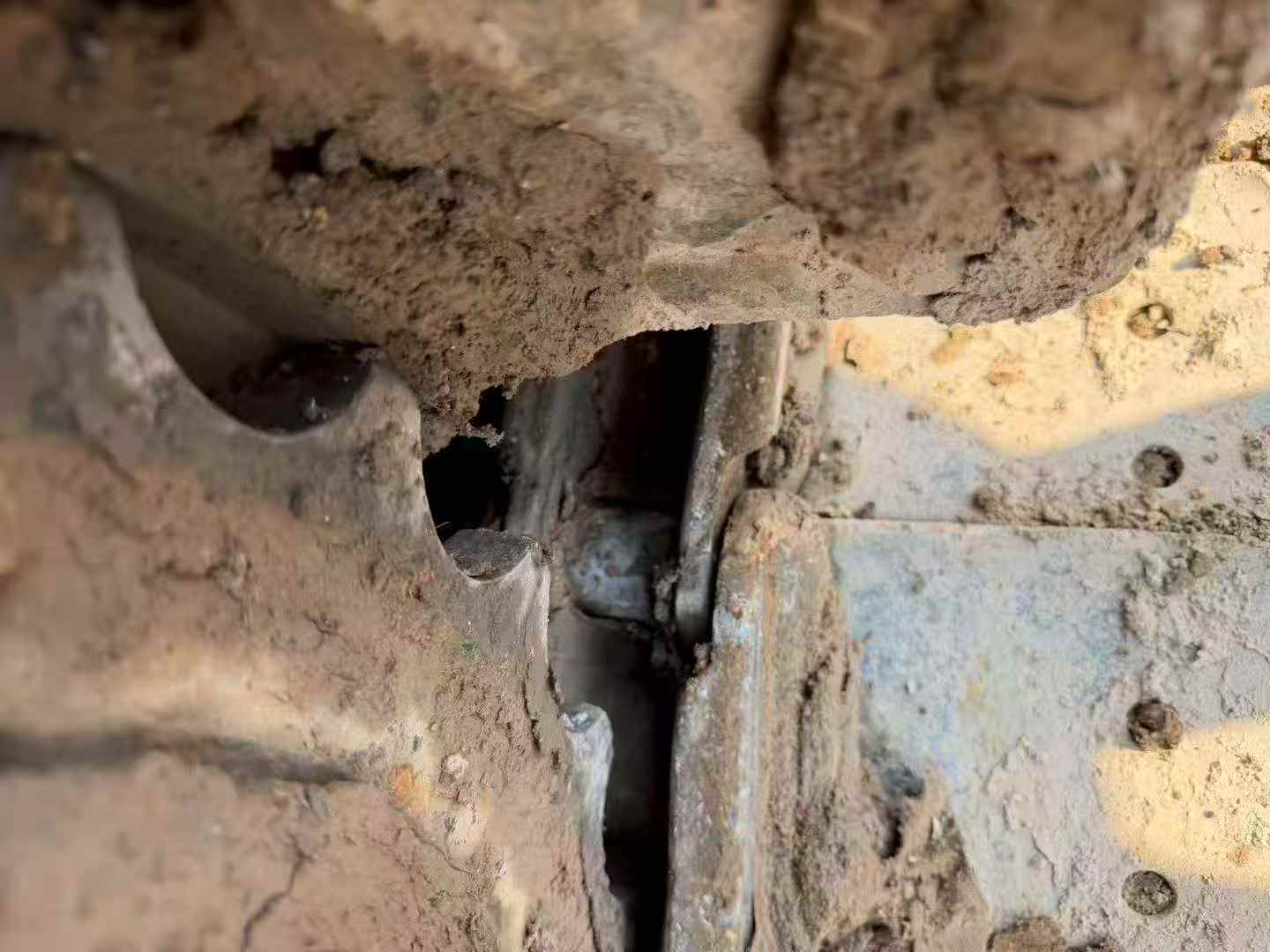

Buy Doosan DX75-9C Used Excavator / 8

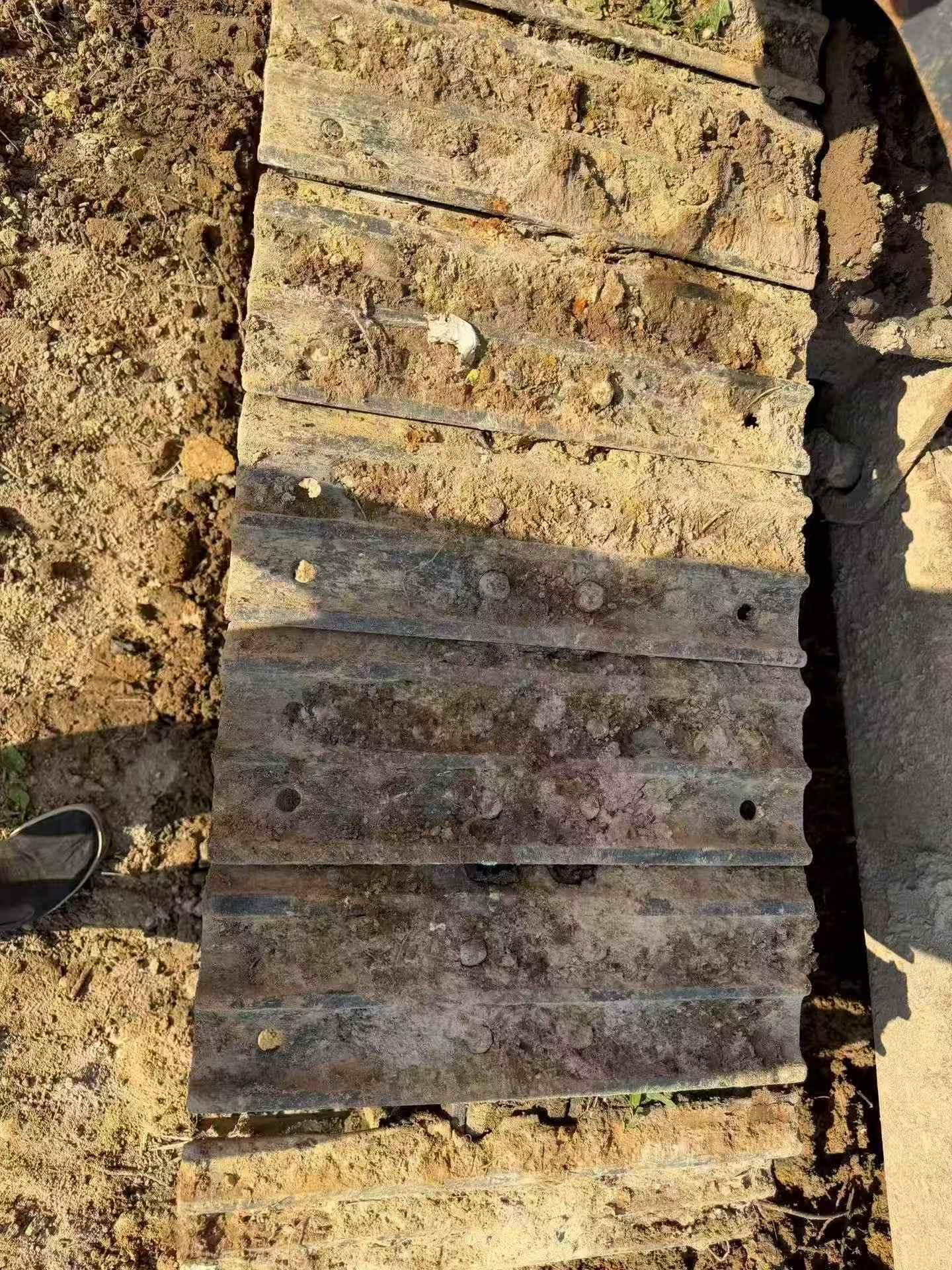

Buy Doosan DX75-9C Used Excavator / 9

Product Description

Discover the 2020 Doosan DX75-9C, a robust and reliable excavator available in Zhejiang, China. This used machine is in excellent condition, featuring a well-maintained exterior and a powerful performance ideal for various construction tasks. Equipped with an original air conditioning system, it ensures operator comfort even in demanding environments. The undercarriage is in new condition, providing stability and durability. The versatile gear options, including the convenient turtle and rabbit modes, enhance operational efficiency. With its strong digging capabilities and competitive price of 69,999, this excavator is a cost-effective solution for your project needs.

  • Year: 2020
  • Brand: Doosan
  • Model: DX75-9C
  • Location: Zhejiang, China
  • Price: 69,999
SpecificationsValue
No.1080248
Tonnage (tons)7
Working weight (kg)7420
Bucket capacity (m³)0.3
Boom length (mm)|3620
Rod length (mm)1670
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98-EXS
Rated power (kw/rpm)39/2200
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Displacement (L)6.494
Working formStraight, naturally aspirated.
Ground specific pressure (Kpa)34
Rotation speed (rpm)10.4
Bucket digging force (kN)53.4
Rod digging force (kN)36.9
Travel speed (km/h)High: 4.5 / Low: 2.8
Turning torque (Nm)1760
Rotary hydraulic motor type| Axial piston motor
Type of walking hydraulic motorVariable axial piston motor
Control Hydraulic Circuit (Mpa)3.9
Main pump typeVariable piston pump
Fuel Tank (L)111
Hydraulic Tank (L)90
Total transport length (mm)6030
Total transport width (mm)2180
Total transport height (mm)2680
Full cab height (mm)2950
Counterweight ground clearance (mm)1030
Minimum ground clearance (mm)370
Minimum turning radius of front working device (mm)1745
Back end turning radius (mm)1750
Onboard width (mm)2130
Total track length (mm)2750
Track gauge (mm)1650
Track plate width (mm)450
Total track width (mm)2100
Track ground length (mm)3670
Maximum height at minimum turning radius (mm)7180
Maximum digging radius (mm)6115
Maximum digging depth (mm)4080
Maximum excavation height (mm)7100
Maximum unloading height (mm)7180
Maximum vertical digging depth (mm)2670
Dodging plate width × height (mm)2100 x 418
Maximum excavation radius of stop surface (mm)6270
Maximum effective digging depth (mm)3725
see more

Overview

No.1080248

Brand Name:

Doosan

Model Number:

DX75-9C

Year:

2020

Location:

Zhejiang China

Pub Date
