Product Description

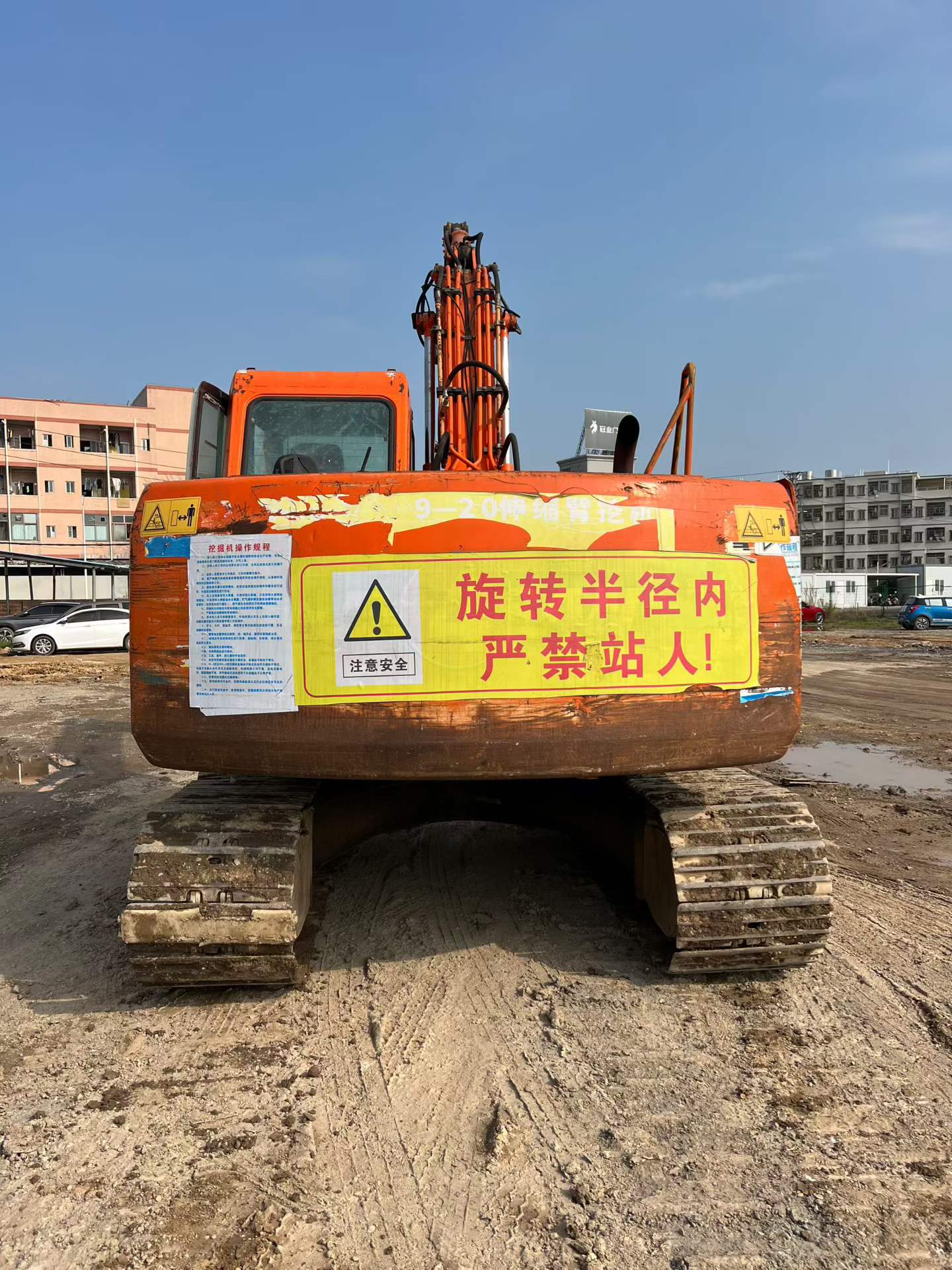

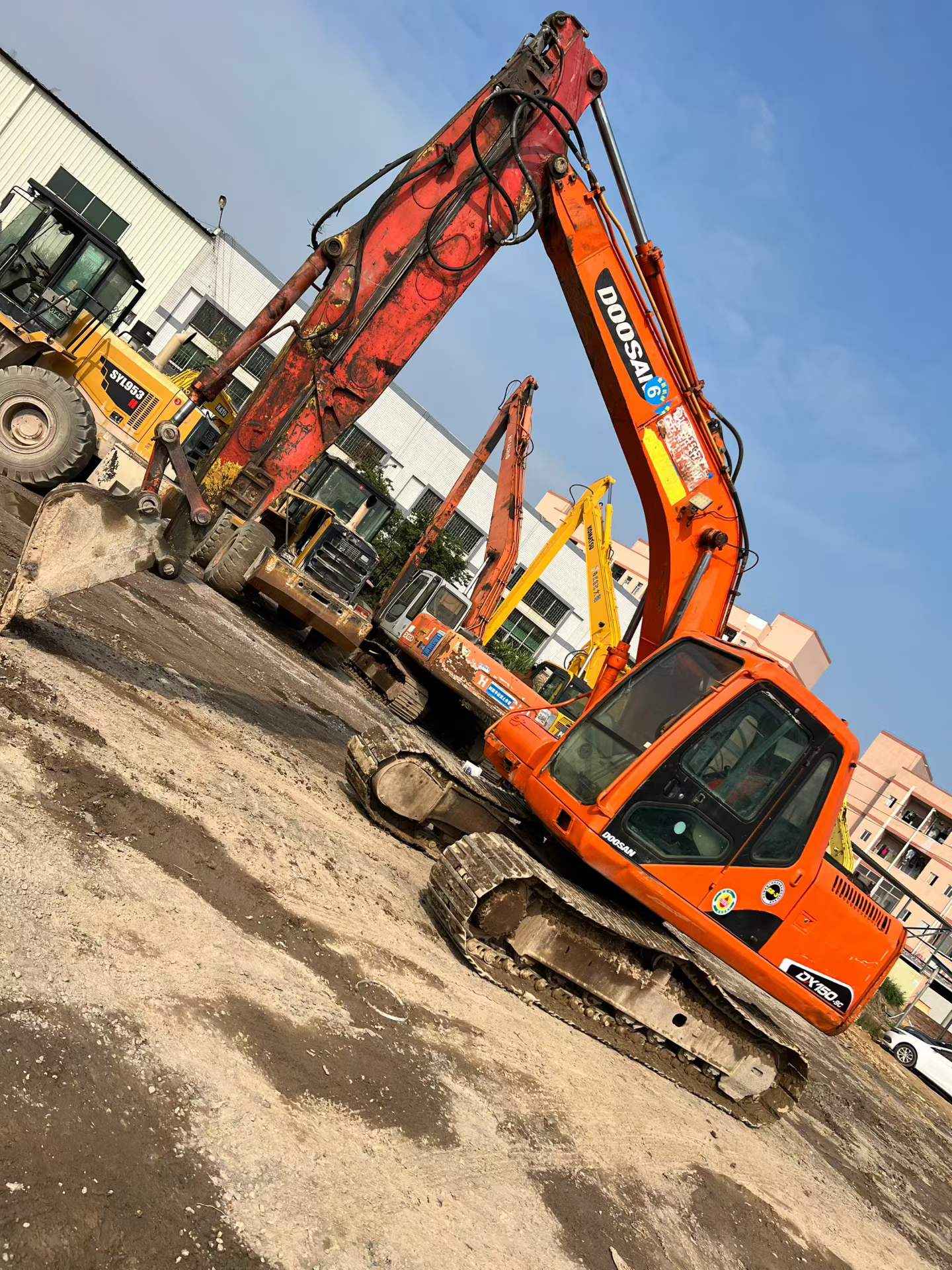

Built to endure the toughest jobsite conditions, this 2016 Doosan DX80 excavator demonstrates proven reliability through years of consistent performance. Operating at 8 tons with a working weight of 7,900 kg, this machine combines the robust engineering of a joint venture manufacturer with the dependable Yanmar 4TNV98 engine, delivering 41.4 kW of rated power at 2100 rpm. Currently located in Meizhou, Guangdong Province, this workhorse has established its credentials through sustained operation.
Performance specifications confirm its capability as a dependable mid-size excavator:
- Maximum digging reach of 6,350 mm with 4,165 mm digging depth
- Bucket digging force of 56 kN and rod digging force of 41 kN
- Dual main pump flow of 75.6 l/min × 2 plus 18.7 l/min
- Compact transport dimensions: 6,000 mm length × 2,290 mm width
- 145-liter fuel capacity for extended operation
- 30° climbing ability with 37 Kpa ground pressure
With its proven track record and durable construction, this DX80 represents a solid investment for contractors seeking reliable excavation performance without compromise.
| Specifications | Value |
|---|---|
| No. | 998727 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

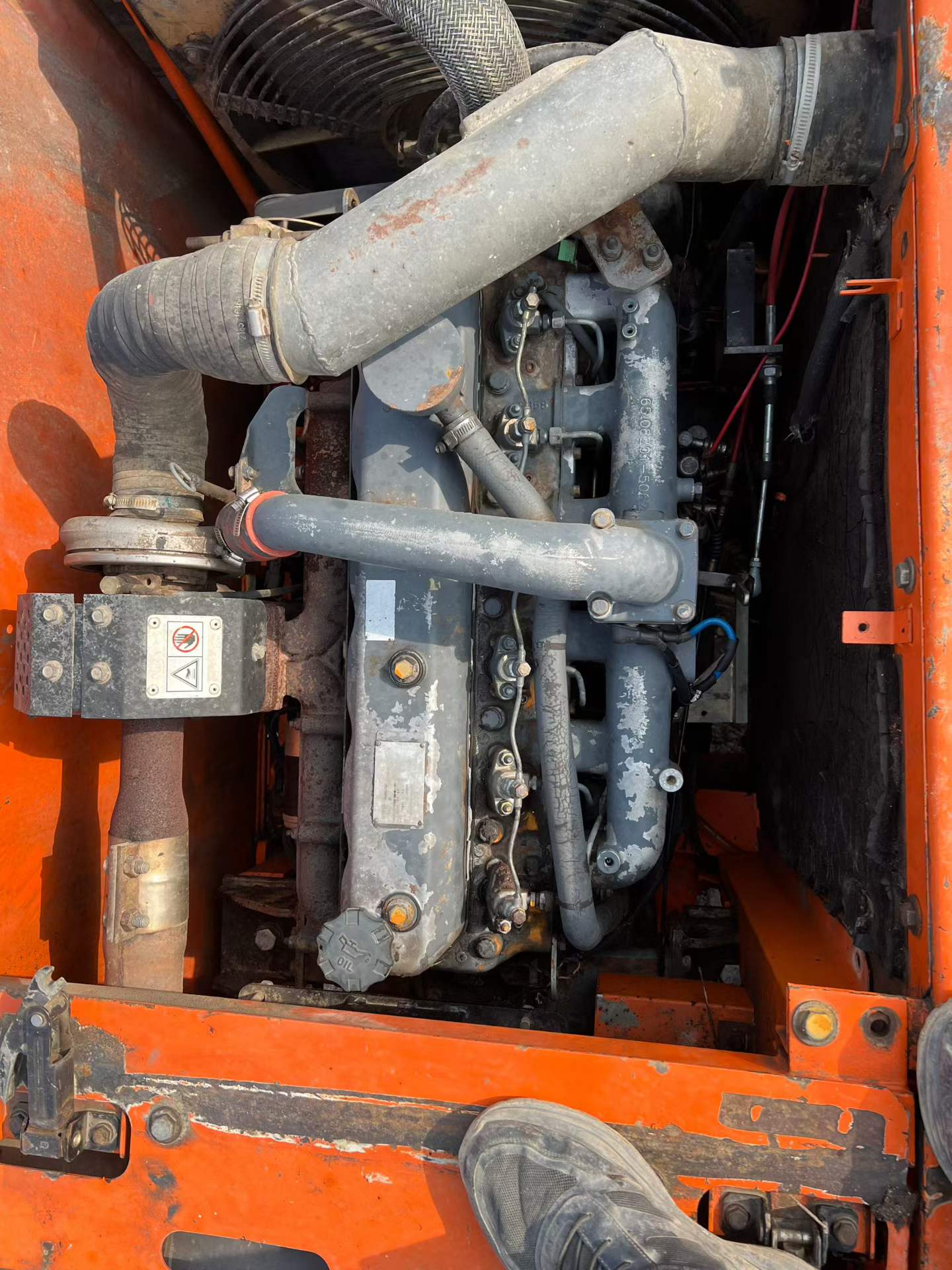

| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |

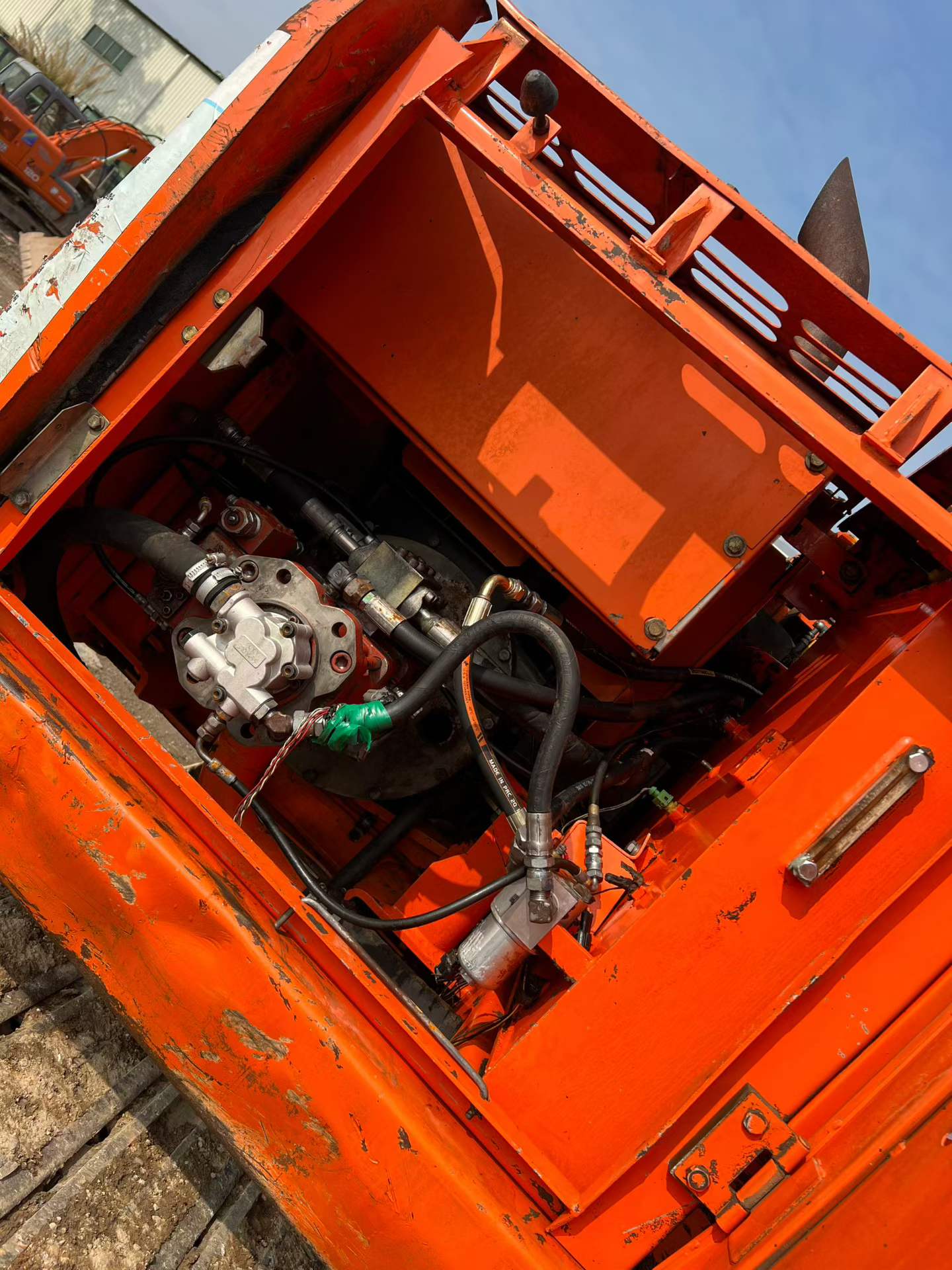

| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
