Product Description

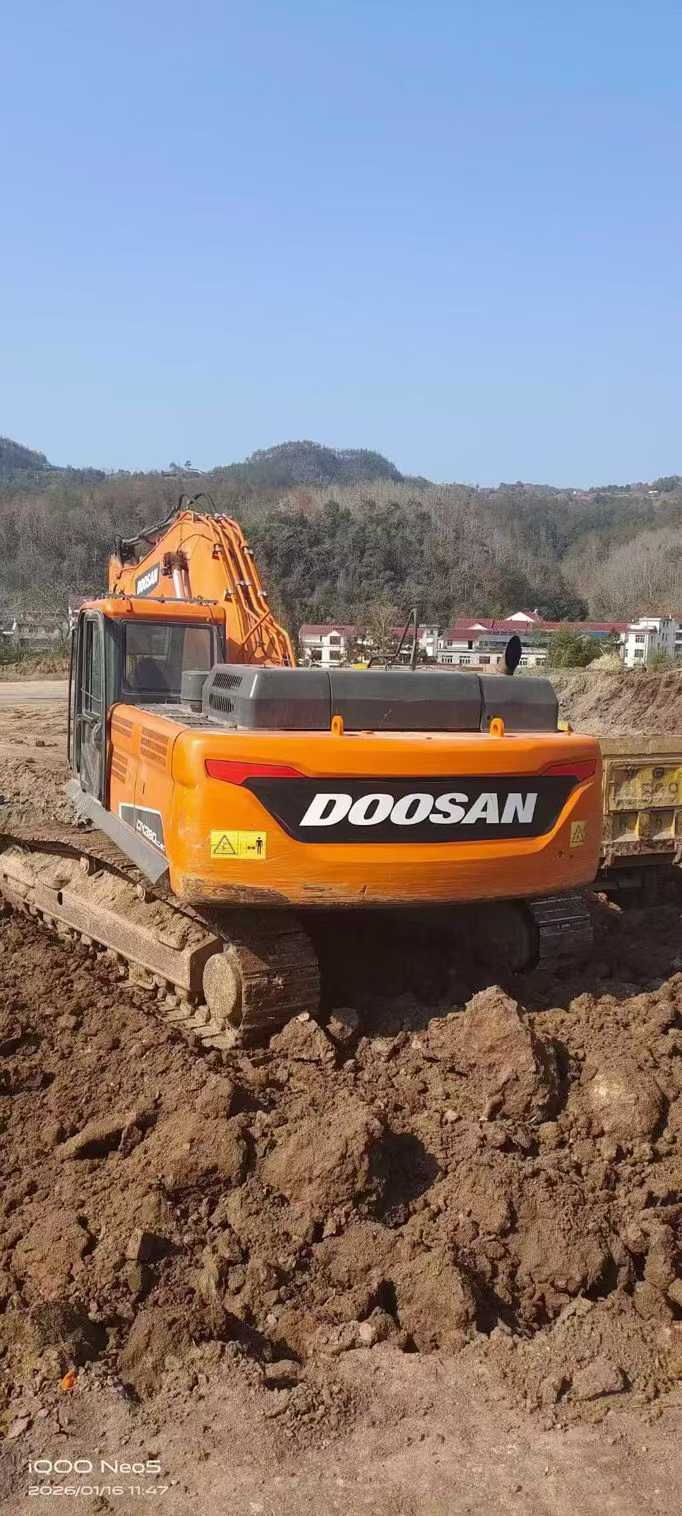

Maximize your equipment budget with this 2018 Doosan DX80 excavator, currently located in Maoming, Guangdong. Delivering professional-grade performance at a fraction of new equipment costs, this 8-ton machine combines proven reliability with impressive operational capabilities. Powered by a robust Yanmar 4TNV98 engine producing 41.4 kW at 2100 rpm, it offers the muscle needed for demanding excavation projects without the premium price tag.
Key performance specifications include:
- Operating weight: 7,900 kg with 0.30-0.32 m³ bucket capacity
- Maximum digging reach of 6,350 mm and depth of 4,165 mm
- Powerful digging forces: 56 kN bucket force, 41 kN arm force
- Dual main pumps delivering 75.6 L/min each for responsive hydraulics
- Compact footprint: 2,290 mm width, 1,800 mm rear swing radius
- 30° climbing capability and 4.9 km/h travel speed
Built through joint venture manufacturing in Yantai, this excavator represents smart capital allocation for contractors seeking dependable equipment. Invest in proven technology that maintains productivity while preserving your bottom line.
| Specifications | Value |
|---|---|
| No. | 994885 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 7900 |
| Bucket capacity (m³) | 0.30 ~ 0.32 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV98 VDB24 |
| Rated power (kw/rpm) | 41.4 / 2100 |
| Cylinder diameter × stroke (mm) | 98 x 110 |
| Number of cylinders (PCS) | 4 |
| Working form | 4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled |
| Ground specific pressure (Kpa) | 37 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 41 |
| Maximum tractive force (kN) | 63 |
| Travel speed (km/h) | 4.9 / 3.1 |
| Turning torque (Nm) | 24.2 |
| Maximum flow of main pump (l/min) | 75.6 * 2 + 18.7 |
| Traveling Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 145 |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2290 |
| Total transport height (mm) | 2685 |
| Full cab height (mm) | 2,690 |
| Counterweight ground clearance (mm) | 825 |
| Back end turning radius (mm) | 1800 |
| Onboard width (mm) | 2,200 |
| Total track length (mm) | 2750 |
| Track gauge (mm) | 1,770 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2,220 |
| Maximum digging radius (mm) | 6350 |
| Maximum digging depth (mm) | 4165 |
| Maximum excavation height (mm) | 7120 |
| Maximum unloading height (mm) | 5115 |
| Maximum vertical digging depth (mm) | 3328 |
| Dodging plate width × height (mm) | 2200 x 418 |
