2020 Doosan DX80

1/6
Buy Doosan DX80 Used Excavator / 1
Buy Doosan DX80 Used Excavator / 2
Buy Doosan DX80 Used Excavator / 3
Buy Doosan DX80 Used Excavator / 4
Buy Doosan DX80 Used Excavator / 5
Buy Doosan DX80 Used Excavator / 6

Product Description

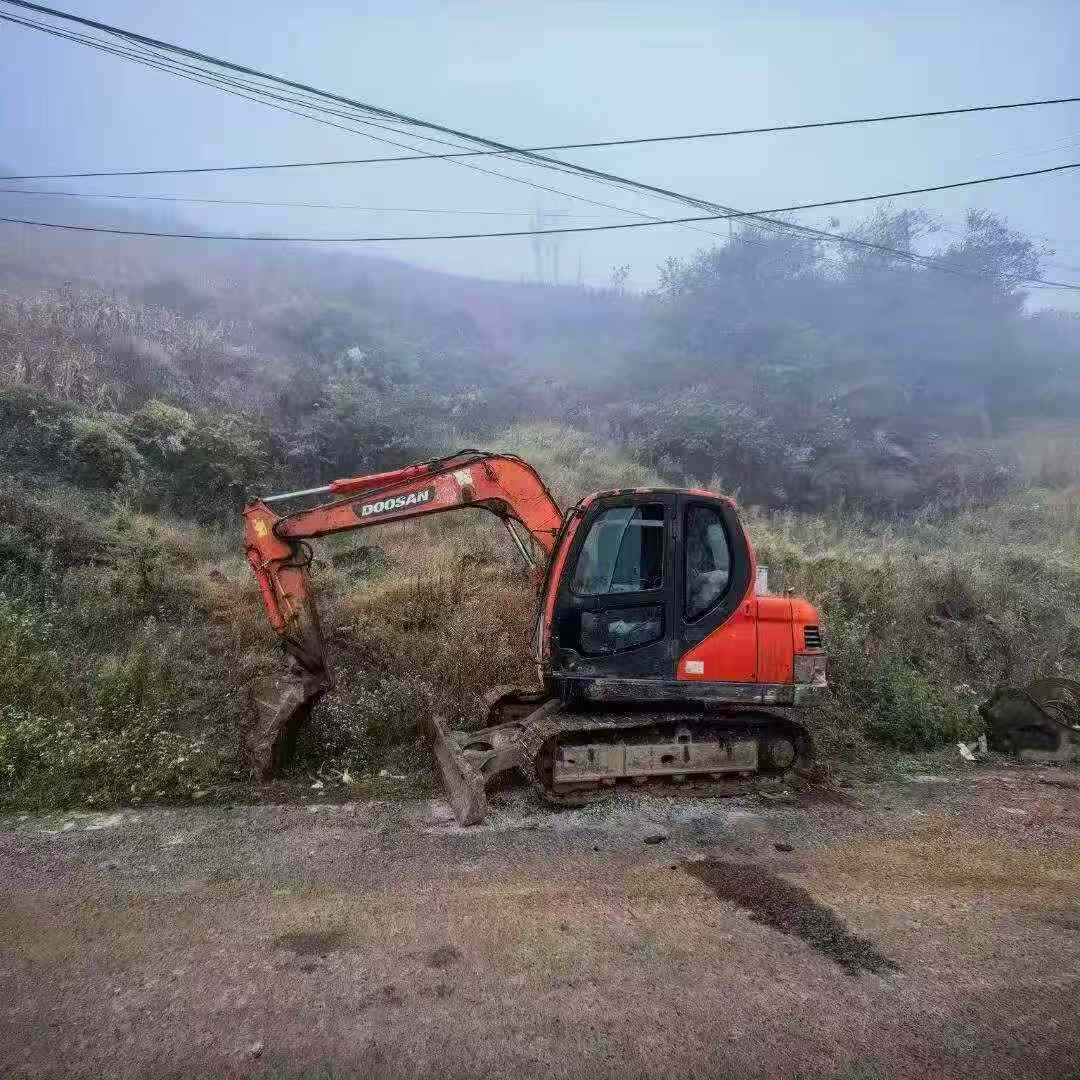

This 2020 Doosan DX80 mini excavator is currently available in Sichuan, China. The machine presents in excellent cosmetic condition and is offered at a competitive price point of approximately $50,000 USD. The DX80 is a versatile 8-ton class compact excavator well-suited for urban construction, landscaping, and utility work.

Key features of the Doosan DX80 include:

  • Compact dimensions for confined jobsite access
  • Reliable hydraulic system for consistent performance
  • Operator-friendly cabin design
  • Low operational hours for a 2020 model year
  • Ready for immediate deployment

This unit represents a practical investment for contractors seeking dependable equipment with minimal downtime. Inspection welcomed. Contact us for detailed specifications, additional imagery, and export logistics support.

SpecificationsValue
No.1166722
Tonnage (tons)8
Working weight (kg)7900
Bucket capacity (m³)0.30 ~ 0.32
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeYanmar 4TNV98 VDB24
Rated power (kw/rpm)41.4 / 2100
Cylinder diameter × stroke (mm)98 x 110
Number of cylinders (PCS)4
Working form4-stroke, water-cooled, direct injection; Naturally aspirated, air-cooled
Ground specific pressure (Kpa)37
Rotation speed (rpm)11.5
Climbing ability (%)30 °
Bucket digging force (kN)56
Rod digging force (kN)41
Maximum tractive force (kN)63
Travel speed (km/h)4.9 / 3.1
Turning torque (Nm)24.2
Maximum flow of main pump (l/min)75.6 * 2 + 18.7
Traveling Hydraulic Circuit (Mpa)28
Working Hydraulic Circuit (Mpa)28
Fuel Tank (L)145
Total transport length (mm)6000
Total transport width (mm)2290
Total transport height (mm)2685
Full cab height (mm)2,690
Counterweight ground clearance (mm)825
Back end turning radius (mm)1800
Onboard width (mm)2,200
Total track length (mm)2750
Track gauge (mm)1,770
Track plate width (mm)450
Total track width (mm)2,220
Maximum digging radius (mm)6350
Maximum digging depth (mm)4165
Maximum excavation height (mm)7120
Maximum unloading height (mm)5115
Maximum vertical digging depth (mm)3328
Dodging plate width × height (mm)2200 x 418
see more

Overview

No.1166722

Brand Name:

Doosan

Model Number:

DX80

Year:

2020

Location:

Sichuan China

Pub Date:
