Product Description

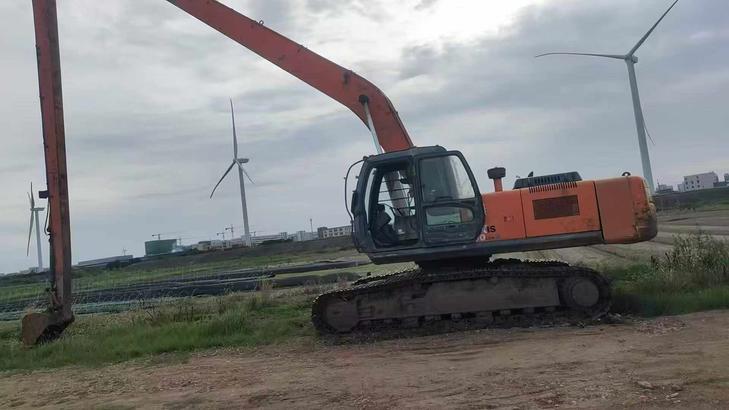

This 2012 Hitachi EX12-2 excavator is currently located in Zhejiang, China and available for export. The machine features an extended 23-meter long reach boom configuration, ideal for deep excavation, demolition, and specialized applications requiring exceptional vertical and horizontal reach capabilities.
Key specifications:
- Year of Manufacture: 2012
- Model: Hitachi EX12-2
- Boom Length: 23 meters (long reach configuration)
- Location: Zhejiang Province, China
- Suitable for deep foundation work, river dredging, and high-reach demolition
This extended boom excavator offers significant operational advantages for contractors requiring long-reach capabilities. The machine is available for inspection in Zhejiang. Contact us for detailed specifications, current operating hours, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1120760 |
| Tonnage (tons) | 1 |
| Working weight (kg) | 1350 |
| Bucket capacity (m³) | 0.04/0.02 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Kubota Kubota D1105-KA |
| Rated power (kw/rpm) | 12.2/2000 |
| Displacement (L) | 1.1 |
| Ground specific pressure (Kpa) | 26 |
| Travel speed (km/h) | 2.2 |
| Fuel Tank (L) | 20 |
| Engine Oil changes (L) | 4.5 |
| Coolant (L) | 3.5 |
| Hydraulic System (L) | 30 |
| Total transport length (mm) | 3520 |
| Total transport width (mm) | 960 |
| Total transport height (mm) | 2280 |
| Full cab height (mm) | 2280 |
| Counterweight ground clearance (mm) | 445 |
| Minimum ground clearance (mm) | 235 |
| Back end turning radius (mm) | 1060 |
| Track gauge (mm) | 1025 |
| Track plate width (mm) | 230 |
| Track ground length (mm) | 1025 |
| Maximum digging depth (mm) | 1900 |
| Maximum excavation height (mm) | 3120 |
| Maximum unloading height (mm) | 2190 |
| Maximum vertical digging depth (mm) | 1360 |
| Maximum excavation radius of stop surface (mm) | 3430 |
