Product Description

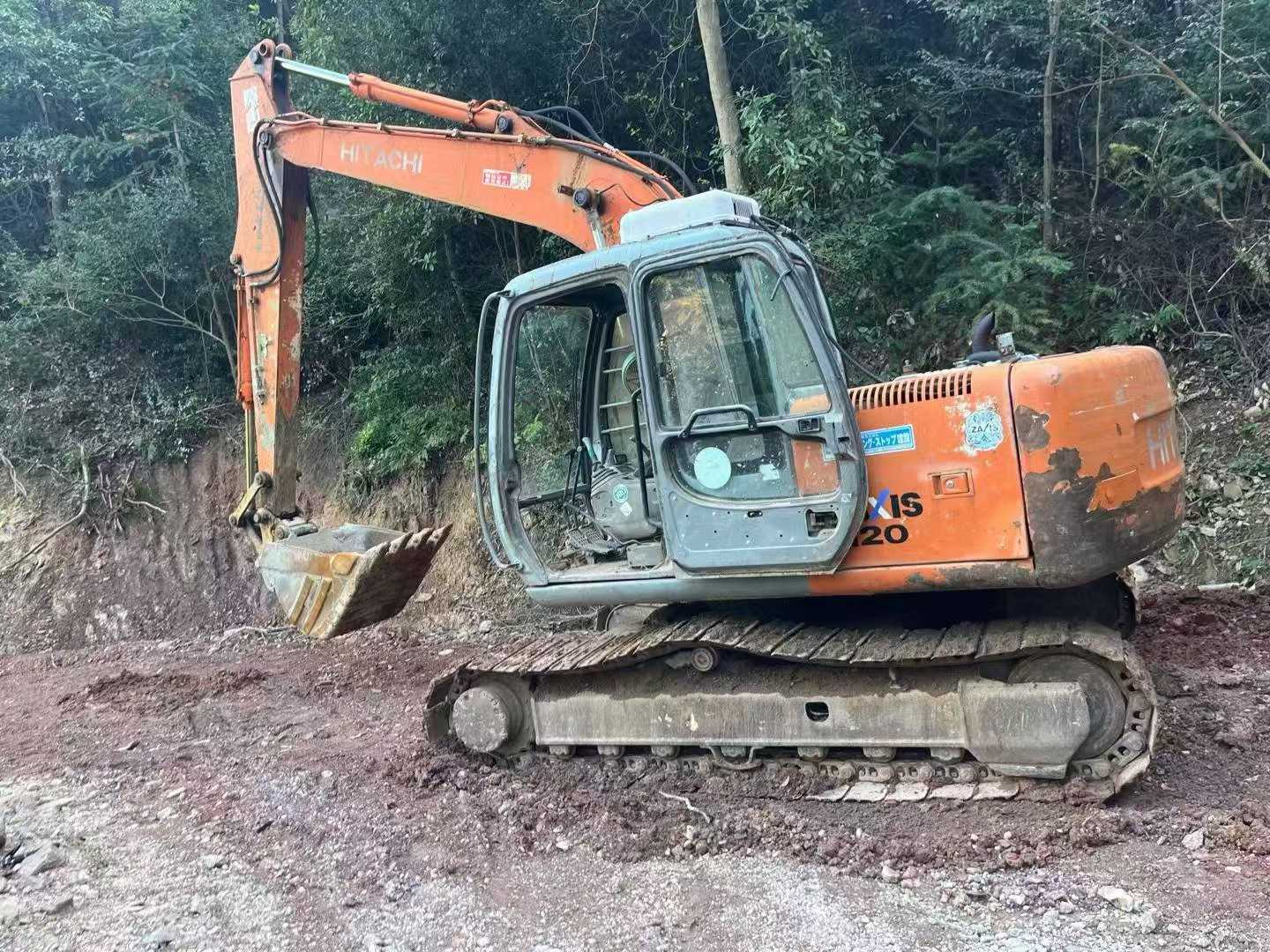

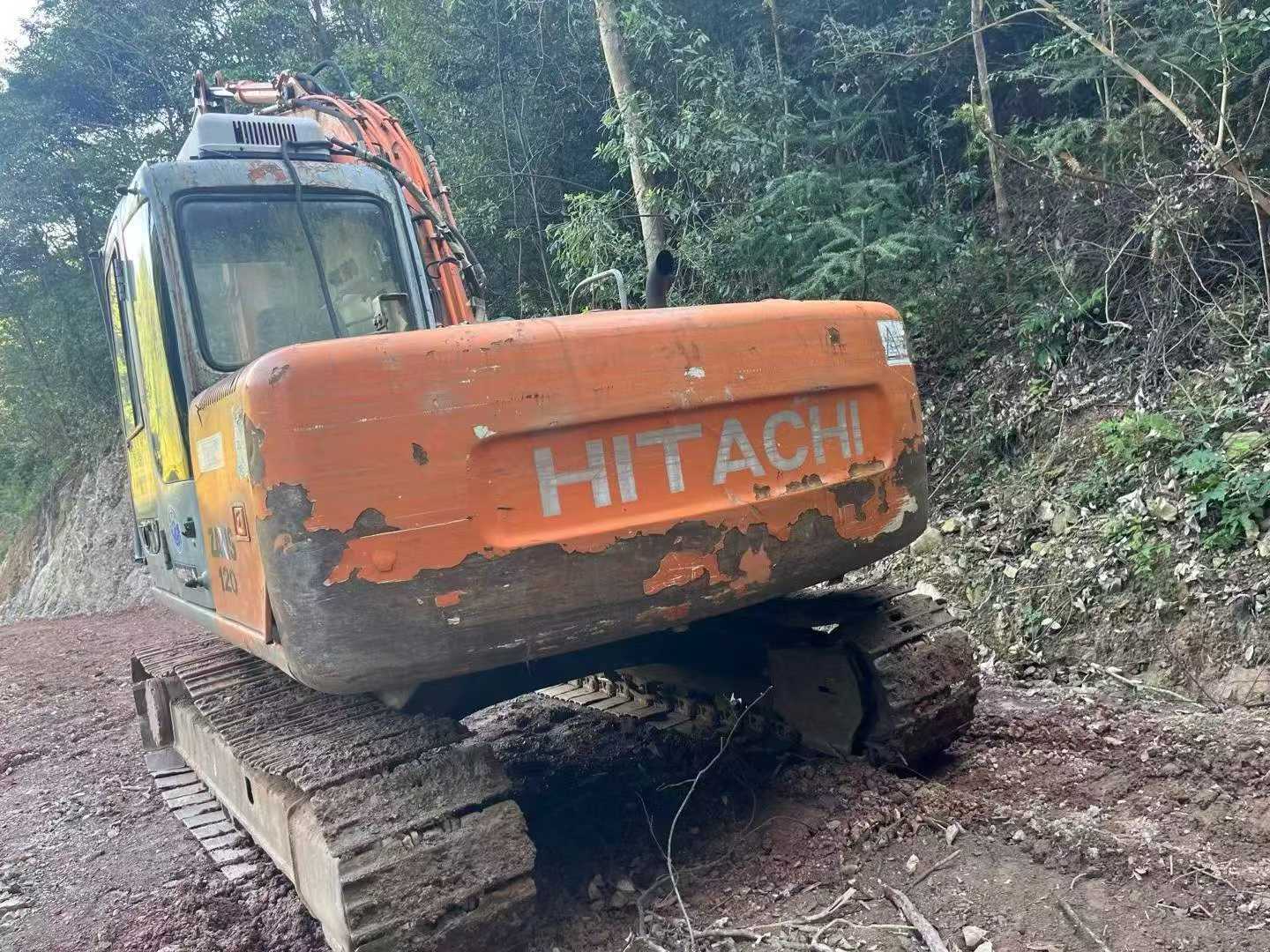

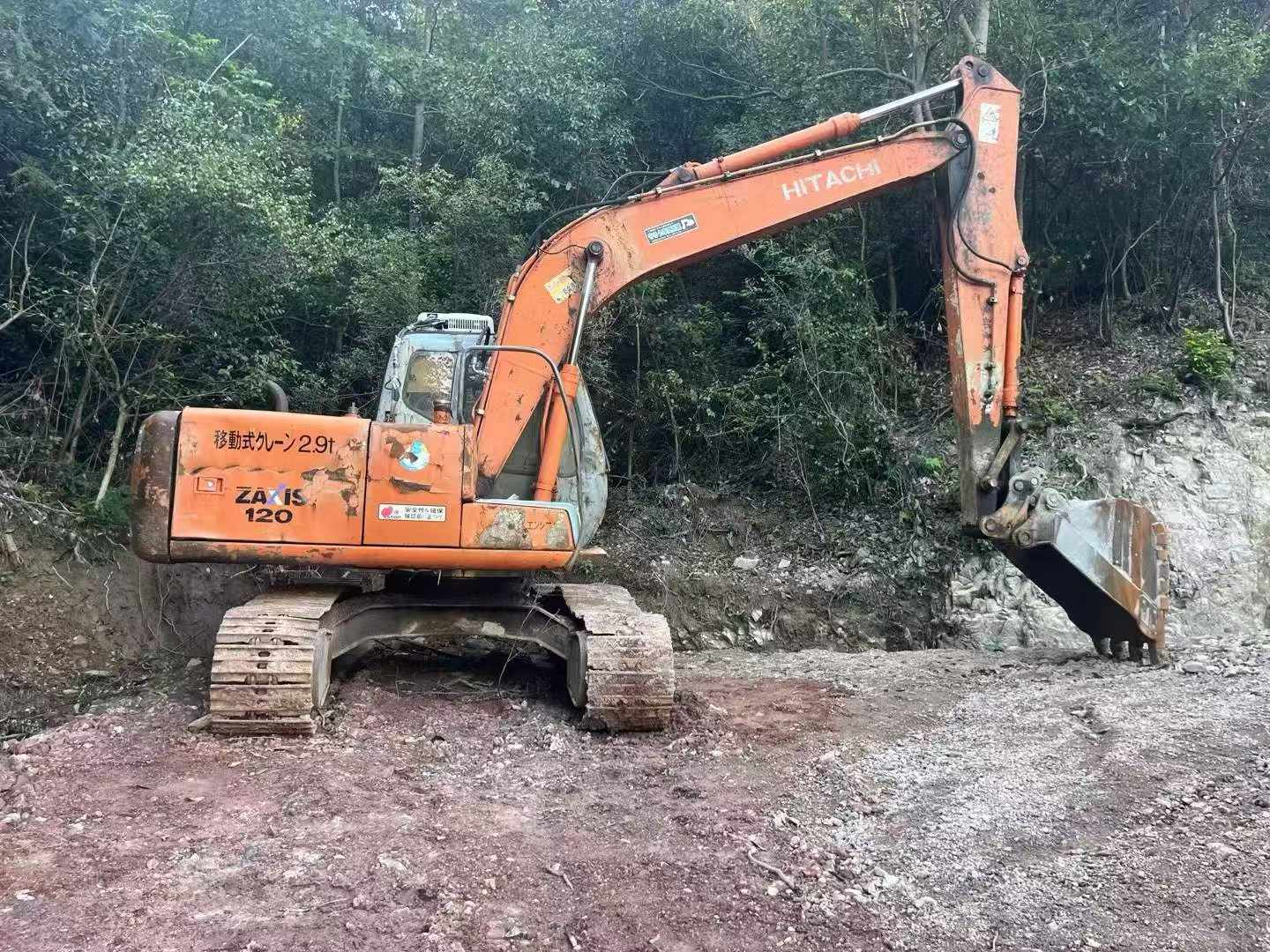

Used 2020 Hitachi EX120-5 hydraulic excavator available from our Zhejiang, China facility. This 12-ton class machine comes from a single owner with documented service history and operational video available upon request. The EX120-5 represents Hitachi's proven -5 series design, featuring a Isuzu engine and reliable hydraulic systems suited for construction, demolition, and general excavation work.
- Year: 2020
- Model: Hitachi EX120-5
- Operating weight: Approximately 12 tonnes
- Single owner, ready for immediate deployment
- Current location: Zhejiang Province, China
- Price: CNY 43,000
This unit has been inspected and is in working condition. Machine is sold as-is with standard documentation. Contact us for operational video, additional photos, or to arrange inspection before purchase.
| Specifications | Value |
|---|---|
| No. | 1157079 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 11793.4 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

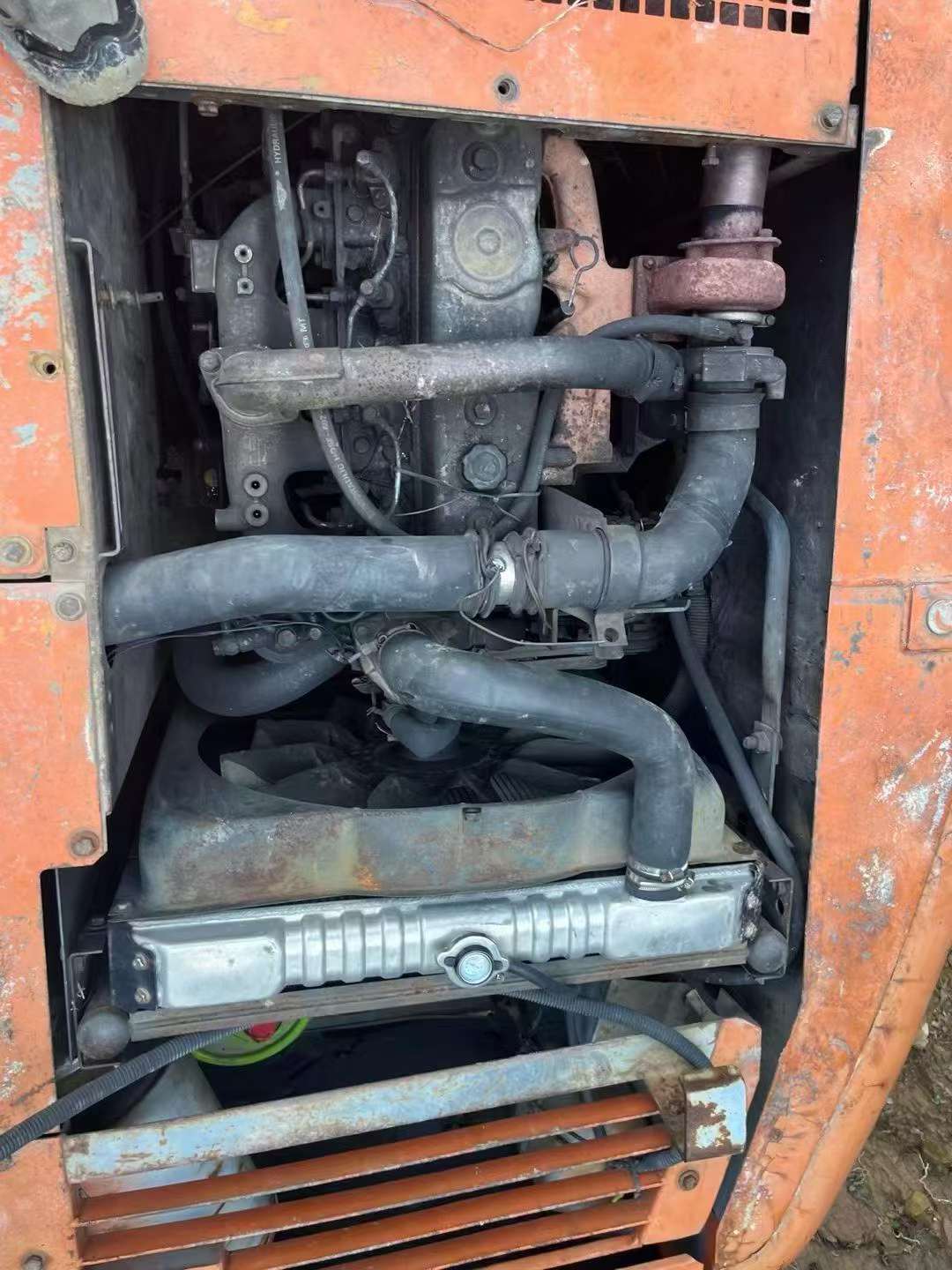

| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 37.2 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5160 |
| Maximum excavation height (mm) | 8350 |
| Maximum unloading height (mm) | 5940 |
| Maximum vertical digging depth (mm) | 4640 |
| Maximum excavation radius of stop surface (mm) | 7770 |
