Product Description

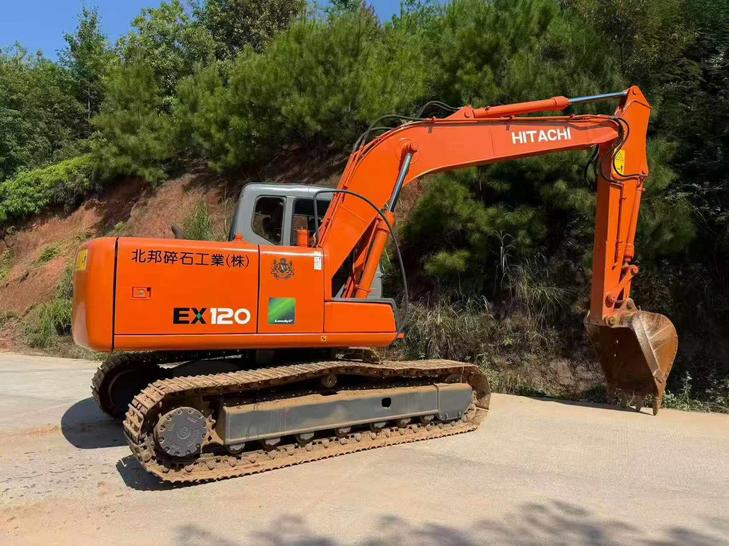

This 2020 Hitachi EX120-5 hydraulic excavator is currently available in Zhejiang, China. The EX120-5 represents Hitachi's reliable -5 series design, engineered for versatility across construction, excavation, and earthmoving applications. With an operating weight in the 12-ton class, this mid-size excavator delivers balanced performance for contractors and equipment operators seeking dependable machinery.
Key features of the Hitachi EX120-5 include:
- Proven hydraulic system for efficient digging and lifting operations
- Comfortable operator cabin with good visibility
- Durable undercarriage designed for extended service life
- Fuel-efficient engine suitable for full-day operations
- Well-maintained condition with imported Japanese engineering quality
This unit is ready for inspection and suitable for immediate deployment on your project site. Contact us for detailed specifications, current machine hours, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1167283 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 11793.4 |
| Bucket capacity (m³) | 0.3/0.19/0.66 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu A-4BG1T |
| Rated power (kw/rpm) | 60.4 |
| Displacement (L) | 4.3 |
| Ground specific pressure (Kpa) | 37.2 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 250 |
| Engine Oil changes (L) | 16.2 |
| Coolant (L) | 18.4 |
| Hydraulic System (L) | 134 |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2720 |
| Full cab height (mm) | 2720 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Track ground length (mm) | 2880 |
| Maximum digging depth (mm) | 5160 |
| Maximum excavation height (mm) | 8350 |
| Maximum unloading height (mm) | 5940 |
| Maximum vertical digging depth (mm) | 4640 |
| Maximum excavation radius of stop surface (mm) | 7770 |
