Product Description

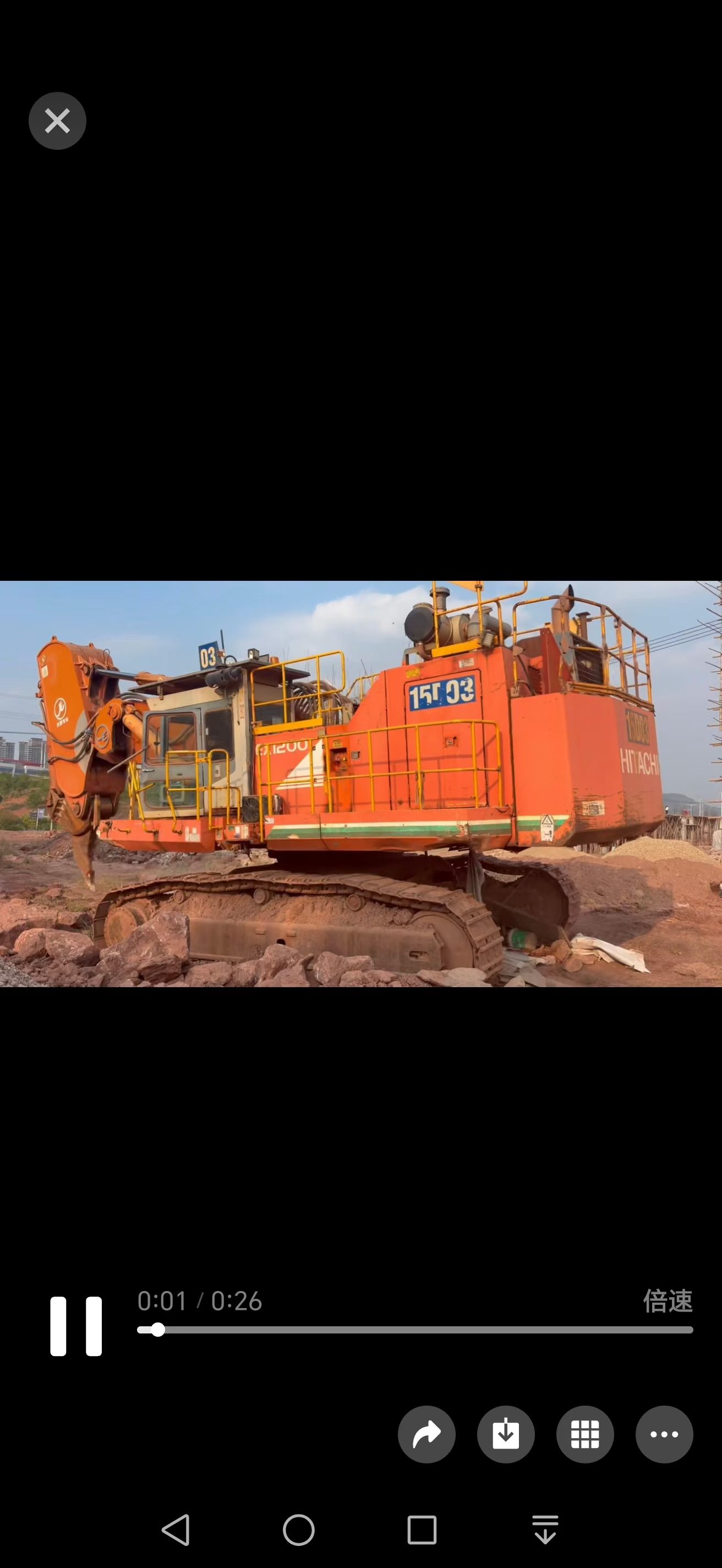

Discover the reliability and robust performance of the 2020 Hitachi EX1200-6, now available in Hunan, China. This used excavator is in excellent condition, with its operational capabilities thoroughly inspected and verified. Equipped with a standard arm, this machine is designed to handle a wide range of heavy-duty tasks efficiently. It does not include a grapple attachment, making it ideal for general excavation, material handling, and construction projects. For businesses looking to enhance their fleet with a trusted and powerful piece of machinery, the EX1200-6 stands as a solid choice. Contact us directly to discuss further details or to arrange a viewing.
- Year: 2020
- Brand: Hitachi
- Model: EX1200-6
- Location: Hunan, China
- Features: Standard arm, no grapple attachment
| Specifications | Value |
|---|---|
| No. | 1174987 |
| Tonnage (tons) | 120 |
| Working weight (kg) | 108000 |
| Bucket capacity (m³) | 5.2 |
| Boom length (mm) | 9000 |
| Rod length (mm) | 3600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cummins QSK23-C |
| Rated power (kw/rpm) | 567/1800 |
| Rotation speed (rpm) | 5.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 482 |
| Rod digging force (kN) | 430 |
| Travel speed (km/h) | 3.5/2.4 |
| Full cab height (mm) | 4350 |
| Counterweight ground clearance (mm) | 1820 |
| Minimum ground clearance (mm) | 1020 |
| Back end turning radius (mm) | 4850 |
| Onboard width (mm) | 5380 |
| Track gauge (mm) | 3900 |
| Track plate width (mm) | 700 |
| Maximum digging radius (mm) | 15350 |
| Maximum digging depth (mm) | 9380 |
| Maximum unloading height (mm) | 9080 |
| Maximum vertical digging depth (mm) | 6450 |
