Product Description

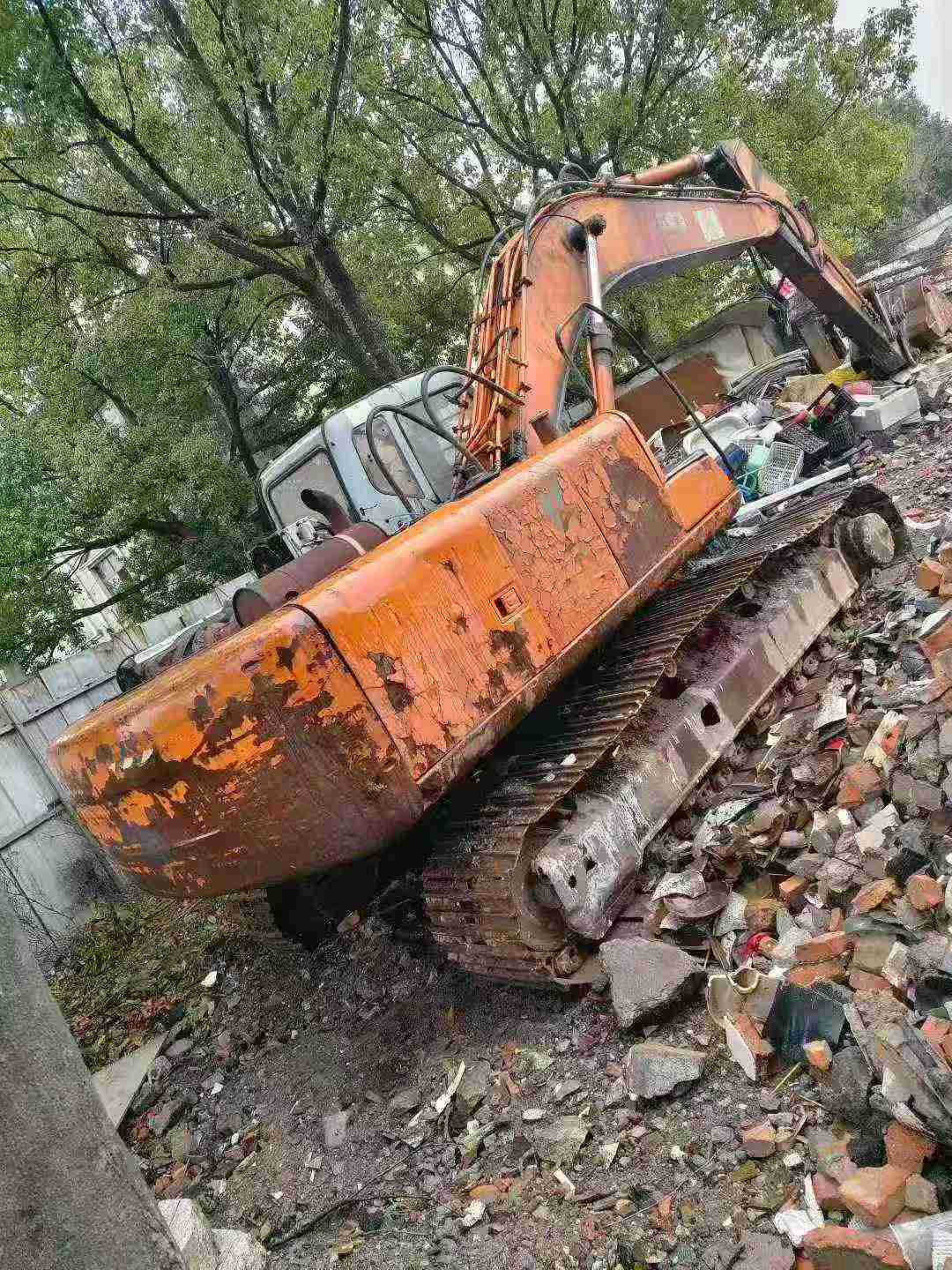

Built in 2016, this Hitachi EX200-5 excavator delivers proven reliability backed by one of Japan's most trusted heavy equipment manufacturers. Operating at 20 tons with an 18,824 kg working weight, this machine combines a robust ISUZU A-6BG1T 6-cylinder engine (98.4 kw at 1950 rpm) with an efficient 0.8 m³ bucket capacity for consistent mid-range performance across construction and earthmoving applications.
Hitachi's joint-venture manufacturing ensures global parts availability and strong resale value—critical factors when investing in used equipment. Currently located in Zhejiang, this EX200-5 features water-cooled turbocharged power, a 5,680 mm boom, and 2,910 mm arm for versatile reach. Hydraulic systems are supported by 200L tank capacity, while the 310L fuel tank extends operational runtime.
Key specifications include:
- Ground pressure: 42.1 Kpa with 600 mm track plates
- Climbing ability: 70% (35°) for challenging terrain
- Travel speeds: 3.4/5.5 km/h for efficient site mobility
- Transport dimensions: 9,620 × 2,800 × 3,090 mm
Hitachi's established dealer network and parts ecosystem make this EX200-5 a low-risk acquisition for contractors prioritizing long-term se
| Specifications | Value |
|---|---|
| No. | 1023404 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 18824.1 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

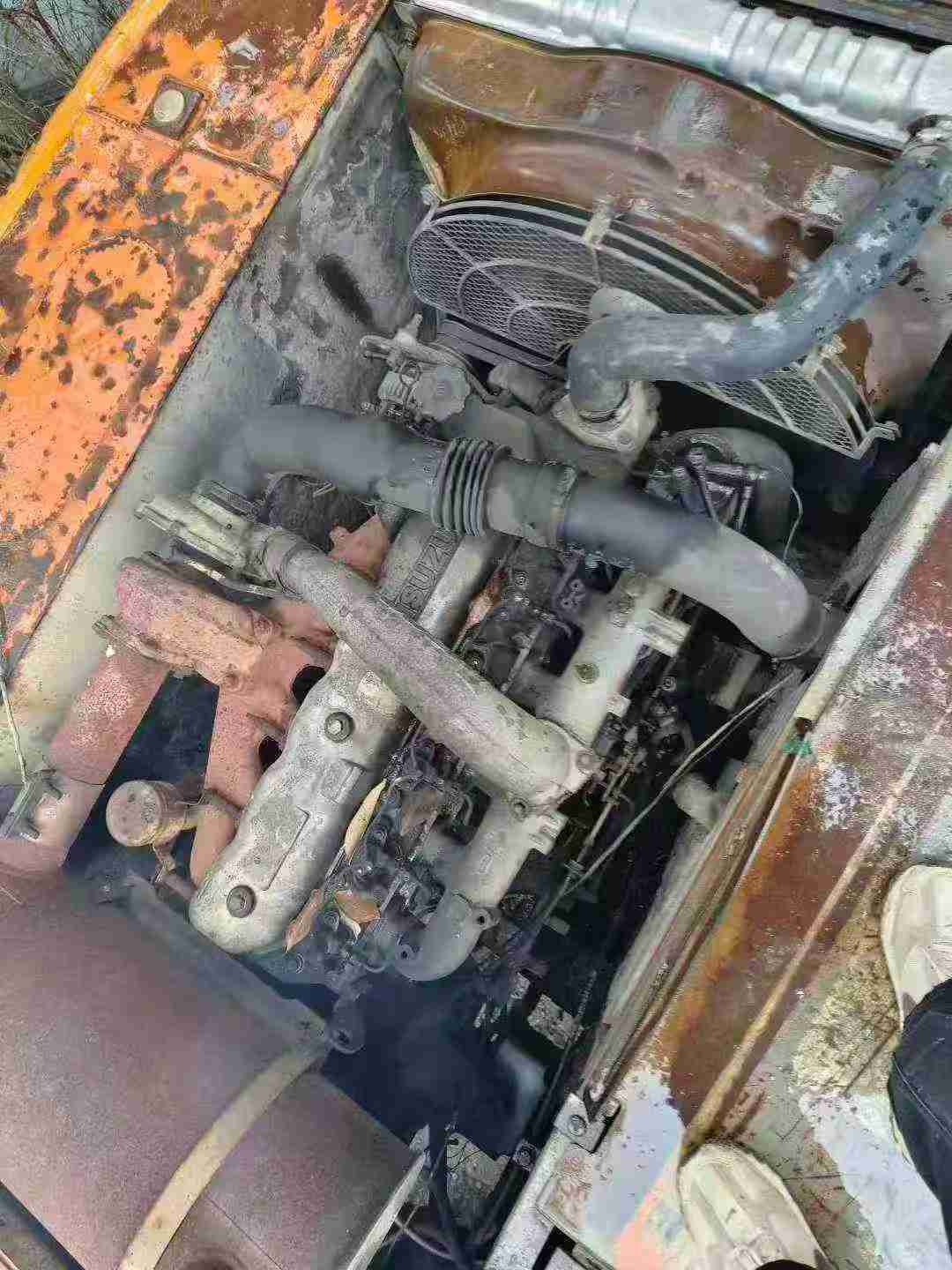

| Engine type | ISUZU A-6BG1T |
| Rated power (kw/rpm) | 98.4/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.5 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42.1 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.4/5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Total transport length (mm) | 9620 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3770 |
