Product Description

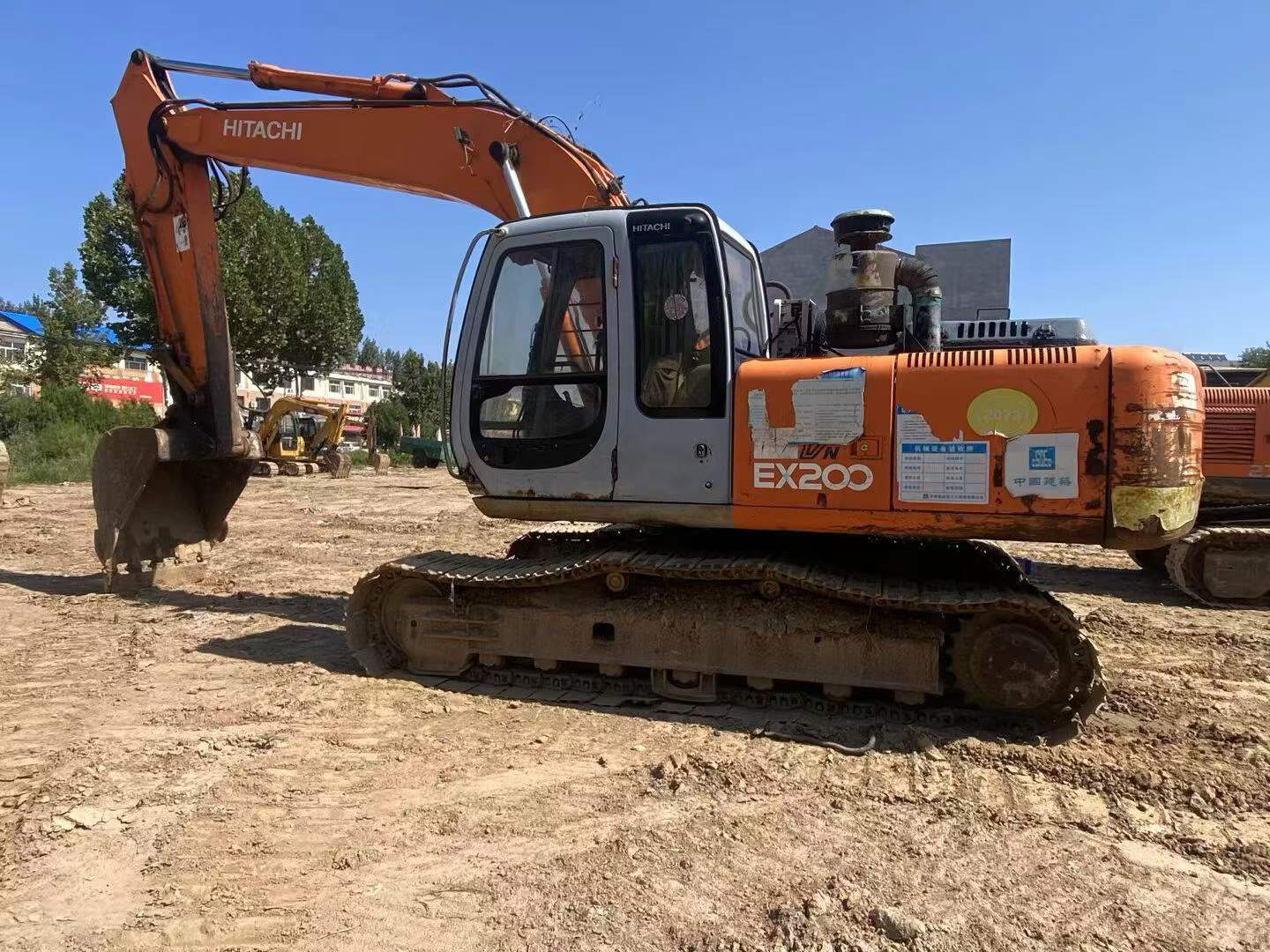

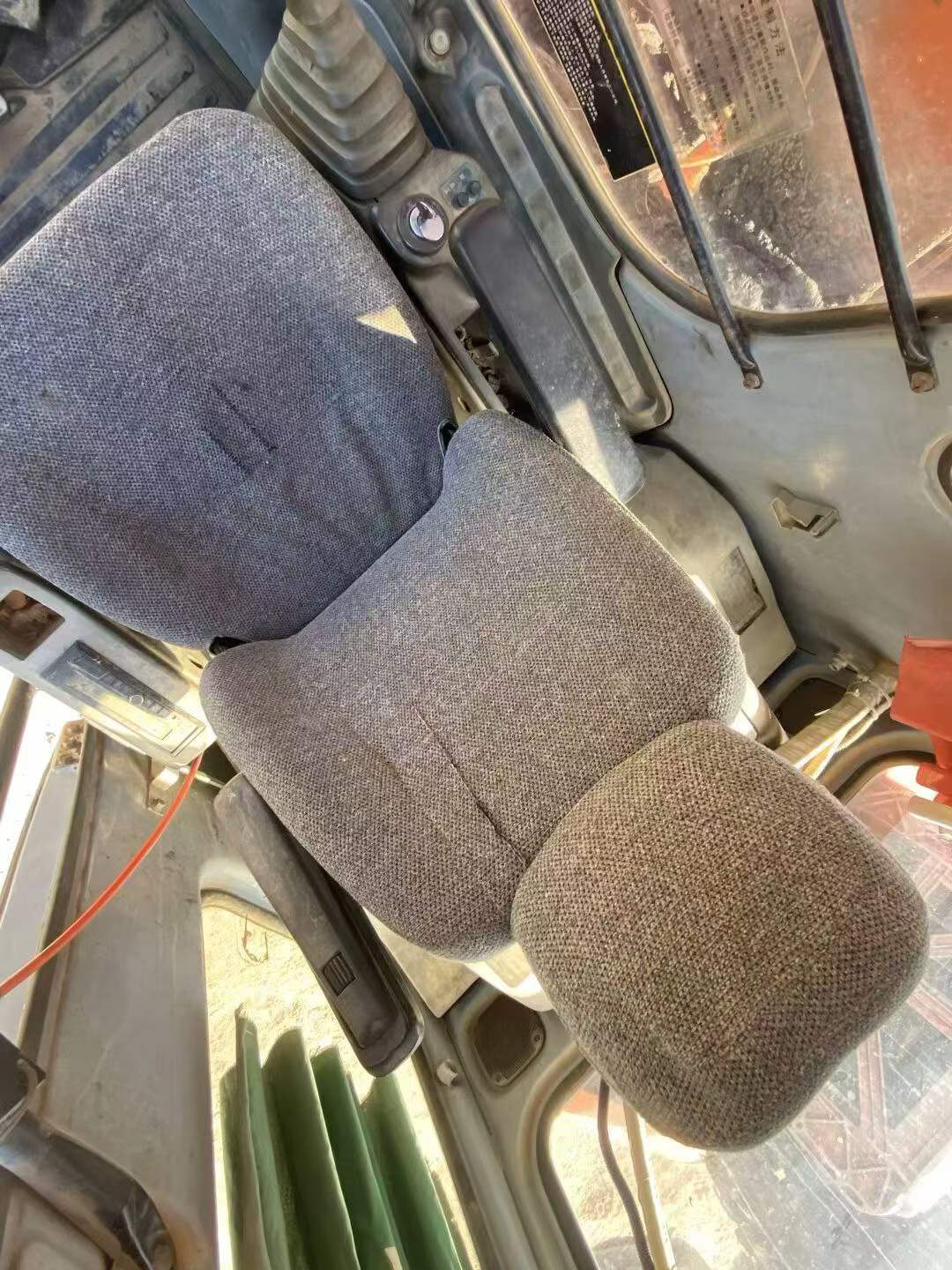

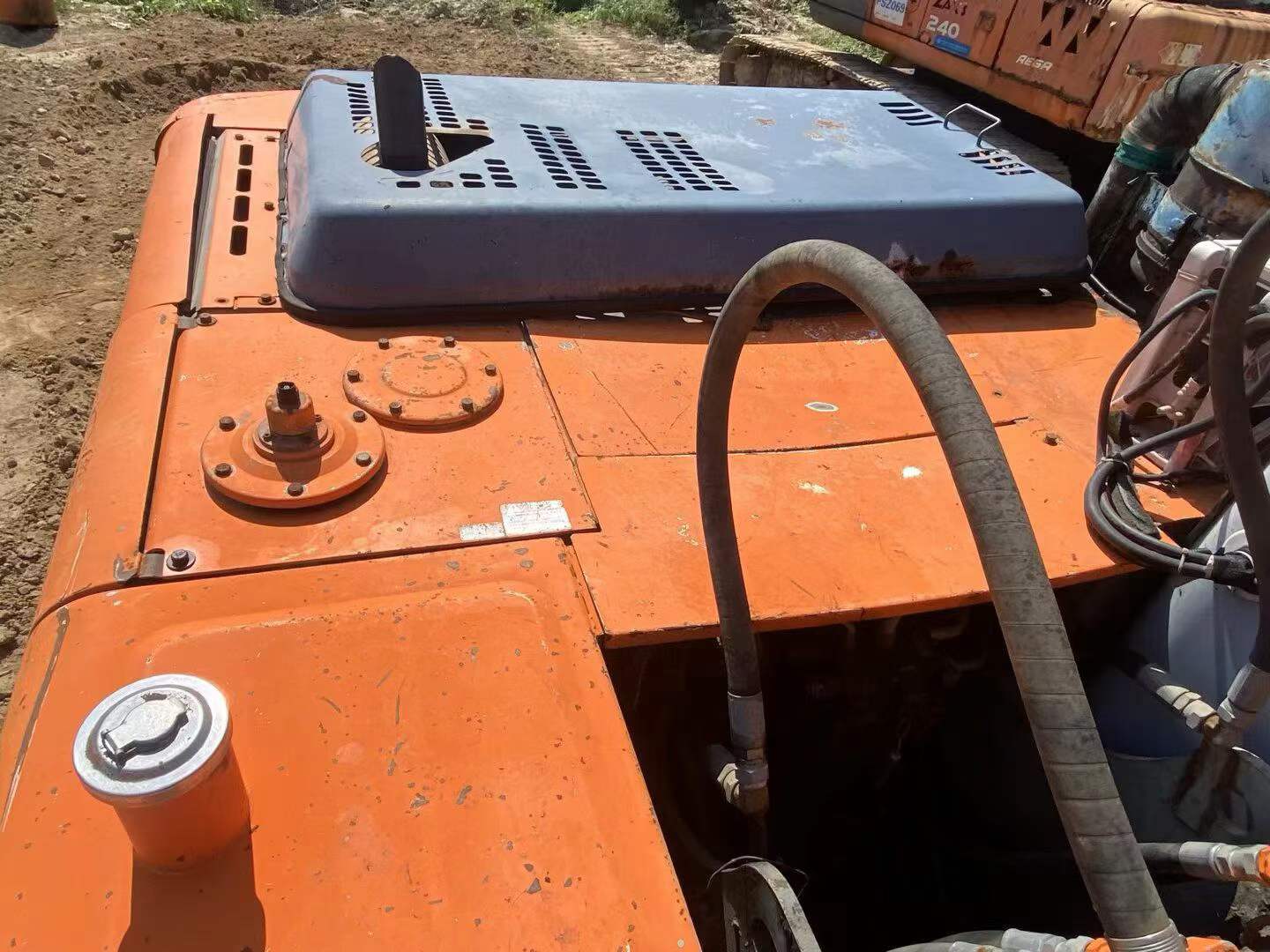

This 2020 Hitachi EX200-5 excavator is available from Shandong, China. The machine remains in operational condition with proven working capability across various excavation and earthmoving applications. Notably, the original operator seat has been preserved in excellent condition despite extended service, indicating careful maintenance practices throughout its operational life.
Key features:
- Reliable hydraulic excavator platform suited for general construction and excavation work

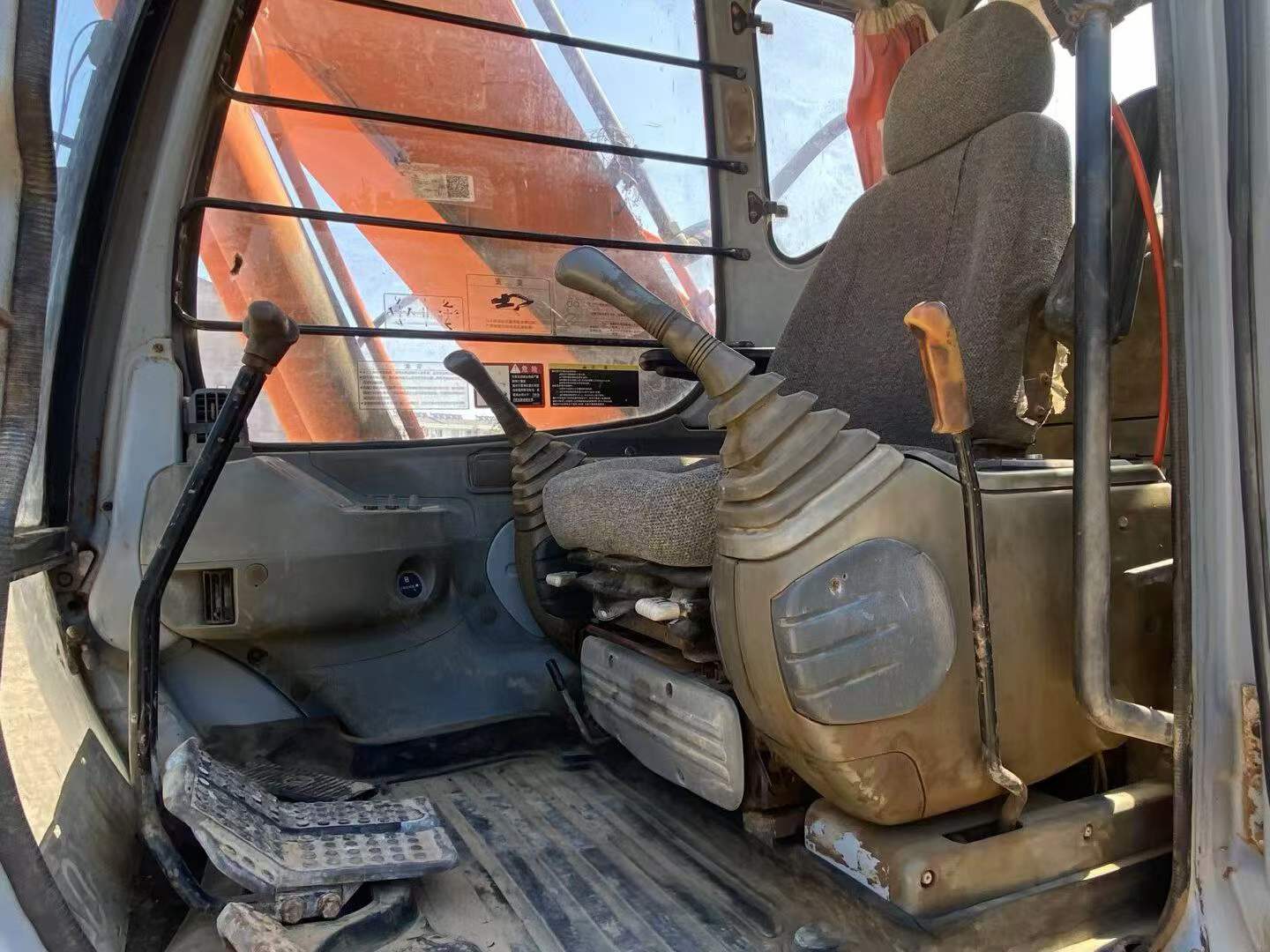

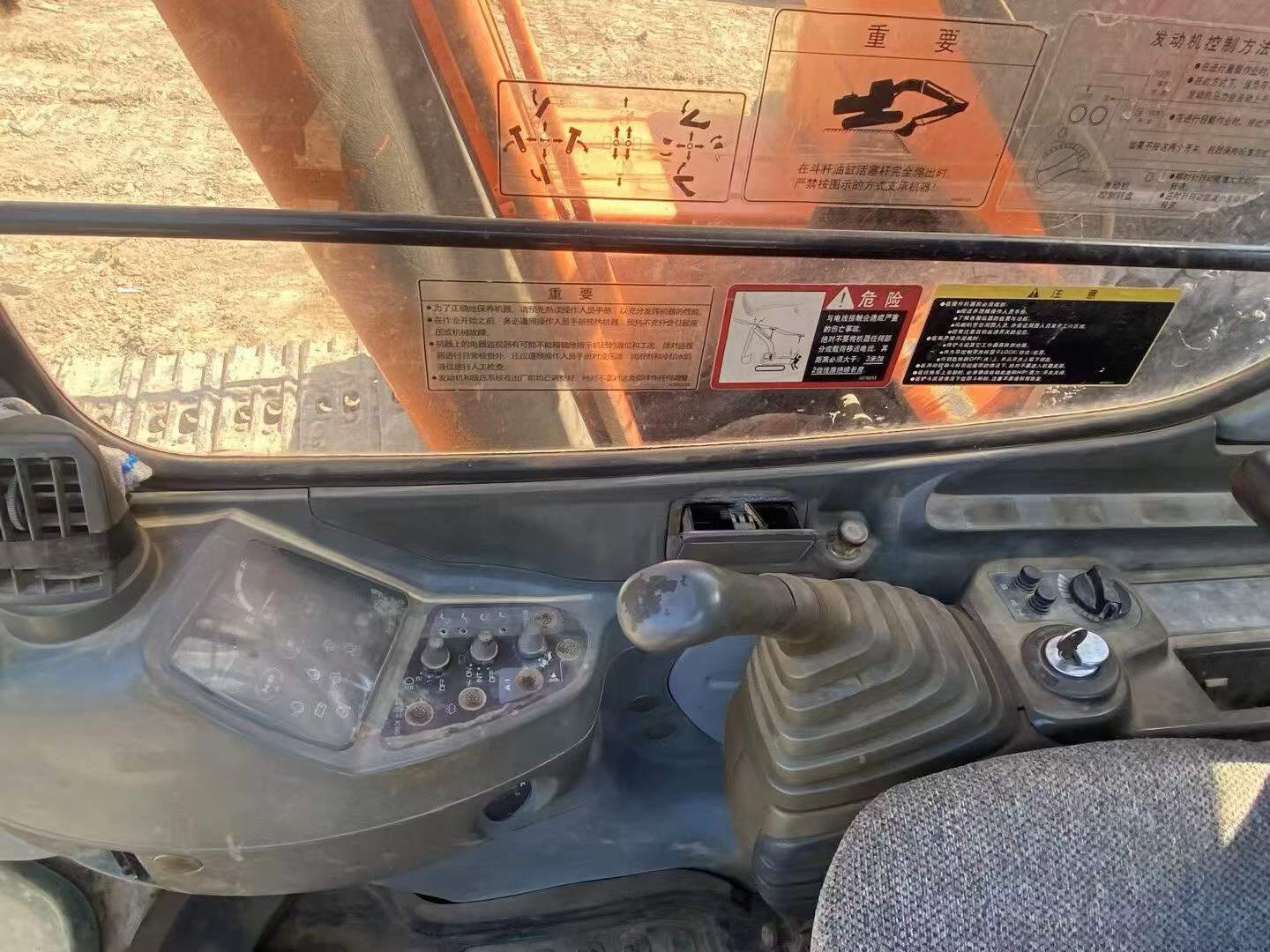

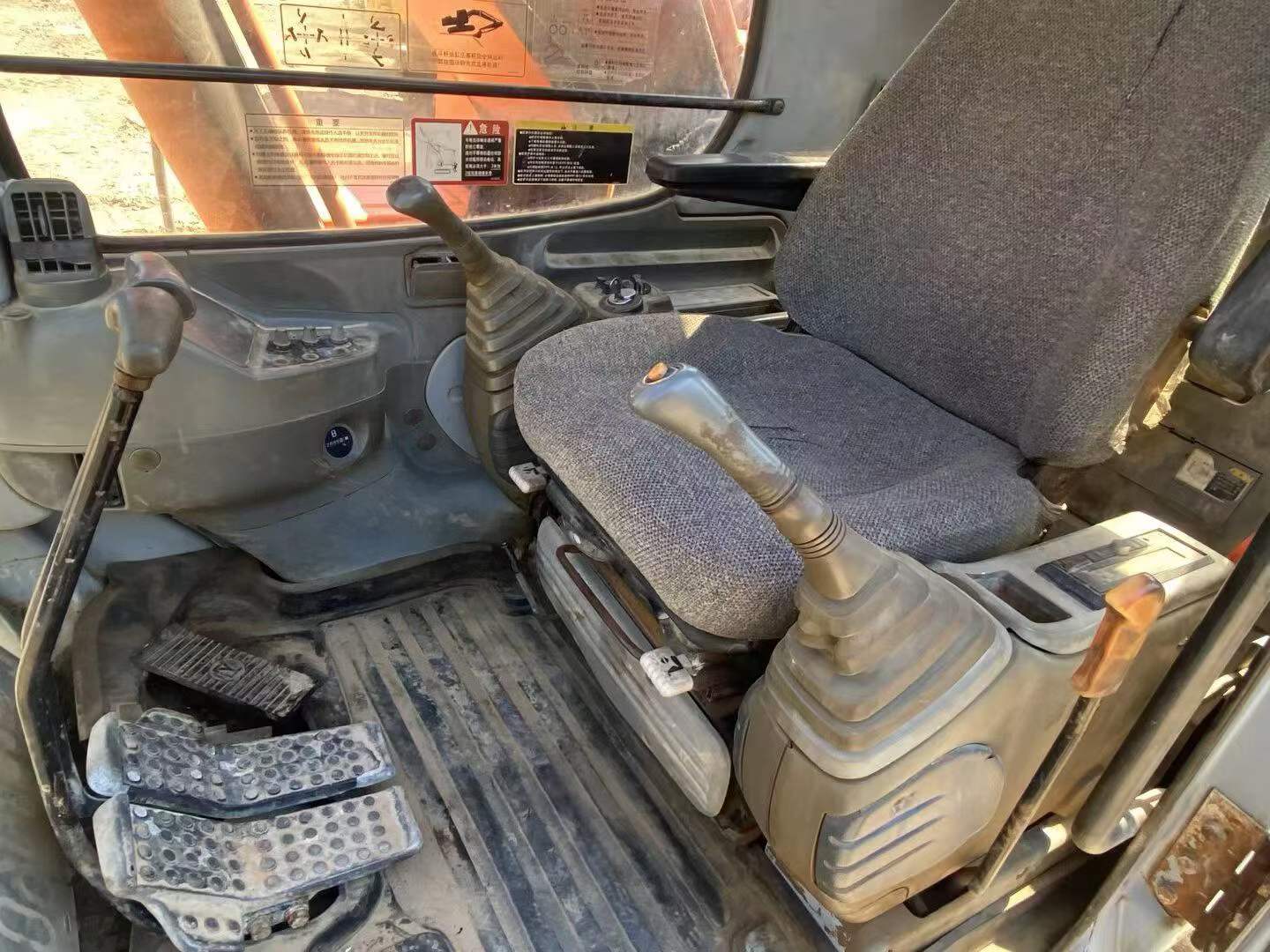

- Well-maintained cabin and operator controls
- Ready for immediate deployment on site
- Located in Shandong province for convenient inspection and logistics within China
The EX200-5 series is recognized for its durability and serviceability in demanding environments. This unit offers practical value for contractors seeking dependable equipment with established performance history. Direct inspection is recommended to verify current mechanical condition and suitability for specific project requirements.
| Specifications | Value |
|---|---|
| No. | 1137738 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 18824.1 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

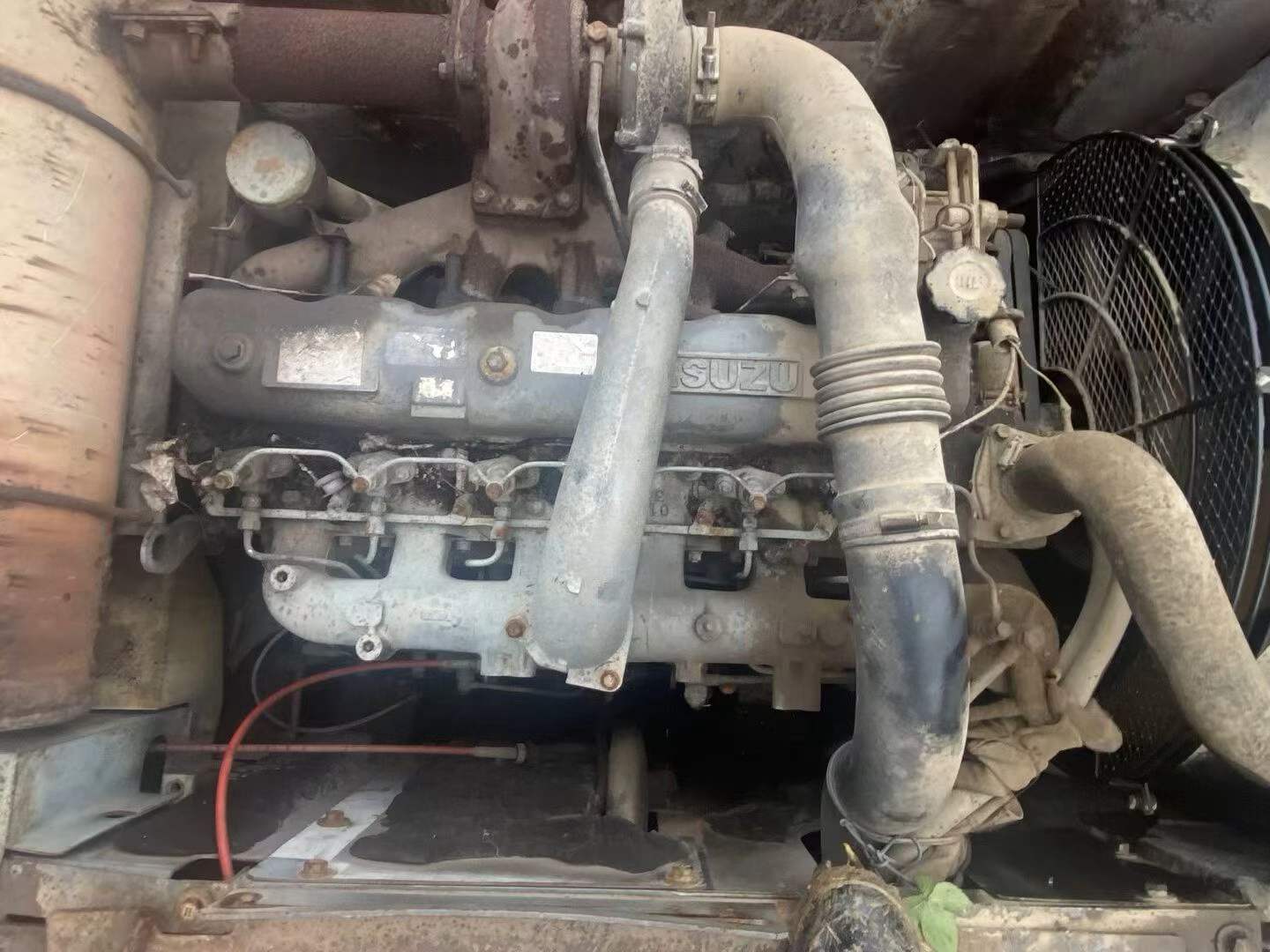

| Engine type | ISUZU A-6BG1T |
| Rated power (kw/rpm) | 98.4/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.5 |
| Working form | turbocharging |
| Ground specific pressure (Kpa) | 42.1 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.4/5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 23 |
| Total transport length (mm) | 9620 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3090 |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3770 |
