Product Description

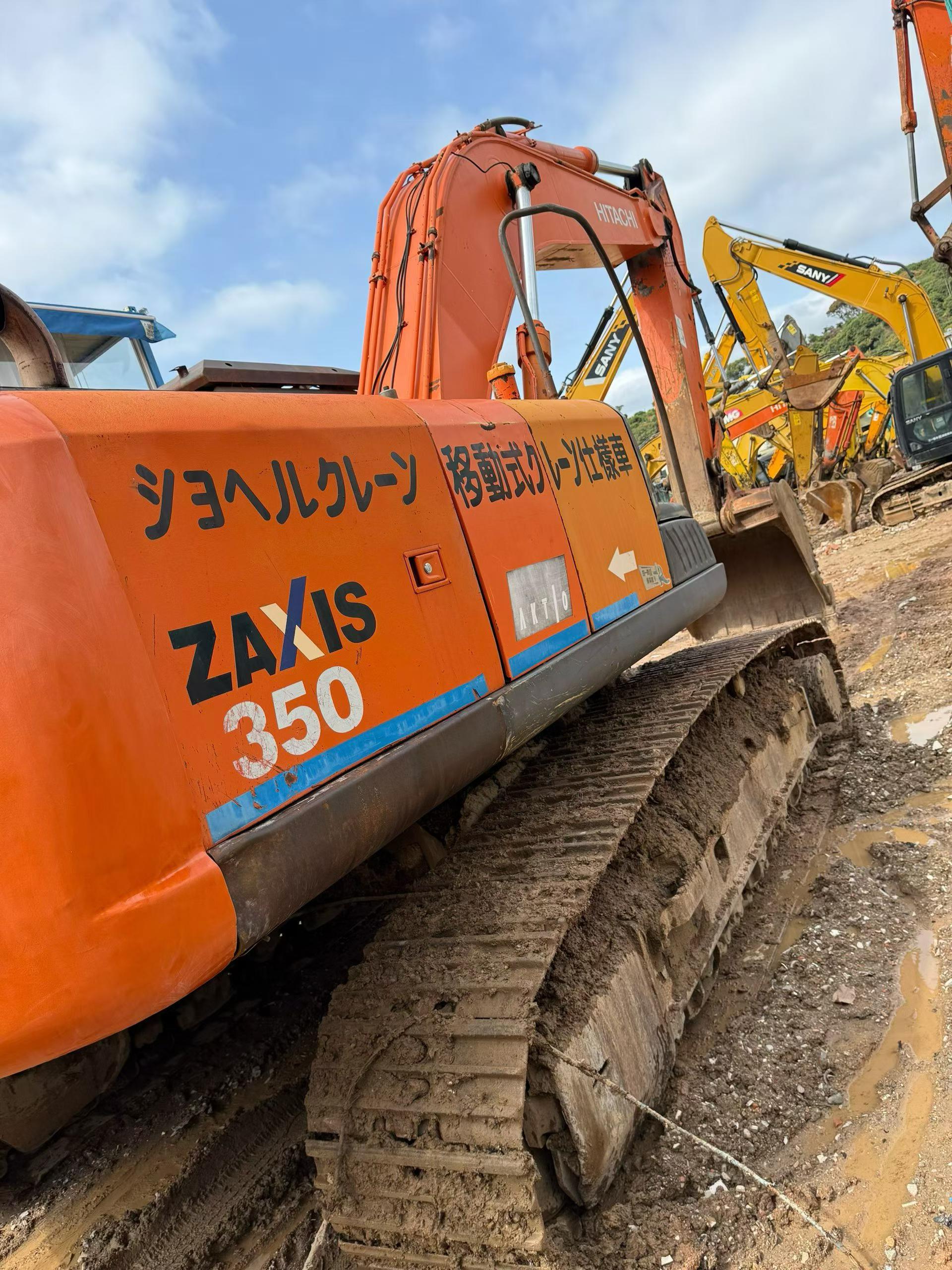

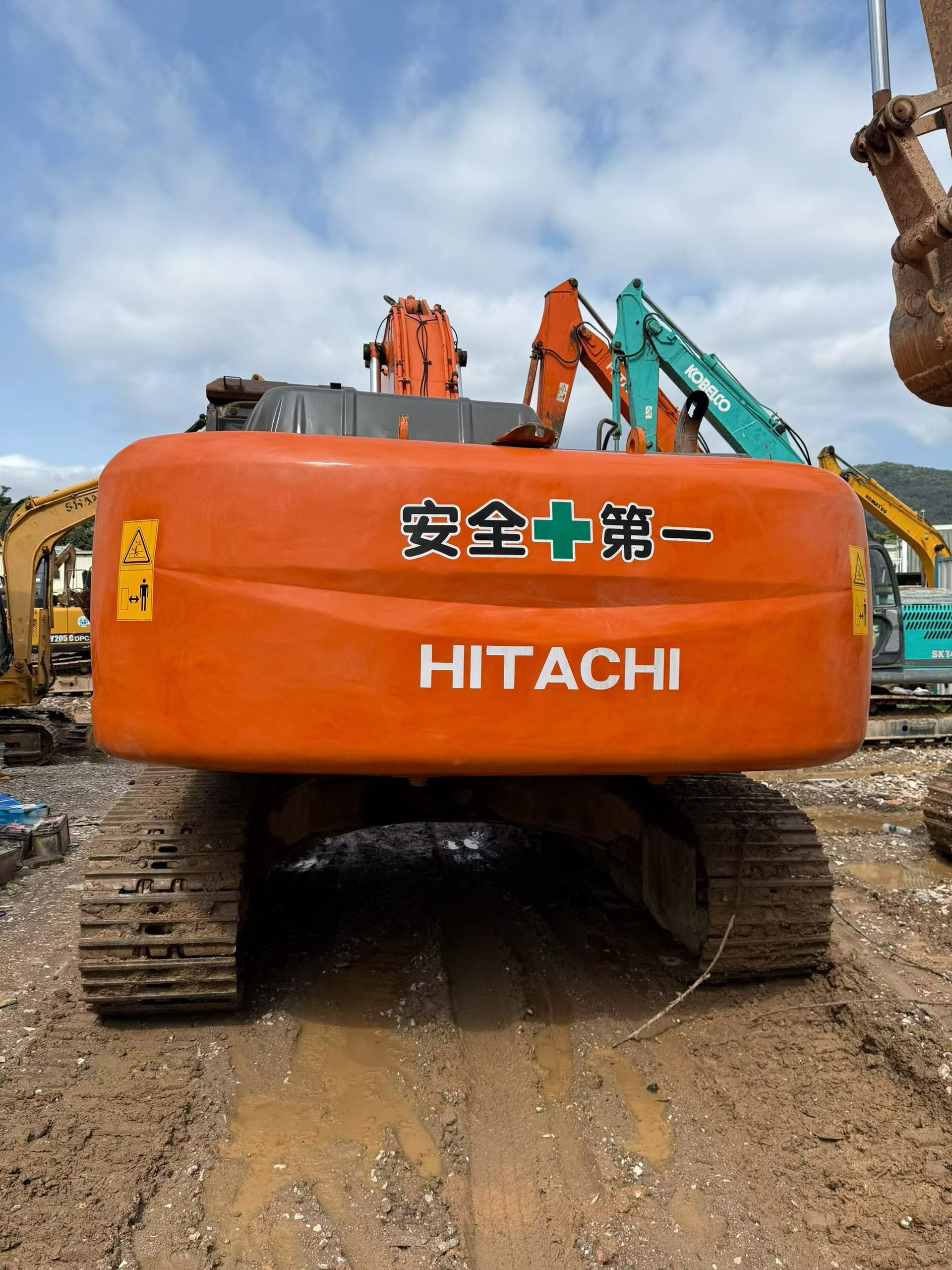

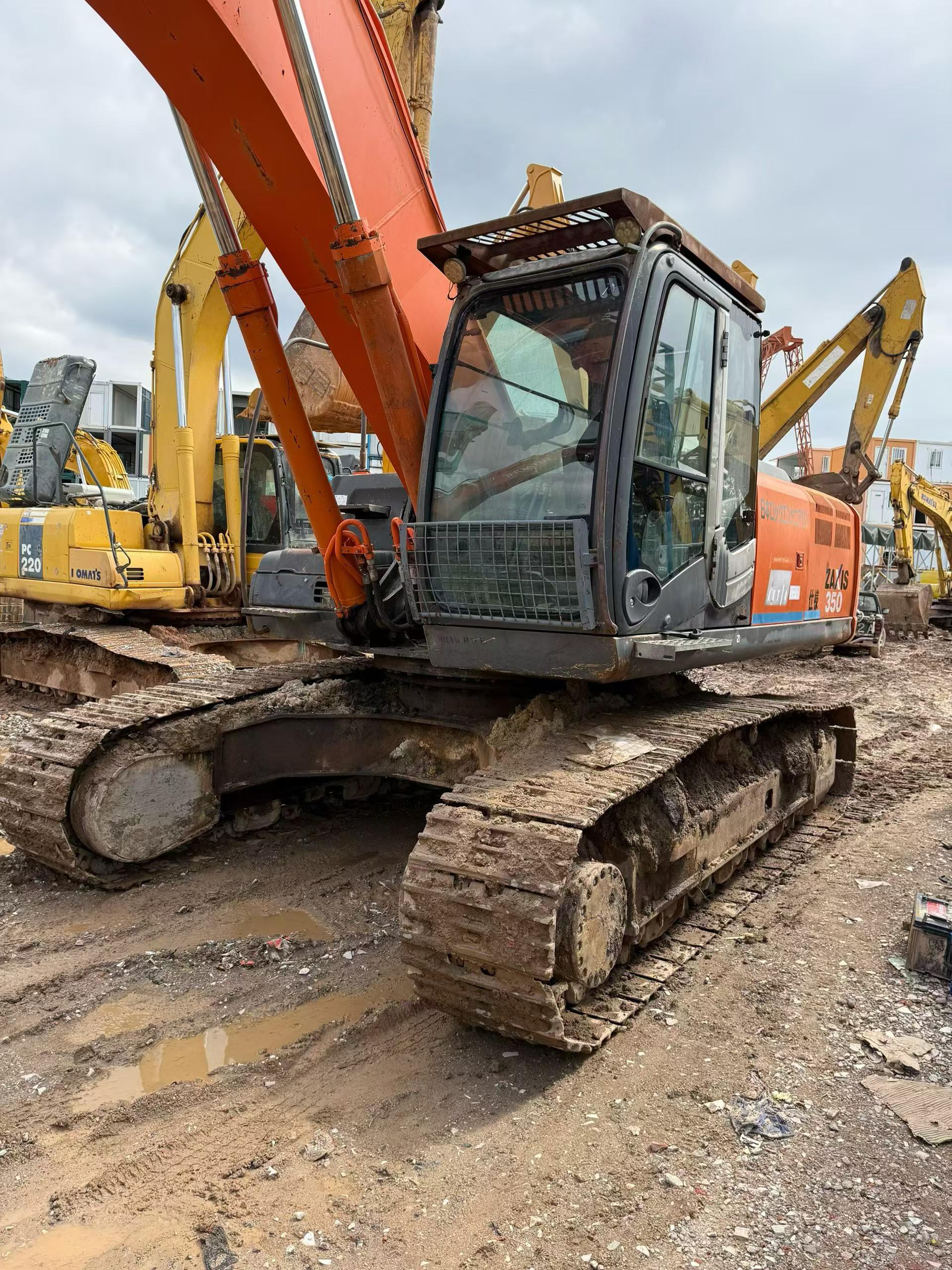

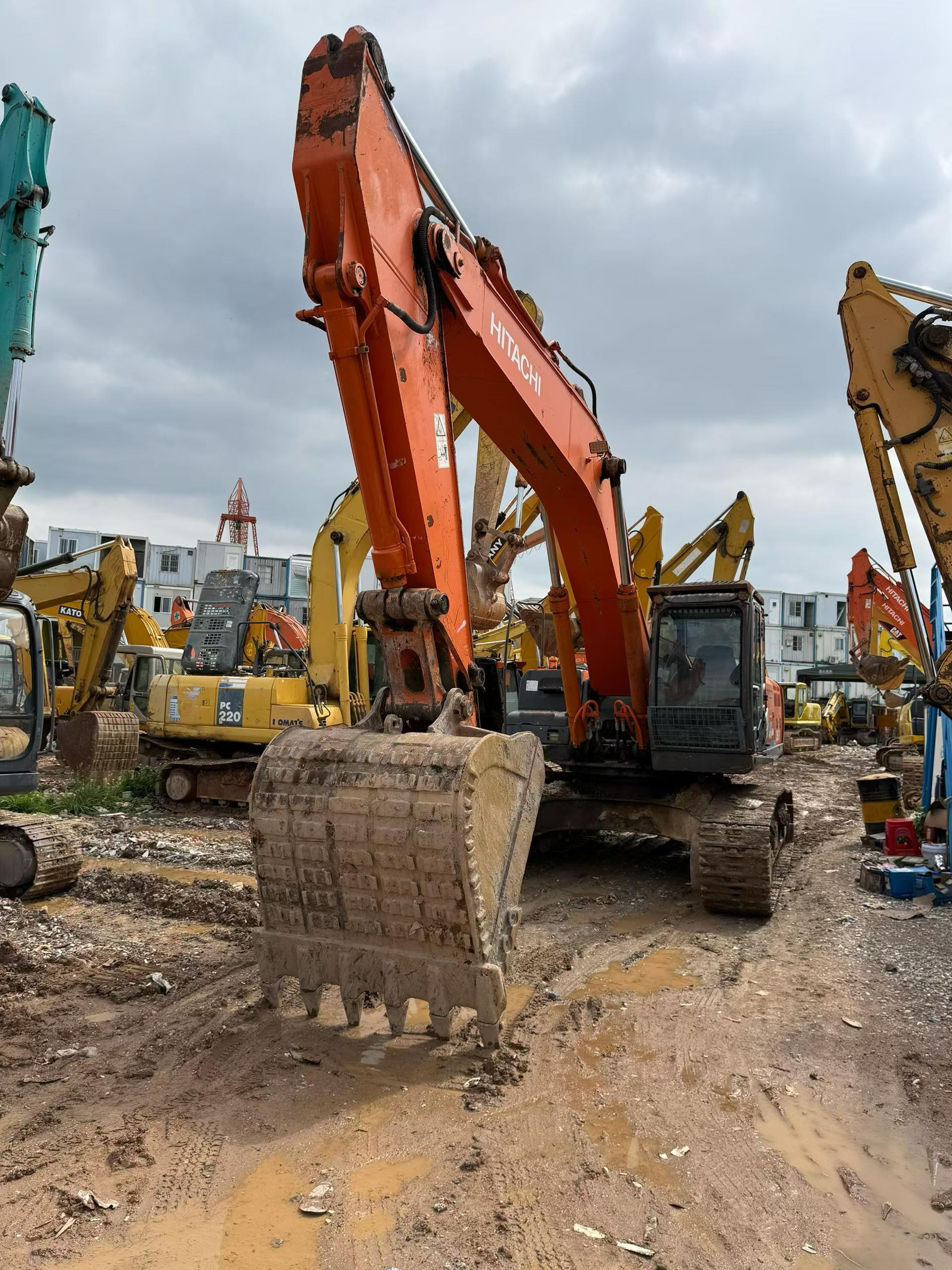

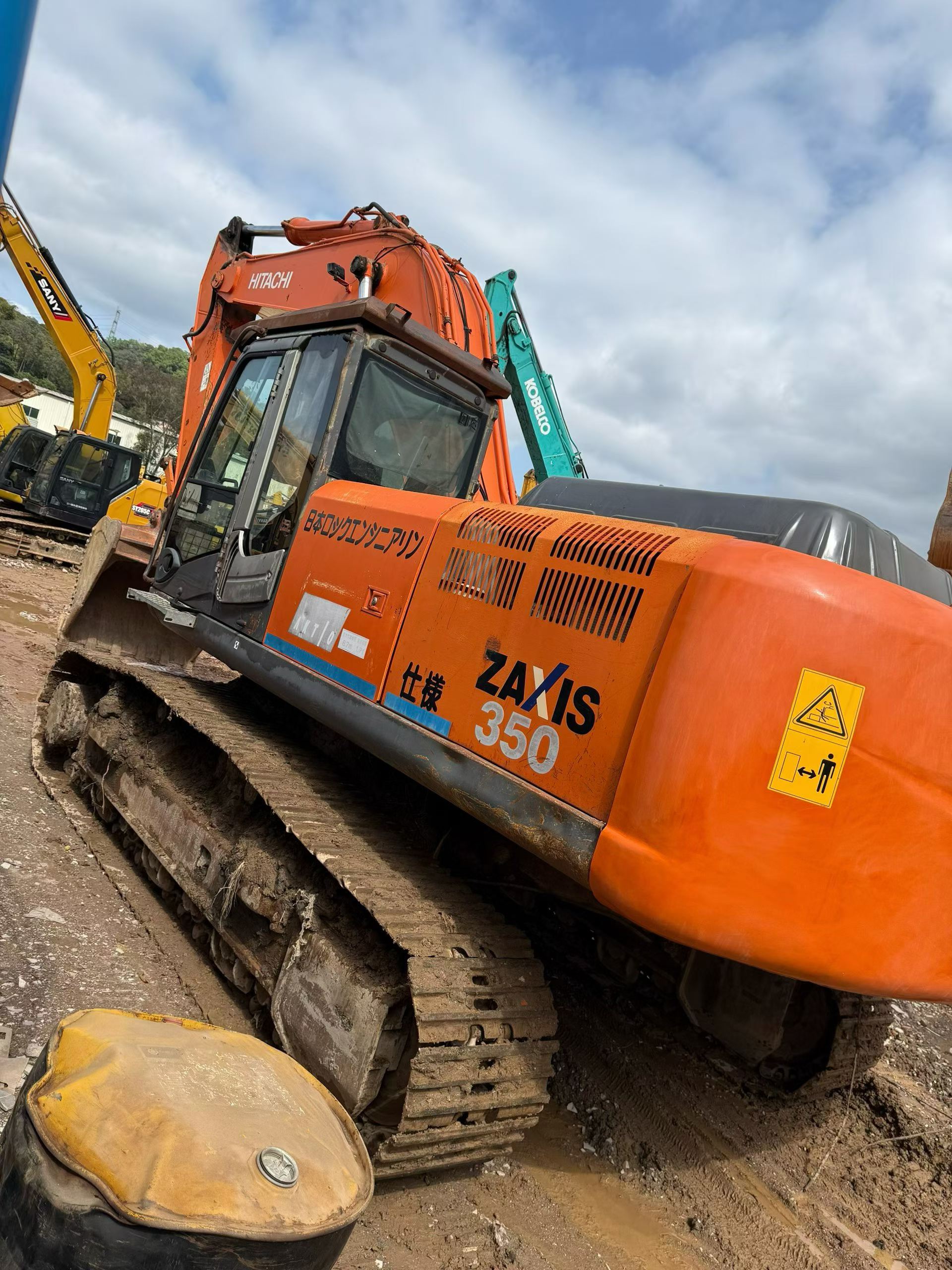

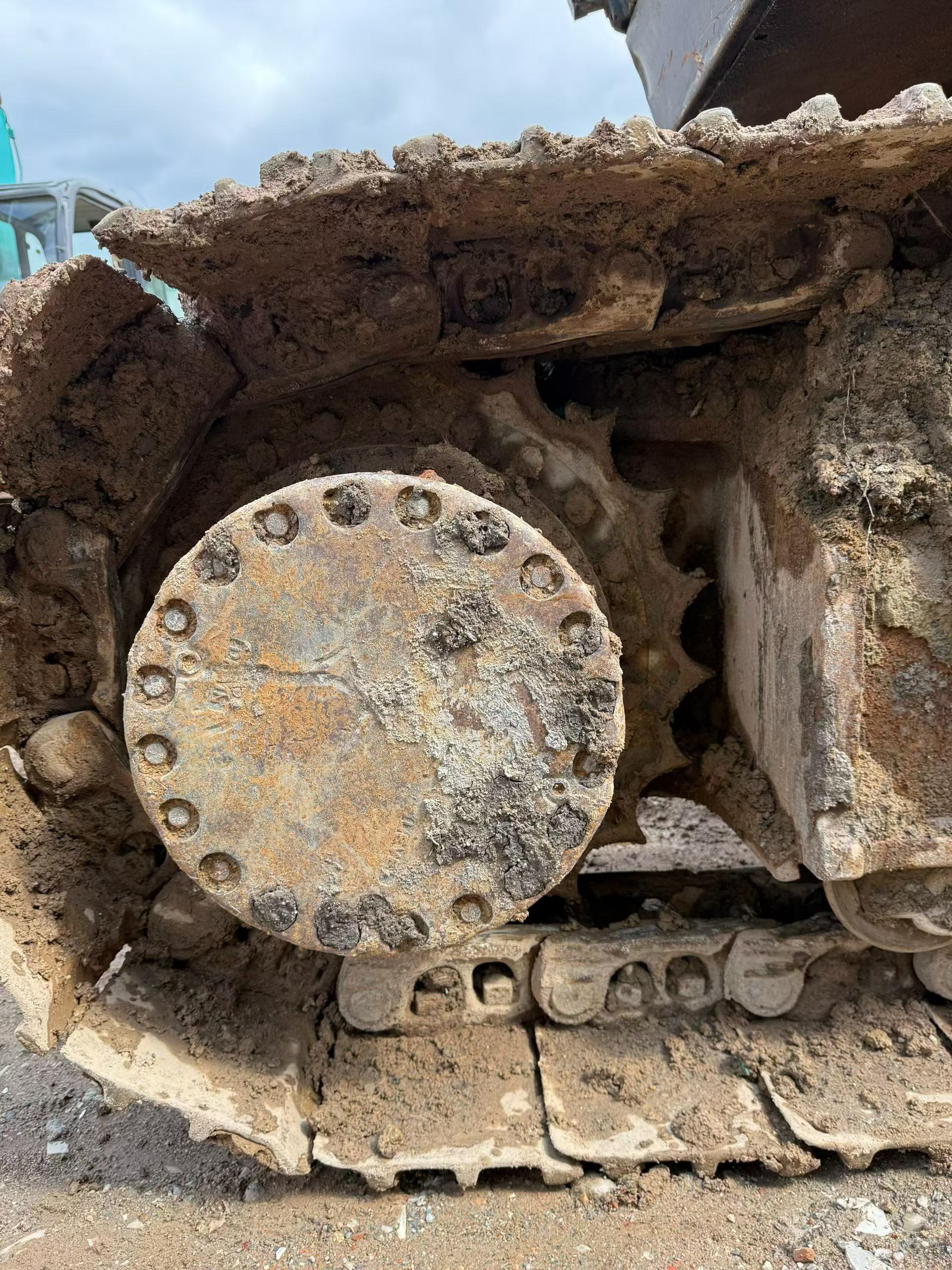

Ready to deploy from 广东深圳, this 2016 Hitachi EX350H-5 eliminates factory wait times and puts 35 tons of proven excavation power on your site fast. Equipped with a reliable Isuzu B-6SD1T engine delivering 169 kW at 1900 rpm, this machine handles demanding dig cycles with a maximum reach of 11,100 mm and digging depth of 7,380 mm. The 1.4 m³ backhoe bucket and 32,613 kg working weight provide the stability and capacity required for infrastructure, demolition, and heavy earthmoving projects.
- Available now in 广东深圳 – skip months of lead time
- 35-ton class performance with 169 kW Isuzu power
- Maximum digging reach: 11,100 mm; depth: 7,380 mm
- 1.4 m³ bucket capacity for high-volume material handling
- 560 L fuel tank supports extended operation
- Transport dimensions: 10,950 × 3,190 × 3,230 mm
- Joint venture build quality with import-grade components
Secure immediate mobilization. Contact Fair Trade Machinery today for inspection scheduling and logistics coordination from 广东深圳 to your project location worldwide.
| Specifications | Value |
|---|---|
| No. | 1025280 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32613.3 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

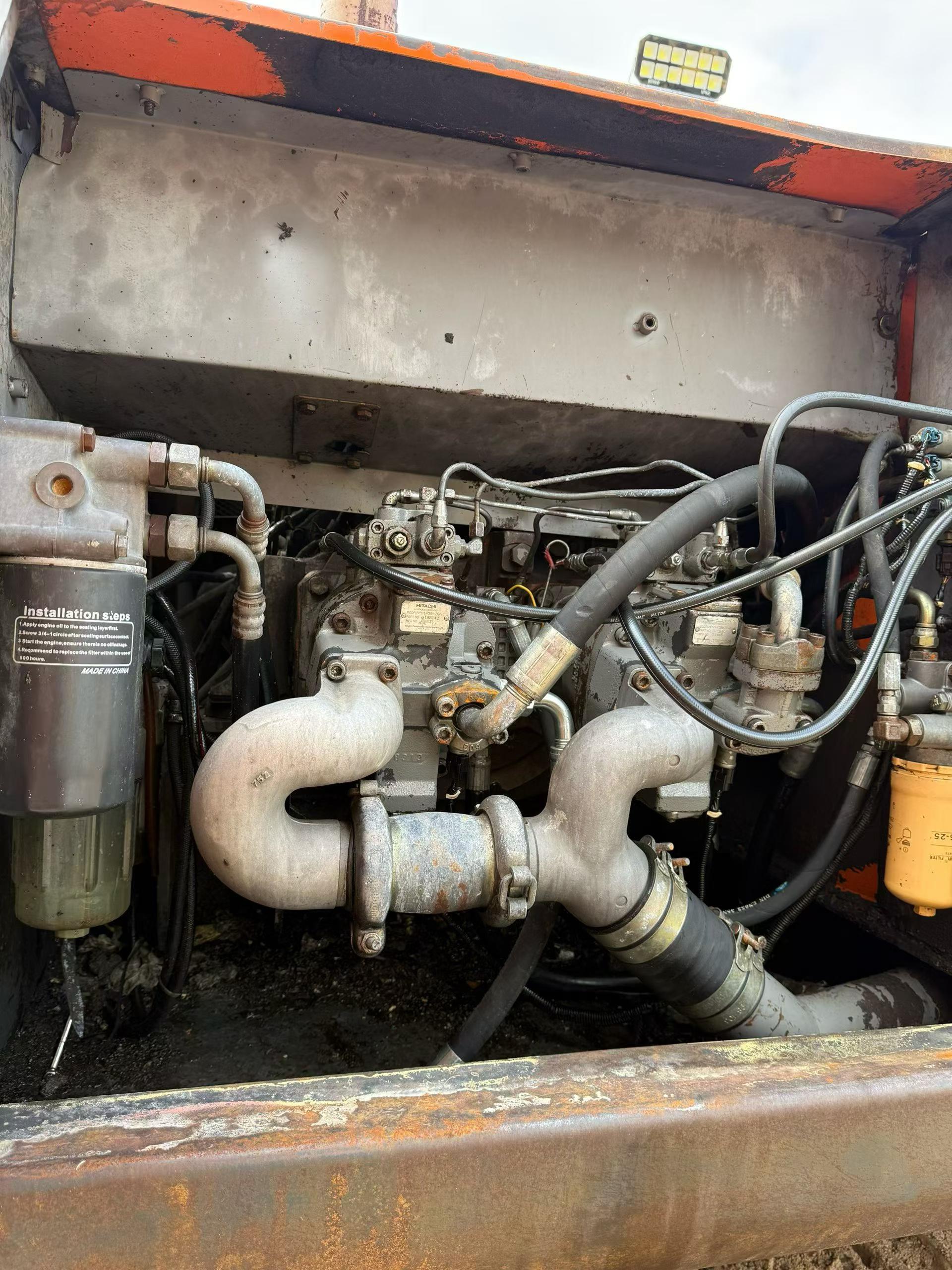

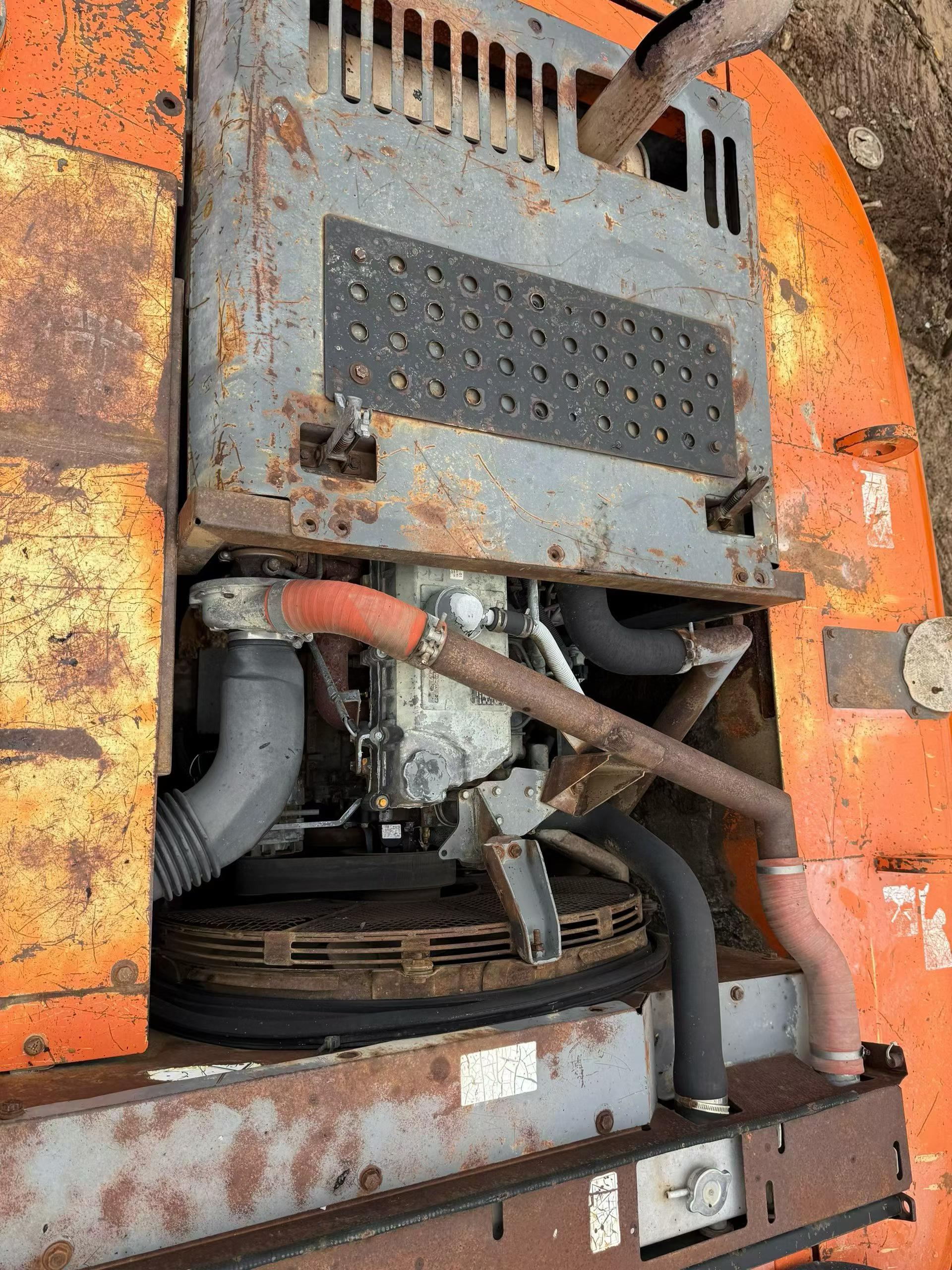

| Engine type | Isuzu B-6SD1T |
| Rated power (kw/rpm) | 169/1900 |
| Ground specific pressure (Kpa) | 66 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 560 |
| Total transport length (mm) | 10950 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3290 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3730 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7130 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11100 |
