Product Description

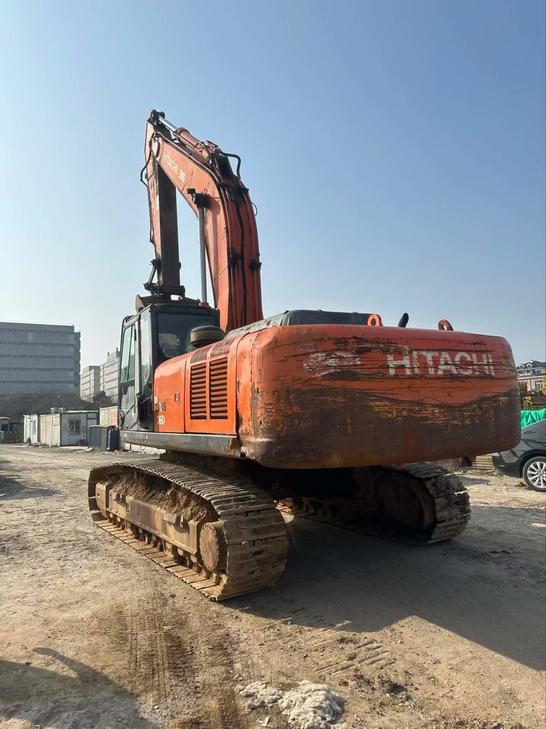

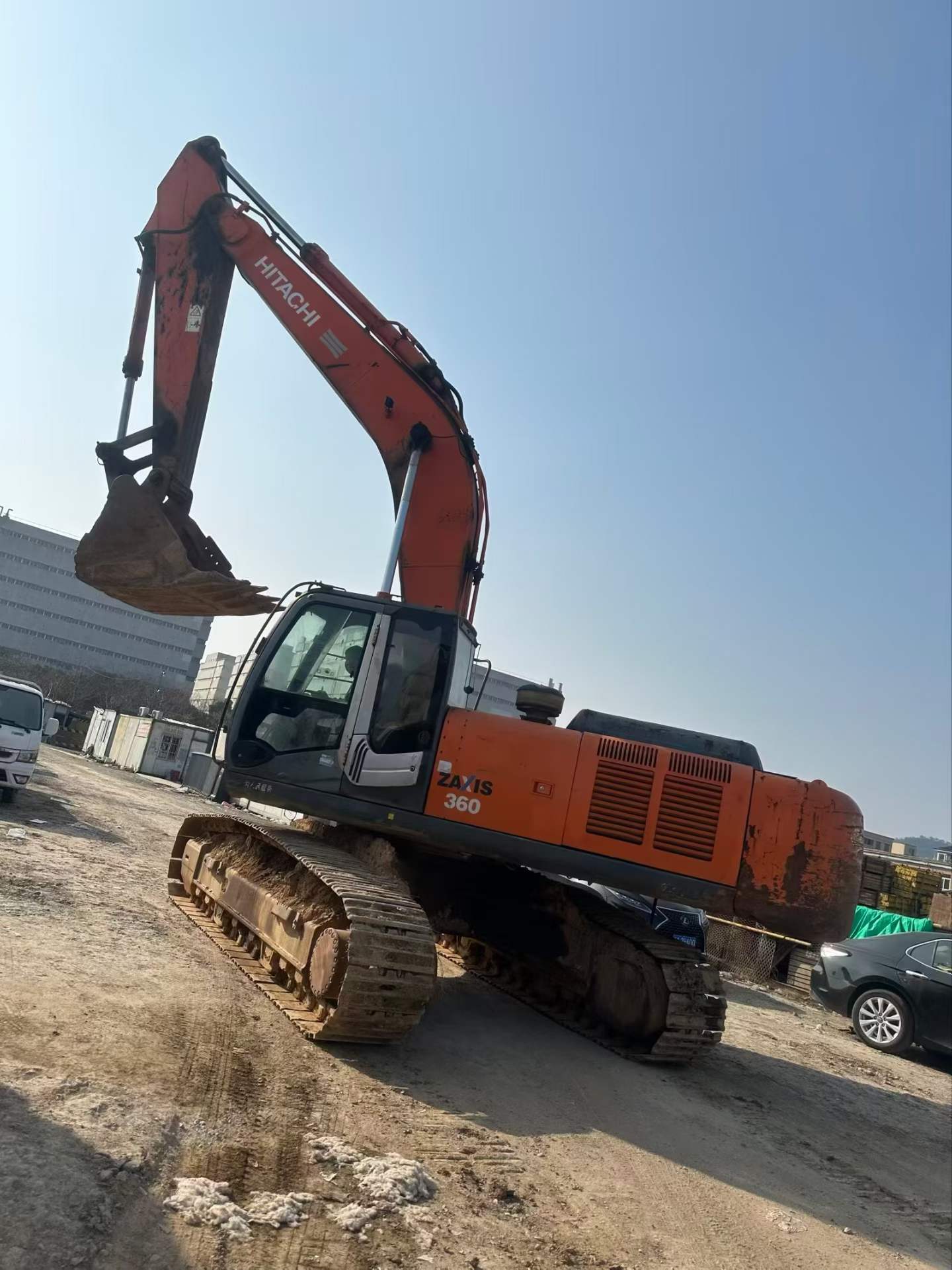

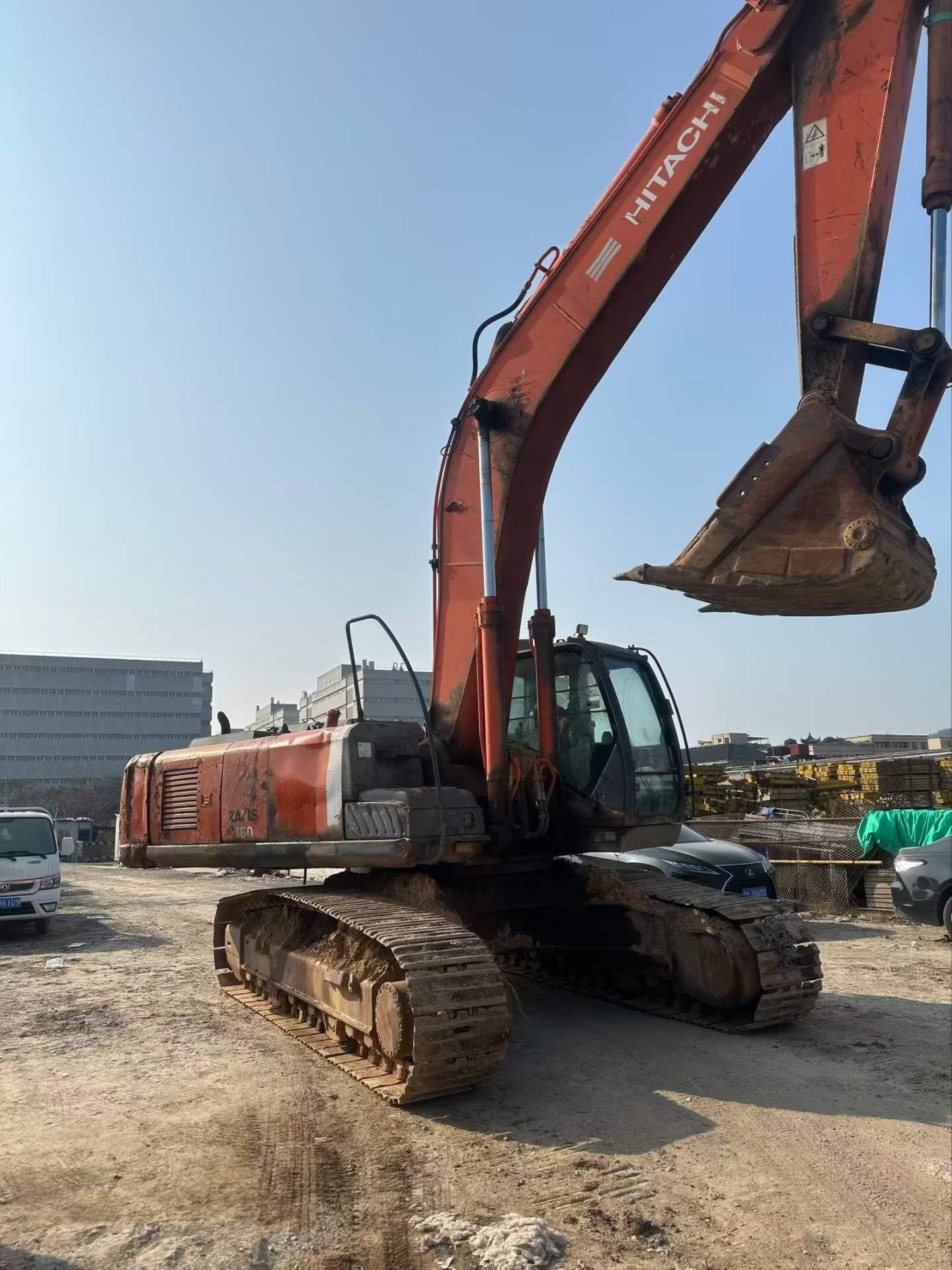

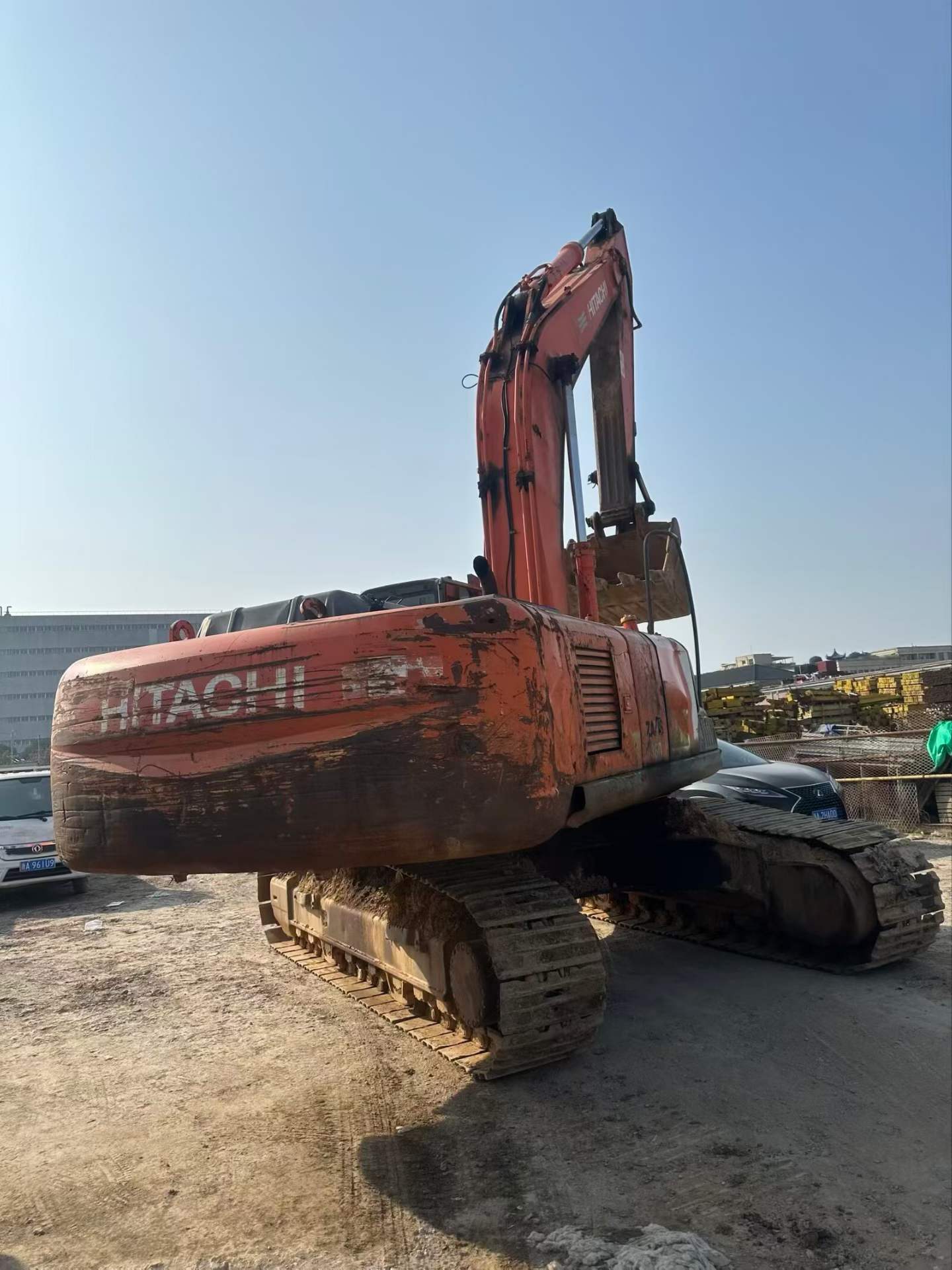

Engineered for demanding excavation work, this 2016 Hitachi EX350H-5 delivers precision control and all-day operator comfort in a proven 35-ton platform. Powered by a reliable Isuzu B-6SD1T engine producing 169 kW at 1900 rpm, this joint venture excavator combines robust performance with fuel efficiency from its 560-liter tank. Operators benefit from exceptional visibility across the 11,100 mm working envelope, while the spacious cab sits at 3,110 mm, providing commanding sightlines to the 1.4 m³ backhoe bucket.
- Maximum digging depth of 7,380 mm with 11,100 mm reach at ground level

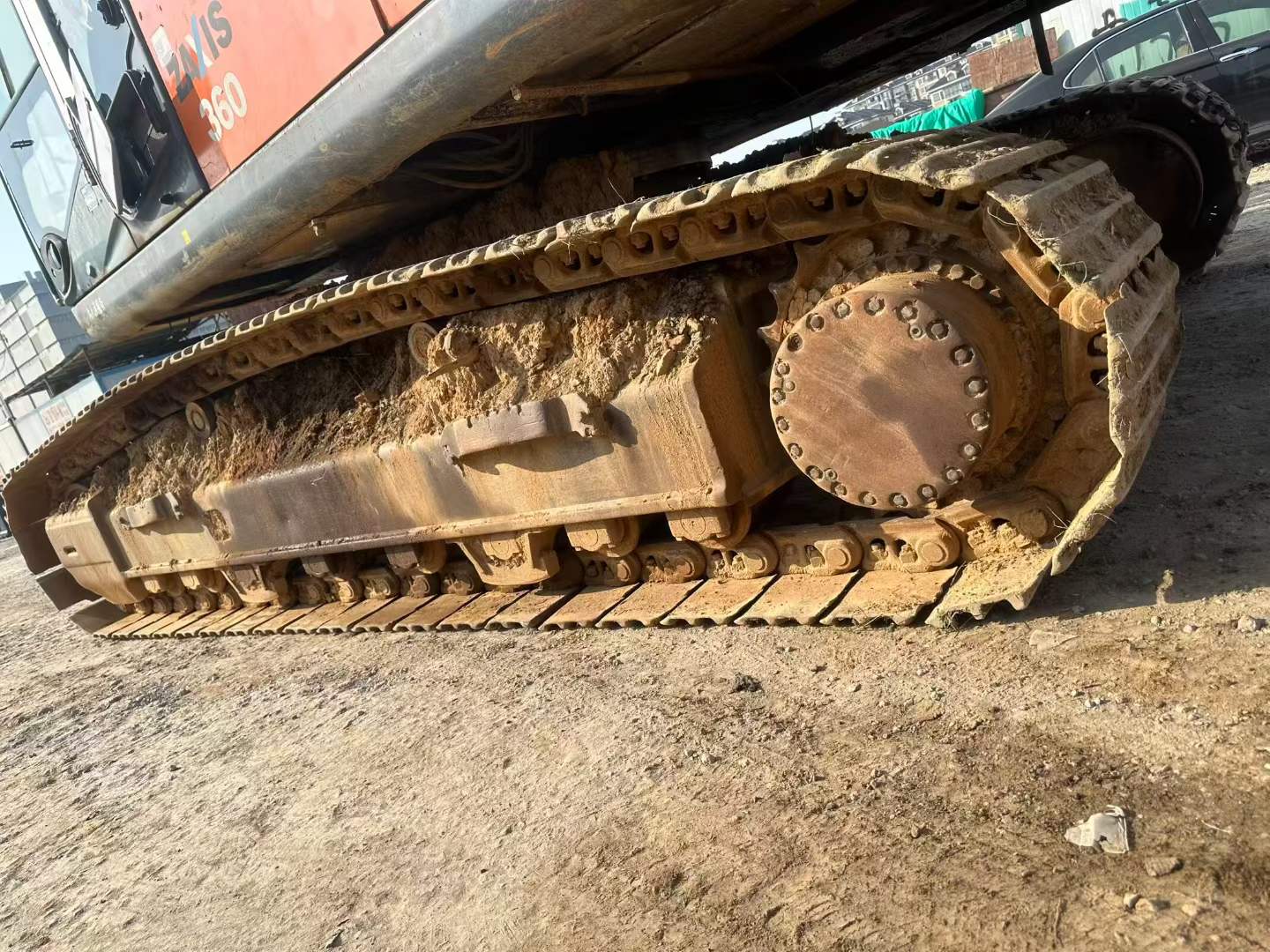

- Low ground pressure at 66 kPa across 600 mm triple-grouser tracks for enhanced stability
- Compact 3,290 mm rear swing radius enables efficient work in confined spaces
- Travel speed of 5.5 km/h ensures rapid repositioning between dig zones
- Currently located in Zhejiang, ready for international shipment
With 32,613 kg working weight and 500 mm ground clearance, this EX350H-5 maintains balance on challenging terrain while delivering consistent hydraulic power for production-focused operations.
| Specifications | Value |
|---|---|
| No. | 1027993 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32613.3 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu B-6SD1T |
| Rated power (kw/rpm) | 169/1900 |
| Ground specific pressure (Kpa) | 66 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 560 |
| Total transport length (mm) | 10950 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3290 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3730 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7130 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11100 |
