Product Description
Engineered with Hitachi's renowned precision, this 2016 EX350H-5 delivers 35-ton performance through proven Japanese-German collaboration. Powered by the robust Isuzu B-6SD1T engine generating 169 kW at 1900 rpm, this excavator combines fuel efficiency with consistent output across demanding applications. The 1.4 m³ backhoe bucket configuration offers optimal material handling for medium to heavy-duty operations.
Key technical specifications include:
- Maximum digging depth: 7,380 mm with 11,100 mm reach at stop surface
- Operating weight: 32,613 kg with 66 kPa ground-specific pressure for superior stability
- 560-liter fuel capacity supporting extended operational periods
- 3,730 mm track ground length ensuring balanced load distribution
- Maximum unloading height of 7,130 mm for efficient truck loading
Currently located in Guilin, Guangxi, this joint-venture manufactured machine represents Hitachi's -5 series commitment to durability and hydraulic efficiency. Transport dimensions of 10,950 × 3,190 × 3,230 mm facilitate straightforward logistics planning.
| Specifications | Value |
|---|---|
| No. | 1029371 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32613.3 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

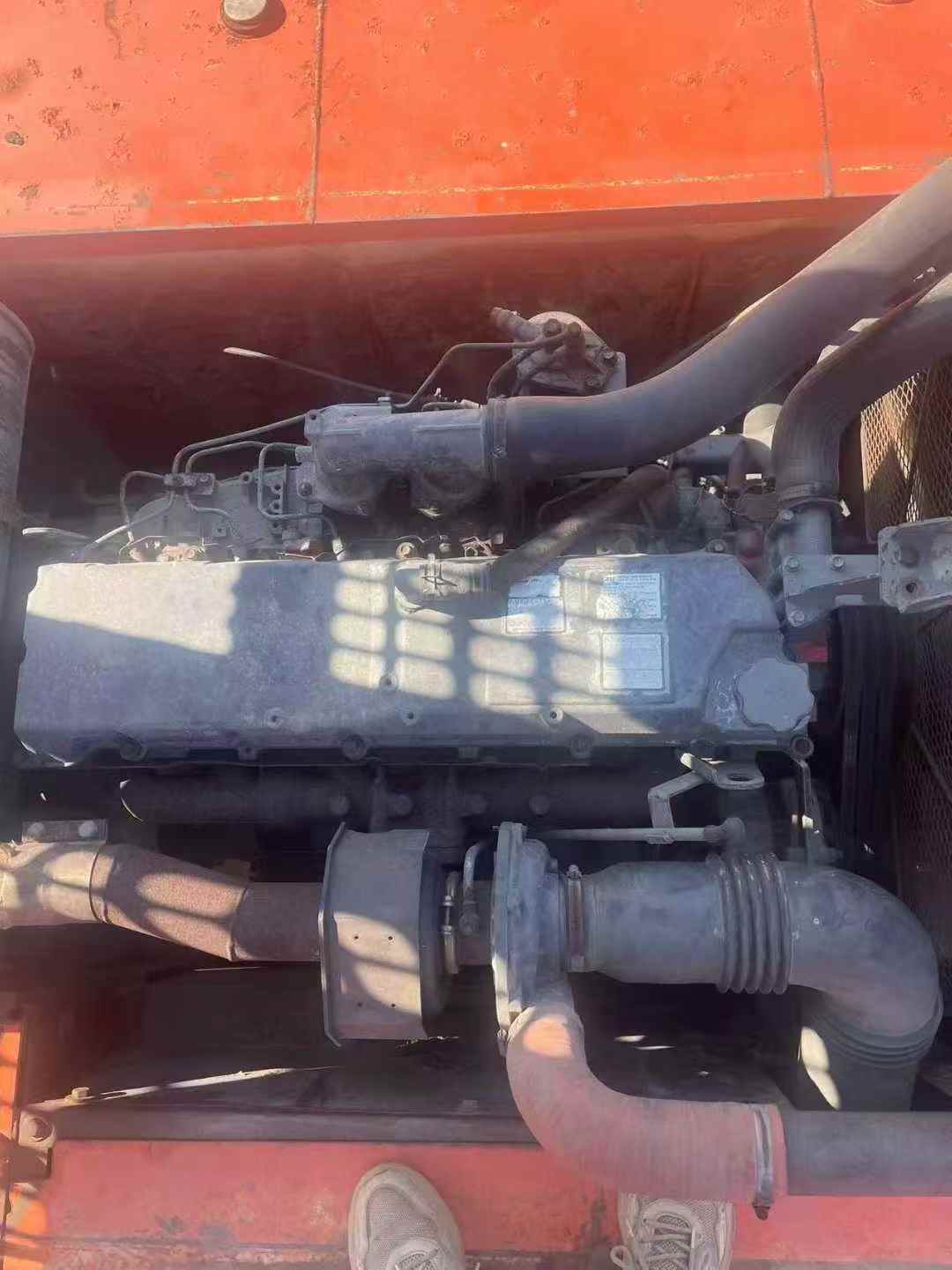

| Engine type | Isuzu B-6SD1T |
| Rated power (kw/rpm) | 169/1900 |
| Ground specific pressure (Kpa) | 66 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 560 |
| Total transport length (mm) | 10950 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3290 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3730 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7130 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11100 |
