Product Description

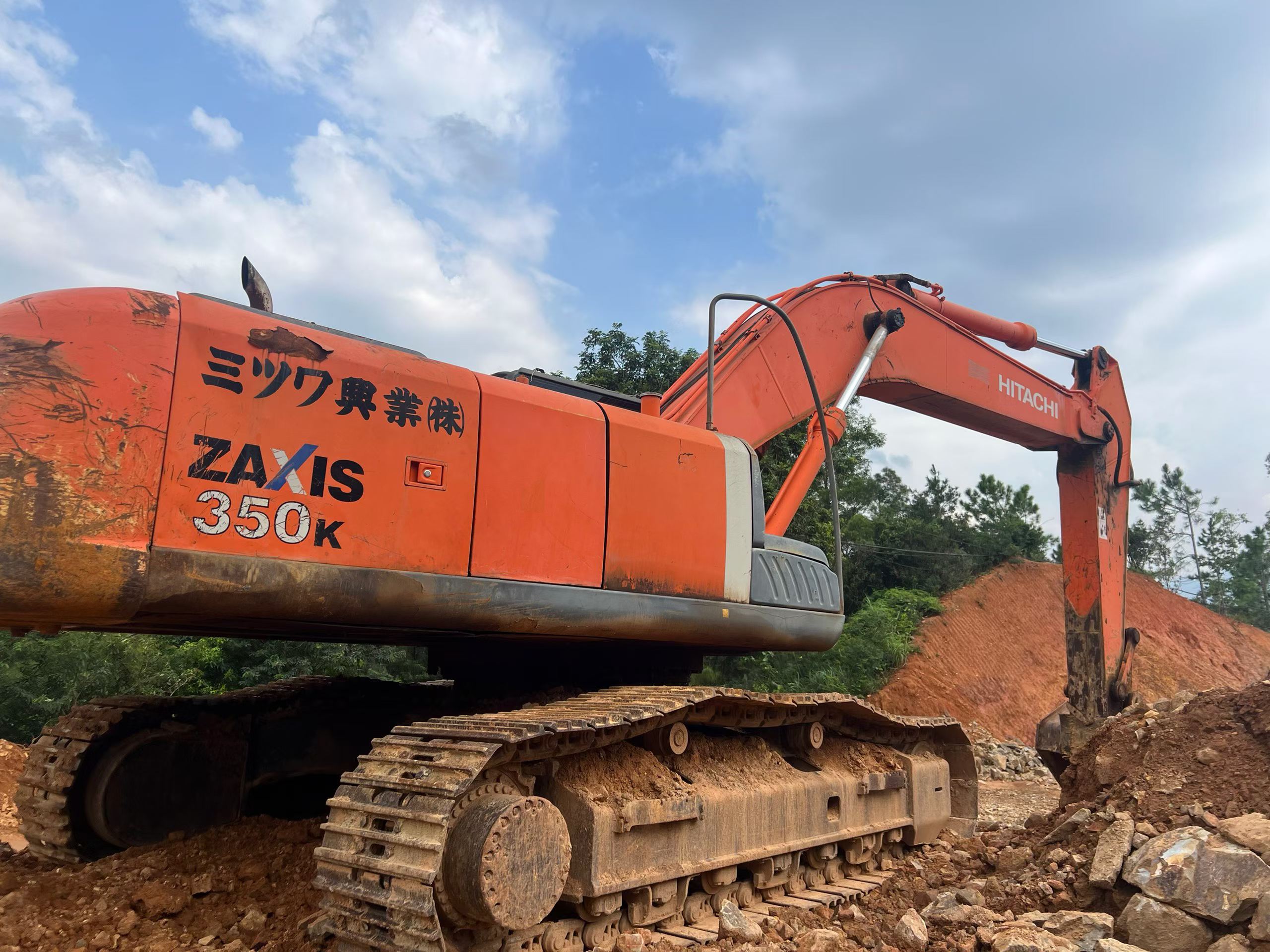

This 2020 Hitachi EX350H-5 hydraulic excavator represents proven reliability in the medium-to-large excavator class. Currently located in Guangdong, China, this machine offers the performance characteristics expected from Hitachi's H-series design: efficient fuel consumption, responsive hydraulics, and durable construction suited for demanding earthmoving applications.
Key features of the EX350H-5 include:

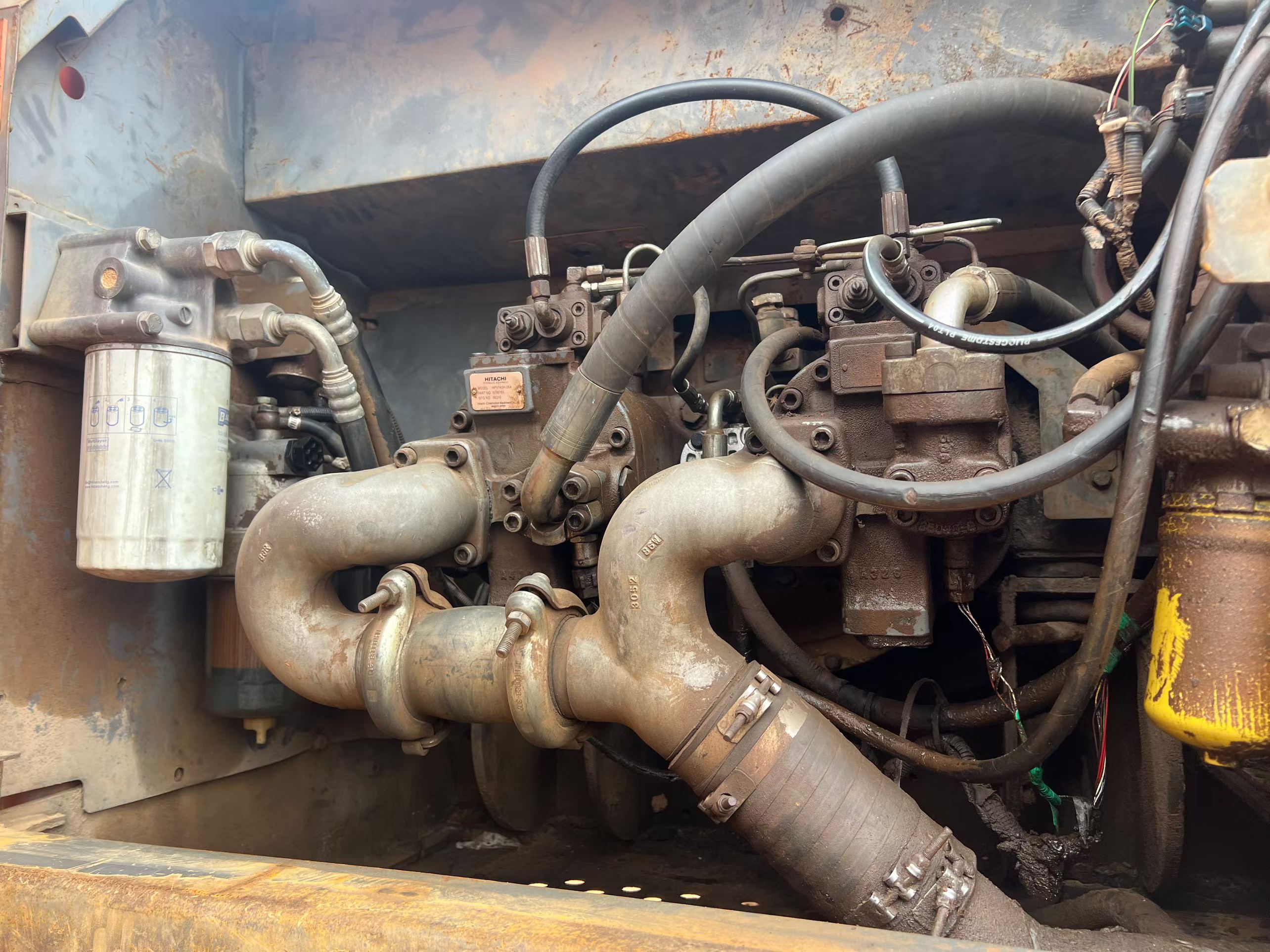

- Hydraulic system optimized for productivity and fuel efficiency

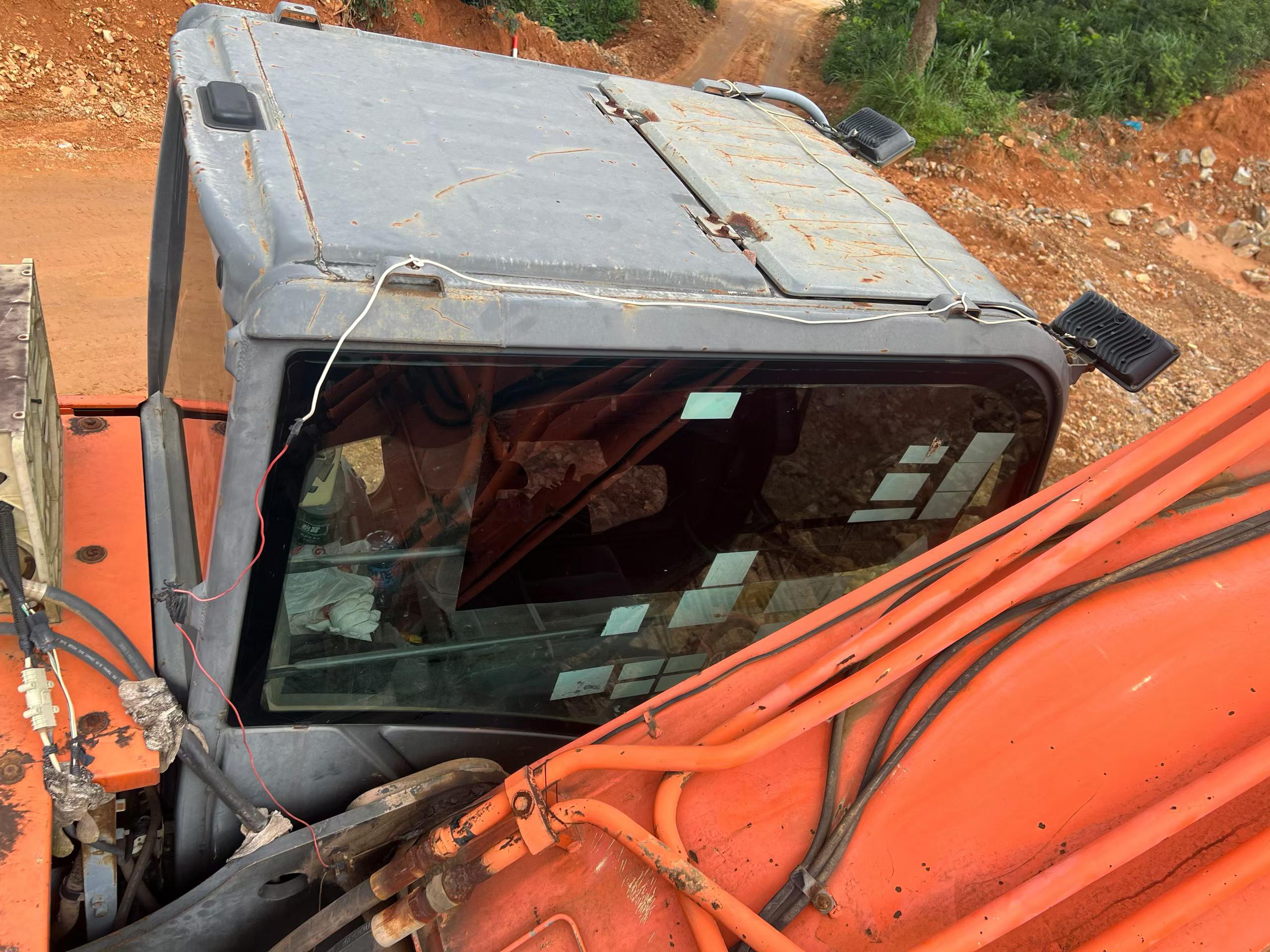

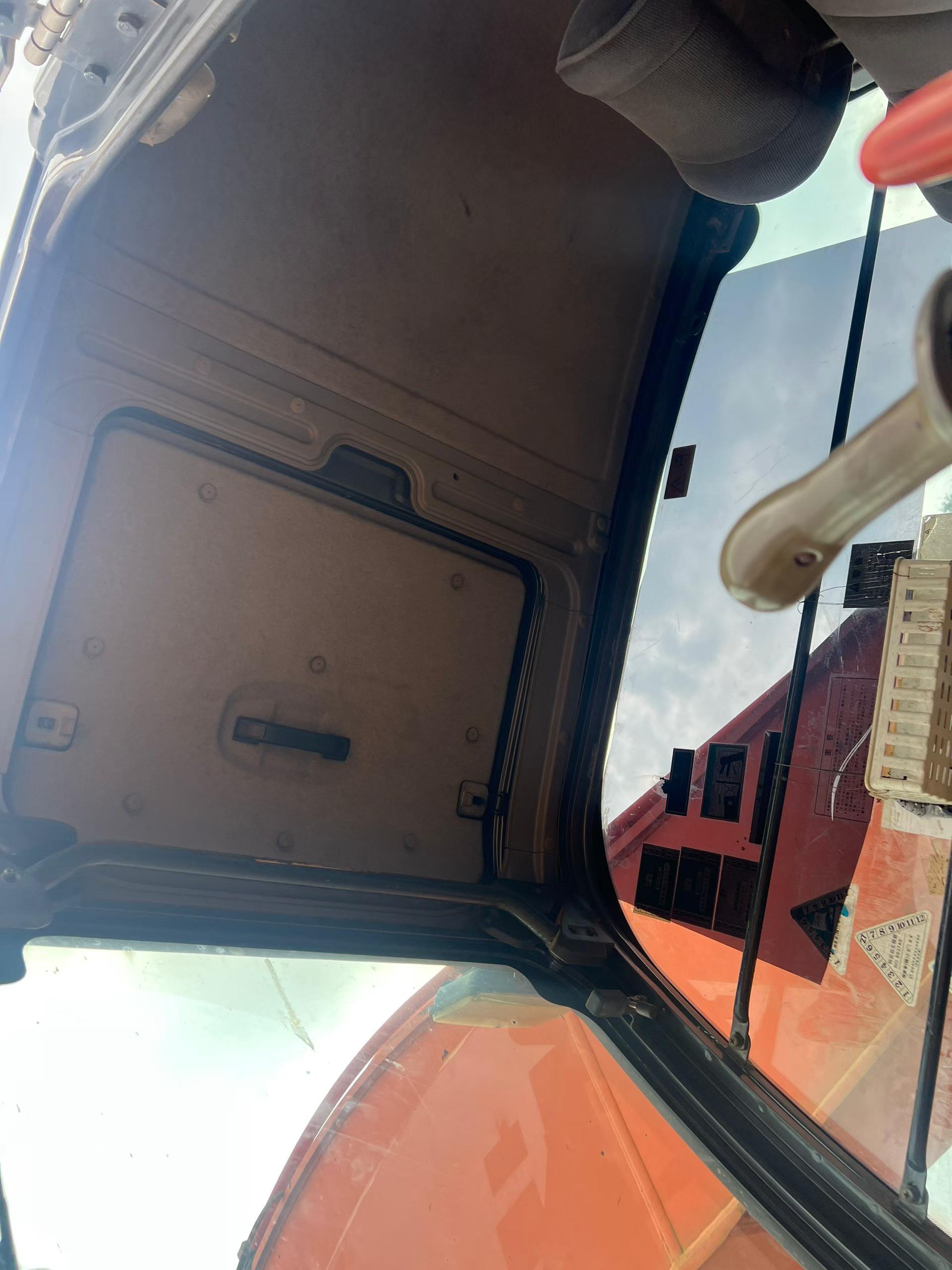

- Spacious operator cabin with ergonomic controls

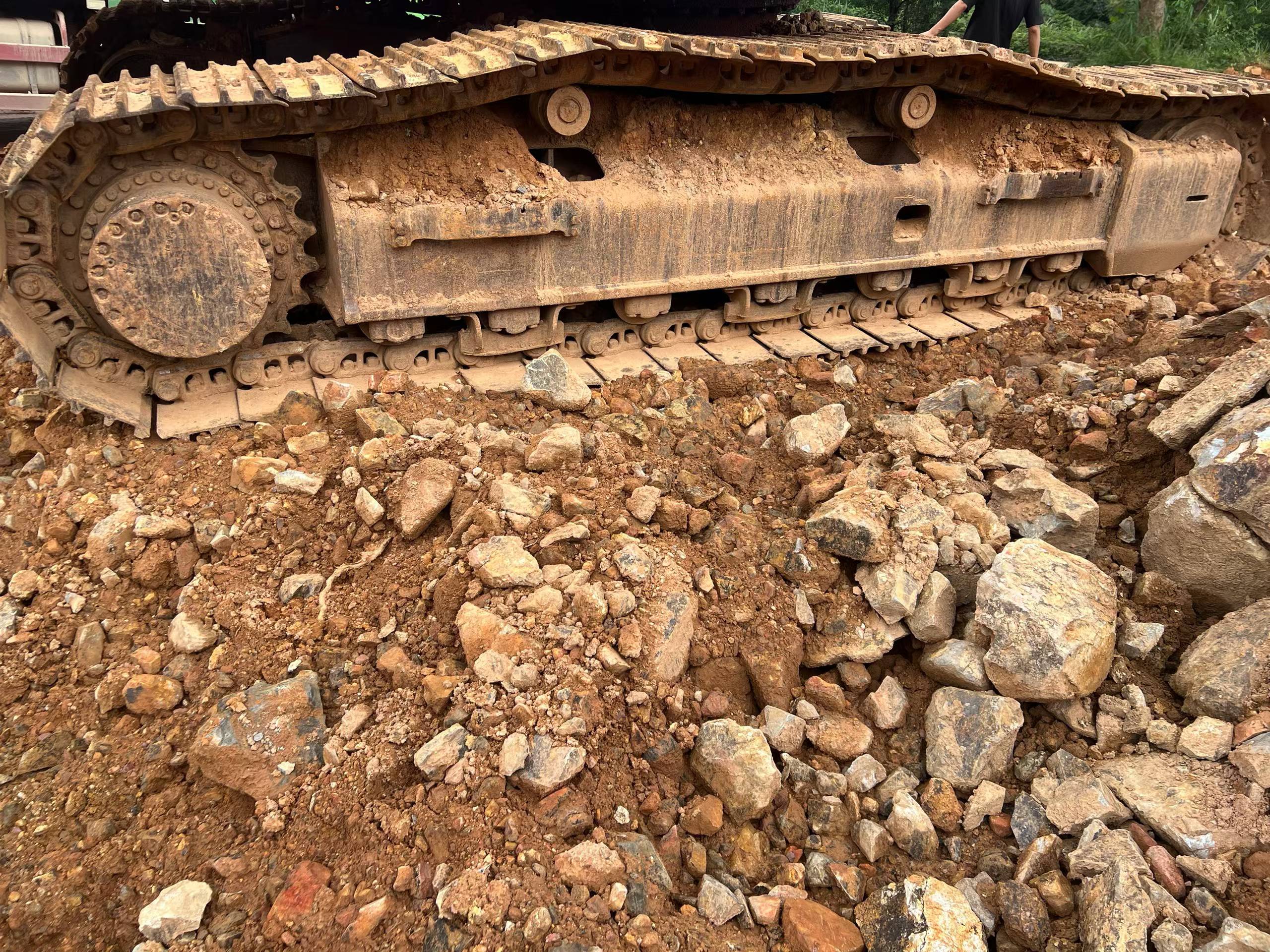

- Reinforced undercarriage for extended component life
- Suitable for excavation, loading, and general construction work
This used unit has been operationally verified and is available for inspection. The EX350H-5 continues to be a dependable choice for contractors requiring a balance of digging force, reach, and operational economy in medium-scale projects.
| Specifications | Value |
|---|---|
| No. | 1144556 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 32613.3 |
| Bucket capacity (m³) | 1.4 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu B-6SD1T |
| Rated power (kw/rpm) | 169/1900 |
| Ground specific pressure (Kpa) | 66 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 560 |
| Total transport length (mm) | 10950 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3110 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3290 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3730 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10230 |
| Maximum unloading height (mm) | 7130 |
| Maximum vertical digging depth (mm) | 6480 |
| Maximum excavation radius of stop surface (mm) | 11100 |
