2020 Hitachi EX350H-5

Name: Used Excavators 2020 Hitachi EX350H-5
Brand: Hitachi
SKU: USED-1163895
Availability: InStock
Rating: 4.9 (58 reviews)

1/5

Product Description

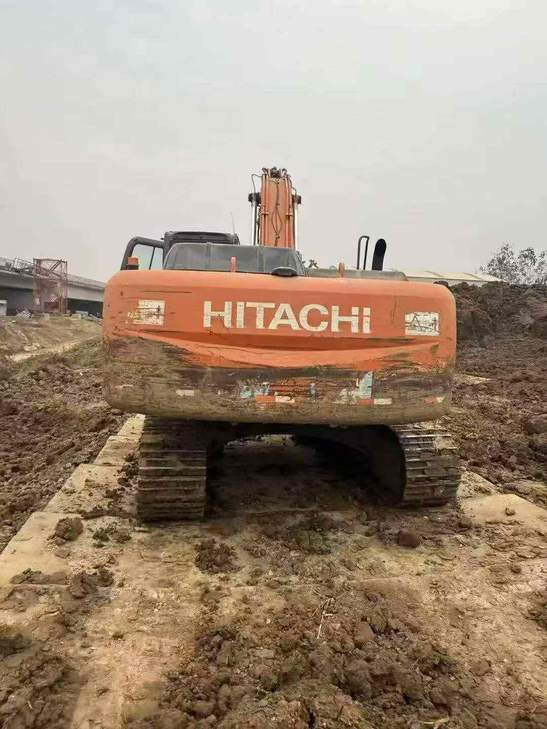

This 2020 Hitachi EX350H-5 hydraulic excavator offers reliable performance for heavy-duty earthmoving and construction applications. Currently located in Sichuan, China, this machine represents a cost-effective solution for contractors seeking proven Japanese engineering at competitive pricing.

The EX350H-5 features Hitachi's advanced hydraulic system designed for fuel efficiency and operator comfort. With its robust undercarriage and powerful digging force, this excavator handles demanding jobsite conditions effectively. The spacious ROPS/FOPS certified cabin provides excellent visibility and ergonomic controls for extended operation.

Key features include:

Operating weight class: approximately 35 metric tons
Fuel-efficient engine meeting emission standards
Advanced hydraulic system for smooth operation
Durable construction for extended service life
Available for immediate inspection in Sichuan

Specifications	Value
No.	1163895
Tonnage (tons)	35
Working weight (kg)	32613.3
Bucket capacity (m³)	1.4
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Isuzu B-6SD1T
Rated power (kw/rpm)	169/1900
Ground specific pressure (Kpa)	66
Travel speed (km/h)	5.5
Fuel Tank (L)	560
Total transport length (mm)	10950
Total transport width (mm)	3190
Total transport height (mm)	3230
Full cab height (mm)	3110
Counterweight ground clearance (mm)	1140
Minimum ground clearance (mm)	500
Back end turning radius (mm)	3290
Track gauge (mm)	2590
Track plate width (mm)	600
Track ground length (mm)	3730
Maximum digging depth (mm)	7380
Maximum excavation height (mm)	10230
Maximum unloading height (mm)	7130
Maximum vertical digging depth (mm)	6480
Maximum excavation radius of stop surface (mm)	11100
