Product Description

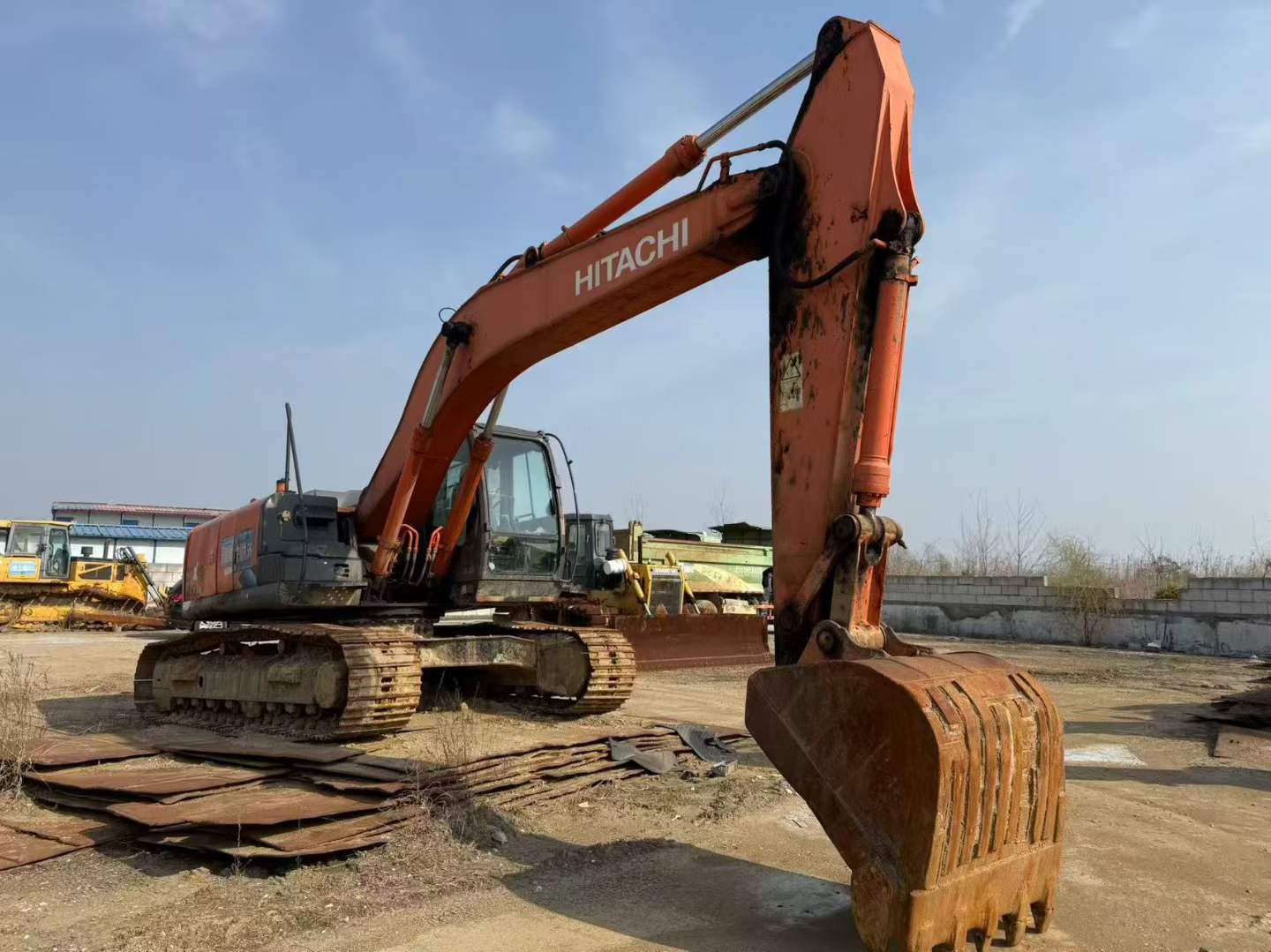

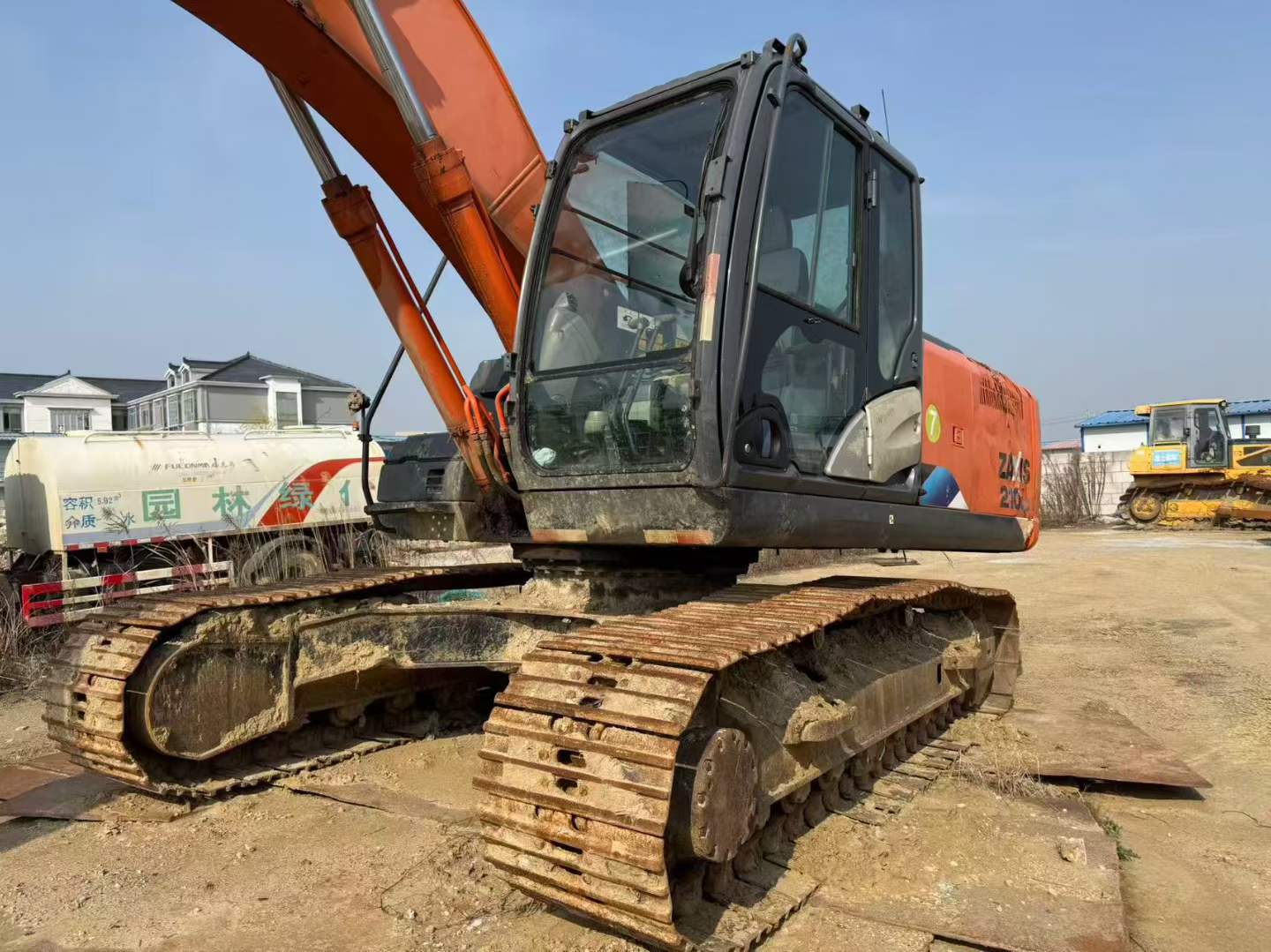

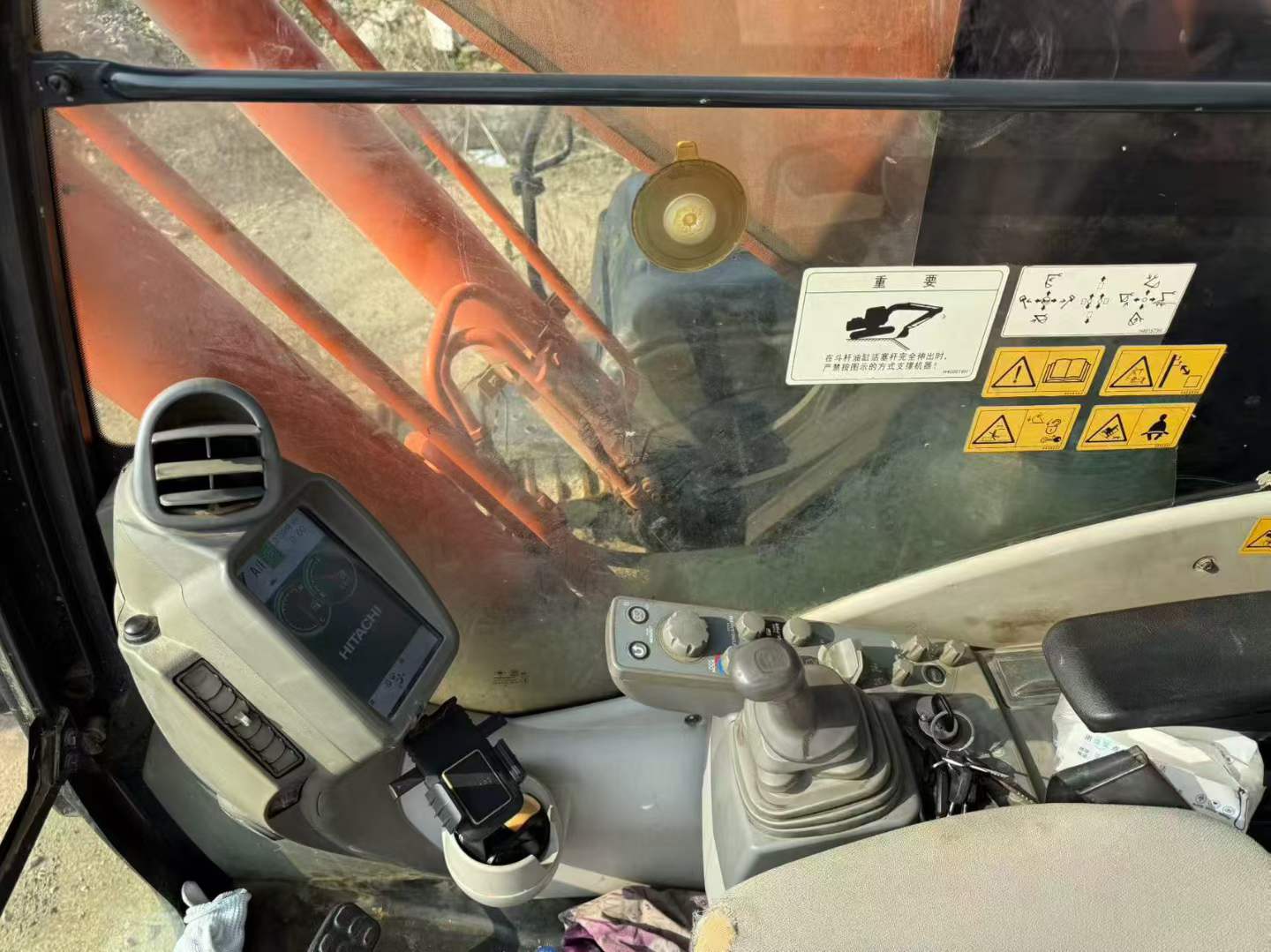

Commanding a 20-ton working weight, this 2017 Hitachi ZH200-5A hybrid excavator delivers precision handling and fuel efficiency for demanding jobsites. Powered by an Isuzu GI-4HK1XKSA-03 engine producing 113 kW at 2000 rpm, the hybrid system reduces fuel consumption while maintaining robust performance across extended shifts. Operators benefit from enhanced cabin visibility and ergonomic controls, critical for managing the 9,920 mm maximum digging radius and 6,670 mm digging depth with confidence.
- Hybrid power system optimizes fuel efficiency and operational costs
- 0.91 m³ bucket capacity with 158 kN digging force handles tough material
- Low ground pressure of 46 kPa minimizes surface disturbance
- 11.5 rpm rotation speed ensures smooth, responsive positioning
- 5,680 mm boom and 2,910 mm arm provide versatile reach
- 400L fuel tank supports all-day productivity
- 70% climbing ability tackles challenging terrain
- Currently located in Maoming, Guangdong
Built with joint-venture engineering standards, this machine combines reliability with operator-focused design for contractors requiring stability and control in medium-duty excavation applications.
| Specifications | Value |
|---|---|
| No. | 1027058 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

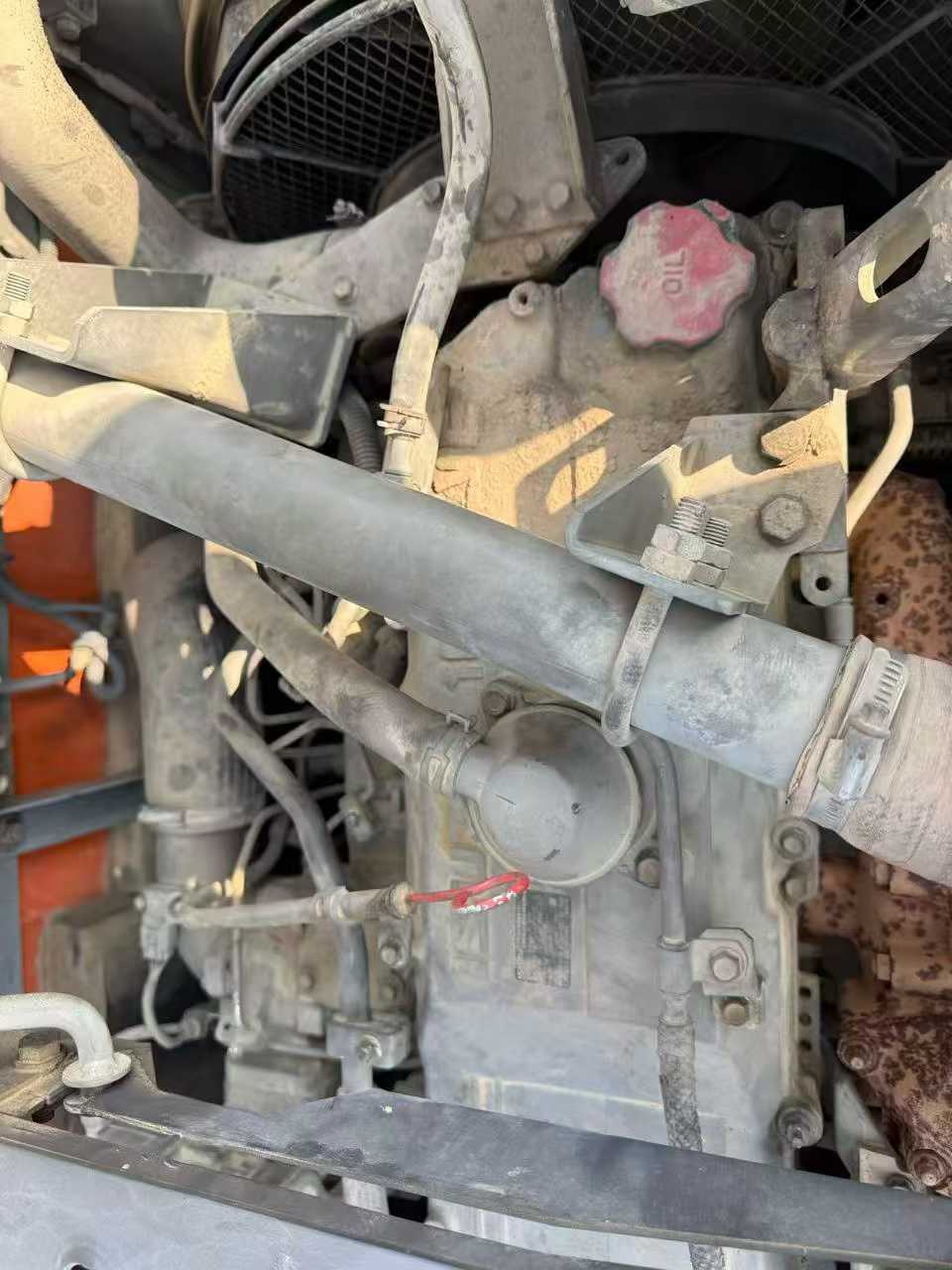

| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |

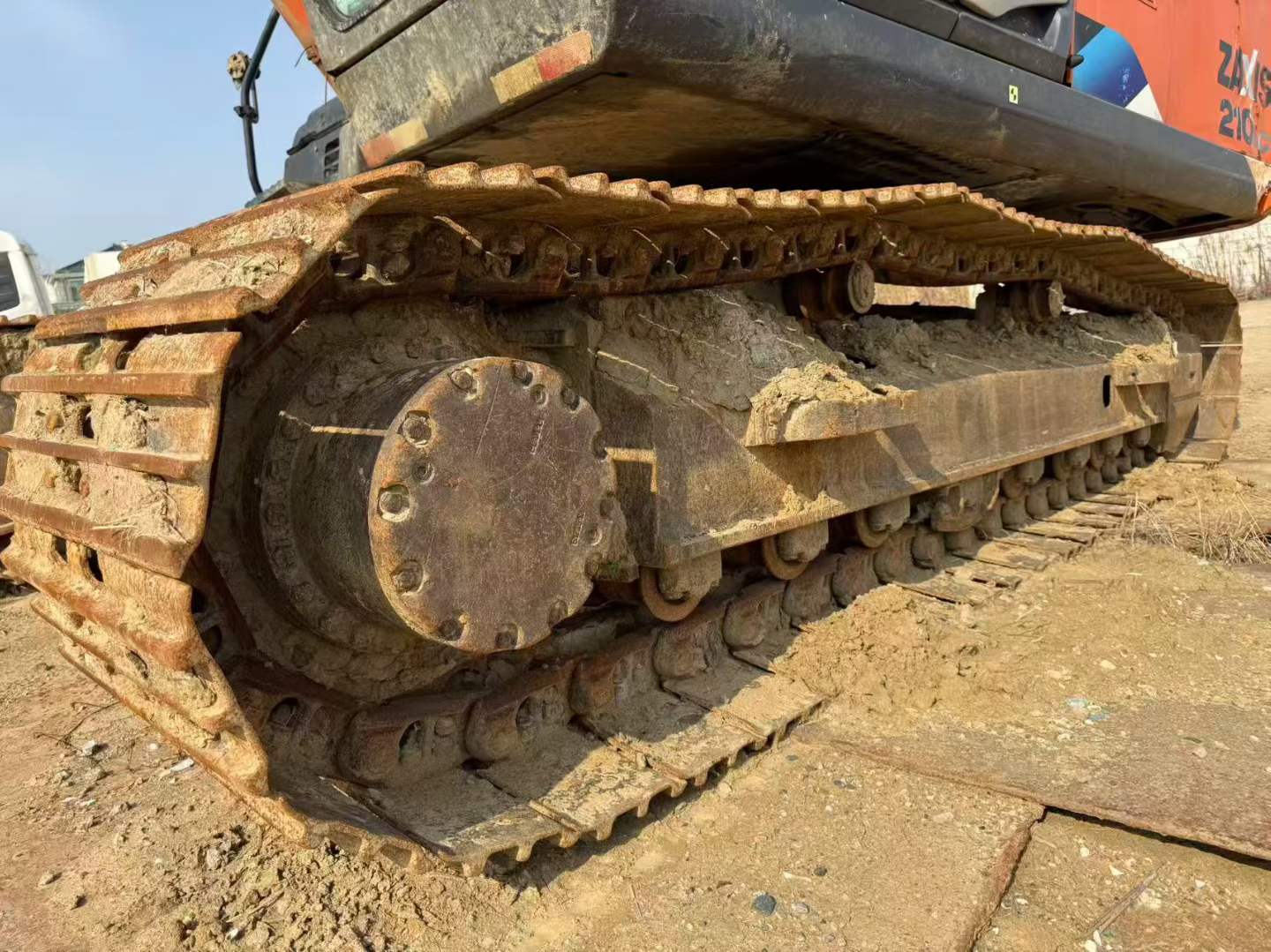

| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
