Product Description

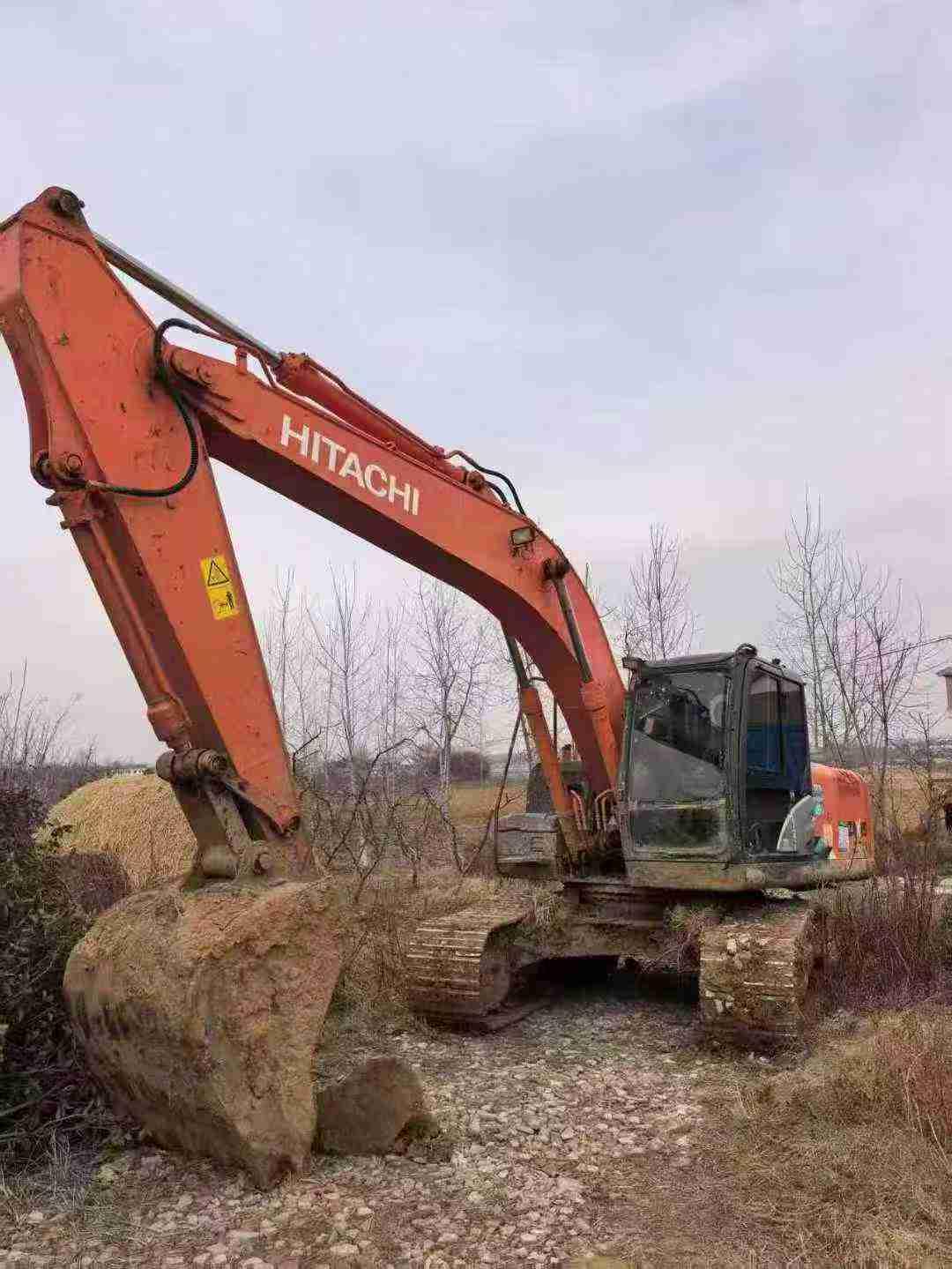

Delivering exceptional value without compromise, this 2019 Hitachi ZH200-5A hybrid excavator represents a smart investment for contractors seeking proven performance at a fraction of new equipment costs. Operating at 20 tons with an innovative hybrid power system, this machine reduces fuel consumption while maintaining the robust capabilities demanded on modern job sites. Powered by a reliable Isuzu 4-cylinder engine producing 113kW, it combines a 9.92m maximum digging reach with 158kN bucket digging force to tackle demanding excavation tasks efficiently.
- Hybrid power technology cuts operating costs significantly compared to conventional models
- 0.91m³ bucket capacity and 6.67m maximum digging depth for versatile applications
- 400L fuel tank and 200L hydraulic tank support extended operation cycles
- 70% climbing ability and 46kPa ground pressure enable work on challenging terrain
- Currently located in Shaoxing, Zhejiang—ready for immediate deployment
Invest strategically in pre-owned equipment that delivers new-machine performance without the premium price tag. Contact Fair Trade Machinery today for detailed specifications and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1024843 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 0.91 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2910 |
| power | Hybrid power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu GI-4HK1XKSA-03 |
| Rated power (kw/rpm) | 113/2000 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 158 |
| Rod digging force (kN) | 114 |
| Travel speed (km/h) | 3.5-5.5 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 200 |
| Engine Oil changes (L) | 23 |
| Total transport length (mm) | 9660 |
| Total transport width (mm) | 2860 |
| Total transport height (mm) | 3010 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 450 |
| Minimum turning radius of front working device (mm) | 3180 |
| Back end turning radius (mm) | 2890 |
| Total track length (mm) | 4170 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9920 |
| Maximum digging depth (mm) | 6670 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 7180 |
| Maximum vertical digging depth (mm) | 5990 |
| Maximum excavation radius of stop surface (mm) | 9750 |
