Product Description

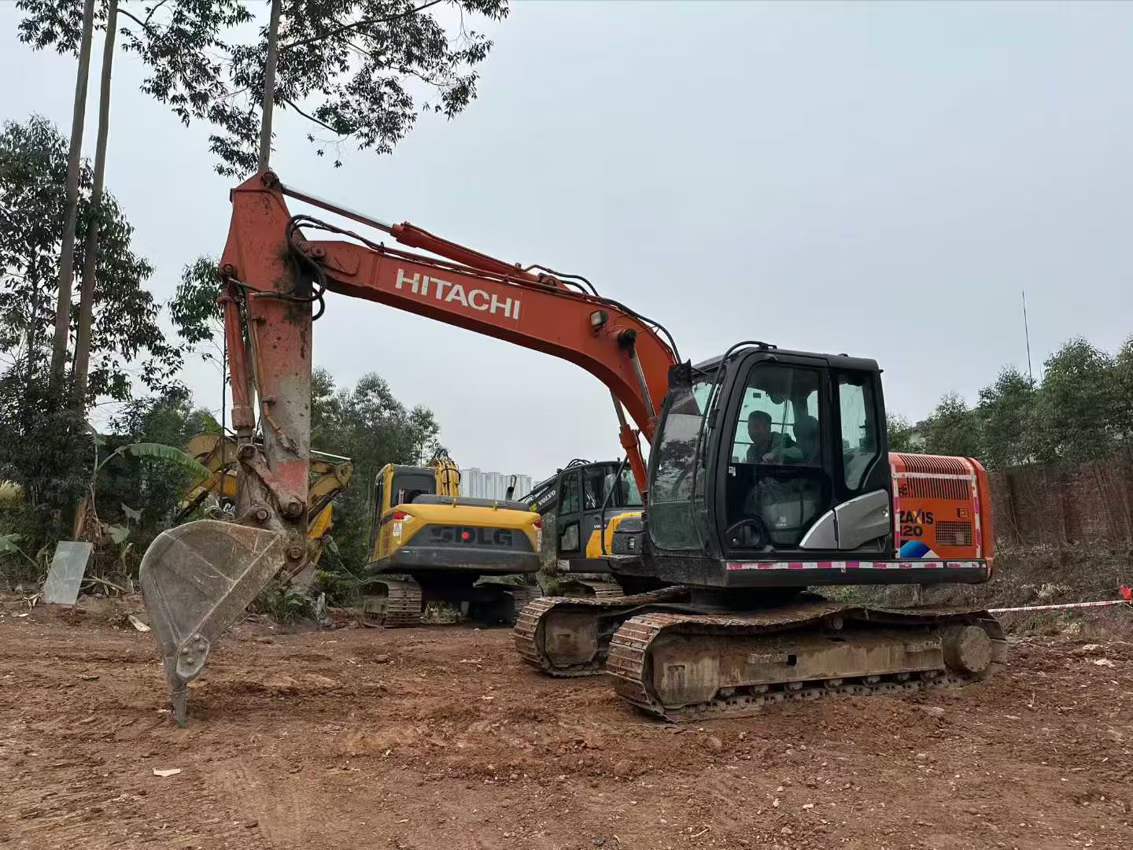

From 广西, we present the 2021 Hitachi ZX120-5A excavator, a robust and reliable machine now available for immediate deployment. With a 12-ton working weight and a powerful Isuzu GJ-4JJ1XKSA-03 engine delivering 73 kW, this excavator is designed for efficiency and speed. Skip the factory lead times and get your project moving with its fast travel speeds of 5.5 km/h and 3.3 km/h. The ZX120-5A boasts a maximum digging depth of 5050 mm and a bucket capacity of 0.52 m³, making it ideal for a variety of construction tasks. Equipped with a variable axial piston pump, this model ensures smooth and efficient operation. Ready to be deployed to your site, this excavator from 广西 is the perfect addition to your fleet.
| Specifications | Value |
|---|---|
| No. | 1022736 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 11500 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4270 |
| Rod length (mm) | 2260 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

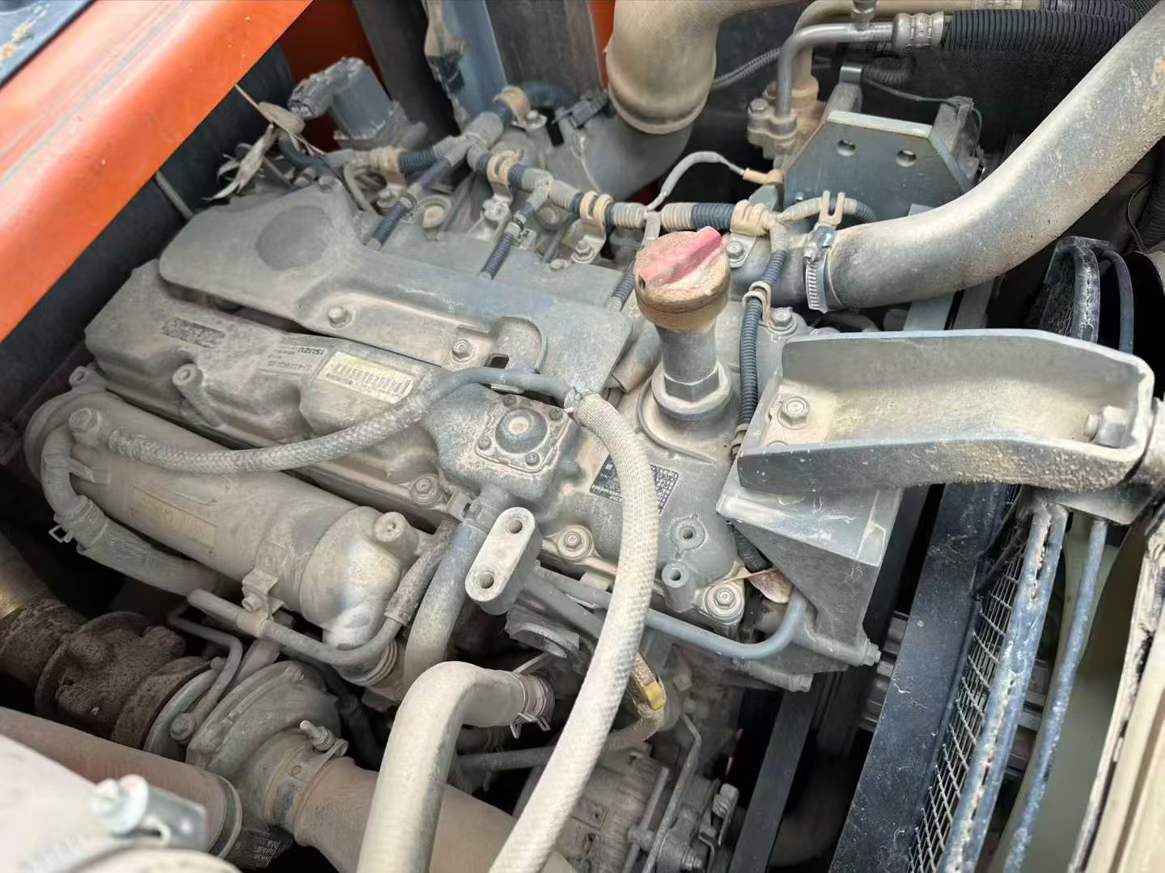

| Engine type | Isuzu GJ-4JJ1XKSA-03 |
| Rated power (kw/rpm) | 73/2000 |
| Displacement (L) | 2.999 |
| Ground specific pressure (Kpa) | 36 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 95 |
| Rod digging force (kN) | 57 |
| Travel speed (km/h) | 5.5/3.3 |
| Main pump type | Variable axial piston pump *2 |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 17 |
| Total transport length (mm) | 7340 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2870 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 840 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2370 |
| Back end turning radius (mm) | 2190 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Maximum digging radius (mm) | 7740 |
| Maximum digging depth (mm) | 5050 |
| Maximum excavation height (mm) | 8140 |
| Maximum unloading height (mm) | 5730 |
| Maximum vertical digging depth (mm) | 4090 |
| Maximum excavation radius of stop surface (mm) | 7600 |
