Product Description

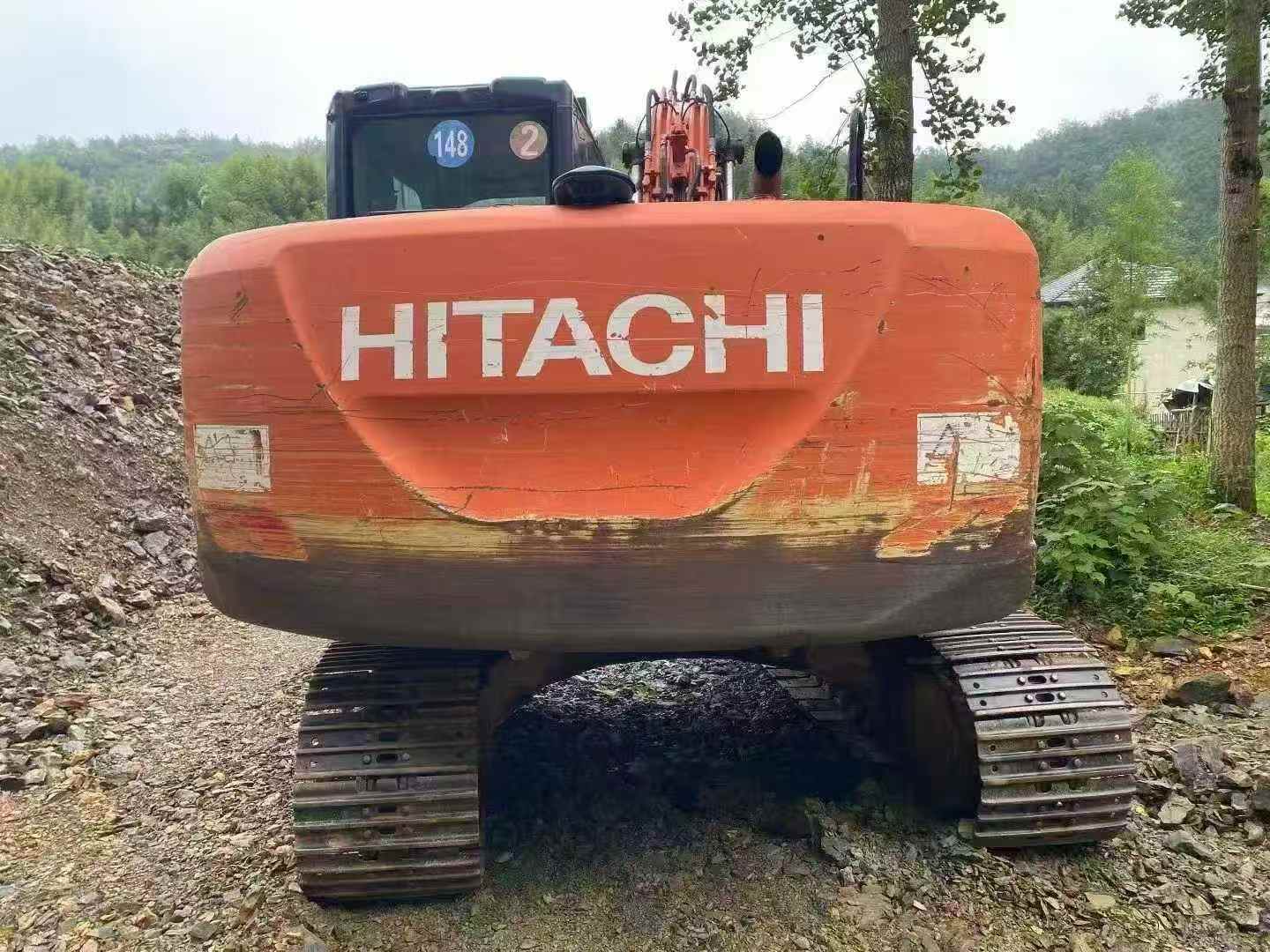

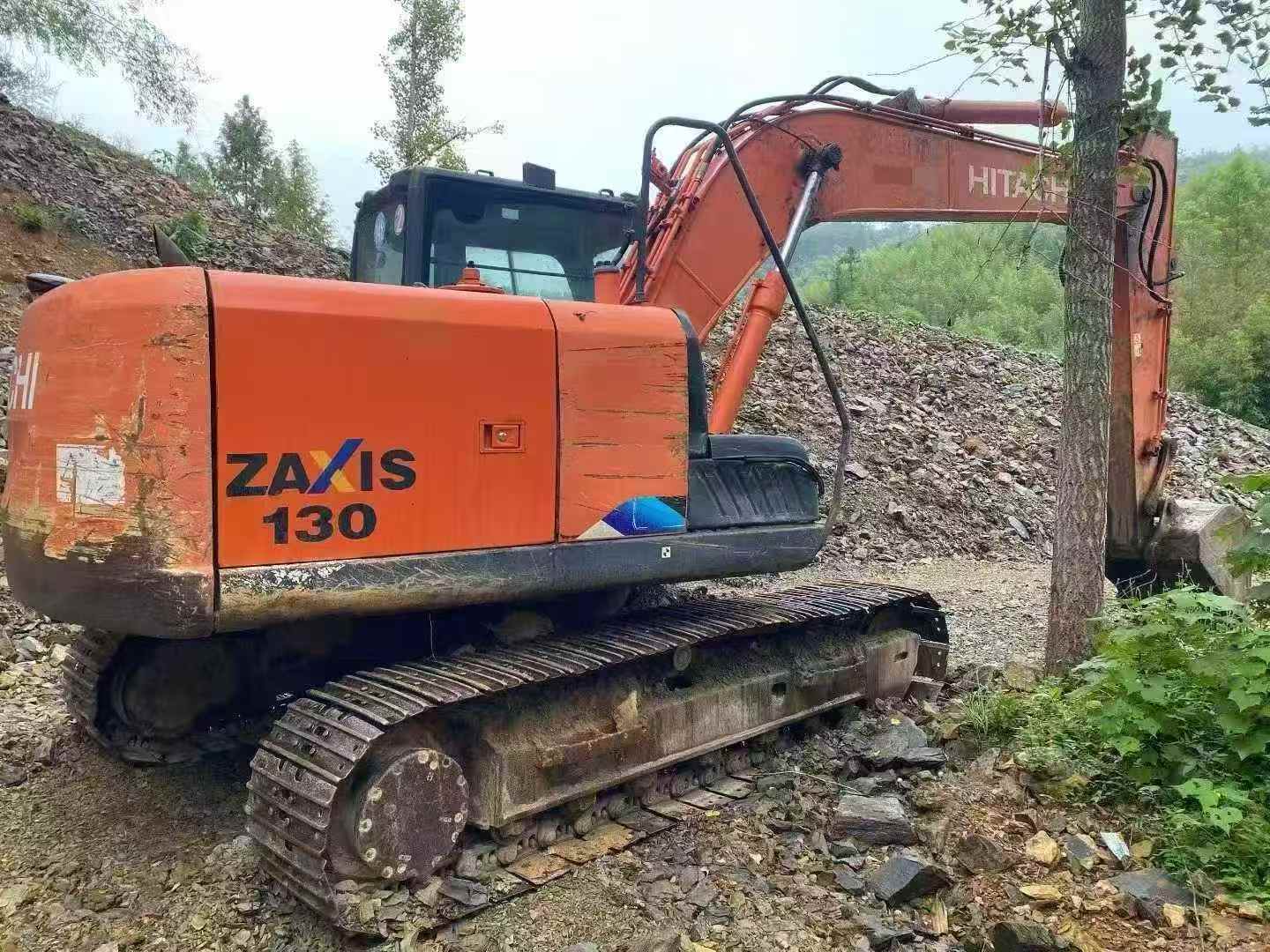

Engineered for precision and operator confidence, this 2017 Hitachi ZX130-5A excavator delivers exceptional control in demanding jobsite conditions. Operating at 13 tons with a 69kW Isuzu engine, this machine combines reliable joint-venture manufacturing quality with practical performance for mid-sized excavation tasks in Guizhou's challenging terrain.

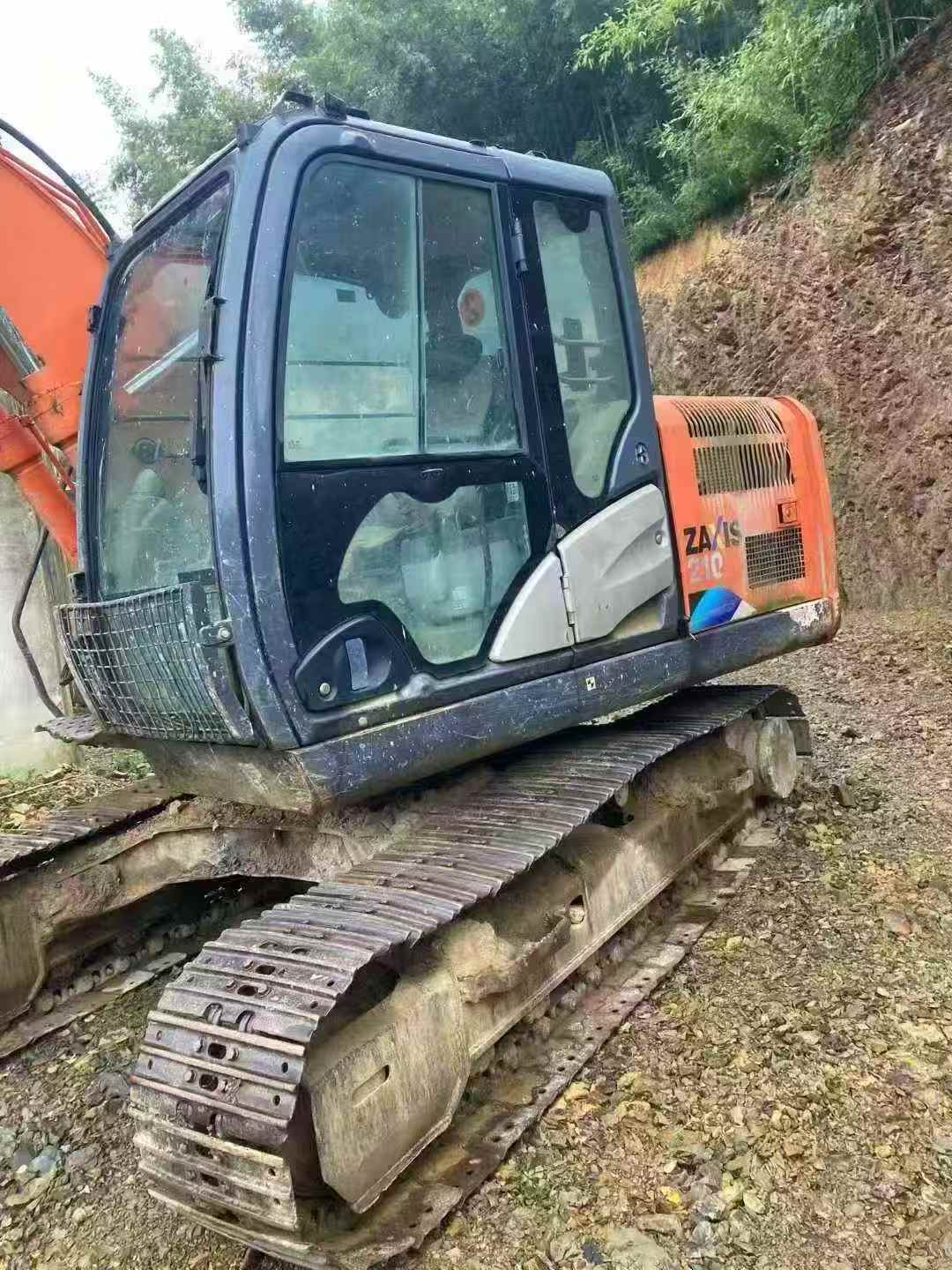

Operator-focused design ensures maximum productivity through enhanced visibility and intuitive handling. The spacious cab provides commanding sightlines across the 8,300mm maximum digging radius, while responsive hydraulic controls deliver precise bucket and boom movements. Stability remains uncompromised with a low 39kPa ground pressure and robust 2,880mm track ground length, enabling confident operation on varied surfaces.
- Smooth rotation at 13.3 rpm with swashplate plunger motor for accurate positioning
- Dual variable axial piston pumps (2×117 L/min) ensure consistent hydraulic response
- Excellent maneuverability: 2,400mm front turning radius, 2,190mm rear swing
- Comfortable operation with water-cooled cabin environment and 2,790mm headroom
- Impressive 70% climbing ability and 5.5 km/h travel speed for efficient site navigation<
| Specifications | Value |
|---|---|
| No. | 996283 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.52 |
| Rod length (mm) | 2520 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

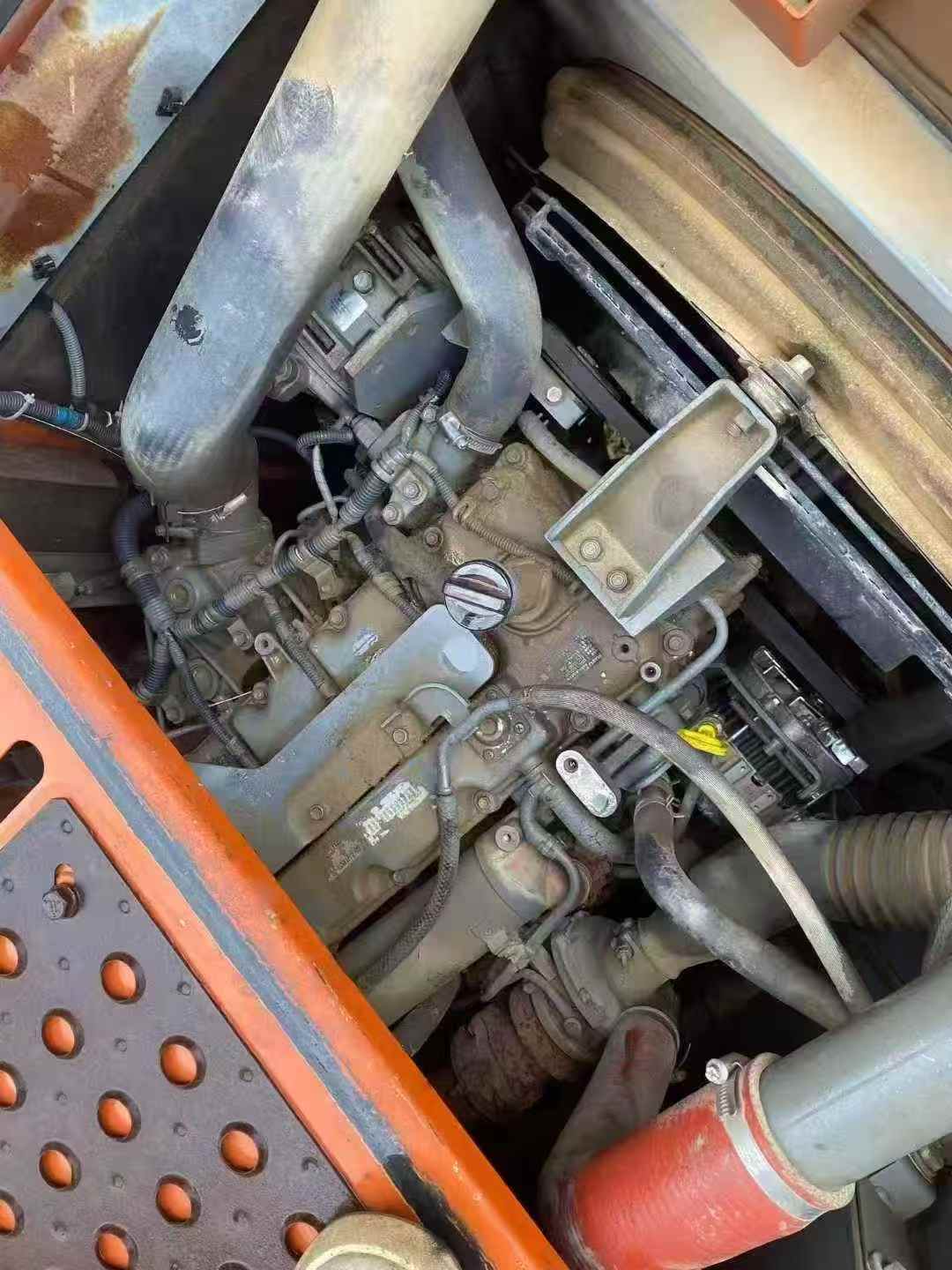

| Engine type | Isuzu GJ-4JJ1XKSA-03 |
| Rated power (kw/rpm) | 69/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 105 |
| Maximum torque (N.m) | 354/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | 4 stroke, water cooled, electrically controlled direct injection |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 104 |
| Rod digging force (kN) | 69 |
| Maximum tractive force (kN) | 117 |
| Travel speed (km/h) | 3.3-5.5 |

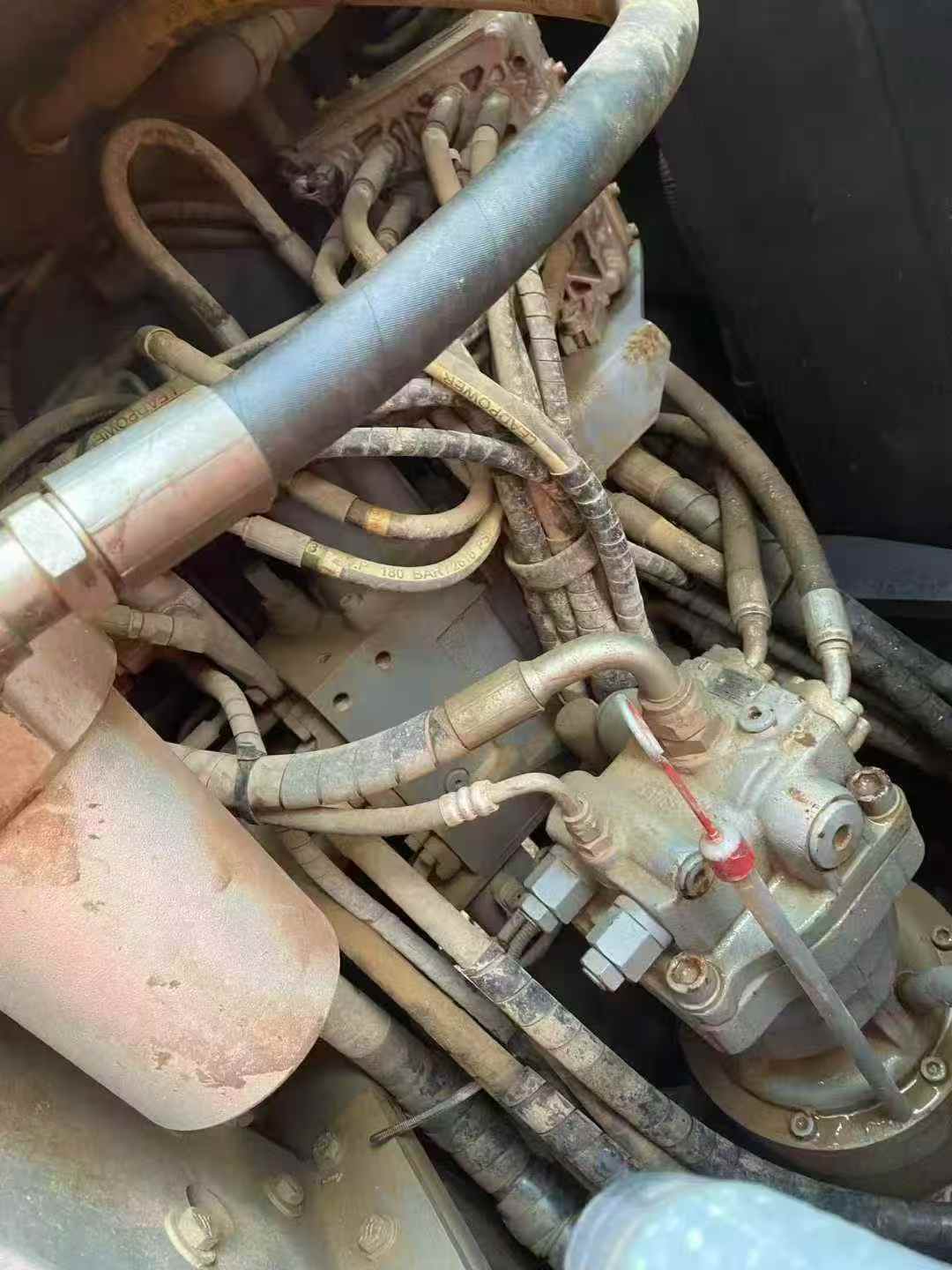

| Rotary hydraulic motor type | 1 swashplate plunger motor |
| Type of walking hydraulic motor | 2 variable swash plate plunger motor |
| Maximum flow of main pump (l/min) | 2 x 117 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Main pump type | 2 variable axial piston pumps |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.0 |
| Pilot pump flow (L/min) | 33.6 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1*100*70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1*115*80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2*105*70 |
| Pilot pump type | 1 gear pump |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 17 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 170 |
| Total transport length (mm) | 7700 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 840 |
| Minimum ground clearance (mm) | 410 |
| Minimum turning radius of front working device (mm) | 2400 |
| Back end turning radius (mm) | 2190 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |

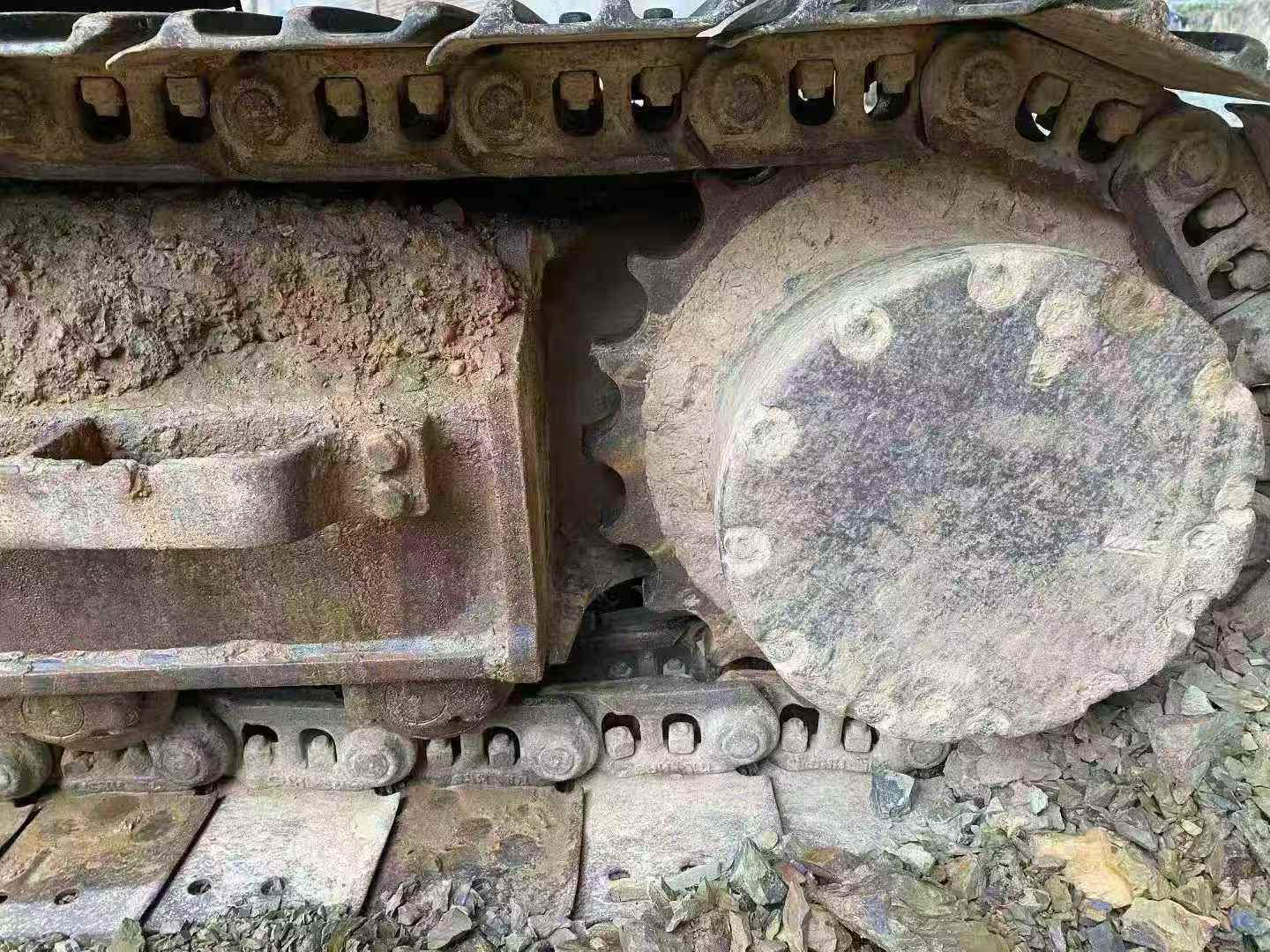

| Track ground length (mm) | 2880 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 44 |
| Maximum digging radius (mm) | 8300 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8600 |
| Maximum unloading height (mm) | 6190 |
| Maximum vertical digging depth (mm) | 4750 |
| Maximum excavation radius of stop surface (mm) | 8170 |
