Product Description

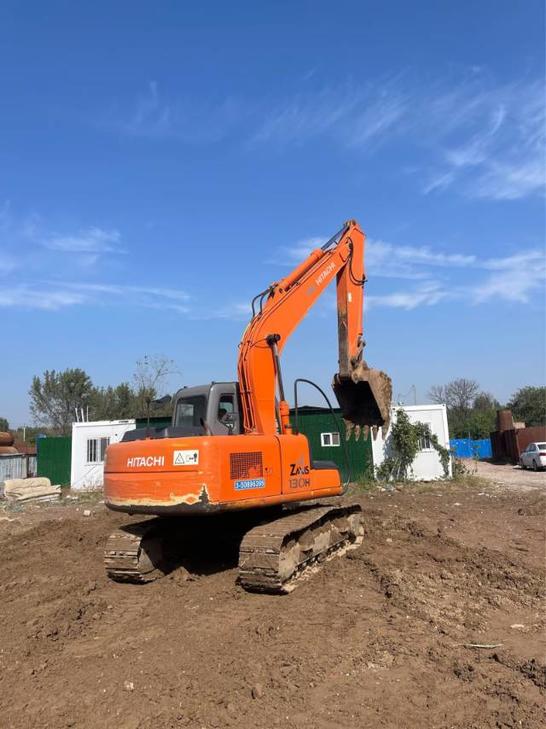

This 2016 Hitachi ZX130H hydraulic excavator is available from Inner Mongolia, China. Sourced directly from active construction operations, this machine has been dedicated to earthmoving applications throughout its service life. The unit demonstrates reliable performance across all major systems, with the engine, hydraulic pump, and hydraulic motor maintaining proper operational integrity without fluid leakage.
Key features include:
- Strong engine output suitable for demanding excavation tasks
- Robust undercarriage assembly with solid track and roller components
- Factory-installed climate control system with functional heating and cooling
- Single-owner work history in earthmoving operations
- Available for inspection and operational demonstration
This ZX130H represents a practical acquisition for contractors seeking proven Hitachi engineering in the mid-size excavator class. The machine is ready for immediate deployment in earthwork, site development, or utility installation projects.
| Specifications | Value |
|---|---|
| No. | 1173603 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.59/0.65 |
| Boom length (mm) | 4600 (H type) |
| Rod length (mm) | 2520/2100 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection; Turbocharging; intercooling |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 102 |
| Travel speed (km/h) | 3.4/5.5 |
| Turning torque (Nm) | 34 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable plunger motor ×2 |
| Maximum flow of main pump (l/min) | 105 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 70 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8140 |
| Maximum effective digging depth (mm) | 5360 |
