Product Description

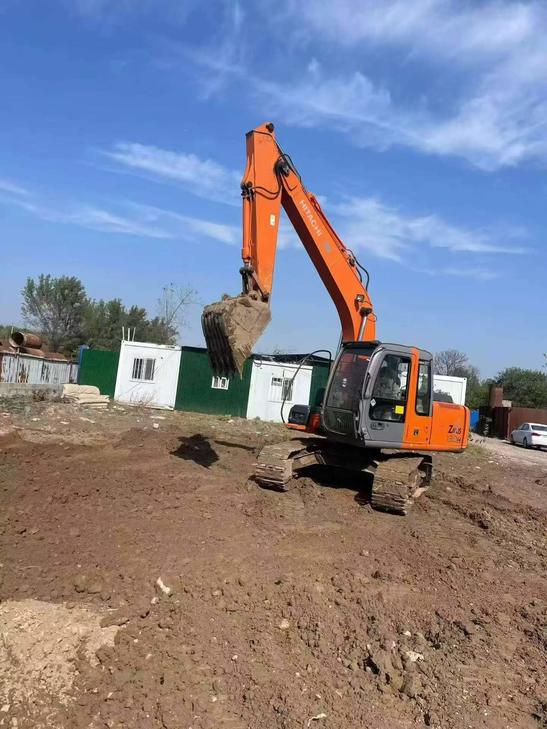

This 2020 Hitachi ZX130H hydraulic excavator represents excellent value in the 13-ton class. Sourced from Beijing, China, this machine has been dedicated exclusively to earthmoving applications without any hammer or breaker attachment use, preserving the integrity of the hydraulic system and structural components.
Key highlights include:
- Clean operational history with earthmoving-only applications
- Well-maintained major components showing minimal wear
- Undercarriage in excellent condition with strong remaining life
- No hydraulic leaks, indicating proper system maintenance
- Straight, well-aligned superstructure and boom assembly
The Hitachi ZX130H offers reliable performance for contractors and earthmoving operations. Detailed photos and video documentation available upon request. This unit is ready for immediate deployment in excavation, trenching, and general construction applications.
| Specifications | Value |
|---|---|
| No. | 1171105 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.59/0.65 |
| Boom length (mm) | 4600 (H type) |
| Rod length (mm) | 2520/2100 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU CC-4BG1TC |
| Rated power (kw/rpm) | 66/2150 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.329 |
| Working form | Direct injection; Turbocharging; intercooling |
| Ground specific pressure (Kpa) | 39 |
| Rotation speed (rpm) | 13.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 99 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 102 |
| Travel speed (km/h) | 3.4/5.5 |
| Turning torque (Nm) | 34 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Axial piston motor ×1 |
| Type of walking hydraulic motor | Variable plunger motor ×2 |
| Maximum flow of main pump (l/min) | 105 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 32.3 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable piston pump ×2+ gear pump ×1 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Pilot pump flow (L/min) | 33 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 70 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-115 x 80 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-105 x 70 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 69(Full box 130) |
| Engine Oil changes (L) | 15.8 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2740 |
| Full cab height (mm) | 2740 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3580 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2880 |
| Maximum digging radius (mm) | 8270 |
| Maximum digging depth (mm) | 5570 |
| Maximum excavation height (mm) | 8550 |
| Maximum unloading height (mm) | 6140 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8140 |
| Maximum effective digging depth (mm) | 5360 |
